Configure the app route to use an existing subpage

  • Release version: Australia
  • Updated March 12, 2026
  • 1 minute to read

    • Create an app route to make an existing page a part of the page collection. For example, the dynamic related record is a global subpage that you can use at any application level.

    Before you begin

    Role required: admin

    About this task

    Configuring an app route enables you to utilize an existing page in a page collection. This is applicable to both page templates and page variants.

    Procedure

    1. Navigate to All > Now Experience Framework > UI Builder.
    2. Select the Page collection tab and then select CSM default record pre-tabs from the Page Collections list.
    3. In the CSM default record pre-tabs page, select View page collection settings in the upper right corner.
    4. In the General section, select Open page collection.
      The system opens the UX Extension Point page for CSM default record pre-tabs.
    5. Navigate to the UX App Routes related list.
    6. Select New to create an app route.
    7. Enter a name In the Name field, a route in the Route field, and then select the Screen Collection that you want to reuse.

      The route is the path that the system uses to reach the page collection. For example, some common routes in CSM Configurable Workspace include record, list, and create_case_type for the Create Case modal.

      You can also create a screen collection by selecting New on the UX Screen Collections pop-up window and entering the name, route, and screen collection.

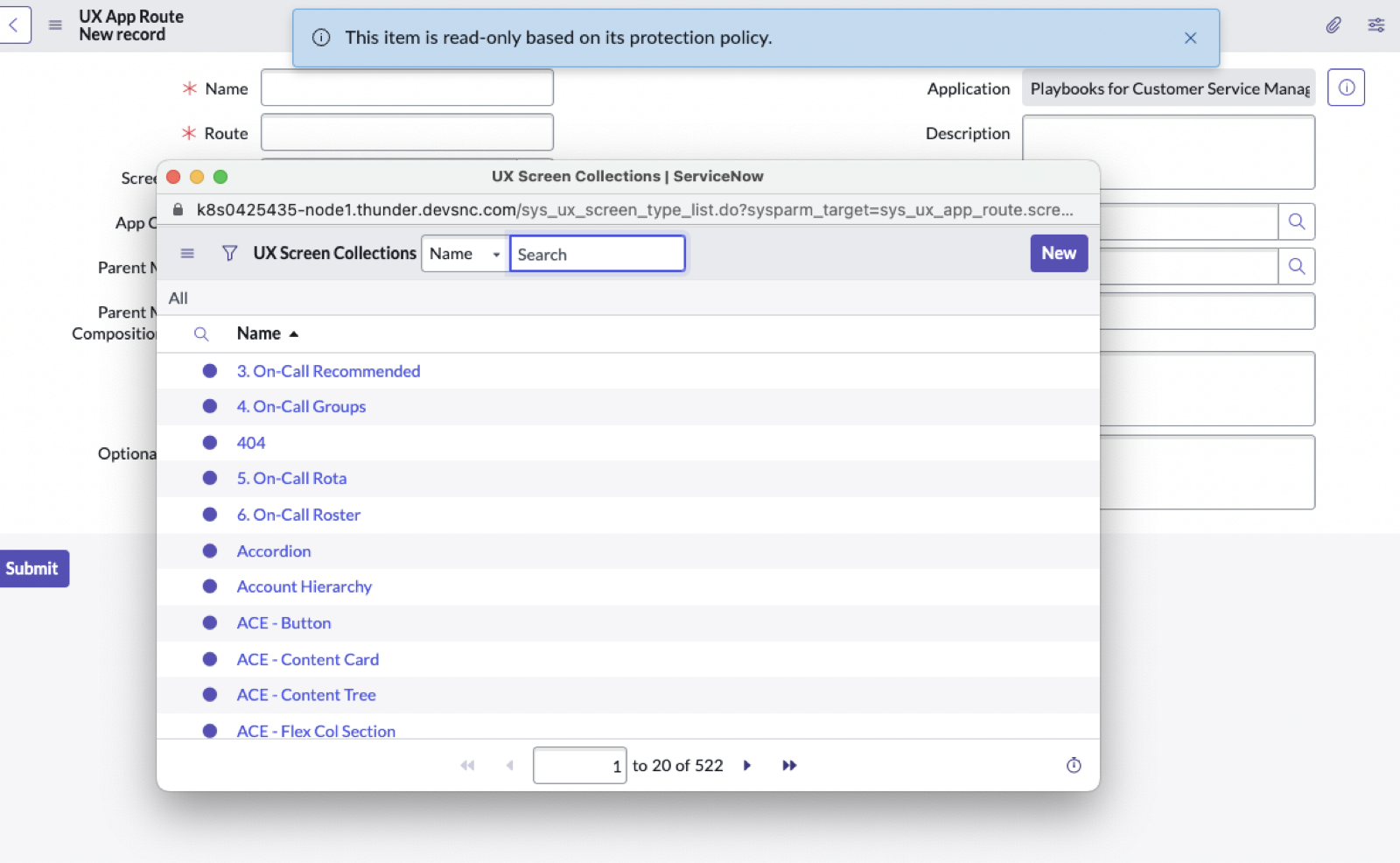

      Figure 1. UX Screen Collections pop-up window
      Select a UX Screen Collections name or create a new one by selecting New.
    8. Select Submit to create the app route.

    Result

    The system adds the subpage to the page collection.
