Embed Engagement Messenger in your web application

Embed the source code of the messenger module that you configured in your website so that you can enable your customers to start using Engagement Messenger in your website.

Before you begin

• Activate an Engagement Messenger module.
• Role required: sn_csm_ec.ec_admin

About this task

Copy the source code of the messenger module that you activated and paste it in the HTML file of the website where you want to deploy the messenger.

Next, depending on the authentication type that you selected for your configured messenger module, you may have to write code for functions to get the ID token and to start and stop the session for a logged-in user in the messenger.

Procedure

1. Navigate to All > Engagement Messenger > Modules.
2. In the Edit module column of the messenger module that you want to install in your website, click Edit.
   The guided configuration view is displayed.
3. Click the Implement tab.
4. If you have done any changes to the Security settings section, click Save.
   The code of the Engagement Messenger module is updated.
5. Scroll down to the Embed code section and click Copy code.
6. Open the HTML file of your website and paste the copied code before the closing body tag.
7. For a messenger module with OIDC-based or SAMl-based authentication, complete the following configuration.

   Authentication type	Action
   OIDC-based	Write code for the getTokenCallBack() function. Call the SN_CSM_EC.onLogin() function whenever users log in to your website. This function enables authenticated users to log in to Engagement Messenger seamlessly when they log in to your website. Call the SN_CSM_EC.onLogout() function whenever users log out from your website. This function enables authenticated users to seamlessly log out from Engagement Messenger and your website.
   SAML-based	Call the SN_CSM_EC.onLogin() function whenever users log in to your website. This function enables authenticated users to log in to Engagement Messenger seamlessly when they log in to your website. Call the SN_CSM_EC.onLogout() function whenever users log out from your website. This function enables authenticated users to seamlessly log out from Engagement Messenger and your website.

   Note:

   For more information about setup for OIDC and SAML-based authentication, see Setting up auto login and logout for Engagement Messenger [KB1560205] article in the Now Support Knowledge Base.
8. If you enabled the walk-up feature for unauthenticated users, uncomment the //guestWalkupBaseUrl code line and complete the configuration by entering the base URL of your customer support portal.

   For example, if your customer support portal is https://www.example.com/support, then update the code to guestWalkupBaseUrl = https://www.example.com/support

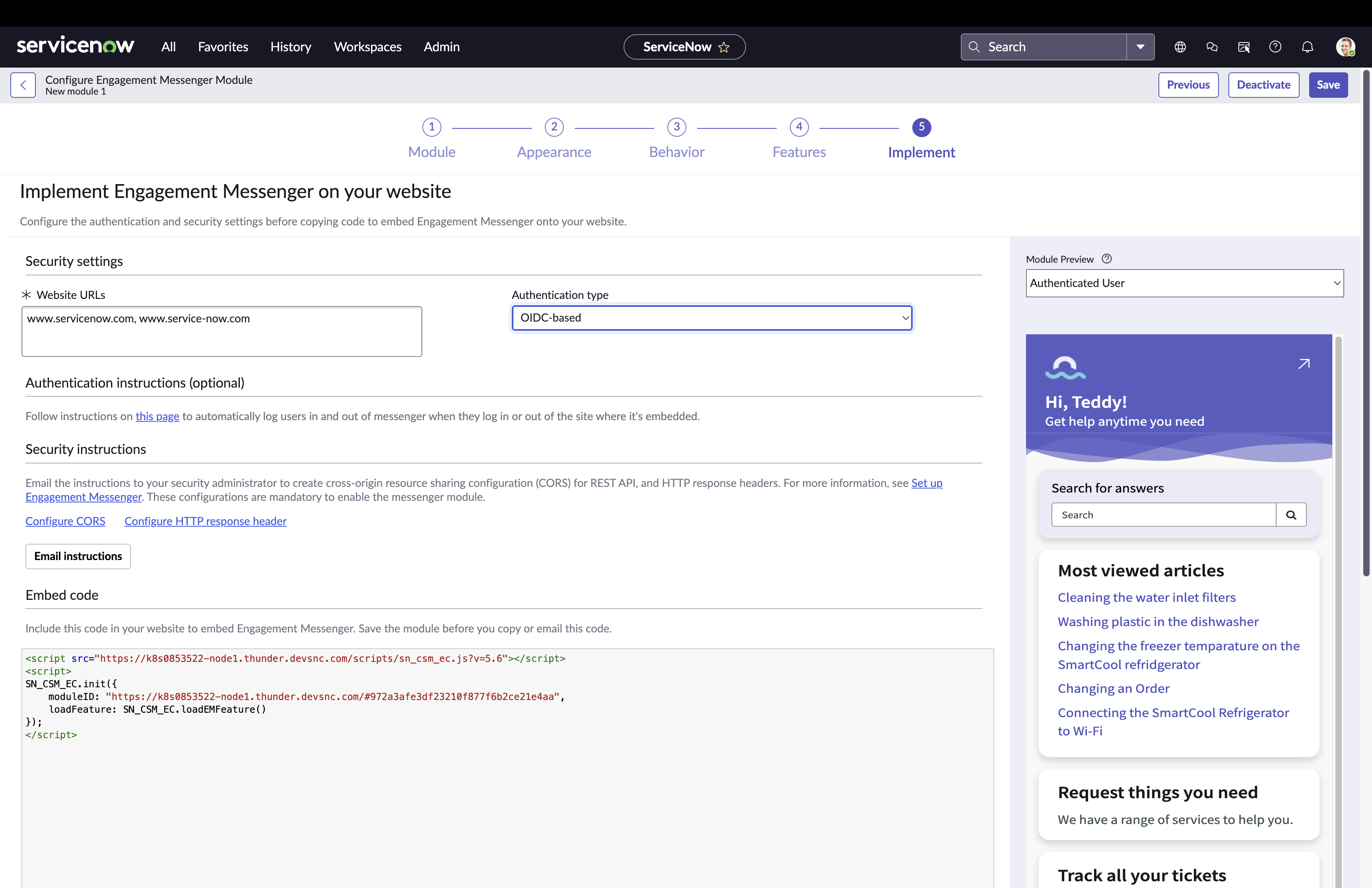

   Figure 1. Copy Engagement Messenger code



9. Optional: To modify the embed code to set the preferred language in which Engagement Messenger is displayed, do one of the following.

   Option	Description
   lang: {ISO-locale code}	Enables you to load Engagement Messenger with a fixed language.
   setLang : getEMLanguage	Allows you to dynamically switch the language in which Engagement Messenger is displayed. The getEMLanguage value can return any ISO-locale code which can be used for messenger language.

   The setLang : getEMLanguage function takes preference when both parameters are available. However, if the user has set the preferred language in the [sys_user_preference] table, Engagement Messenger will be displayed in that language.

   Note:

   Beginning with the Australia release, the upgraded customers can also modify the embed code to enable language switching.
10. Optional: Open the website to which you added the Engagement Messenger code to verify that the launcher icon is available and click the icon to verify that it launches Engagement Messenger.
11. Optional: Modify the embed code of Engagement Messenger to integrate Proactive Recommendations on a web page.
    For more information on using Engagement Messenger to integrate Proactive Recommendations on a web page, see Use Engagement Messenger embed Code to integrate proactive recommendations on a web page.

What to do next

Open the website that you added the Engagement Messenger code to and verify that the launcher icon of the messenger is available. Click the icon to launch the Engagement Messenger.

You can also embed Engagement Messenger in your native iOS and android applications using Now Mobile SDK:

• Embed Engagement Messenger in a native iOS app using Now Mobile SDK [KB1587276]
• Embed Engagement Messenger in a native android app using Now Mobile SDK [KB1587611]
