Install base hierarchy visualization

Use the Install Base Hierarchy tab on the CSM Configurable Workspace to view the parent-child hierarchy structure of an install base item.

The install base hierarchy provides a node map of both parent and child items associated with an install base item. The hierarchy node begins with the install base item that is currently open. The node map extends toward both the root install base item and the child install base item up to seven levels of hierarchy.

The first level of the install base hierarchy node map always displays the child items associated with the current install base item. Select the levels from the level selector to view the number if install base levels associated with the current install base item.

For example, select Level 1 with the current install base item as the home node, to view all the child items associated with it. Subsequently, at Level 2, set one of the child install base items as a home node to have further insight into its own child items. The number of child items are denoted by a number badge next to the install base node. You can continue to expand the hierarchy structure up to the seventh level or to 250 nodes, whichever comes first.

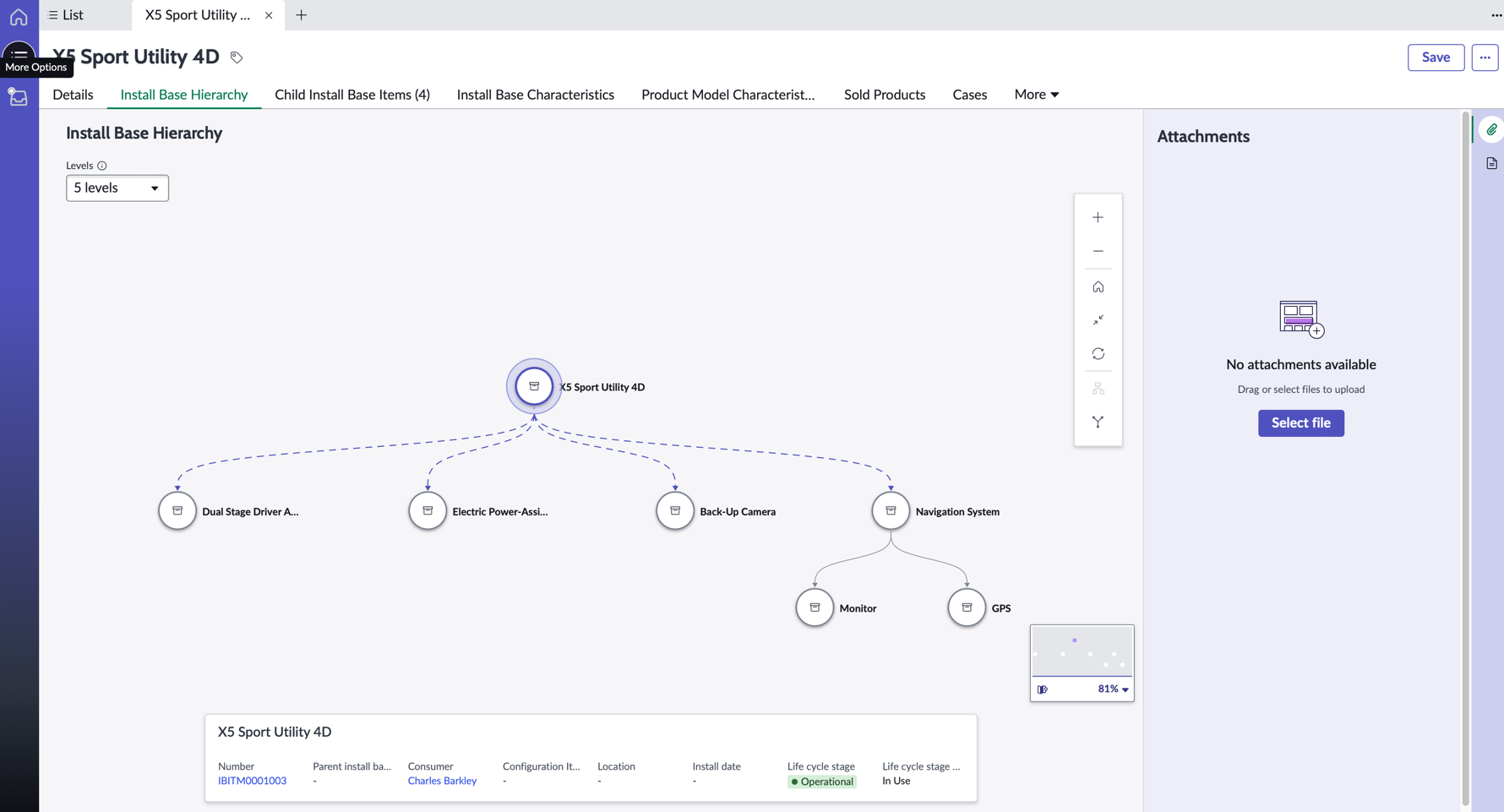

Figure 1. Hierarchy structure for install base items

Note:

Badges against child items aren't displayed beyond the seventh level of hierarchy. To view the hierarchy beyond the seven levels, set any one of the install base items in the hierarchy as the home node.

You can use the hierarchy structure of an install base item to perform the following contextual actions on individual nodes.

• Set any node as a home node.
• Create a case from the node.

  To learn about different case types and how to create a case from an install base node, see Customer service case types.

• View details of a node. This opens up the entire record of the install base item.

View the details of any install base that is selected in the hierarchy structure on the record card.

Note:

Select the Number, Parent install base item, Account, Configuration item, and Location fields on the record card to navigate to the install base record.
