Configuring Guided Decisions

  • Release version: Australia
  • Updated March 12, 2026
  • 3 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Configuring Guided Decisions

    The Guided Decisions Experience application in ServiceNow enables the creation of structured troubleshooting processes for agents, allowing them to address complex customer issues efficiently through decision tree flows. These flows guide agents by asking context-based questions and providing next steps based on their responses, streamlining issue resolution.

    Show full answer Show less

    Key Features

    • Decision Trees: Agents can utilize decision trees to troubleshoot various issues, such as device malfunctions, refund requests, and password resets.
    • Reuse Functionality: Link inputs between nodes and child trees to simplify the creation of new decision trees by reusing existing ones.
    • Edit Responses: Users can modify their answers in previous nodes, enhancing flexibility during the troubleshooting process.
    • Creation Experiences: Decision trees can be created using the Decision Tree Builder for graphical representations or through the Core UI for form-based editing.

    Key Outcomes

    To set up the Guided Decisions Experience, administrators must install the application, assign appropriate roles, and integrate the Recommended Actions application. Decision tree authors can create and implement decision trees across various platforms, including recommended actions, playbooks, and the Service Portal, facilitating agent and customer interactions with the troubleshooting processes effectively.

    Create structured troubleshooting processes for your agents through the ServiceNow® Guided Decisions Experience application. Help your agents solve complex issues in a consistent way.

    The Guided Decisions Experience application is a tool for authoring and running decision tree flows. A decision tree walks an agent through a troubleshooting process based on a record context. The process asks a series of questions and the agent provides the answers. Based on those answers, the agent receives guidance on the next steps to take in the resolution process. Agents can resolve complex issues faster and more efficiently. For more information, see Decision trees in Guided decision.

    Scenarios for using decision trees

    Decision trees can help agents resolve the following types of customer issues:
    • Troubleshoot a faulty device, such as a laptop that doesn't work. Use a decision tree to find the cause and provide a fix for the customer.
    • Review a refund request. Use a decision tree to determine whether the customer is eligible for a refund, which can include checking for exceptions and creating tasks.
    • Reset a customer's password. Use a decision tree to walk the agent through the process, such as verifying the customer's identity, trying other options, and, if needed, resetting the password.

    For an example of end-to-end configuration of a decision tree for a specific scenario, see Example configuration of a decision tree.

    Guided Decisions features

    • Reuse values in a decision tree by linking inputs in question and guidance nodes. You can also link inputs of a child tree to a parent tree.
    • Link an activated decision tree to your current decision tree to reuse other decision trees and reduce effort in creating new ones. The linked decision tree acts as a child tree to the current decision tree.
    • Enable users to edit their responses in the previous question nodes or a guidance node.

      In a nested decision tree, users can navigate back to the previous node of a parent tree from a child tree.

    Guided Decisions experiences

    The Guided Decisions Experience application provides two different experiences for creating and editing decision trees: through the Decision Tree Builder or the Core UI.
    • Create a graphical diagrammatic representation of nodes and their paths in a troubleshooting process through the Decision Tree Builder. For more information, see Decision trees in Decision Tree Builder.
    • Use forms and lists and edit existing decision trees through the Core UI. For more information, see Decision trees in Core UI.

    Setting up the Guided Decisions Experience application

    As an admin, set up the Guided Decisions Experience application to enable users to create and run decision trees by completing the following setup tasks:

    Creating and using decision trees

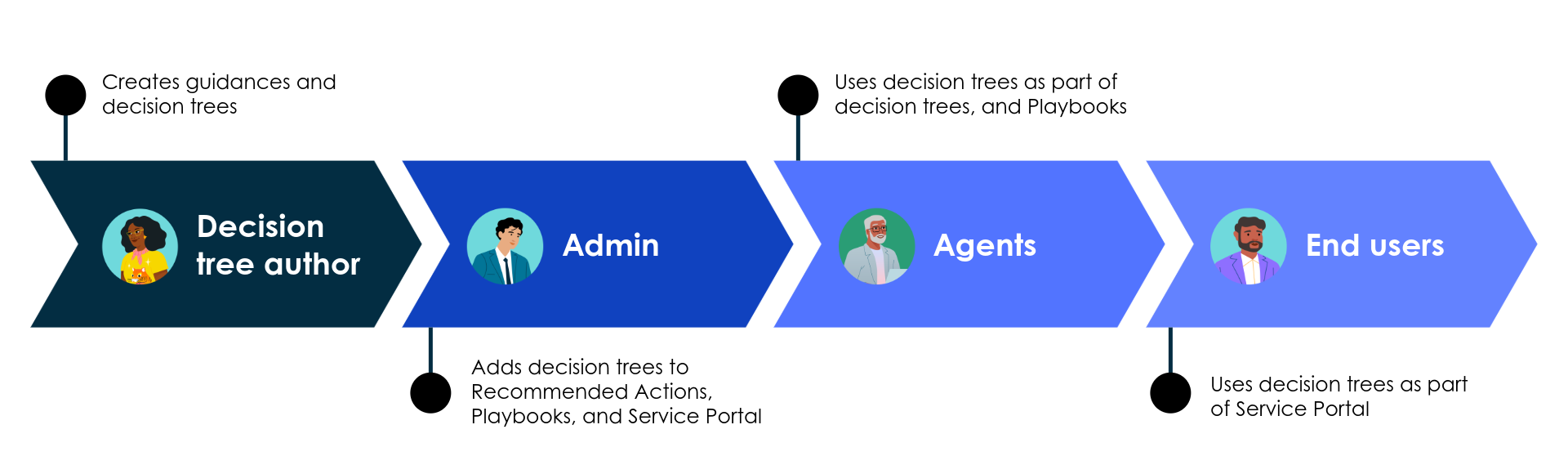

    Flowchart displaying process of creating decision trees, implementing them, and then using them by different persona.

    Users with the decision tree author role (decision_tree_author) create decision trees. After creating a decision tree, the decision tree is implemented by adding it to a recommended action, playbook, or Service Portal. For more information, see the following topics:

    Agents interact with decision trees as part of a recommended action or as part of a playbook within a record, such as a case.

    Customers and end-users interact with decision trees on Service Portal.

    For guided decisions that are added to playbooks, agents can work through the decision trees and complete actions suggested in the guidance as part of a playbook stage or activity. How the agent interacts with the decision tree depends on the playbook configuration. For more information, see the following topics:

    Request apps from the ServiceNow Store

    Visit the ServiceNow Store to view all the available apps, and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.
