Create an Ansible configuration management provider and run Discovery

  • Freigeben Version: Australia
  • Aktualisiert 12. März 2026
  • 2 Minuten Lesedauer

    • Create an Ansible configuration management provider, and then run Discovery on the provider to find its resources.

    Vorbereitungen

    • Ensure to have an Ansible server and Ansible credentials.
    • If you want to use Ansible Tower version 3.6.x or higher, ensure to set the mid.cmp.ansible.api_version property to V2. You can access this property under the Properties section of the Mid Server module.
    • Role required: cloud_admin

    Warum und wann dieser Vorgang ausgeführt wird

    Wichtig:
    Starting with the Orlando release, the cloud provisioning blueprints are available on instances upgraded from a previous release, but you cannot create a blueprint. Existing blueprints and catalog items created from those blueprints remain unaffected and continue to work.

    Prozedur

    1. In the Cloud Admin Portal, navigate to Manage > Config Management.
    2. Select New.
    3. On the form fill in the fields.
      Hinweis:
      Most information required to create an Ansible configuration management provider comes from the Ansible Tower server settings.
      Field Description
      Name Descriptive name for the configuration provider.
      Organization Ansible Tower organization for access control

      You can obtain this information from the configuration management provider console.
      URL URL of the Ansible Tower.

      Enter the full URL of the Ansible Tower including the https://<IP> protocol.
      Provider Configuration provider type.

      Select Ansible Tower from the drop-down list.
      Server Type Ansible Tower server type.
      Credential Credentials to access the Ansible server.

      For more information on creating credential for Ansible server, see Ansible credentials.
      Version Version of the configuration provider you are creating.
      Hinweis:
      For Ansible Tower versions higher than 3.1.2, select 3.4.0 from the list.
    4. Select Submit.

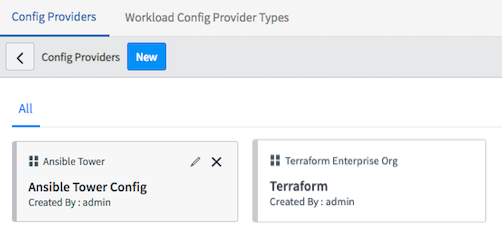

    5. Select the Ansible Tower configuration provider card.

      Config providers

    6. Select Discover Now to find the resources in the Ansible configuration management provider.
      Hinweis:
      If you provision or otherwise change resources through the configuration management provider interface, you must manually run discovery again through the Config Providers page. You cannot create a scheduled discovery for configuration management providers.
      The discovered resources appear under Entities.
      The following Ansible Tower resources are discovered:
      • Ansible Inventory: Displays the discovered applications and virtual resources.
      • Cfg Installable: Displays theactual components that run when the applications install. For Ansible, the items in this list are job templates, which are also referred to as runlists in this form.

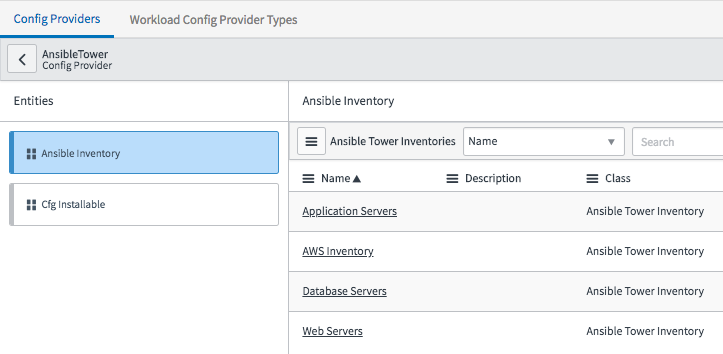

      Abbildung : 1. Example Ansible Inventory
      Example Ansible inventories

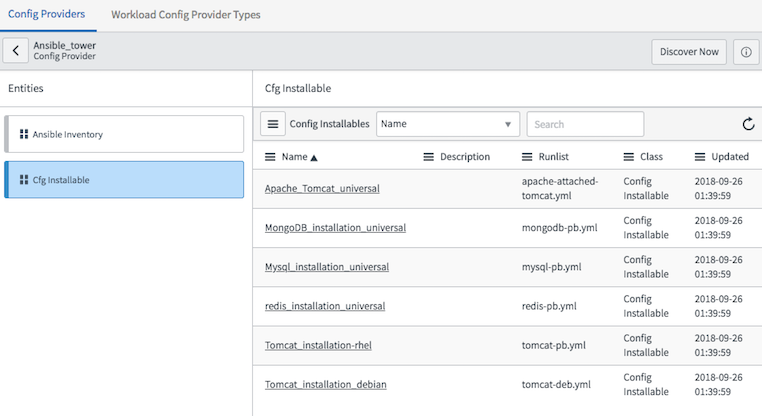

      Abbildung : 2. Ansible config installables (job templates)
      Ansible resources
    7. Select Ansible Inventory to explore the contents.
      Hinweis:
      Communicate the supported applications to users so they can select the correct application from the Hostgroup field in the Cloud User Portal. The Hostgroup field shows all possible applications (called Groups in Ansible), not just the ones that the configuration management provider supports. Therefore, the provisioning fails when the user selects an unsupported application.

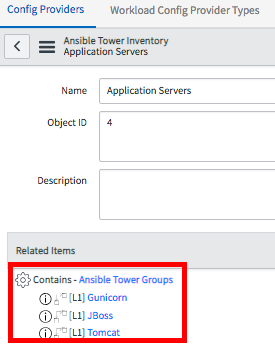

      Abbildung : 3. Ansible Tower groups within an inventory
      Ansible Tower groups within an inventory

    Nächste Maßnahme

    After a user provisions a resource, the Stack Status indicates how the system runs through the Create node, Bootstrap, and ExecuteConfigPackage steps. You can obtain the IP address of a virtual machine in the User Portal by navigating to Stacks > {category} and selecting the new virtual machine. Open the configuration management provider server to see the newly provisioned resource on the node that the user specified.
