Configure a connection to send OAuth request via the MID Server using external vault

Configure a connection to send requests for OAuth 2.0 tokens to a third-party auth server via the MID Server. The MID Server adds OAuth 2.0 credentials (Client ID and Client Secret) from the CyberArk external vault, OAuth scope, and token URL from the instance to the request and sends them to the third-party auth server.

Vorbereitungen

Verify the following items.

• Confirm that you have subscribed to the ServiceNow IntegrationHub Standard Pack Installer. For more information, see https://www.servicenow.com/content/dam/servicenow-assets/public/en-us/doc-type/legal/snc-addendum-integrationhub.pdf.
• You have created a JAR file that enables the MID Server to resolve credentials with the CyberArk external vault. See Create a JAR file to resolve credentials.
• You have imported the JAR file to the MID Server.
• The MID Server is set up for CyberArk. See Configure the MID Server for CyberArk AIM.
• OAuth 2.0 are configured on the CyberArk external storage. See Configure OAuth 2.0 credentials on CyberArk.

Role required: none

Warum und wann dieser Vorgang ausgeführt wird

You can configure the connection and credential with a configuration template or manually. A configuration template defines the connection record form components and is reusable for other connection records. Manually, you can configure the connection for this purpose only. The topic shows both approaches.

Prozedur

1. Configure the connection with a configuration template.
   1. Navigate to All > IntegrationHub > Configuration Templates.
   2. Select New.
   3. Select HTTP Connection with OAuth Client Credentials grant type (External Storage).
   4. Update the form, as required.
      For example, you can provide the scope in the oauth_entity_profile_scope and oauth_entity_scope fields in the Default Data Template section. To learn to create a configuration template, see Create a configuration template.
   5. Select Submit.
      You have created the configuration template.
   6. Navigate to All > IntegrationHub > Connection & Credential Aliases.
   7. Update the form.

      Tabelle : 1. Connection and credential alias

      Field	Description
      Name	Name of the alias. An alias can only contain alpha, number, and underscore characters. During an upgrade, the tag in the credential record migrates to a Connection & Credential Alias. If the credential tag contains special characters other than alphabets, numbers, and underscores, it preserves the tag name after the upgrade. You can still use this migrated alias, but you cannot update the alias until you change the name to meet the naming restrictions.
      Application	Unique identifier for the Connections & Credentials alias, based on the format scope_name.alias_name. If the scope is Global, the ID is the alias name. For example, if you create a Workday alias in the global scope, it sets the ID to workday. If you create a workday alias in the HR app scope, it sets the ID to x_hr_app.workday.
      Parent Alias	Option to select the alias under which you're creating this connection and credential alias. The connection and credential alias that you're creating is a child alias. A child alias is listed under the Child Aliases tab on the parent connection and credential alias page.
      Type	Option to indicate the type of alias you're creating. Choose from the following options. Credential: Alias that contains a credential record. Connection and Credential: Alias that contains both connection and credential record. This option is selected by default. Confirm that Connection and Credential is selected.
      Support Multiple Active Connections	Designator that indicates whether the alias supports multiple active connections. Add connections using the Connections table and associated them to the alias using the Connections related list.
      Default Retry Policy	Retry policy for the alias. For more information, see Retry policy.
      Configuration Template	Option to select the configuration template based on which you're creating the connection and credential alias. Select the template of the type HTTP Connection with OAuth Client Credentials grant type (External Storage) that you had created.

   8. Select Submit.
      You have created the connection and credential alias record.
   9. Navigate to All > IntegrationHub > Connections Dashboard.
   10. In the Search all connections field, enter the name of the connection and credential alias record that you created.
   11. On the connection and credential alias record, select View Details.
   12. Select Configure.
   13. Fill the form.

       Tabelle : 2. Configure Connection form

       Field	Description
       Connection Name	Name of the connection. You can't update the name.
       Connection URL	URL to the third-party server.
       Use MID	Option to enable MID Server. Wichtig: Confirm that the option is selected.
       MID Selection	Option to specify MID Configuration for Connection. Specific MID Server: Option to indicate a manual selection of a specific MID Server. Auto-Select MID-Server: Option to indicate that you want the MID Server automatically selected. Specific MID Cluster: Option to indicate a manual selection of a MID cluster of MID Servers. Wichtig: Confirm that the MID Server you select resides on the same machine as the CyberArk AIM Client that is configured to access the CyberArk vault. See Configure the CyberArk vault and install the AIM API.
       MID Server	Option to manually specify a MID Server. This option appears if you select Specific MID Server in the MID Selection field.
       MID Cluster	Option to manually specify a MID Cluster. This option appears if you select Specific MID Cluster in the MID Selection field.
       External Credential Store	Option to use the CyberArk external credential storage. When you select the option, the MID Server gets the OAuth 2.0 credentials (Client ID and Client secret) from the external credential storage. Wichtig: Confirm that the option is selected.
       Credential ID	Identifier for the CyberArk account that holds the Client ID and Client Secret details. To view the procedure to get the credential identifier, see Configure OAuth 2.0 credentials on CyberArk. In the Credential ID field, enter an expression using one of these formats. If all your credentials are in the same safe, configure this safe name in the MID Server config.xml file using the ext.cred.safe_name parameter, and then specify the credential ID by name only, as <credential ID>. To name credentials for a given platform that reside is a specific safe, define the credential ID as <safe>:<credential ID>:<platform ID>. If your credentials are in multiple safes, specify the credential ID in this format: <safe>:<credential ID>.
       OAuth Token URL	URL that specifies the endpoint to get the access token from the OAuth server.

   14. Select Configure Connection.
2. Configure a connection manually.
   1. Navigate to All > System OAuth > Application Registry.
   2. Select New.
   3. Select Connect to a third party OAuth Provider using an external vault.
   4. Fill the form.

      Tabelle : 3. New application registry details

      Field	Description
      Name	Name to identify the application registry record. For example, enter: OAuth 2.0 token request via MID app.
      Application	Option to specify the names of applications that can access this application registry. The field is read only.
      Default Grant type	Default method to obtain access token by the client application from the OAuth server. The default and read-only grant type is Client Credentials.
      Accessible from	Option to specify which applications can access this application registry.
      Token URL	URL that specifies the endpoint to get the access token from the OAuth server.
      Send Credentials	Option to specify the method of sending the OAuth 2.0 in the request body.
      Comments	Enter related comments.

   5. Under the OAuth scope column, create one or more OAuth scopes by doing the following steps.
      1. Under the Name column, double-click the field and enter a name of the OAuth scope.
      2. Under the OAuth scope column, double-click the field and enter the scope.
   6. Select Submit.
      You have created an OAuth entity profile and the application registry.
   7. Navigate to All > IntegrationHub > Connections & Credentials > Credentials.
   8. Select New.
   9. Select OAuth 2.0 Credentials.
   10. Select External Storage View.
       Wichtig:

       Select External Storage View only if the view is different from that of an OAuth 2.0 credentials external storage form.
   11. Fill the form.

       Tabelle : 4. OAuth 2.0 Credentials

       Field	Description
       Name	Name of the credential record.
       Applies to	Option to specify if the credential record is applicable for all MID Servers, or a specific MID Server. If specific, add the MID Servers. Choose from either of the following options. All MID Servers: The MID Server is automatically selected from a collection of MID Servers. Specific MID Servers: Option to specify one or more MID Servers.
       MID Servers	Option to specify one or more MID Servers. Hinweis: This field appears if you select Specific MID Servers in the Applies to field.
       Active	Option to specify whether the credential record is available for use. By default, it's available.
       OAuth Entity Profile	Option to specify an OAuth entity profile that the credential uses. Select the OAuth entity profile you had created above. See Configure an OAuth entity profile.
       External credential store	Option to specify that the credentials are stored in an external storage and not in the ServiceNow instance. Wichtig: Confirm that the option is selected.
       Credential ID	Option to specify credential identifier for the CyberArk account which holds Client ID and Client Secret. To view the procedure to get the credential identifier, see Configure OAuth 2.0 credentials on CyberArk.
       Credential storage vault	Option to specify the name of the external credential storage vault. Verify that you have selected CyberArk.

   12. Select Submit.
       You have created the credential record.
   13. Create a connection and credential alias.
       To know the steps, see Create a Connection & Credential alias.
   14. Navigate to All > IntegrationHub > Connections.
   15. Select New.
   16. Select HTTP(s) Connection.
   17. Fill the form.

       Tabelle : 5. Connection form

       Field	Description
       Name	Unique name of this HTTP(s) connection.
       Active	Option to set the connection that you're creating active. The option is selected by default.
       Credential	Select the credential record used to authorize the connection. Select the credential that you had created above.
       Connection alias	Select the alias record to associate with this connection. Using an alias enables you to update the connection record without having to reconfigure any actions or activities that use the alias.
       URL builder	Either manually enter the connection URL or use system to build the URL based on the inputs. Default is unchecked. If checked, the connection URL is calculated from the following fields: Mutual authentication — Check box if mutual authentication is used. Protocol — If mutual authentication is not used, enter protocol. The default is HTTPs. Protocol profile — If mutual authentication is used, enter protocol profile from sys_protocol_profile. Host Port Base path — Path of the connection string. Hinweis: If mutual authentication is checked, connection URL is built: Protocol + :// + host:port +URL. If mutual authentication is unchecked, connection URL is built: Protocol profile + :// + host:port +URL
       Connection URL	If URL builder is unchecked, enter the connection URL into this field. Hinweis: If mutual authentication is checked, connection URL is built: Protocol + :// + host:port +URL. If mutual authentication is unchecked, connection URL is built: Protocol profile + :// + host:port +URL
       Use MID server	Option to specify that you want to send OAuth token requests via a MID Server. Wichtig: Confirm that the option is selected.
       Connection timeout	Number of milliseconds the system waits for a successful host connection. If a successful connection does not occur during this time, the connection request times out. Leave this field empty to use the system default connection timeout value.
       MID Selection	Option to specify one of the following options. Auto-Select MID Server: Selects from MID Servers based on MID Server criteria, regardless of whether they are members of a cluster. Specific MID Server: Manually select a MID Server. Specific MID Cluster: Automatic reassignment to another MID Server only selects from members of the specified cluster. Wichtig: Confirm that the MID Server you select resides on the same machine as the CyberArk AIM Client that is configured to access the CyberArk vault. See Configure the CyberArk vault and install the AIM API.
       Capabilities	Option to select one or more MID Server capabilities. Capabilities define the specific functions of a MID Server within an IP address range, allowing an application to select the most appropriate MID Server. Select the MID capabilities icon () to select one or more capabilities. Hinweis: Confirm that the MID Server you select resides on the same machine as the CyberArk AIM Client that is configured to access the CyberArk vault. See Configure the CyberArk vault and install the AIM API. This option appears if you select Auto-Select MID Server in the MID Selection field.
       MID Server	Manually select a MID Server. This option appears if you select Specific MID Server from the MID Selection field.
       MID Cluster	Manually select a MID cluster. This option appears if you select Specific MID Cluster from the MID Selection field.
       MID Application	Option to specify a MID application or accept the default application choice. Hinweis: This option appears if you select Auto-Select MID Server in the MID Selection field. By default, the ALL option is selected.

   18. Select Submit.
       You've created an HTTP(s) connection record.
   19. Navigate to All > Process Automation > IntegrationHub > Connections Dashboard.
   20. In the Search all connections field, enter the name of the connection record that you created.
       The connection alias record appears.

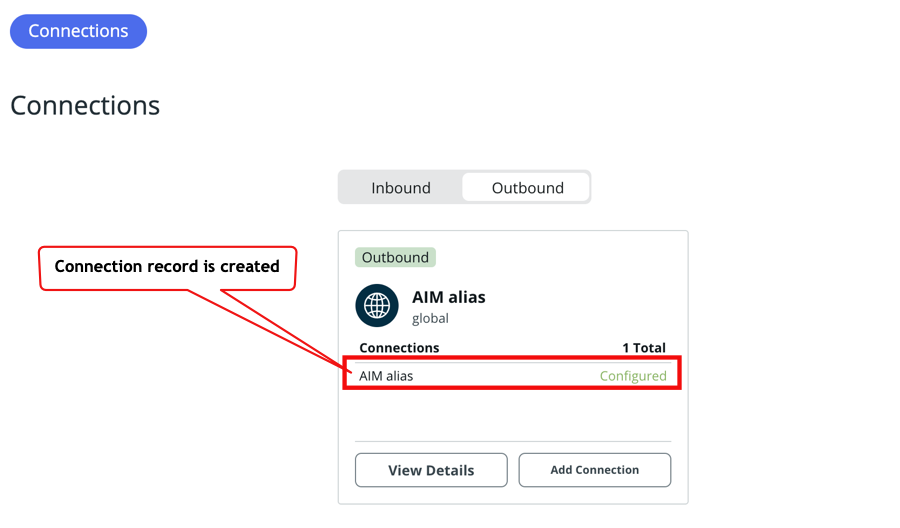

       Abbildung : 1. OAuth 2.0 connection record is created
