Enable a detailed data display within a report

  • Release version: Australia
  • Updated March 12, 2026
  • 1 minute to read

    • Enable users to visualize a subset of report data.

    Before you begin

    Role required: sn_hr_agent_ws.admin and sn_hr_core.basic

    Procedure

    1. Navigate to All > HR Case Management > UI Builder for Agent Workspace for HR Case Management.
    2. Select your variant.
    3. Select the container containing your report.
    4. In the Configuration panel, select Data update.
    5. Turn on the Enable drilldown option.

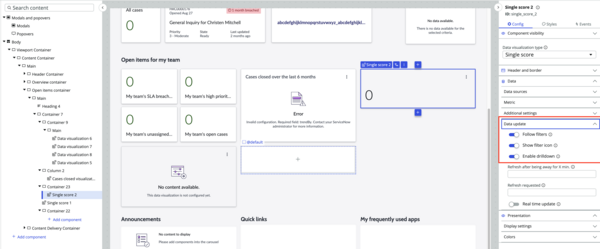

      Configuration panel showing Enable drilldown toggle switch turned on for data visualization component
    6. In the Events panel, select +Add event handler to map the data that is displayed when the user drills down on the report.

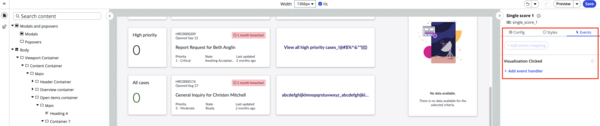

      Events panel with Add event handler button for mapping drilldown data display
    7. In the Search item field, enter Open cases - simple list page.
    8. Select Open cases - simple list page.
    9. Select Add.
    10. Select Save.
