Set up the Infoblox spoke

Integrate the ServiceNow instance and Infoblox using basic authentication to authenticate ServiceNow requests.

Avant de commencer

• Request an Integration Hub subscription.
• Activate the Infoblox spoke.
• Role required: admin.

Create a Connection and Credential Alias for Infoblox spoke

Create Connection records to your Infoblox account. The Infoblox spoke connection and credential aliases use these connections to perform actions in Infoblox.

Avant de commencer

Role required: admin

Procédure

1. Navigate to All > IntegrationHub > Connections & Credentials > Connection & Credential Aliases.
2. Open the Infoblox record.
3. From the Related Links section, click Create New Connection & Credential.

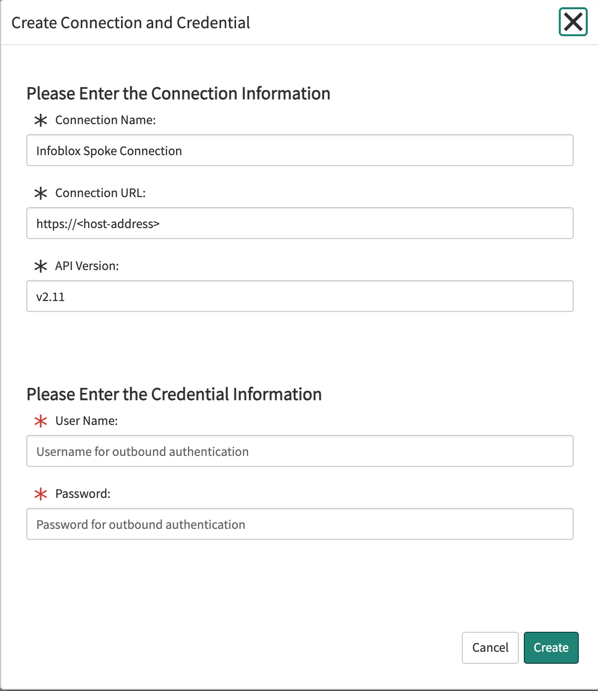

4. On the form, fill in these fields:

   Field	Description
   Connection Name	Unique name to identify the connection. For example, Infoblox Spoke Connection.
   Connection URL	Host URL to connect to your Infoblox account.
   API Version	API version of Inblox. This field is auto-populated to v2.11
   User Name	User name of your Infoblox account.
   Password	Password of your Infoblox account.


5. Click Create.
