Set up the Microsoft Active Directory v2 spoke

Integrate the ServiceNow instance and the Microsoft Active Directory v2 spoke by using the Windows credentials to authenticate ServiceNow requests.

Avant de commencer

• Request an Integration Hub subscription.
• Activate the Microsoft Active Directory v2 spoke.
• Role required: admin

Configure a connection record for the Microsoft Active Directory v2 spoke

Configure a connection record to connect to the Microsoft Active Directory v2 spoke host and enable the Microsoft Active Directory v2 spoke connections and credentials alias to authorize actions.

Avant de commencer

Role required: admin.

Procédure

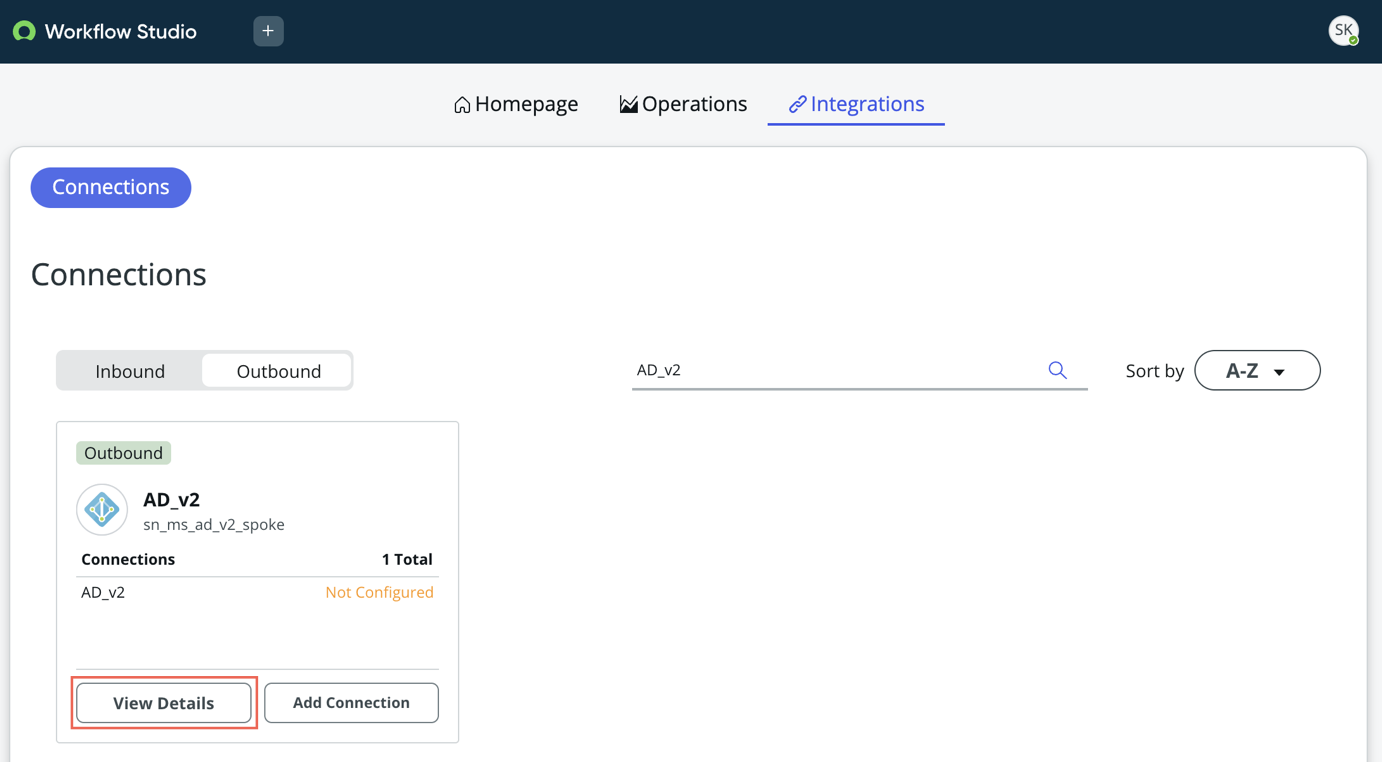

1. Navigate to All > Process Automation > Workflow Studio.
2. Click the Integrations tab.
3. Click Connections.
4. Toggle and enable the Outbound connections.

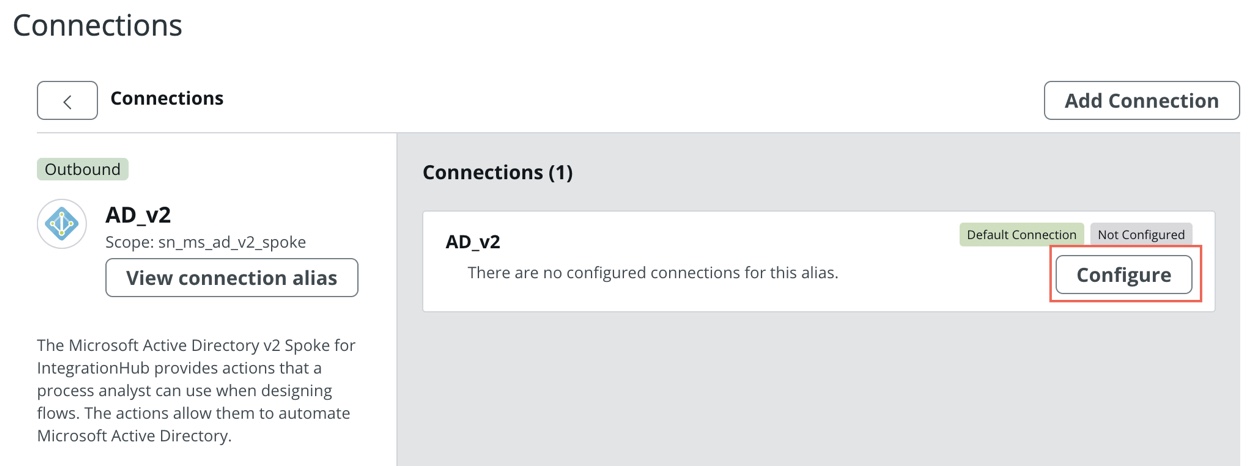

5. Locate the AD_v2 connection alias and click View Details.



   If you are configuring the spoke for the first time, click Configure. Otherwise, click Edit



6. Enter the following details in the form.

   Tableau 1. Create connection form

   Field	Information
   Connection name	Name to uniquely identify the record.
   Host	Fully qualified domain name or IP address of the target host where the Microsoft AD is installed. For example, <host>.<domain>.com.
   User name	User name with access to the target Windows host.
   Password	Password for the account.

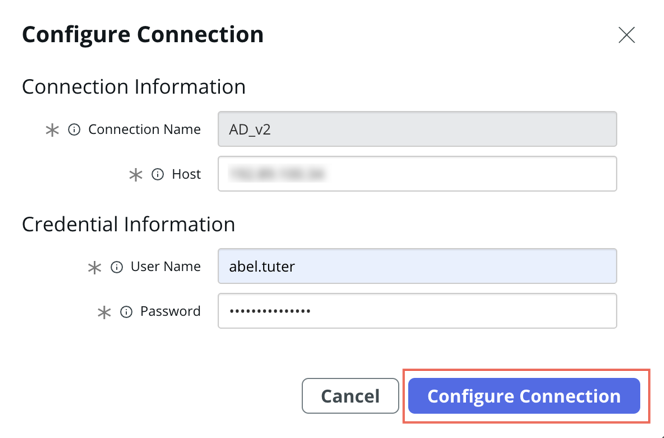

   Figure 1. Create connection form



7. Click Configure Connection.

Que faire ensuite

To use the spoke actions, your instance must have a MID Server set up and configured to use PowerShell. For more information about running actions on the MID Server, see Integration steps. For more information about the MID Server, see MID Server.

To set up the MID Server for this spoke, see Set up MID Server for a spoke.

Remarque :

You must install the MID Server and Microsoft Active Directory on different servers.
