Set up the Microsoft Exchange Server spoke

Connect your ServiceNow instance with the Microsoft Exchange Server by setting up the connection and credential records for both the Microsoft Exchange Server that are provided when you install Integration Hub on your instance.

Avant de commencer

• Request an Integration Hub subscription.
• Activate the latest Microsoft Exchange Server spoke plugin on your ServiceNow instance.
• Role required: admin.

Pourquoi et quand exécuter cette tâche

The Microsoft Exchange Server spoke provides two aliases: Exchange and Exchange_https and their respective configuration templates as out of the box components when you install the Microsoft Exchange Server . These out of the box components enable you to easily set up the connection and credential records for both the aliases by just providing the connection and credential information. The out of the box components are already configured for you. To learn how to create the connections and credential records, see:

• Configure a connection for the Exchange alias
• Configure a connection for the Exchange_https alias

You can perform all spoke actions except the Create Calendar Event For User and Lookup Room Availability actions. The Create Calendar Event For User and Lookup Room Availability actions are supported only on Exchange Server 2013.

Remarque :

The user details that are provided in the credential record must have the application impersonation role.

To use the Create Calendar Event For User and Lookup Room Availability actions, perform the same steps again for the Exchange_https connection and credential alias. MID Server isn’t necessary to perform this action.

Configure a connection for the Exchange alias

Configure a connection for the Exchange alias to establish a connection between the ServiceNow® instance and the Microsoft Exchange Server host.

Avant de commencer

Role required: admin.

Procédure

1. Navigate to All > Process Automation > Workflow Studio.
2. Click the Integrations tab.
3. Under Connections, toggle and enable the Outbound connections.
4. Locate the Exchange alias.
   Conseil :

   To find the alias, in the Search all connections field, enter Exchange.

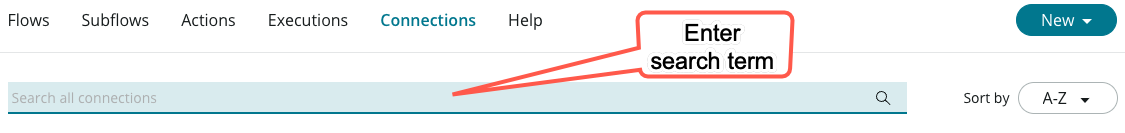

   Figure 1. Search the Exchange alias on the Connections tab



   The Exchange alias tile appears under the Connections tab.
5. Click View Details.
   • To configure the default connection and credential alias record that is shipped along with the Microsoft Exchange Server spoke, click View Details

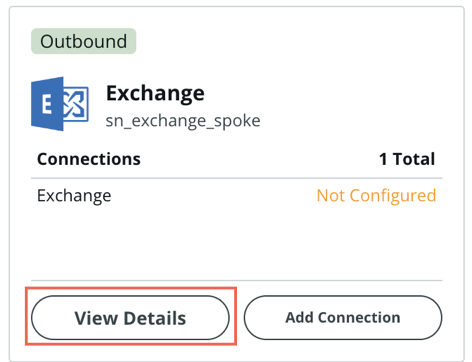

     Figure 2. Default connection record



   • To manage more than one Microsoft Exchange Server spoke connection records, you should create a new child alias record by clicking Add Connection. For more information about using multiple connections, see Supporting multiple connections.

   If you are configuring the spoke for the first time, click Configure. Otherwise, click Edit.

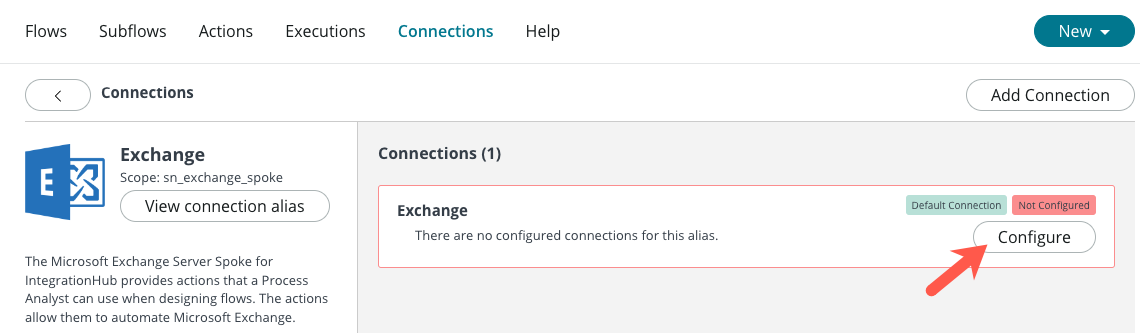

   Figure 3. Configure button for Exchange alias



6. On the form, fill in the fields.

   Tableau 1. Exchange alias connection and credential form

   Field	Description
   Connection Name	Name that uniquely identifies the connection and credential record. For example, Microsoft Exchange. Remarque : The connection name of the first record is read-only. You can provide custom names for the subsequent records.
   Host	Fully qualified domain name of the target host where the Microsoft Exchange Server is installed. For example, <host>.<domain>.com.
   User Name	User name with access to the target Windows host.
   Password	Password for the account.

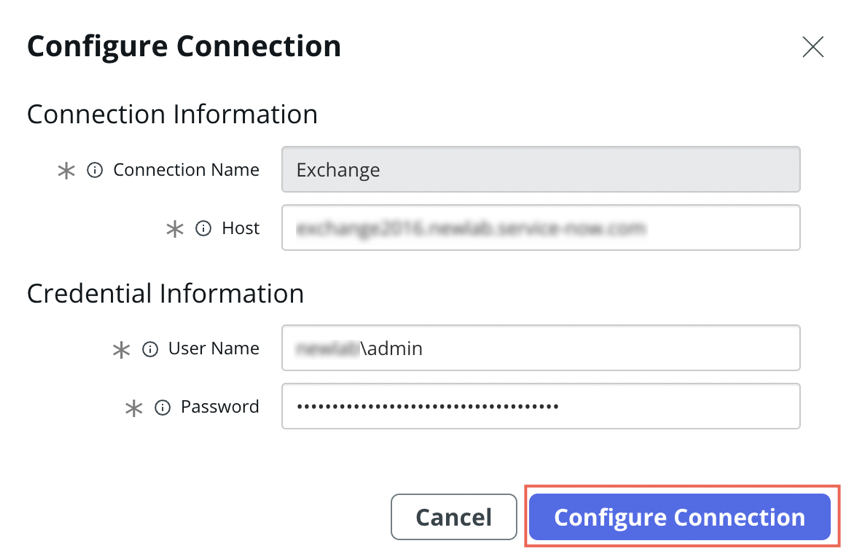

   Figure 4. Configure Connection form



7. Select Configure Connection.
   The connection and credential record for the Exchange alias is created.

Configure a connection for the Exchange_https alias

Configure a connection for the Exchange_https alias to establish a connection between the ServiceNow® instance and the Microsoft Exchange Server host.

Avant de commencer

Role required: admin.

Procédure

1. Navigate to All > Process Automation > Workflow Studio.
2. Click the Integrations tab.
3. Under Connections, toggle and enable the Outbound connections.
4. Locate the Exchange_https alias.
   Conseil :

   To find the alias, in the Search all connections field, enter Exchange_https.

   Figure 5. Search the Exchange_https alias on the Connections tab



   The Exchange_https alias tile appears under the Connections tab.
5. Click View Details.
   • To configure the default connection and credential alias record that is shipped along with the Microsoft Exchange Server spoke, click View Details

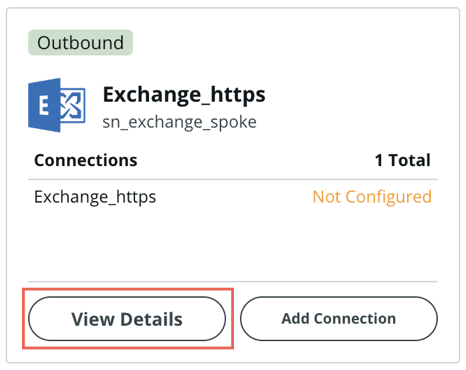

     Figure 6. Default connection record



   • To manage more than one Microsoft Exchange Server spoke connection records, you should create a new child alias record by clicking Add Connection. For more information about using multiple connections, see Supporting multiple connections.

   If you are configuring the spoke for the first time, click Configure. Otherwise, click Edit.

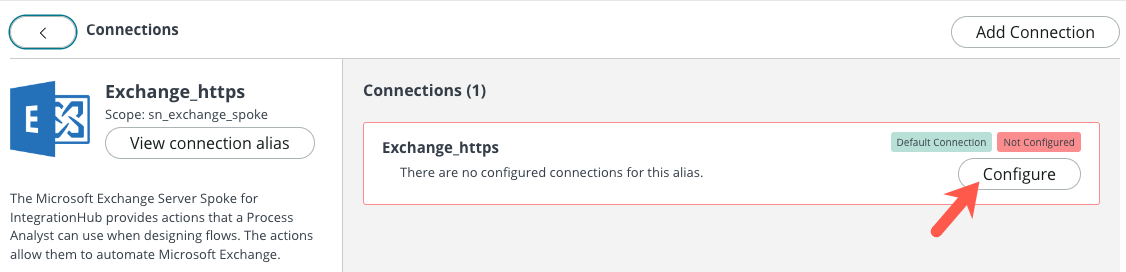

   Figure 7. Configure button for Exchange_https connection record alias



6. On the form, fill in the fields.

   Tableau 2. Exchange_https connection form

   Field	Description
   Connection Name	Name that uniquely identifies the connection and credential record. For example, Exchange_https. Remarque : The connection name of the first record is read-only. You can provide custom names for the subsequent records.
   Host	Fully qualified domain name of the target host where the Microsoft Exchange Server is installed. For example, https://mail.example.com/EWS/Exchange.asmx can be the format of the host URL where mail.example.com is the placeholder for your Exchange server's domain /EWS/Exchange.asmx is the path to the Exchange Web Services (EWS) endpoint
   User Name	User name with access to the target Windows host.
   Password	Password for the account.

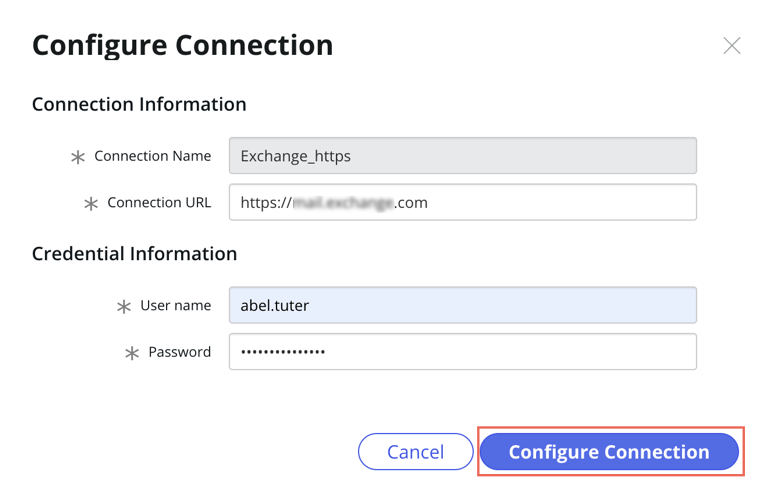

   Figure 8. Configure Connection form



7. Select Configure Connection.
   The connection and credential record for the Exchange_https alias is created.
