Set up the SAP Commerce Cloud spoke

Integrate your ServiceNow instance with the SAP Commerce Cloud to automate various actions on the SAP Commerce Cloud. For example, you can set up a flow that looks up a shopping cart at a specified time every day.

Avant de commencer

• Request an Integration Hub subscription.
• Install the SAP Commerce Cloud plugin.
• Role required: admin.
• Access to the SAP Backoffice account.

Create the SAP Commerce Cloud credentials

Generate the credentials that you use to create the connection record for the SAP Commerce Cloud spoke. Your ServiceNow instance uses the connection record connect with the SAP Commerce Cloud.

Avant de commencer

Role required: admin

Access to the SAP Backoffice account.

Procédure

1. Log in to the SAP Backoffice account.

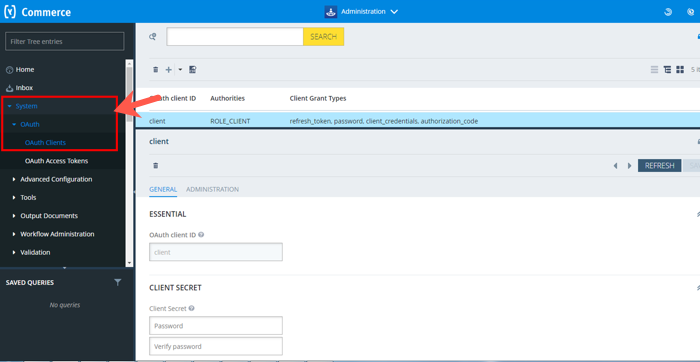

2. On the left panel, go to System > OAuth > OAuth Clients.
3. To create a client ID, select the Add Client ID icon ().

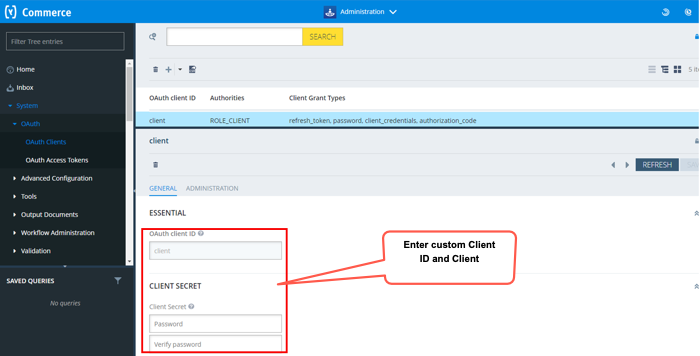

4. In the OAuth client ID, enter a custom client ID.
5. In the Client Secret field, enter a custom password and then verify the password.
6. Under BASIC, add the details.
   1. Under Authorities, add ROLE_CLIENT.
   2. Under Client Grant Types, add the details.
      • client_credentials
      • refresh_token
      • password
      • authorization_code
   3. Under Scopes, add basic.
7. On the Create New OAuth Client Details window, do the steps.

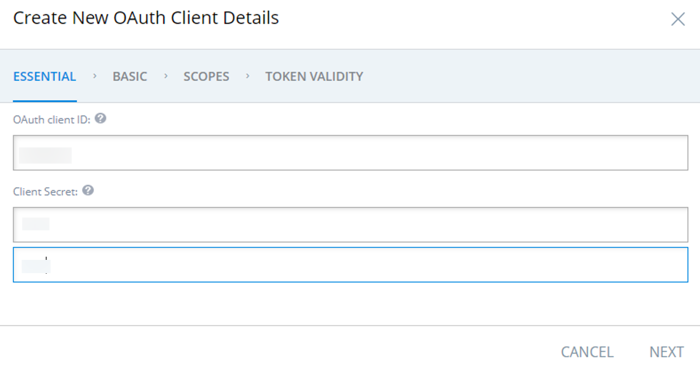

   1. Under ESSENTIAL, enter the custom OAuth client ID and client secret.
   2. Under BASIC, add ROLE_CLIENT and under Client Grant Types, add the values.
      • client_credentials
      • refresh_token
      • password
      • authorization_code
   3. Under SCOPES, add enter basic.

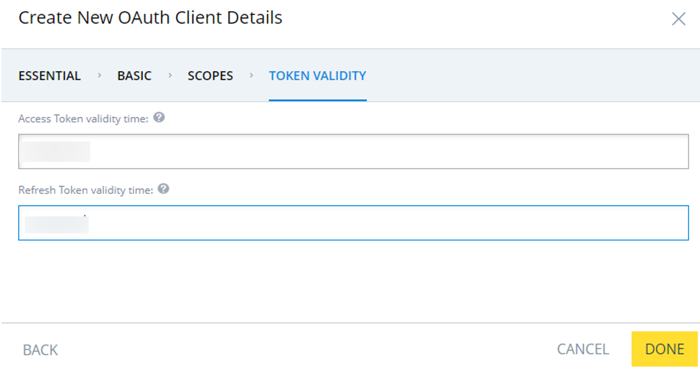

   4. Under TOKEN VALIDITY, enter the time for which the token to access the SAP Commerce Cloud is valid.
   5. Select DONE.
   The credentials to create a SAP Commerce Cloud connection record are created.

Create connection record for SAP Commerce Cloud spoke

Create a connection record that enables your ServiceNow instance to connect with the SAP Commerce Cloud record. The connection record has the underlying connection information required to integrate with SAP Commerce Cloud.

Avant de commencer

Role required: admin

Procédure

1. Navigate to All > Process Automation > Flow Designer.
2. Select Connections.
3. Turn on the Outbound tab.
4. In the Search all connections field, enter SAP Commerce Cloud.
5. On the SAPCommerceCloud card, select View Details.
6. Select Configure.
7. Fill the form.

   Tableau 1. Configure Connection

   Field	Description
   Connection Name	Name of the connection record. The default and read-only name of the first connection record is SAPCommerceCloud. To provide a custom name to a connection record, you must create a connection record by selecting Add Connection.
   Connection URL	URL that your ServiceNow instance uses to connect to the SAP Commerce Cloud.
   OAuth Client ID	Client ID that you generated on your SAP Backoffice account.
   OAuth Client Secret	Client secret that you had generated on your SAP Backoffice account.
   OAuth Redirect URL	URL of your ServiceNow instance in the format https://<instance-name>.service-now.com/oauth_redirect.do.
   OAuth Token URL	URL in the format https://<instance-name>/authorizationserver/oauth/token.

8. Select Create and Get OAuth Token.
   The OAuth token is generated and your ServiceNow is connected to the SAP Commerce Cloud.

Create a credential record for the SAP Commerce Cloud

Integrate the ServiceNow instance and SAP Commerce Cloud spoke by creating a custom OAuth application in SAP Commerce Cloud to authenticate ServiceNow requests.

Avant de commencer

• Request an Integration Hub subscription.
• Activate SAP Commerce Cloud.
• Role required: admin

Procédure

1. Navigate to All > Connections & Credentials > Credentials.
2. Click New.
   The system displays the message What type of Credentials would you like to create?.
3. Select OAuth 2.0 Credentials.
4. On the form, fill these values.

   Tableau 2. OAuth 2.0 Credentials form

   Field	Description
   Name	Name to uniquely identify the record. For example, SAP Commerce Cloud cred Cred.
   Active	Option to actively use the credential record.
   OAuth Entity Profile	OAuth profile created during the registration of SAP Commerce Cloud as an OAuth provider. For example, SAP Commerce Cloud default_profile OAuth Profile.
   Applies to	Option to specify if the credential applies to all MID Servers in your network, or to one or more Specific MID servers. Specify the MID Servers that should use this credential in the MID servers field.
   Order	Order to apply this credential. For example, 100.
   Credential alias	Credential alias associated with the spoke.

Create a connection record for the SAP Commerce Cloud

Create a connection record for your SAP Commerce Cloud account. The SAP Commerce Cloud connection and credential aliases use these connections to perform actions in SAP Commerce Cloud.

Avant de commencer

Role required: admin.

Procédure

1. Navigate to All > Connections & Credentials > Connections & Credentials Aliases.
2. Open the alias record for SAP Commerce Cloud.
3. From the Connections tab, click New.
4. On the form, fill these fields.

   Tableau 3. Connection form

   Field	Description
   Name	Name to uniquely identify the record. For example, SAP Commerce Cloud Connection.
   Credential	Credential record created for SAP Commerce Cloud spoke. For example, SAP Commerce Cloud Cred.
   Connection alias	Alias record associated with this connection.
   Host	IP address of the target host where the SAP Commerce Cloud server is installed.
   Active	Option to actively use the connection record.
   Domain	Domain that the action runs in.
   Override default port	Target port used by the connection. If blank, the system uses the default port.

5. Click Submit.
