Queue implementation in RPA Hub

In RPA Hub, the queues are implemented to distribute the workload among various robots. Work Items (WI) within a queue are processed simultaneously by two or more robots.

Queue implementation overview

A queue is a repository that can hold a number of work items. Work items can store multiple types of data, such as transaction information, customer details, or information from a document.

A queue refers to a structured data storage mechanism used to manage and control the distribution of tasks, work items, or cases to different robots for processing. RPA queues play a crucial role in orchestrating the execution of automated processes and ensuring that tasks are processed efficiently, accurately, and in the desired order.

Queues facilitate task distribution, coordination, and efficient processing across multiple bots or processes. Queues are particularly useful in scenarios where automation needs to handle a dynamic workload with different tasks arriving at different times, such as processing incoming emails, customer orders, or data entries.

In RPA Hub, you cannot delete a queue that is associated to a published bot process.

Work item lifecycle

The State transition of a work item guides you through the stages of its life cycle.

1. Work items are created from upstream systems using the Add WorkItem to Queue flow action or by robots, using the CreateStringWorkItem or CreateJSONWorkItem component.
2. Using the PickWorkItem component, robots pick a work item for processing.
3. After a work item is picked, the robot is stamped on the work item.
   Remarque :

   No other robot can pick this work item.
4. Work items are processed by the criteria that you specified. There are various conditions to determine which item must be picked and it varies for each automation. This criterion is the input for the PickWorkItem component.
5. After a work item is picked, the robot updates it multiple times while processing it using the UpdateWorkItem component.

   This robot can also release this work item by partially processing it, so that other robots can pick it. This process is performed by the input in the ReleaseMode field, in the UpdateWorkItem component.

6. After the robot completes the processing, it updates the work item to complete using the UpdateWorkItem component and picks the next work item that is Step 2.

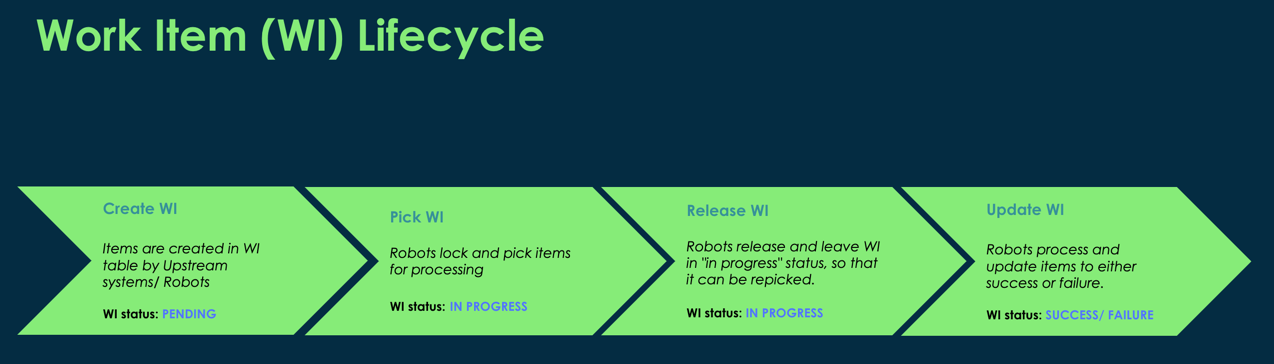

The following diagram shows the lifecycle of work items (WI) in RPA Hub application.

Figure 1. Lifecycle of work items (WI) in RPA Hub

• Create a queue in RPA Hub
  Create a queue in RPA Hub to manage the work items that you want the robot to process.
• Assign a bot process to a queue from Queues menu in RPA Hub
  Assign a bot process to a queue in RPA Hub so that it can interact with this queue. You can assign more than one bot process to a queue. Any robot that is associated with the assigned bot process can insert the work item, pick the work item, and update the work item.
• Unassign a bot process from a queue in RPA Hub
  Unassign a bot process from a queue in RPA Hub to stop an interaction with this queue.
