Use the ConsoleLog component

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 1 minute de lecture

    • Write a message to view the console log of RPA Desktop Design Studio by using the ConsoleLog component.

    Avant de commencer

    Role required: none

    Pourquoi et quand exécuter cette tâche

    You can configure the properties for the ConsoleLog component. For more information about these properties, see Properties of the Debug components.

    Procédure

    1. In the Toolbox pane, navigate to Utilities > Debug.
    2. Drag the ConsoleLog component to the Design surface.
    3. To configure the input fields, see Configure port properties.
    4. Connect the data and control ports of the ConsoleLog component to the corresponding ports of the other components as described in the following table.
      Tableau 1. ConsoleLog component parameters
      Port type Description Data port type Data Type
      Message Provide a message that must to be written to the console log.

      For example, started first activity or completed the first activity.

      		 Data In String
    5. Facultatif : To test the component, under the DESIGN tab, click Run.

    Résultats

    Open the console log to check the messages.

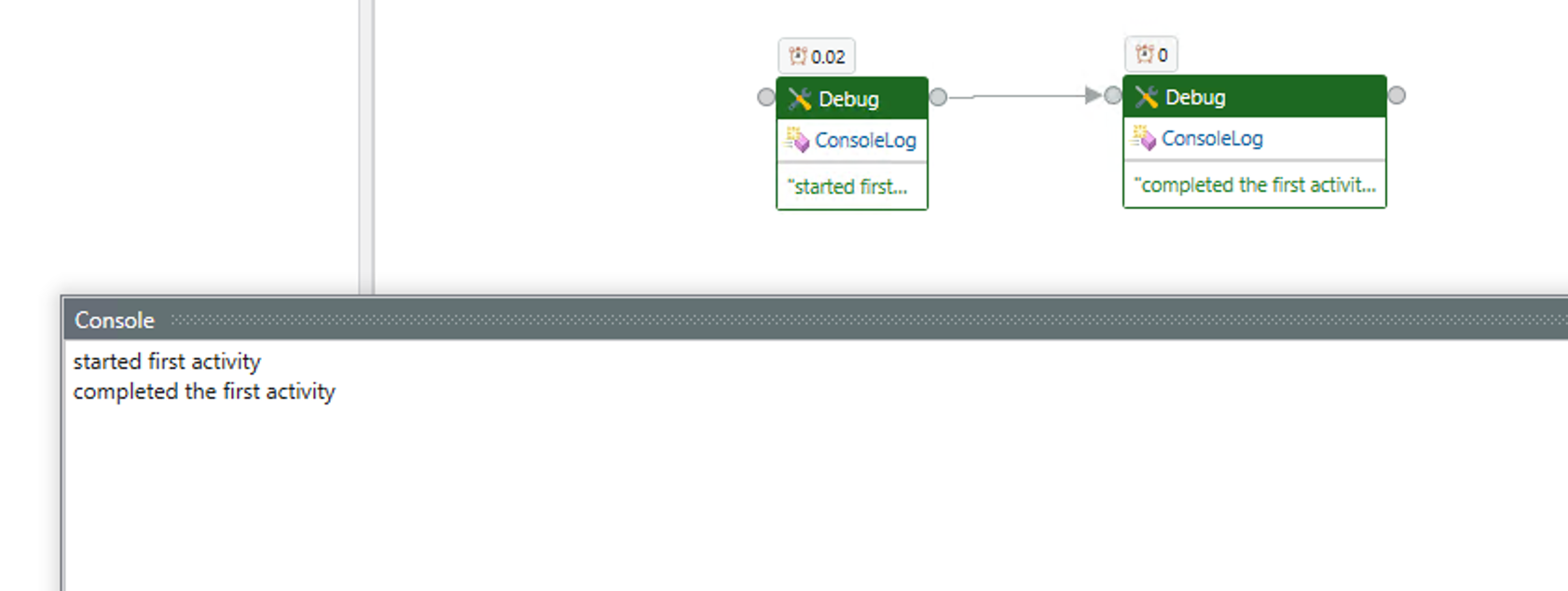

    Figure 1. Console with provided messages in the ConsoleLog component
    Console displaying messages provided in the ConsoleLog component.
