Use the SetValue method for Universal App Connector

Use the SetValue method to assign a specified value into an element.

Avant de commencer

Verify that you have open or active applications, for example, where you want to capture elements.

Role required: None

Pourquoi et quand exécuter cette tâche

For information on the various additional operations that are available for the application screens and elements, see Additional options for application screens and elements in Universal App Connector.

Procédure

1. Configure Universal App Connector.
   To learn more about configuring the application screens and child elements, see Use the Universal App Connector.
2. Under Global Objects, double-click the UniversalApplication object.
   The SetValue method appears in the Object Explorer pane.
3. Drag the SetValue method to the Design surface.
4. Double-click the SetValue method to configure the screens and elements in Universal App Connector.

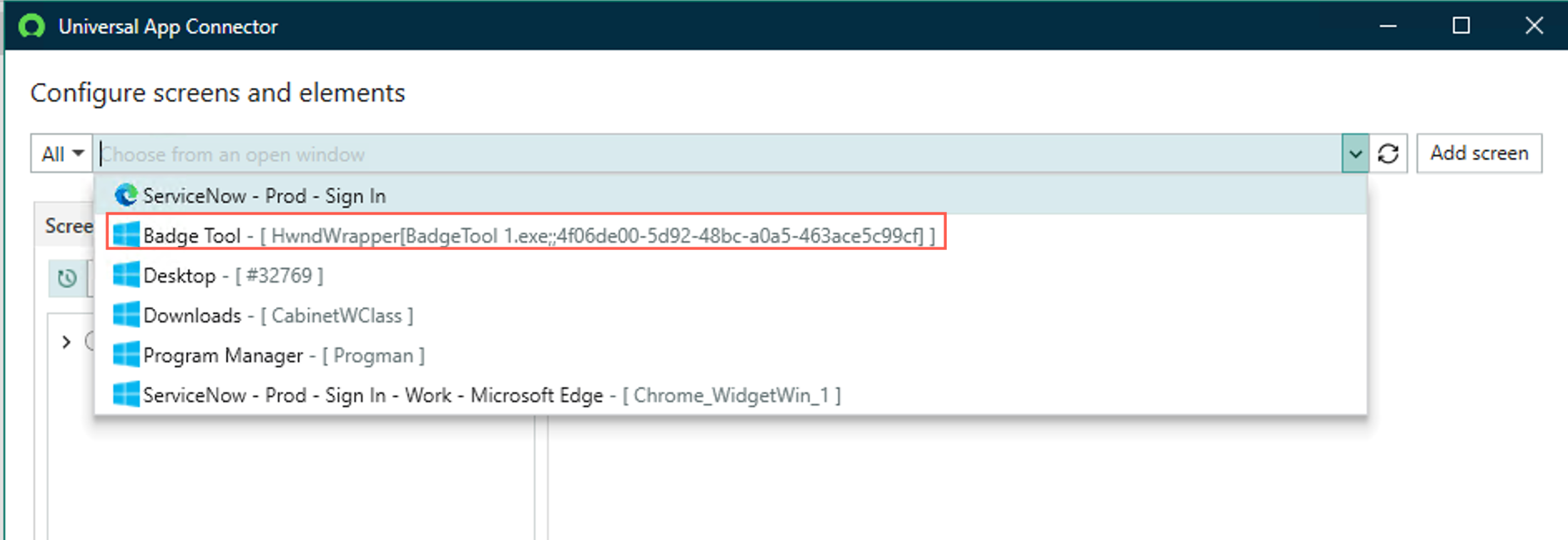

5. On the Configure screens and elements window, select the Choose from an open window drop-down () and select an application screen.

   For example, select the Badge Tool application.



   Remarque :

   • If no supported applications are open, the App window not found message is displayed.
   • To display newly opened application screens on the list, select the Click to refresh windows icon ().
6. To add the selected application screen, for example, Badge Tool application, select Add screen.
   After you do this step, you can capture the screen elements to perform actions.

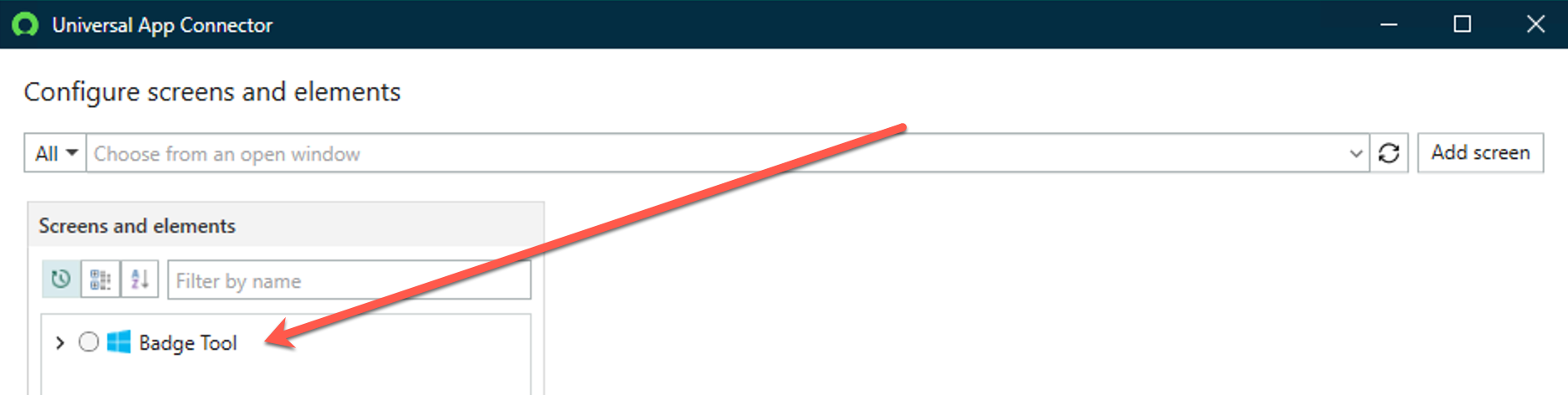

   The application screen appears under the Screens and elements pane.



7. To capture the elements from the screen, right-click the added screen and select Capture Element.
   The focus is set on the application screen that you had captured and the capture elements dialog appears.

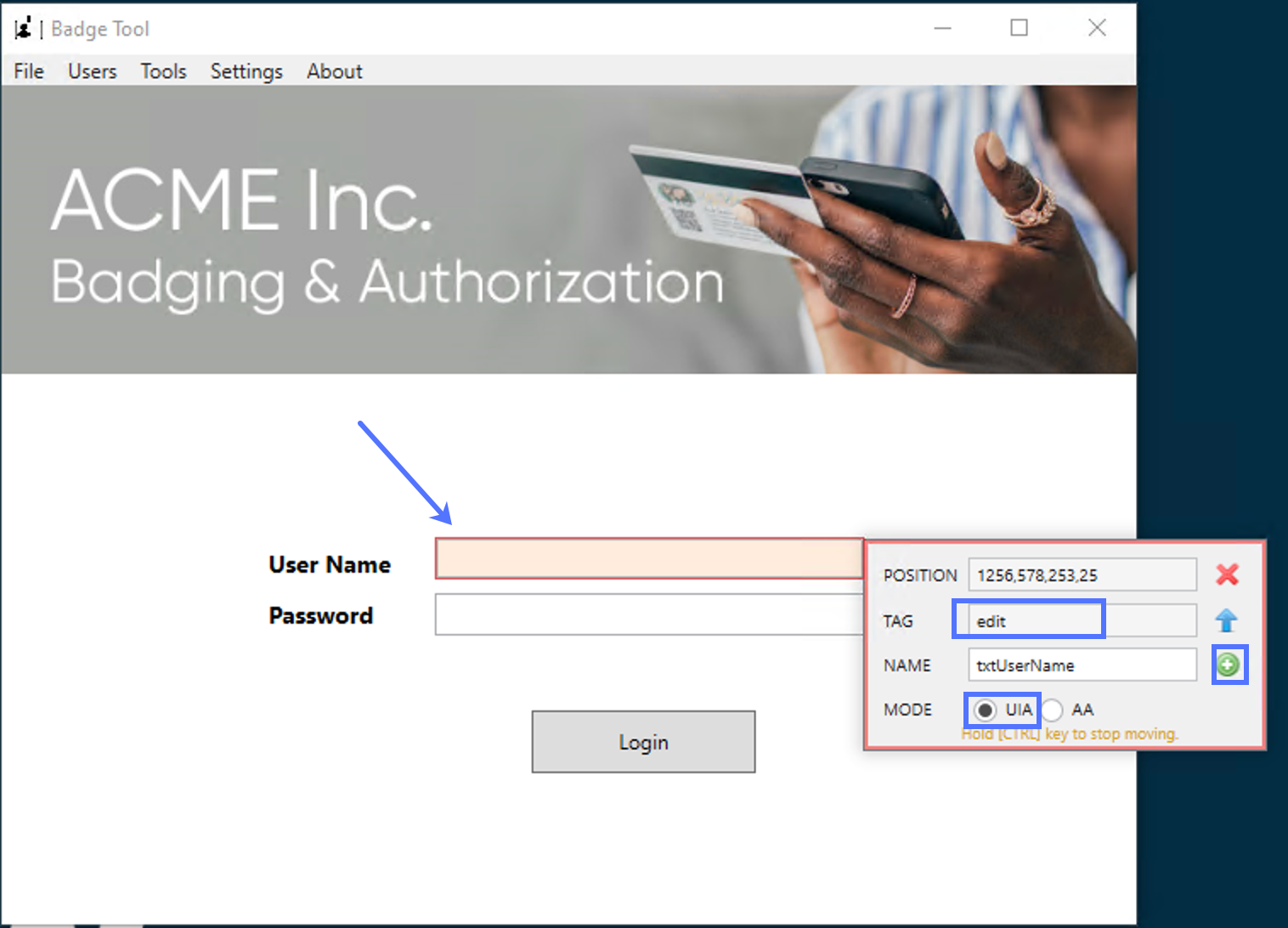

8. After selecting the required element, select the Add Element icon () and select the mode as UIA, to capture the element.
   Remarque :

   You must add at least one element to continue.

   For example, select the text box next to User Name field, select the TAG as edit.

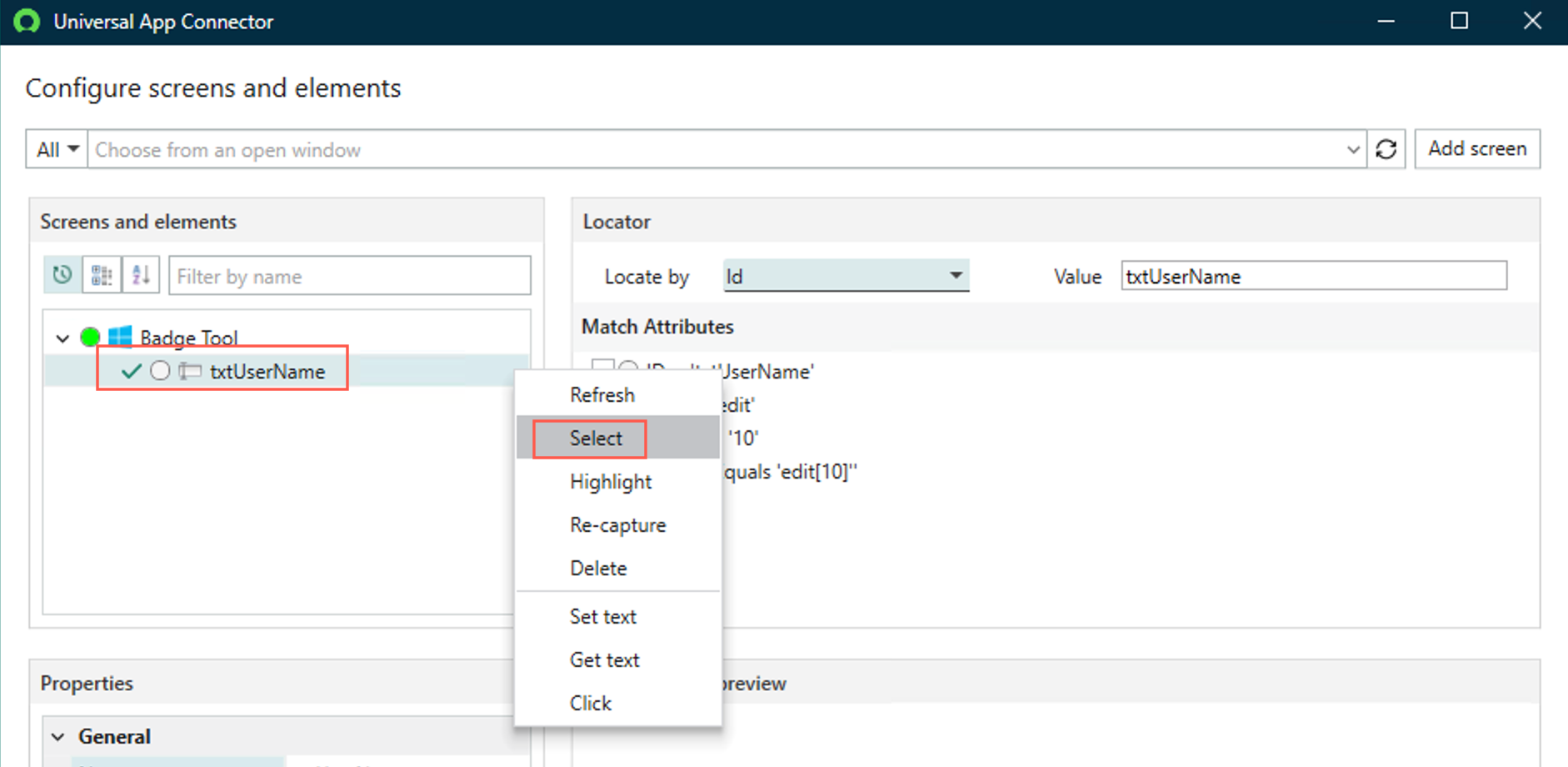

9. In the Configure screens and elements window, right-click the captured element, choose Select and select Done.
   Remarque :

   Select at least one element to perform the action. If none are selected, the action won't be executed. To proceed without selecting, select OK.


10. Complete the following parameters in the SetValue method:

    Tableau 1. Parameters of the SetValue method

    Parameter name	Parameter description	Port Type	Data Type
    Value	Enter the value that you want to assign in the element. For example, ServiceNow.	Data In	String

11. Right-click the SetValue method and select either Run From Here or Run This.

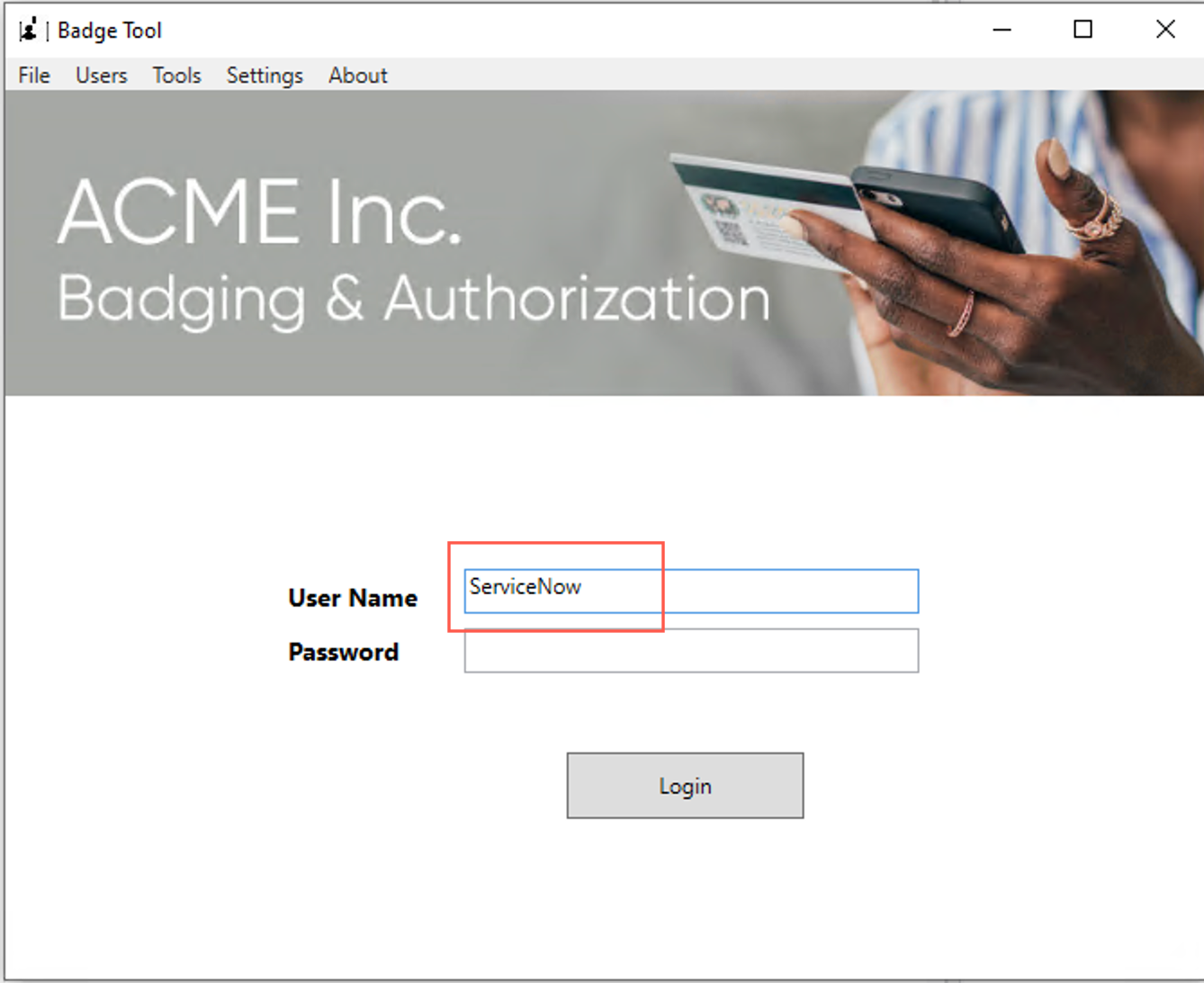

    The input value is displayed in the captured element. In this scenario, ServiceNow is displayed in the User Name Field.
12. Double-click the required application screen or element and the Object Explorer pane is displayed listing the related methods.
    For example, if you select a Java application screen or element, the Java connector methods are displayed in Object Explorer.

    • For more information on Java connector methods, see Java connector methods.

    • For more information on Google Chrome and Microsoft Edge connector methods, see Chromium connector methods.

    • For more information on Windows connector methods, see Windows Connector methods.

    • If you have captured a web application screen and you want to execute a custom JavaScript on it, you can use the ExecuteJavascript method.
