NetApp SolidFire storage system discovery

ServiceNow Discovery uses the NetApp SolidFire storage system discovery pattern to find clusters and nodes on the SolidFire storage system. Discovering some of these resources may require updating to the latest version of the Discovery and Service Mapping Patterns application from the ServiceNow Store.

Request apps on the Store

Visit the ServiceNow Store to view all the available apps, and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.

Prerequisites

Discovery and Service Mapping Patterns store app

Verify the Discovery and Service Mapping Patterns store app (version 1.0.74) is installed.

Basic Auth permissions

Ensure Basic Auth credentials are configured for authenticating the Element API calls. Save the following SolidFire Cluster Admin credentials as Basic Auth credentials to ensure proper access:

• read
• clusterAdmins
• reporting
• drives

MID server

Ensure the MID server can access the target device.

Discovery credentials

Ensure you have the credentials for running Discovery on the host machine running the SolidFire storage system​.

Create a serverless discovery schedule

Create a discovery schedule to perform targeted discovery of SolidFire clusters and nodes.

1. Navigate to Discovery > Discovery Schedules.
2. Click New and then fill in the form.

   Tableau 1. Discovery Schedule form

   Field	Description
   Name	Name for the Discovery schedule. For example, Discover SolidFire.
   Discover	Discover type. Select Serverless.
   MID Server	Name of the MID Server.
   Active	Option for enabling this schedule for discovery. Select this check box to enable discovery.

3. Right-click the header of the Discovery Schedule form and select Save.

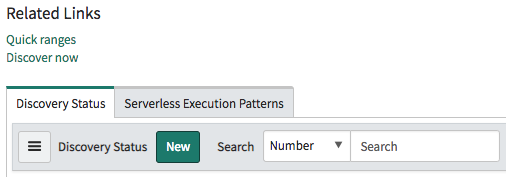

4. Click the Serverless Execution Patterns tab, click New, and then fill in the form.



   Tableau 2. Serverless Execution Pattern form

   Field	Description
   Name	Name for this Serverless Execution Pattern. For example, SolidFire Storage Pattern.
   Pattern	Name of the pattern to run: NetApp SolidFire Storage System.
   Proxy Host	Fully qualified domain name of the machine on which you are installing the proxy server. Specify Global.
   Active	Option for enabling this schedule for discovery. Select this check box to enable discovery.

5. Under Discovery Pattern Launcher Parameters, configure the launch parameters with the relevant values. Ensure the Management IP of the cluster and Credentials Alias are defined.

Data collected by Discovery during horizontal discovery

The discovered SolidFire configuration data includes the following tables and fields.

Table and field	Description
Main Configuration Item [cmdb_ci_storage_server]​
name	The name of the CI.
serial_number​	The serial number associated with the CI.
firmware_version	The firmware version of the CI.
ip_address	The IP address of the CI.
short_description	A short textual description of the CI.
manufacturer	The device manufacturer.
model_id	The device model ID.
os_version	The version of the OS running on the CI.
os	The OS running on the CI.
Storage cluster [cmdb_ci_storage_cluster]​
ip_address	The IP address of the storage cluster.
manufacturer	The device manufacturer.
short_description	A short textual description of the CI.
cluster_version​	Element OS API version running on the cluster.
name	The name of the CI.
Storage cluster node [cmdb_ci_storage_cluster_node]
name	The name of the CI.
operational_status	Indicates if the device is in active state.
cluster	Reference for the cluster CI.
Storage node element [cmdb_ci_storage_node_element]
short_description	A short textual description of the CI.
manufacturer	The device manufacturer.
serial_number	The serial number associated with the CI.
model_id​	The device model ID.
chassis_type​	The type of chassis that contains the server.
ram	The memory size of the CI.
cpu_type	The CPU type.
cpu_manufacturer	The CPU manufacturer.
Storage disk [cmdb_ci_disk]
name	The name of the CI.
device_id	The ID of the device.
serial_number	The serial number associated with the CI.
storage_type​	The storage type.
size_bytes	The available storage size in bytes.
manufacturer	The device manufacturer.
model_id	The device model ID.
computer	Reference for the storage server.
Network adapter [cmdb_ci_network_adapter]​
name	The name of the CI.
ip_address	The IP address of the CI.
netmask	The netmask of the server hosting the network adapter.
mac_address	The MAC address of the network adapter.
IP address [cmdb_ci_ip_address]
ip_address	The IP address of the CI.
netmask	The netmask of the server hosting the CI.

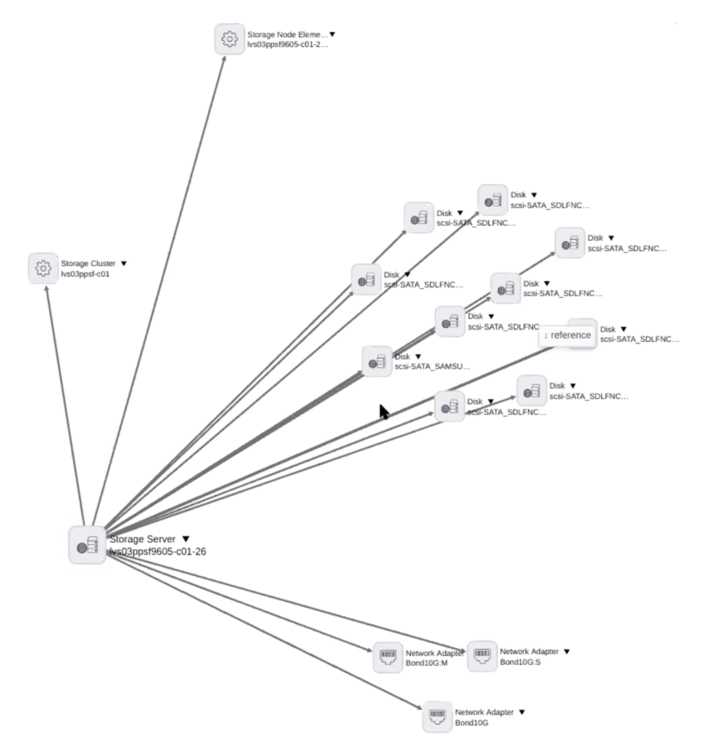

The Dependency Views map shows all discovered SolidFire storage system clusters and nodes in your organization and the relationships between them.

CI relationships

CI	Relationship/Reference	CI
Storage cluster	Cluster Of::Cluster	Storage cluster node
Storage cluster node	Hosted On::Hosts	Storage node element
Storage node element	Managed By::Manages	Storage cluster
Storage server (main CI)	Allocated To::Allocated From	Storage node element
Storage server (main CI)	Runs On::Runs	Storage cluster
Storage server (main CI)	Contains::Contained By	Disk
