Hyper-V discovery

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 6 minutes de lecture

    • The ServiceNow Discovery application finds Microsoft Hyper-V hypervisors in your environment.

    Hyper-V is a hypervisor developed by Microsoft that enables you to create and manage virtual machines (VMs) on a physical server or computer. It enables hardware virtualization, enabling multiple virtual machines to run on a single physical machine while sharing the underlying hardware resources, such as CPU, memory, storage, and networking.

    Remarque :
    See the knowledge article KB0687582 for information on model_id and manufacturer.
    Hyper-V supports the following functionality:
    • Failover clustering: Failover is managed with Failover Cluster Manager.
    • Live migration: Virtual machines can be moved between failover cluster nodes without bringing down the virtual machine.
    Remarque :
    For information on Probe to Pattern migration see the knowledge article KB0694477.

    Supported versions

    Discovery is supported for Hyper-V running on the following Windows Server versions:
    • 2008
    • 2012
    • 2012 R2
    • 2016
    • 2019
    • 2022
    • 2025
    Important :
    Discovery of Hyper-V running on Windows starting from version 2016 supports pattern discovery only. If you upgraded and are still using probes and sensors for discovery, see KB0694773 for instructions on configuring Hyper-V probes.

    Hyper-V data models

    There are 2 types of Hyper-V:
    • Hyper-V on Windows Server: This model, installed as a server role on Windows Servers, is designed for enterprises needing both virtualization and other server roles (for example: file servers, Active Directory, web servers) on the same machine.
    • Hyper-V Server (Standalone): A free, lightweight version of Windows Server specifically designed for virtualization. It includes only the Hyper-V hypervisor and no graphical user interface (GUI) or additional server roles.

    Discovery supports identifying and mapping both types of Hyper-V environments. However, the CMDB data models differ between the two deployment types.

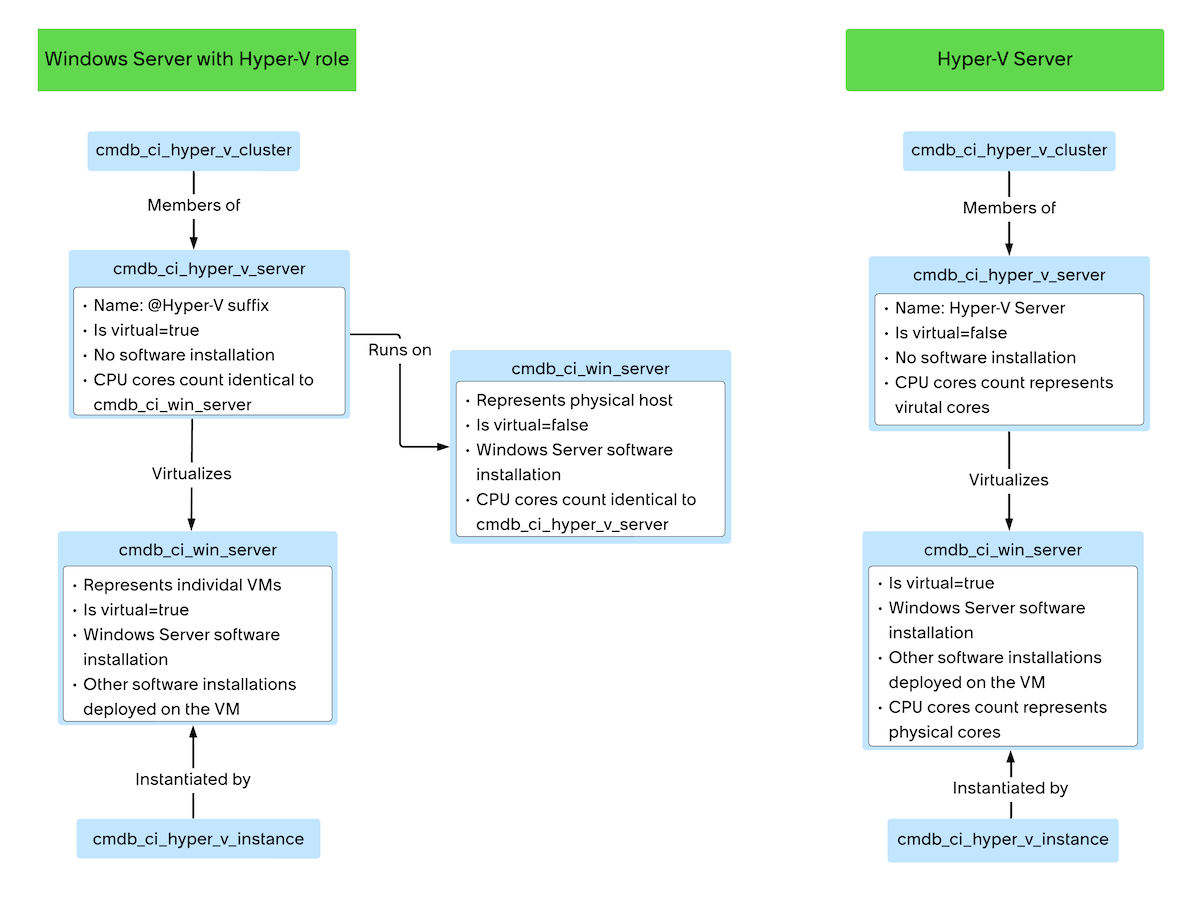

    Figure 1. Example of Windows Server with Hyper-V role vs. Hyper-V Server (VM shown with Windows OS)
    Key differences between Windows Server with Hyper-V role and Hyper-V Server using a VM with Windows OS example
    Tableau 1. Comparison between Windows Server with Hyper-V role and Hyper-V Server
    Key aspects Windows Server with Hyper-V role Hyper-V Server
    Hyper-V Server CI
    • Name of the CI includes the @Hyper-V Server suffix. For example: hyperv1@Hyper-V Server.
    • The Windows Host field references the parent Windows Servers table, which represents the physical host of the Hyper-V Server.
    		 Name of the CI is the Hyper-V Server.
    Hyper-V Cluster has Members::Member of relationship with Hyper-V Server Yes
    The Hyper-V Server table:
    • Has Is virtual field set to true
    • Doesn't have software installation
    		 Yes
    The Hyper-V Server table:
    • Has Is virtual field set to false
    • Doesn't have software installation
    Hyper-V Server has Runs on::Runs relationship with Windows Server Yes
    The Windows Server table:
    • Represents the physical host
    • Has Is virtual field set to false
    • Has Windows Server software installation
    		 No
    Operating system (OS) installed on the VM has Virtualized by::Virtualizes relationship with Hyper-V Server Yes
    The OS table (for example: Windows Server/Linux Server):
    • Represents the individual virtual machines (VMs)
    • Has Is virtual field set to true
    • Has OS software installation, such as Windows or Linux Server
    • Has other software installations deployed on the VM
    		 Yes
    The OS table (for example: Windows Server/Linux Server):
    • Has Is virtual field set to true
    • Has OS software installation, such as Windows or Linux Server
    • Has other software installations deployed on the VM
    OS installed on the VM has Instantiates::Instantiated by relationship with Hyper-V Virtual Machine Instance Yes Yes
    CPU cores count Is identical between the physical Windows Server host and the Hyper-V Server The parent Windows Servers table reflects the physical cores, while the Hyper-V Server table displays the virtual cores

    Credentials

    Configure Windows credentials with Domain administrator rights. You should also Enable PowerShell for the MID Server used to discover Hyper-V servers and instances.

    Classifier, probes, and pattern

    Classifier Probes Pattern
    Hyper-V Server

    The classification applies to standalone Hyper-V servers only (servers NOT running on Windows 2008).
    • Horizontal discovery probe: Launches patterns
    • Windows - ADM^
    • Windows - Installed Software^
    • Hyper-V - Cluster*
    • Hyper-V - Resource Pools*
    • Hyper-V - Virtual Machines*
    • Hyper-V - Virtual Networks*
    • Several other Windows probes also run, such as Windows - Identity, Windows - software, and so on.*
    		 Hyper-V Server

    *These probes aren't active on the classifier, as Discovery uses patterns by default for these discoveries.

    ^These probes remain active by default, even when Discovery uses pattern discovery.

    To use patterns, verify that the correct pattern is specified in the horizontal pattern probe on the classifier. See Add the Horizontal Pattern probe to a classifier for instructions.

    Data collected by Discovery during horizontal discovery

    Tableau 2. Virtual instances
    Label Field Name Data Description Stored in Table
    Object ID ^ object_id ID cmdb_ci_hyper_v_instance
    Name^ name name cmdb_ci_hyper_v_instance
    State state
    • On
    • Off
    		 cmdb_ci_hyper_v_instance *
    CPUs cpus Count cmdb_ci_hyper_v_instance *
    Memory memory Quantity in MB cmdb_ci_hyper_v_instance *
    Network adapters nics Count cmdb_ci_hyper_v_instance *
    Disks disks Count+ cmdb_ci_hyper_v_instance *
    Disks size disks_size Capacity in GB+ cmdb_ci_hyper_v_instance *
    Virtual Base Board Serial Number baseboard_serial Virtual serial number cmdb_ci_hyper_v_instance
    BIOS Serial Number bios_serial Virtual serial number cmdb_ci_hyper_v_instance
    Chassis Serial Number chassis_serial Virtual serial number cmdb_ci_hyper_v_instance
    BIOS GUID bios_guid Globally unique identifier (GUID) cmdb_ci_hyper_v_instance
    *Attributes that are put in the cmdb_ci_hyper_v_instance table when using the Hyper-V Server pattern. For upgrades, probes and sensors continue to put these attributes in the cmdb_ci_vm_instance table.

    ^Newly discovered attribute when using the Hyper-V Server pattern.

    +Discovery can only return this information if the virtual machine is running.

    Tableau 3. Virtual servers
    Label Field Store in table
    Name name cmdb_ci_hyper_v_server
    Chassis type chassis_type cmdb_ci_hyper_v_server
    Description short_description cmdb_ci_hyper_v_server
    OS Address Width (bits) os_address_width cmdb_ci_hyper_v_server
    Operating System OS cmdb_ci_hyper_v_server
    Host name hostname cmdb_ci_hyper_v_server
    IP Address ip_address cmdb_ci_hyper_v_server
    OS Version os_version cmdb_ci_hyper_v_server
    OS Service Pack os_service_pack cmdb_ci_hyper_v_server
    Is virtual virtual cmdb_ci_hyper_v_server
    Tableau 4. Virtual networks
    Label Field Name Data Description Stored in Table
    Name name Name of the virtual network cmdb_ci_hyper_v_network *
    ID object_id Globally unique identifier (GUID) cmdb_ci_hyper_v_network *

    *Attributes that are put in the cmdb_ci_hyper_v_network table when using the Hyper-V Server pattern. For upgrades, probes and sensors continue to put these attributes in the cmdb_ci table (name) and the cmdb_ci_vm_object table (object_id).

    Tableau 5. Resource pools
    Label Field Name Data Description Stored in Table
    Name^ name Name of the resource pool. cmdb_ci_hyper_v_resource_pool
    ID object_id Globally unique identifier (GUID) cmdb_ci_hyper_v_rpool_comp
    Capacity capacity Maximum amount of the appropriate allocation unit cmdb_ci_hyper_v_rpool_comp
    Allocation units allocation_units Units of measurement used (for example, MB or GB) cmdb_ci_hyper_v_rpool_comp
    Resource type resource_type Type of resource discovered (for example, memory, or hard drive space) cmdb_ci_hyper_v_rpool_comp
    Tableau 6. Clusters
    Label Field Name Data Description Stored in Table Reference Table
    Windows Cluster name Reference field displaying the Windows Cluster on which the Hyper-V cluster resides. cmdb_ci_hyper_v_cluster cmdb_ci_win_cluster

    Relationships

    Discovery creates records in the CMDB for the host machine, the parent partition running Windows Server 2008, and all the virtual machines running on the Hyper-V server. Discovery finds the stored templates and maps all the relationships between components.

    The instance modifies these tables for use with multiple virtualization products:
    Table Purpose

    Virtualization Server [cmdb_ci_virtualization_server]

    Contains data on all discovered virtualization servers.

    Virtual Machine Instance [cmdb_ci_vm_instance]

    Contains data on all discovered virtual machine instances.

    Virtual Machine Object [cmdb_ci_vm_object]

    Contains data about various objects associated with a Hyper-V server, such as partitions, networks, resource pools, and clusters.
    Parent table Relationship Child table
    Hyper-V Virtual Machine Instance [cmdb_ci_hyper_v_instance] Registered on::Has registered Hyper-V Server [cmdb_ci_hyper_v_server]
    Hyper-V Virtual Machine Instance [cmdb_ci_hyper_v_instance] Connected by ::Connects Hyper-V Network [cmdb_ci_hyper_v_network]
    Hyper-V Network [cmdb_ci_hyper_v_network] Provided::Provides Hyper-V Server [cmdb_ci_hyper_v_server]
    Hyper-V Resource Pool [cmdb_ci_hyper_v_resource_pool] Defines resources for:Gets resources from Hyper-V Server [cmdb_ci_hyper_v_server]
    Hyper-V Resource Pool Components [cmdb_ci_hyper_v_rpool_comp] Contained by::Contains Hyper-V Resource Pool [cmdb_ci_hyper_v_resource_pool]
    Hyper-V Cluster [cmdb_ci_hyper_v_cluster] Members::Member of Hyper-V Server [cmdb_ci_hyper_v_server]
    Hyper-V Server [cmdb_ci_hyper_v_server] Runs on::Runs Windows Servers [cmdb_ci_win_server]
    Windows Servers [cmdb_ci_win_server] Instantiates::Instantiated by Hyper-V Virtual Machine Instance [cmdb_ci_hyper_v_instance]
    Windows Servers [cmdb_ci_win_server] Virtualized by::Virtualizes Hyper-V Server [cmdb_ci_hyper_v_server]

    Clone Hyper-V virtual machines

    When importing (cloning) Hyper-V virtual machines, make sure each virtual machine has a unique ID. Discovery identifies virtual machines with duplicate IDs as the same machine.

    1. Export the virtual machine from the Hyper-V server.
    2. Import the virtual machine into a different server, making one of the these choices:
      • Move or restore the virtual machine: This selection clones the image, using the same ID, and moves it to another server. The original image remains on the Hyper-V server.
      • Copy the virtual machine: This selection copies the virtual machine, using a different ID, and moves it from the Hyper-V server. This is the best selection and does not require any further action before you run Discovery.
    3. If you import the Hyper-V clone using the Move or restore selection, be sure to delete the original image from the Hyper-V server.

      When Discovery encounters two virtual machines with the same equivalent serial numbers, it creates only one configuration item (CI).
