OAuth 2.0 credentials for GitHub Apps - JWT

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 7 minutes de lecture

    • Perform the following steps to integrate your GitHub Apps using the JWT bearer token.

    Before you begin

    Role required:

    • oauth_admin in DevOps Change Velocity.
    • Admin account in GitHub.
      Remarque :
      The OAuth 2.0 JWT grant type is supported for GitHub & GitHub Enterprise with MID server.

    Configure the GitHub App in your GitHub account (JWT)

    Create a custom GitHub App from your GitHub account to enable OAuth 2.0 authentication with your ServiceNow instance.

    Avant de commencer

    GitHub requirement: GitHub App configured to integrate with ServiceNow

    Role required: No instance role required

    Pourquoi et quand exécuter cette tâche

    Complete these steps from your GitHub account. See Building GitHub Apps on the GitHub Developer site for instructions on creating and configuring custom applications.

    Procédure

    1. From your GitHub account, create your GitHub App by navigating to Developer Settings > GitHub Apps.
    2. In the Homepage URL field, enter https://<instance-name>.service-now.com.
    3. In the User authorization callback URL field, enter https://<instance-name>.service-now.com/oauth_redirect.do.
    4. In the Identifying and authorizing users section, deselect the Expire user authorization tokens field.
    5. In the Webhook section, select the Active field.
    6. In the Webhook URL field, enter https://<instance-name>.service-now.com/api/sn_devops/v2/devops/tool/apps?toolId=<Tool ID>, where Tool Id is your GitHub tool id (sys_id) from DevOps Change Velocity.
      Remarque :
      If you are newly creating the tool and don't have the Tool ID, you can enter the webhook URL without the Tool ID and configure it later. To configure later:
      1. Navigate to the connected tool's tool record page.
      2. Select Configure GitHub App, then select Auto configure with existing token.

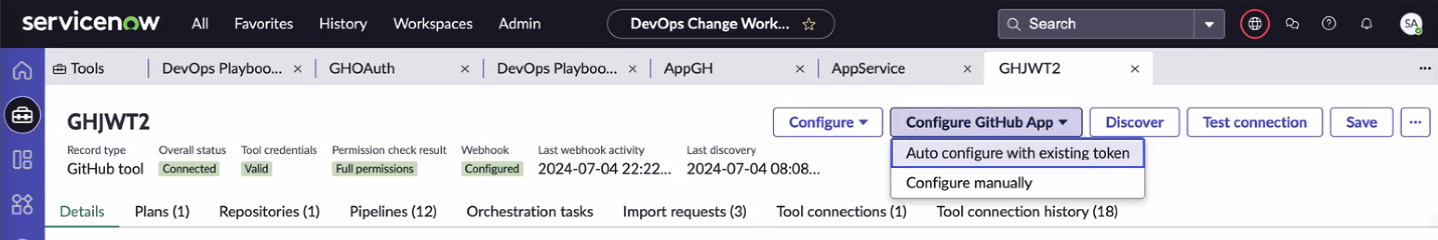

        Auto configure with existing token.

      This configures the Webhook URL of the GitHub App automatically.
      You can get the Tool ID in one of the following ways:
      • While connecting with the tool in DevOps Change Velocity, the Tool Id is available in the page URL. For example, https://<instance-name>.service-now.com/.../sn_devops_tool/<Tool ID>/....
      • You can copy the webhook URL from the GitHub tool record page in DevOps Change Velocity, from Configure > Configure manually > Webhook URL.
    7. Leave the remaining fields empty (default).
    8. In the Repository permissions section, configure the following settings.
      Action Read-only
      Checks Read-only
      Contents Read-only
      Deployments Read and write
      Environments Read-only
      Metadata Read-only
      Pull requests Read-only
      Secrets Read-only
      Webhooks Read and write
      Remarque :
      Read and write permissions are required to configure webhooks from ServiceNow.
      Remarque :
      If you are already using a GitHub App and you update any of the permissions, you must review and accept those permissions for your GitHub App. You can navigate to your app, and select Configure > Review request > Accept new permissions.
    9. Leave the remaining permissions as No access (default).
    10. In the Subscribe to events section, select the Deployment protection rule option.
    11. Save the changes.
    12. After creating the GitHub App, generate a new private key and save it to your machine.
    13. Install the newly created GitHub App on the accounts of your choice.
      1. From the GitHub Apps settings page, select your app.
      2. In the left sidebar, select Install App.
      3. Select Install next to the organization or personal account containing the correct repository.
      4. Install the app on all repositories or select repositories.
        For more information, see Installing GitHub Apps.

    Generate the Java KeyStore certificate for GitHub

    Generate a Java KeyStore (JKS) certificate for the JWT authentication.

    Avant de commencer

    Role required: admin

    Procédure

    1. Create a CA signed certificate using the GitHub App private key:
      openssl req -new -x509 -key <file-name>.pem -out <certificate-name>.pem -days 1095
    2. Enter the required details.
    3. Create the PKCS 12 file using the GitHub App private key and CA signed certificate:
      openssl pkcs12 -export -in <certificate-name>.pem -inkey <file-name>.pem -certfile <certificate-name>.pem -out <PKCS-12-file-name>.p12
    4. Provide the export password.
    5. Create the JKS file:
      keytool -importkeystore -srckeystore <PKCS-12-file-name>.p12 -srcstoretype pkcs12 -destkeystore <JKS-certificate-filename>.jks -deststoretype JKS
    6. Provide the destination and source keystore passwords.

    Attach the GitHub Java KeyStore certificate to your instance

    Enable the JWT Bearer Grant token authentication by attaching the valid GitHub Java KeyStore (JKS) certificate to your ServiceNow instance.

    Avant de commencer

    Ensure the availability of a valid Java KeyStore certificate.

    Role required: admin

    Procédure

    1. Navigate to All > System Definition > Certificates.
    2. Select New.
    3. On the form, fill in the fields.
      Tableau 1. X.509 Certificate form fields
      Field Description
      Name Name to uniquely identify the record. For example, My GitHub App Certificate.
      Notify on expiration Option to specify the users to be notified when the certificate expires.
      Warn in days to expire Number of days to send a notification before the certificate expires.
      Active Option to enable the certificate.
      Type Option to select the type of the certificate. Select Java Key Store.
      Expires in days Number of days until the certificate expires.
      Key store password Password associated with the certificate (hint: the destination KeyStore password previously created).
      Short description Summary about the certificate.
    4. Select the attachments icon (Attachments icon) and attach a JKS certificate.
    5. Select Validate Stores/Certificates.

    Create a JWT signing key for the GitHub JKS certificate

    Create a JSON Web Token (JWT) signing key to assign to your GitHub Java KeyStore certificate.

    Avant de commencer

    Role required: admin, sn_devops.admin

    Procédure

    1. Navigate to All > System OAuth > JWT Keys.
    2. Select New.
    3. On the form, fill in the fields.
      Tableau 2. JWT Keys form fields
      Field Description
      Name Name to uniquely identify the JWT signing key. For example, My GitHub App JWT Key.
      Signing Keystore Valid JKS certificate attached in the previous task. For example, My GitHub App Certificate.
      Key Id Unique Id to identify which key is used when multiple keys are used to sign tokens.
      Signing Algorithm Algorithm to sign with the JWT key (hint: RSA 256).
      Signing Key Password Password associated with the signing key (hint: the source keystore password previously created).
      Active Option to enable the key.
    4. Select Submit.

    Create a JWT provider for your GitHub signing key

    Add a JSON Web Token (JWT) provider to your ServiceNow instance for GitHub.

    Avant de commencer

    Role required: admin, sn_devops.admin

    Procédure

    1. Navigate to All > System OAuth > JWT Providers.
    2. Select New.
    3. On the form, fill in the fields.
      Tableau 3. JWT Provider form fields
      Field Description
      Name Name to uniquely identify the JWT provider. For example, My GitHub App JWT Provider.
      Expiry Interval (sec) Number in seconds to set the lifespan of JWT provider tokens (Hint: You can leave it as default).
      Signing Configuration Valid JWT signing key previously created. For example, My GitHub App JWT Key.
    4. Right-click the form header, and select Save.
    5. Enter your GitHub App App ID (available in the About section of your GitHub App configuration in GitHub ) as the value of the iss claim, in the Standard Claims related list.
    6. Leave aud and sub values blank (default).

    Register GitHub as an OAuth Provider (JWT)

    Use the information generated during GitHub App account configuration to register GitHub as an OAuth provider and allow the instance to request OAuth 2.0 tokens.

    Avant de commencer

    Role required: admin, sn_devops.admin

    Procédure

    1. Navigate to All > System OAuth > Application Registry.
    2. Select New.
      The What kind of OAuth application? message is displayed.
    3. Select Connect to a third party OAuth Provider.
    4. On the form, fill in the fields.
      Tableau 4. Application Registry form fields
      Field Description
      Name Name to uniquely identify the record. For example, enter My GitHub App Provider.
      Client ID Client ID of your GitHub App (hint: available in the About section of your GitHub App configuration in GitHub ).
      Client Secret Client secret of your GitHub App (hint: available in the About section of your GitHub App configuration in GitHub ).
      OAuth API script Option that enables you to reference an amended OAuthUtil script include. Select OAuthDevOpsGitHubJWTHandler.
      Default Grant type Type of grant associated with application registry. Select JWT Bearer.
      Token URL The location of the token endpoint that the instance uses to retrieve and refresh tokens.

      For cloud version, enter: https://api.github.com/app/installations/<installation_id>/access_tokens.

      For enterprise version, enter: https://<HOST_URL>/api/v3/app/installations/<installation_id>/access_tokens.

      For the installation id, go to Install App section in your GitHub App configuration in GitHub and select the gear icon to configure your app. The installation id will be in the webpage URL. For example, https://github.com/settings/installations/<installation_id>.
    5. Leave the rest of the form fields as default.

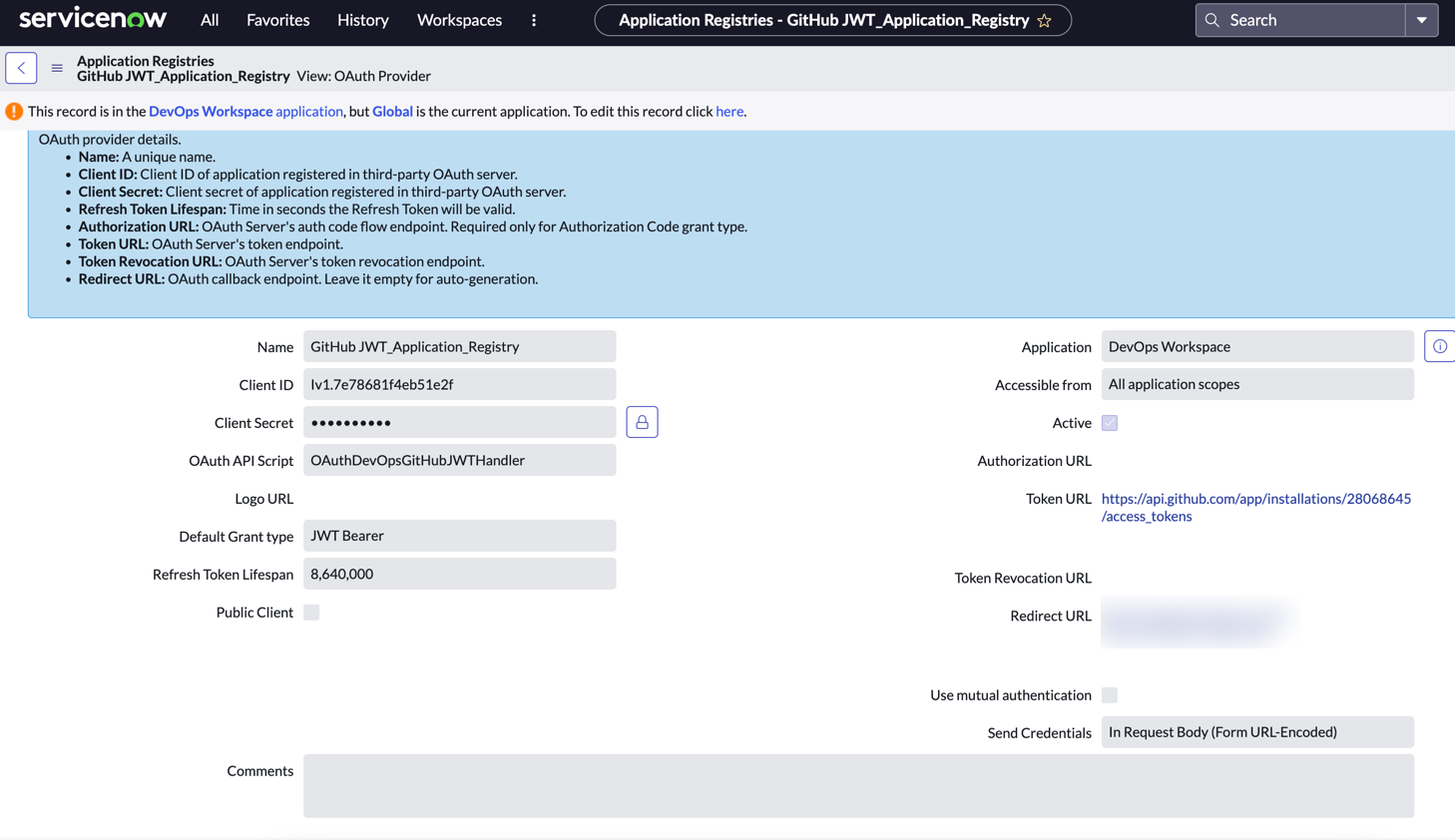

      Application Registry form
    6. Right-click the form header, and select Save.
    7. Open the default profile created in the OAuth Entity Profiles related list.
    8. Populate the JWT Provider field with the JWT provider previously created and save the form.
    9. Navigate to Key Management > Module Access Policies > All.
    10. Select the policy that has com_snc_platform_security_oauth_glideencrypter as the Crypto module field value and Script Include: OAuthDevOpsGitHubJWTHandler as the Target script field value.
    11. Ensure the Result field is set to Track and save the changes.

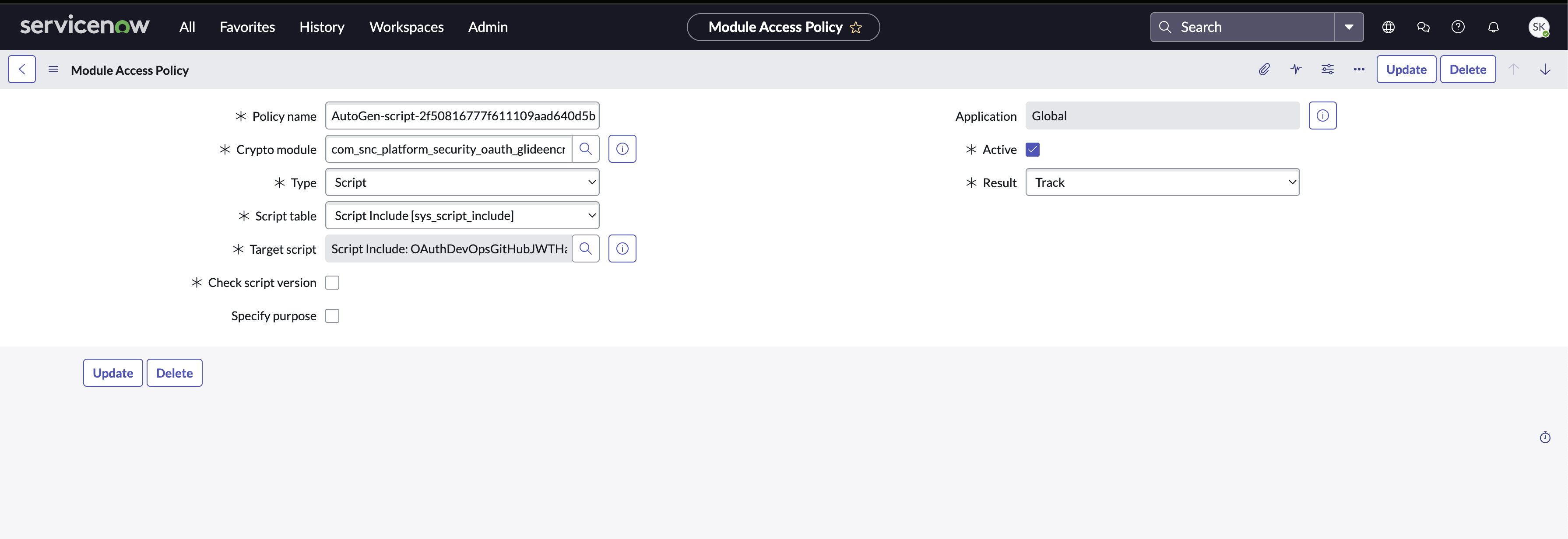

      Form that shows the result field is set to track.

    Create a credential record for GitHub App provider (JWT)

    Create a credential record to the GitHub App provider previously created to authorize actions.

    Avant de commencer

    Role required: admin, sn_devops.admin

    Procédure

    1. Navigate to All > Connections & Credentials > Credentials.
    2. Select New.
      The What type of Credentials would you like to create? message is displayed.
    3. Select OAuth 2.0 Credentials.
    4. On the form, fill in the fields.
      Tableau 5. OAuth 2.0 Credentials form fields
      Field Value required
      Name Name to uniquely identify the record. For example, enter My GitHub App Credential.
      Active Option to enable the record.
      OAuth Entity Profile Default OAuth Entity profile created in the Application Registry.
    5. Save the record.
    6. Select the Get OAuth Token related link to generate the OAuth token.
