Configure a dynamic screen name for a list screen

Configure a screen to dynamically inherit a name from a parametrized list screen. This setup enables users to view a passed parameter as the screen name instead of the screen record name.

Avant de commencer

Role required: admin

Procédure

1. In the web-based UI, enter sys_sg_screen.list in the filter navigator.
2. Select a list screen to inherit the dynamic screen name.
3. Apply an existing UI parameter in the UI parameter related list.
   1. If the UI parameters, Screen UI element mappings, and Source and UI element related lists are not displayed, add them by clicking the Additional actions icon (). Then, select Configure > Related Lists, and then select the required related lists.
   2. Click the UI parameters tab.
   3. Select an existing UI parameter.
   4. On the form, fill in the fields.

      Tableau 1. UI parameter element mapping form

      Field	Value
      Parameter type	Screen
      Input source	User input
      Input type	Text

   5. Click Submit.
4. Define a UI element to serve as the location point of the dynamic screen name.
   Remarque :

   This step is a one-time configuration. Once you create the UI element, a new record for the screen title location is not required.
   1. In the web-based UI, enter sys_sg_ui_element.list in the filter navigator.
   2. Click New to create a new UI element.
   3. On the form, fill in the fields.

      Tableau 2. UI elements form

      Field	Description
      Location	Location where the dynamic screen name displays. Select Title.
      Name	Name of the UI element.

   4. Click Submit.
5. Create a screen UI element and map it to the screen type.
   1. Click the Screen UI element mappings tab.
   2. Click New.
   3. On the form, fill in the fields.

      Tableau 3. Screen UI element mapping form

      Field	Description
      Screen	Auto-populated with the selected screen, which inherits the dynamic screen parameter.
      UI Element	The UI element to be configured.

   4. Click Submit.
6. Map the screen UI element with the UI parameter.
   1. Click the Source and UI element tab.
   2. Click New.
   3. On the form, fill in the fields.

      Tableau 4. Source UI element mapping form

      Field	Description
      UI Element	The UI element to display the dynamic screen name.
      Source Table	The UI Parameter table.

   4. Click Submit.

Résultats

The screen name dynamically inherits a value from the redirection parameter.

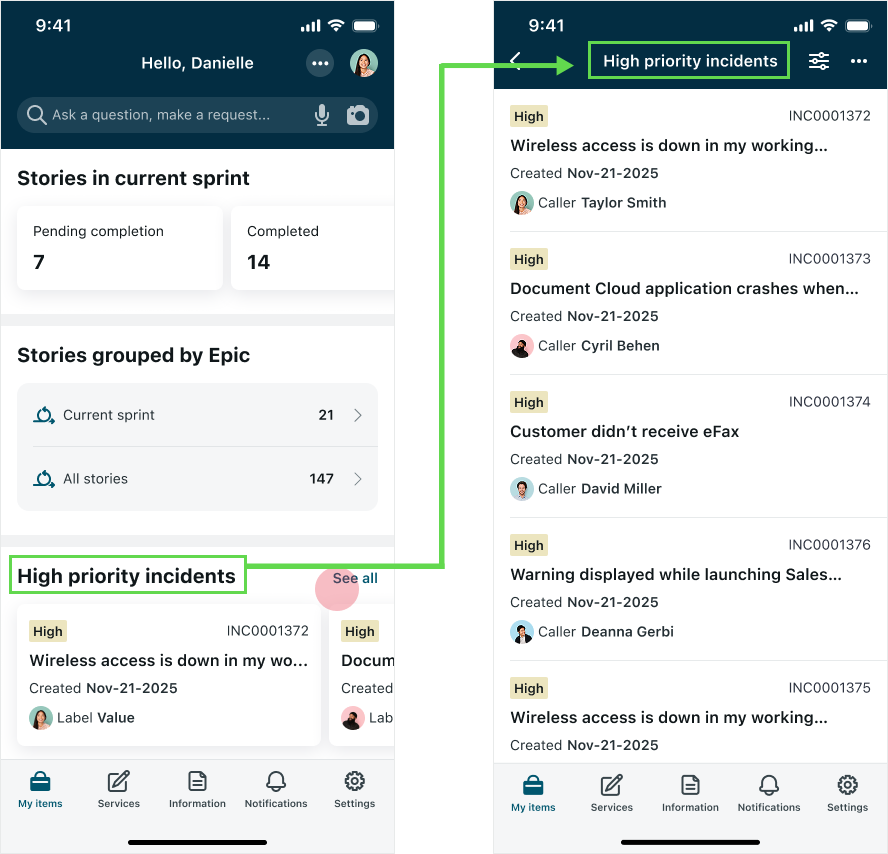

Figure 1. Dynamic screen name displayed from the redirection parameter
