Configure the SCCM integration and schedule an import

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 1 minute de lecture

    • Importing data from Microsoft SCCM requires a connection to the SCCM database via a JDBC data source and a schedule that tells the MID Server when to fetch the data.

    Avant de commencer

    You must have sufficient credentials to query the SQL Server that contains the SCCM database. Create a SQL Server account in order to connect to the SCCM database on the MID Server to use the data sources.
    Connect to your SCCM SQL Server and configure the following:
    1. Create a new login user name and password for SQL Server authentication.
    2. Choose the SCCM database that ServiceNow data sources will connect to.
    3. Assign the 'db_datareader' role membership to the new user.

    Role required: admin

    Pourquoi et quand exécuter cette tâche

    The system uses the details of the database connection you create in this procedure to configure the default SCCM data sources automatically.
    Remarque :
    If you want to configure the JDBC data source to authenticate on your SQL Server database using the Windows MID Server service user, select the Use integrated authentication box on each of the existing data sources.

    Procédure

    1. Navigate to All > Integration - Microsoft SCCM <version> > Setup.
    2. Complete the required fields to configure connection to the SCCM SQL database. Make sure to include a valid MID Server that has access to the SQL database server.

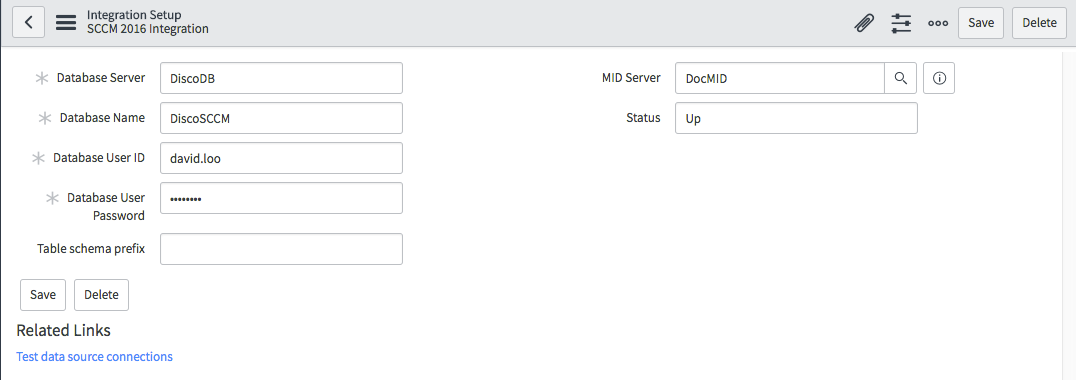

      Figure 1. SCCM data import setup
      SCCM data import setup
    3. Under Related Links, click Test data source connections to test the connection to the SCCM database.
    4. If the data source connects to the SCCM database, navigate to Integration - Microsoft SCCM > Scheduled Import.

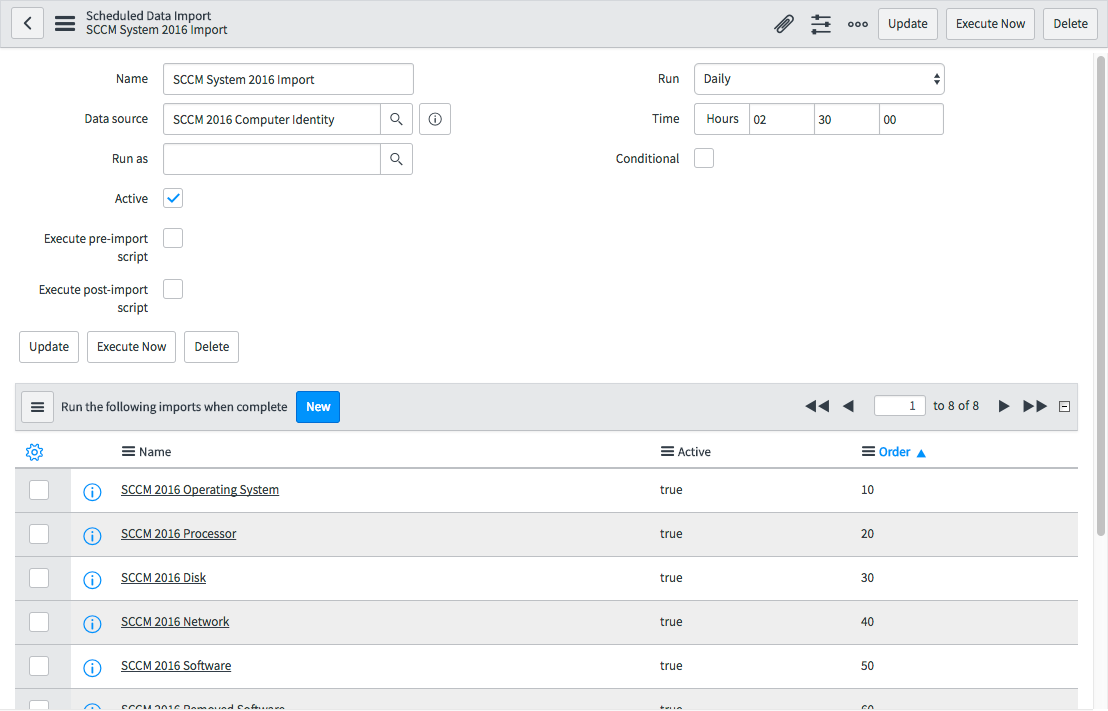

      The Scheduled Data Import form appears for your version of the SCCM integration. The Computer Identity data source runs first. The other data sources listed on the form run in sequence, based on their default order.
    5. Select a calendar interval (Day, Week, etc.) in the Run field and specify the time of day the import should run.
      Your selection displays additional fields required to complete the schedule.
    6. Click Update to schedule the import or click Execute Now to perform the import immediately.

      After the instance imports data using the SCCM <version> Computer Identity data source, the other data sources run in the order configured to retrieve the remainder of the SCCM data.
