Key management transactions

The Key Management Transactions submodule displays all transactions that have occurred for the keys in your ServiceNow instance.

• A key transaction is defined by the following:
  • composed of several request steps.
  • A single Request ID is shared across all request steps.
  • The initial step, request sequence 0, of a transaction provides the current state of the overall transaction.

    As seen in the image below, the initial step 0 has an overall Request Status of Completed.

• The following can be identified for the transaction by the individual request step:
  • The order of each step in a transaction can be identified by the sequence number for the step.
  • The status of each transaction is visible through the status of the request step.
  • If any steps beyond the initial step fail, the overall transaction has a status of Failed. If all steps are completed, the transaction status is also completed.

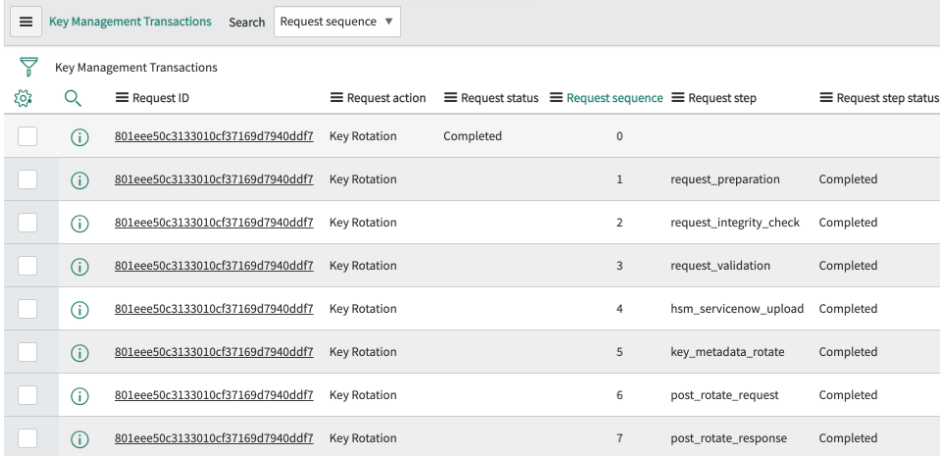

The following screen is a sample of the type of information that displays with a ServiceNow key rotation.

The following table displays the field information available on the Key Managements Transactions page.

Tableau 1. Key Management Transactions

Field	Description
Request ID	Unique system-generated Id for the action being performed One request ID is shared across all request steps.
Request action	Displays the action for the key operation being performed.
Request status	Processing: A request has been entered but hasn’t yet been completed. Completed: The request has been completed successfully. Failed: An issue occurred and the process hasn’t been completed. Remarque : Contact Customer Service and Support and provide the request number where the failure occurred.
Key alias	Alphanumeric entry.
Key life-cycle state	See Key Management Framework key life-cycle states for definitions.
Origin	ServiceNow key Customer-managed key
Key version	When a key rotates, the version number increments.
Request sequence	Displays the order in which a request is being processed in the system.
Request step	Displays whether a step is being processed in the system during key rotation. The quantity and content of the steps vary based on the type of key operation performed. request_preparation: Creates a request to trigger and the wrapping and rotation. request_integrity_check: Validates that the request is legitimate and secure. request_validation: Validates that there’s a request in progress, only one rotate request can be processed at a time. attachment_process: Extracts the wrapped key material from the attachment. (Additional step when rotating a Customer Managed key.) hsm_<key type>_upload: Uploads the wrapped key material to the HSM, KeySecure. key_metadata_rotate: Generates the new key metadata. post_rotate_request: Sends a request to perform the key rotation. post_rotate_response: Response to perform the key rotation based on the request from the customer instance. Remarque : Provide the request step to Customer Service and Support to analyze the status progression in case a request step doesn’t complete.
Request step status	Completed: Rotation is successful. Failed: Rotation isn’t successful. Remarque : Provide the request step to Customer Service and Support to analyze the status progression in case a request step doesn’t complete.
