Create a Report Subsection Template

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 1 minute de lecture

    • Use the report subsection to further organize the section into multiple subsections and configure their alignment and position using the available types such as Text side panel, Primary, and Secondary.

    Avant de commencer

    Role required: sn_msi.workspace_manager

    Procédure

    1. Navigate to Major Security Incident Management > MSI Administration > Status Report Setup.
      The MSI Status Report Setup page displays.
    2. In the Report Template section, select Configure.
    3. Open an existing report template and navigate to the respective Report sections list.
    4. In the Report sections list, open an existing Report section template.
    5. Navigate to Report subsections > New.

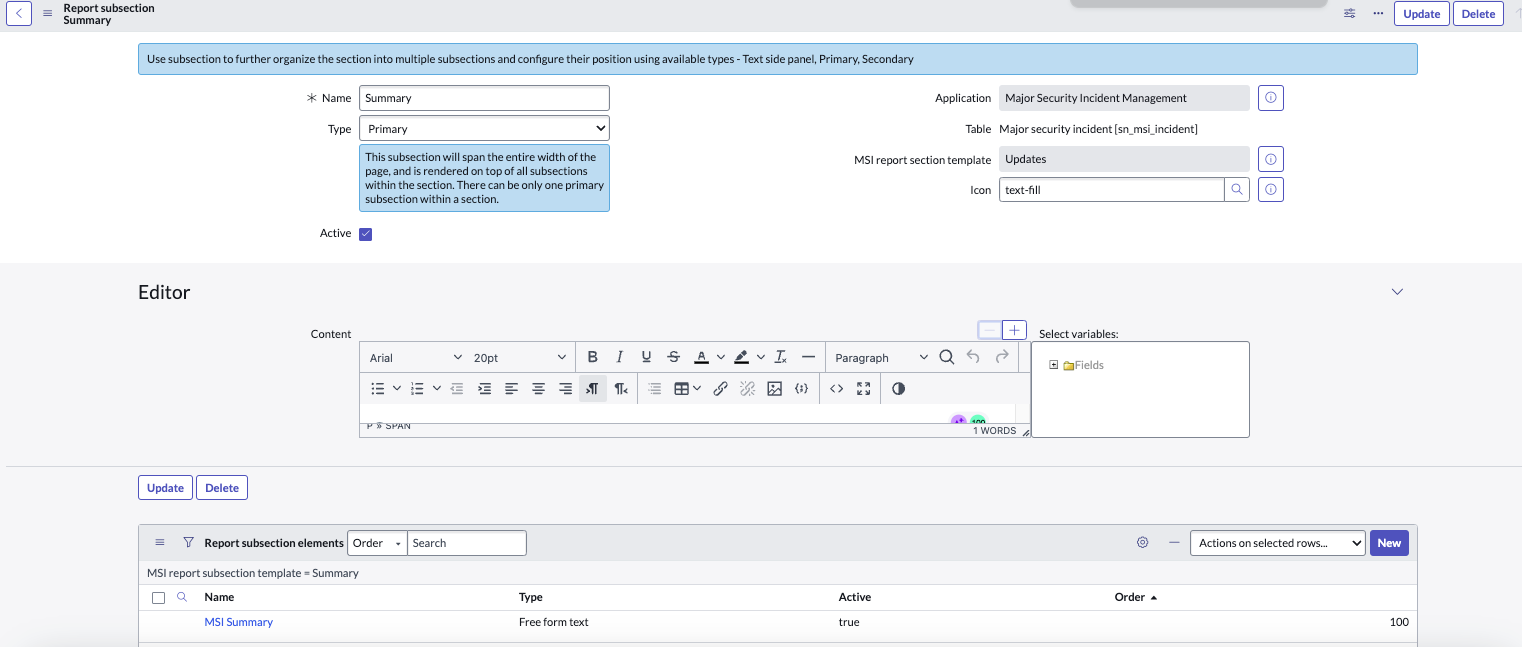

      Figure 1. Create a Report subsection template
      Sample Report subsection template
    6. On the Report subsection form, fill in the fields.
      FieldDescription
      Name Name of the Report template subsection. For example, Scope.
      Remarque :
      The existing subsections for the predefined reports are: Overview, Scope, Progress, Explanation.
      • Overview: Displays the overview as a subsection within the report.
      • Scope: Displays the visualization elements within the report such as the duration counters, incident impact, active teams, and active teams trend.
      • Progress: Displays the visualization elements within the report such as the Linked Security Incidents Graphs, Response Tasks Graph, and Collaboration Graphs.
      Type The report subsection type. The available types are:
      • Primary: This subsection spans the entire width of the page, and is rendered on top of all subsections within the section. There can be only one primary subsection within a section.
      • Secondary: This subsection spans the entire width of the page unless used with the text side panel.
      • Text side panel: This subsection accompanies the secondary panel and only supports the text.
      Table Name of the report template table.
      MSI report section template The MSI Report Template name for which you’re dividing the report into sections.
      Order The order in which the report subsections will be rendered.
      Icon Use the icon to indicate or highlight the section container on the report runtime configuration form.
      Active Select the check box to create a report subsection for the selected template in the MSIM workspace.
      Remarque :
      If the check box is unselected, the MSI Manager can’t create a report subsection for this template in the MSIM workspace.
      Editor - Content Define the template subsection content.
    7. Save and Submit the new report template section.
