Create or modify Map Related Items

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 1 minute de lecture

    • The Map Related Items module relates referenced CIs to one another, which allows them to be displayed in a Dependency Views map.

    Avant de commencer

    Role required: sn_cmdb_admin or admin

    Pourquoi et quand exécuter cette tâche

    The base system configuration includes the following tables and relates them to items in the Computer [cmdb_ci_computer] and Server [cmdb_ci_server] tables.
    • Disk [cmdb_ci_disk]
    • Network Adapter [cmdb_ci_network_adapter]
    • Database [cmdb_ci_database]
    Some additional referenced CIs that can be related in this manner are file systems and running processes.

    In the following example, computer nodes in the map are related to network adapter nodes if the Configuration Item field of the adapter records reference the specific CI node. Access or create a network adapter record from the Network Adapter related list in the cmdb_ci_computer record.

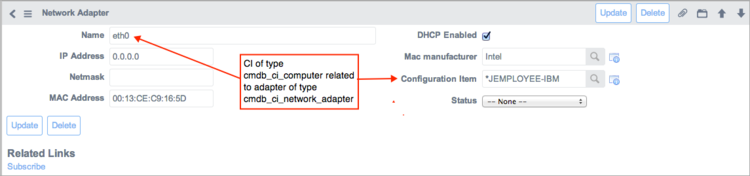

    Figure 1. Dependency Views Configuration Item field
    CIs related by depencency.

    The Dependency Views map for the *JEMPLOYEE-IBM computer shows the network adapter attached to the computer.

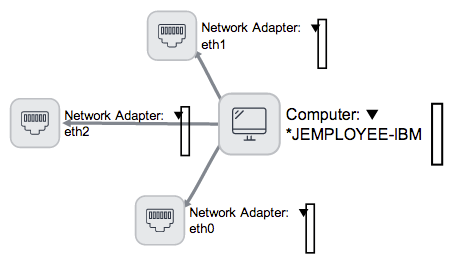

    Figure 2. Dependency Views map Related Items example
    Dependency Views map displaying related CIs.

    You can configure Dependency Views to display CIs that have no relationship record, but are related to other CIs by reference fields.

    Procédure

    1. Navigate to All > Dependency Views > Map Related Items.
    2. Click New to create a new related item, or click in the row of an existing CI to modify an existing map related item.
    3. On the form, fill in the fields.
      See the Related Items form table.
    4. Click Submit to enter a new map related item or click Update to modify an existing map related item.
      Tableau 1. Related Items form
      Control Description
      Configuration item CI that represents the base node or a CI in a table that extends the base node table. In the base system, the configuration item that represents the base node is Computer [cmdb_ci_computer], which includes all types of workstations and servers.
      Related item Table name of the related item. Only the cmdb_ci table and tables that extend it are displayed in the choice list.
      Related field Field that links this related item to the configuration item. In many cases, the appropriate value is automatically populated in the field after the first two fields are selected. Select the drop-down menu for additional options.
      Active Check box to enable or disable this record.
