Create an error condition exit

An administrator can reroute the workflow when a script error occurs by creating an error condition exit for specific activities within the workflow. This allows the workflow to process script errors in a predictable way and not create undesirable results.

Procédure

1. Open and check out a workflow.
2. Right-click in the top portion of the activity for which you want to create an error exit.
3. Select Add condition from the context menu.
4. Add a condition exit with the following values:
   • Name: Error
   • Condition: activity.state=='faulted'
5. Click Submit.

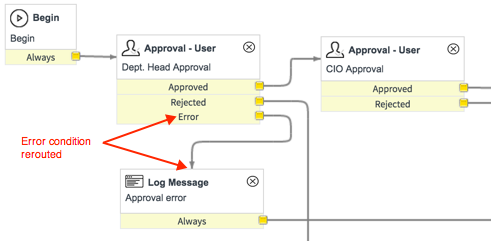

   The Error exit appears on the activity.

6. Connect the Error exit to another activity for handling the error state, such as Notification or Log Message.
