SNMP trap collector extension

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 3 minutes de lecture

    • The SNMP trap collector is a MID Server extension that listens for SNMP traps from the devices on your network.

    Setup indicator for configuration phaseEnsure that the MID Server can connect to elements inside and outside your networkDownload and install the MID Server on a Linux or Windows hostConfigure your MID ServerConfigure MID Server securityEnsure that the MID Server can connect to elements inside and outside your networkDownload and install the MID Server on a Linux or Windows hostConfigure your MID ServerConfigure MID Server security

    Upon receiving a trap, the MID Server sends the trap to the instance for further processing by Event Management. If Event Management is not active, traps are not processed and are discarded by the instance.

    For the SNMP trap collector extension to receive traps from network devices, each device must designate the MID Server that runs the SNMP trap collector extension as a recipient of the trap. See the documentation for the network device to configure your hardware to do this. Generally, the SNMP trap collector extension should run on only one MID Server per VLAN. Multiple MID Server recipients on the same VLAN causes duplicate data in the CMDB. If network devices are separated by VLANs, multiple MID Servers may have trap collectors installed.

    To configure multiple SNMP trap collector extensions, configure each in a separate record, with a unique name, and a designated MID Server.

    Configure the SNMP Trap Collector Extension

    For the SNMP trap collector extension to receive traps from network devices, each device must designate the MID Server that runs the SNMP trap collector extension as a recipient of the trap.

    Avant de commencer

    Role required: admin

    Procédure

    1. Navigate to All > MID Server > Extensions. > MID SNMP Trap Listener
    2. Click New or open an existing extension.
    3. Fill in the fields from the table, as appropriate.
    4. Click Submit or Update.

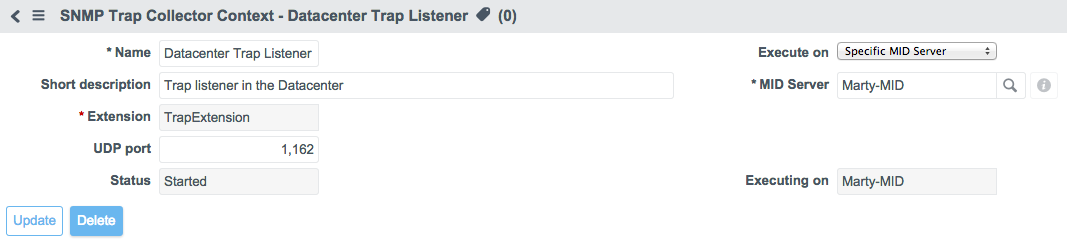

      SNMP trap collector
      Field name Description
      Name

      A unique name for this SNMP trap collector extension for easy identification.
      Short description

      A description of the MID Server extension, if more description than the Name is necessary.
      Extension

      [Read-Only] The extension type is automatically set to TrapExtension.
      UDP port

      The port number that your network hardware uses when sending a trap to the designated MID Server. Port numbers 1024 and above are recommended. Port numbers 1023 and lower may be system reserved and can result in access violations for MID Servers that are not running with administrative credentials.
      Status

      [Read-Only] The status of the trap collector extension. This field is blank until the extension is run. After it is run, the value may be:

      • Started: The extension is running.
      • Stopped: The extension is not running.
      • Offline: The MID Server is down.
      • Error: The extension failed with an error.
      Execute on

      The location for running this extension: a Specific MID Server or a Specific MID Server Cluster. The recommended setting is Specific MID Server. Network hardware typically has to be configured to send to a specific IP address. If the listener moved to a different MID Server in the cluster, the trap would not be received.
      MID Server

      The name of the designated MID Server if you selected Specific MID Server in the Execute on field. The name of the designated MID Server cluster if you selected Specific MID Server Cluster in the Execute on field. If you selected Specific MID Server Cluster, a ServiceNow algorithm determines which server in the cluster runs the extension.
      Executing on

      [Read-Only] The name of the MID Server on which the extension is running. This field shows the name of the MID Server even if the MID Server is down. If the extension is stopped by the user, this field is empty.
    5. In Related Links, run any of the following actions against the SNMP trap collector extension:
      Related Link Description
      Start Starts the extension if it is currently not running. The extension is started on the configured MID Server and port number.
      Stop Stops the running extension on the configured MID Server. No action is taken if the extension is not running.
      Restart Stops, then starts the extension on the configured MID Server and port number.
      Test Verifies that the configured MID Server can run the SNMP trap collector extension on the specified port. Running a test does not affect any extensions that are currently running.
      Update parameters If you make changes to the extension configuration, use this option to update the parameters of the currently running extension. First, the parameters are tested for validity. If the parameters are valid, the extension disconnects and reconnects with the new parameters.
