Tables installed with Notify

  • Rversion finale: Australia
  • Mis à jour 12 mars 2026
  • 1 minute de lecture

    • Notify adds the following tables.

    Tableau 1. Tables
    Table Description
    Notify Conference Calls

    [notify_conference_call]

    A list of conference calls started using Notify
    Notify Calls

    [notify_call]

    A list of calls started using Notify
    Notify Call Queue

    [notify_queue]

    		 A list of calls that are in queue
    Notify Call Status

    [notify_call_status]

    		 List of possible statuses of calls, such as; initiated, ringing, etc.
    Notify Client Connected Sessions

    [notify_client_session]

    		 List of the connected sessions
    Notify Conference Call Participants

    [notify_participant]

    		 List of the participants in a conference call
    Notify Conference Call Participant Sessions

    [notify_participant_session]

    		 List of the associations of a call record and Notify participant record
    Notify Messages

    [notify_message]

    List of messages sent from/to Notify
    Notify Phone Numbers

    [notify_number]

    List of phone numbers used by Notify to make calls and send messages
    Notify Phone Number Groups

    [notify_group]

    		 List of phone number groups used by Notify to make calls and send messages
    Notify Languages

    [notify_language]

    		 List of the languages that Notify supports when using text-to-speech workflow activities.
    Notify Recordings

    [notify_recording]

    		 List of conference call recordings
    Notify Workflow Activity

    [notify_wf_activity]

    List of Notify workflow activities
    Notify Audio MIME Types

    [notify_mime_type]

    		 List of audio file formats
    Temporary Serialized Notify Action Cache

    [notify_action]

    List of serialized Notify actions waiting to be processed
    Notify SMS Template

    [notify_sms_template]

    		 Contains the templates which are used while sending a Notify SMS.

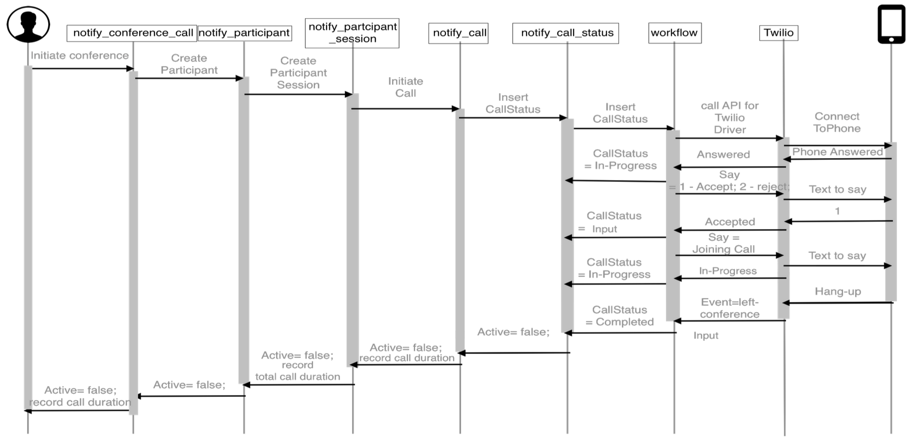

    Figure 1. Notify call sequence
