Configure the default variable editor for a task-extended table

After you configure the default variable editor for a task-extended table, you can view and edit the values of questions specified by the requester in the record producer. Applicable only for records generated by a record producer.

Avant de commencer

Role required: admin

Procédure

1. Create a formatter for the task-extended table.
   1. Navigate to System UI > Formatters.
   2. Click New.
   3. On the form, fill the fields.

      Field	Description
      Name	The name of the formatter that is displayed in the form of the task-extended table.
      Formatter	The file name of the formatter. In this case, specify com_glideapp_questionset_default_question_editor.
      Table	The table that uses the formatter.
      Active	Specifies if the formatter is active.
      Type	The type of the formatter. In this case, specify Formatter.

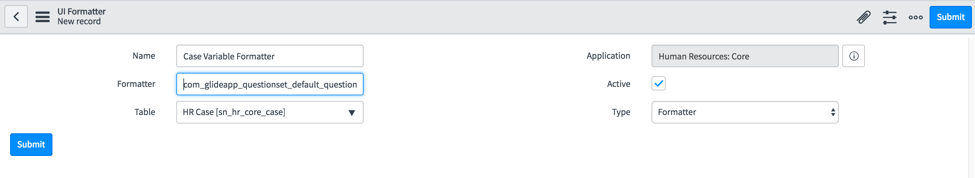

      Figure 1. UI formatter



   4. Click Submit.
2. Add the formatter to the form of the task-extended table.
   The formatter is displayed on the form according to your selections.
   1. From the Additional Actions menu on the form, select Configure > Form Layout.
   2. Use the list to select the display order for the formatter field.

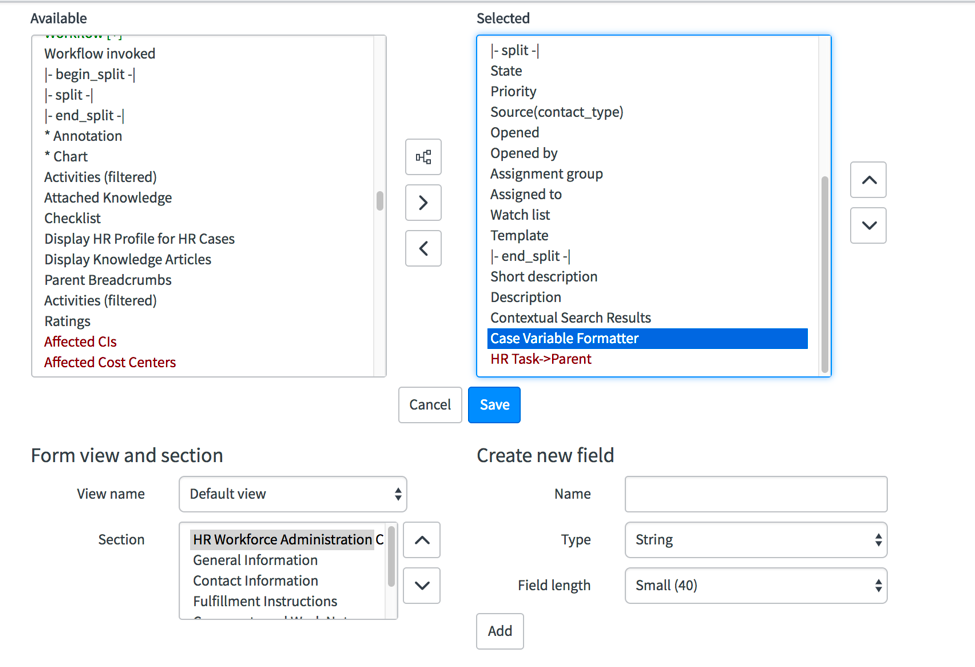

      Figure 2. Add a formatter to a form



   3. Click Save.
      The default variable editor is available on the form.

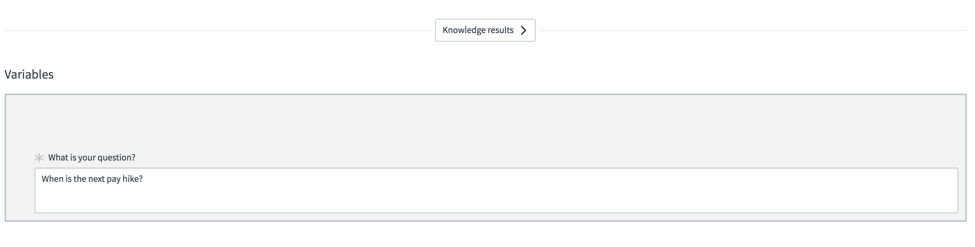

      Figure 3. Default variable editor
