Configure 360º views for services and processes

Configure 360º views for the services, business services, business processes, and application services. You can select the table for which you want to update the sector configurations, relationship registries, and their positions on the 360º view.

Before you begin

Role required: sn_oper_res.admin

Procedure

1. Navigate to All > 360º View Configurations > Configure 360º Views > .
2. Select the table for which you want to configure 360º View.

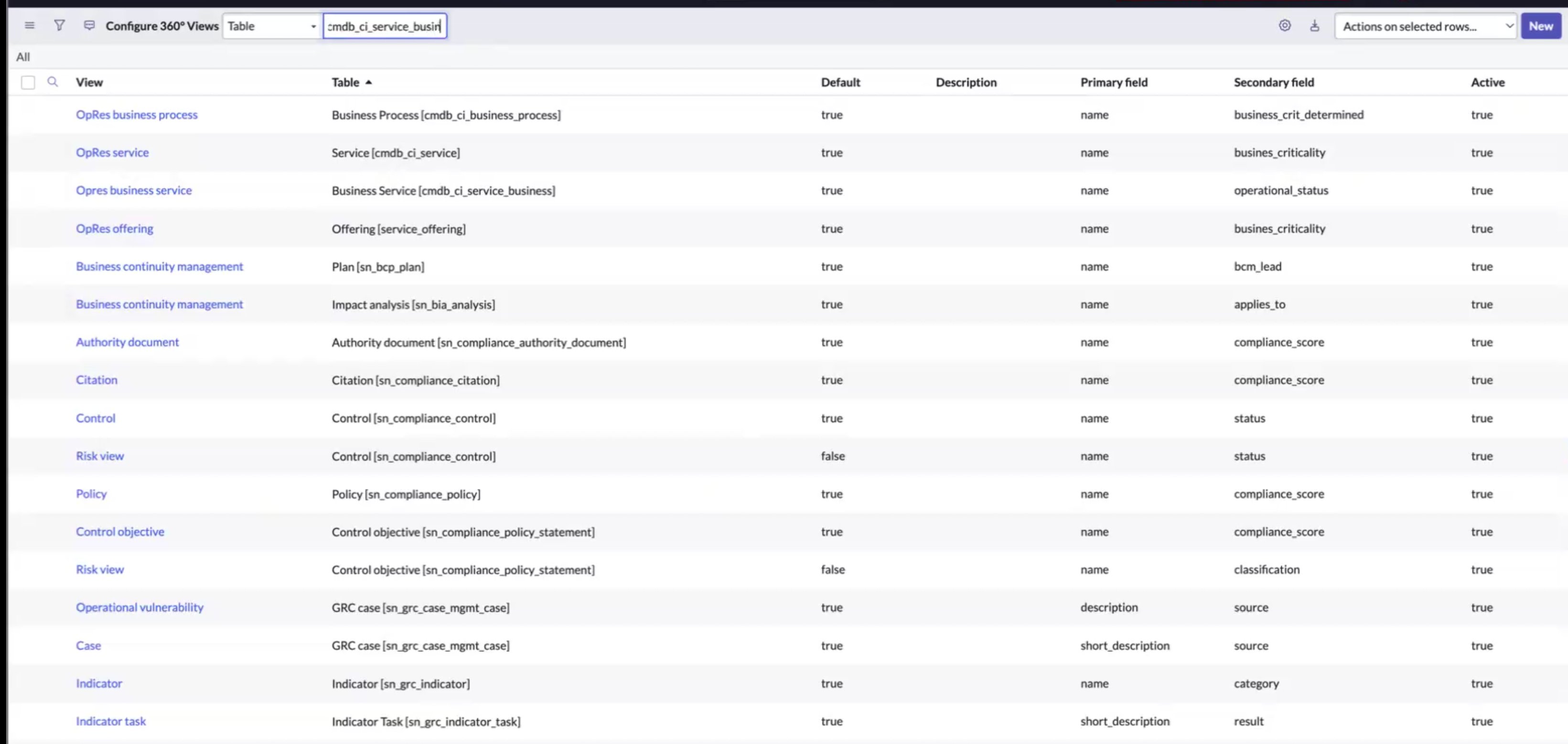

   You can select the table from the list view as shown in the example.

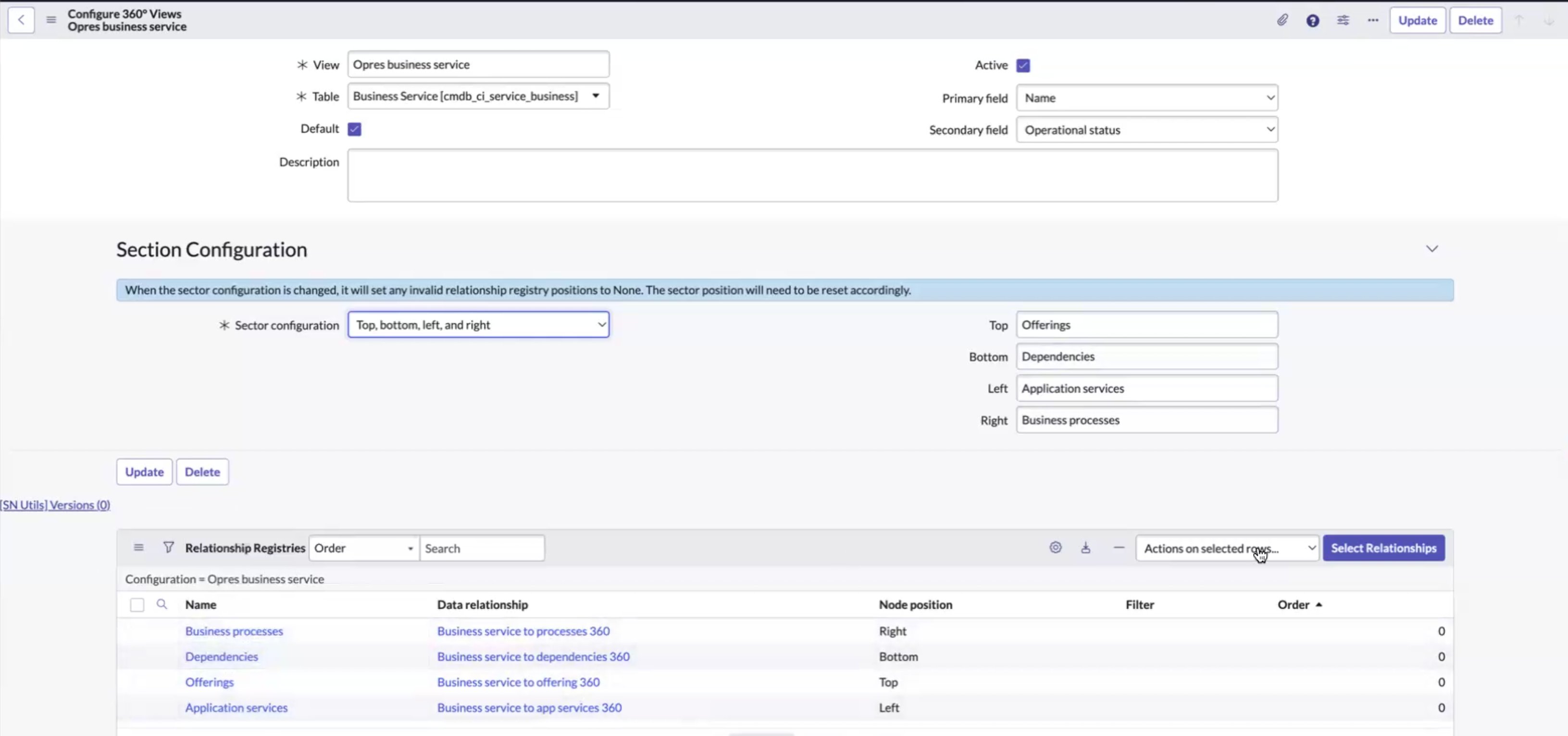

   The Configure 360º Views form for the selected table is displayed.


3. Update the section configuration for the top, bottom, left, and right positions as desired in the Sector configuration field.
4. To update the relationship configurations, choose Select Relationships in the Relationships Registries related list.
5. Select Update.
   The selected relationships are saved in the application.
6. Navigate to the specific form in the Operational Resilience Workspace.

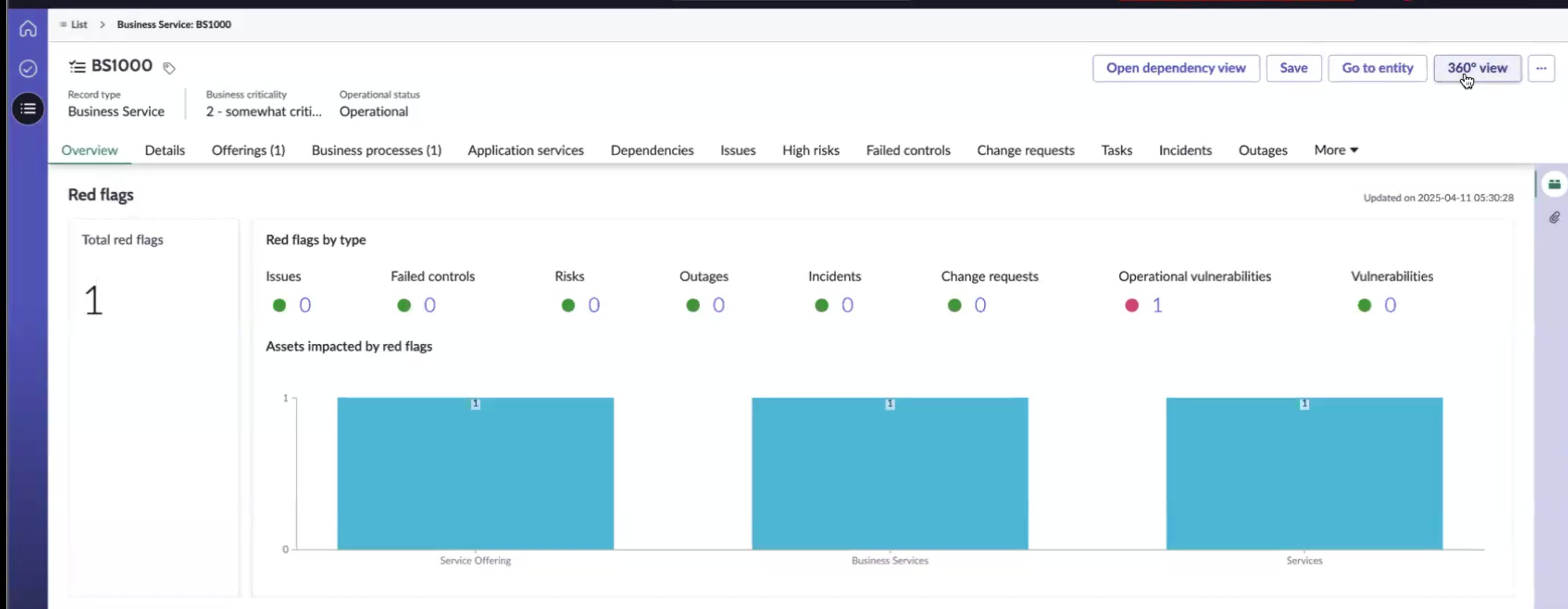

7. Select the 360º View UI action.

   You can navigate to the 360º view for the selected table.

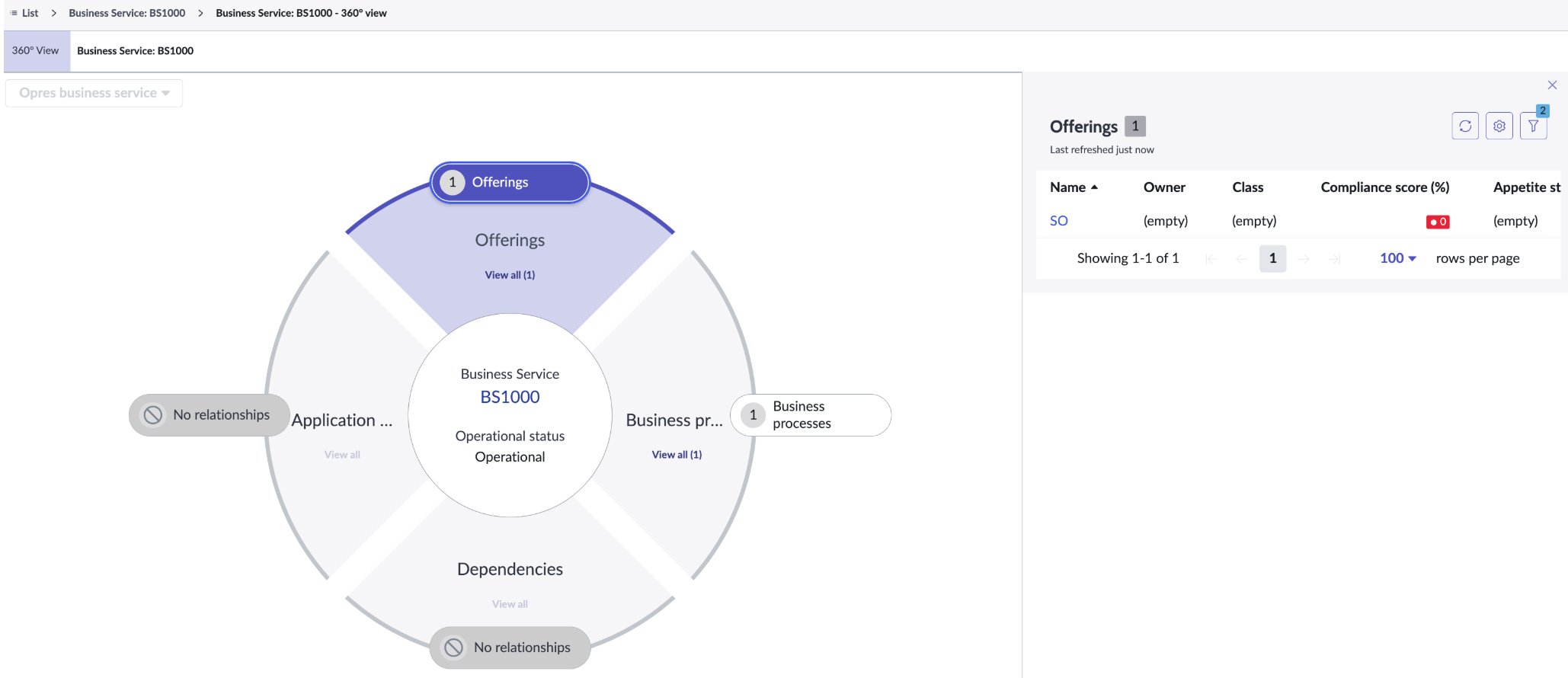

8. Verify the positions of the relationships on the form.

   The 360º view shows the context information of the opened service, business service, service offering, and business process. When you select the node, it shows more information on the selected node in the right side panel. You can verify the placements and positions of the relationships on the form as shown in the example.



   For more information on 360º views, see Exploring the 360º view.
