Import OSCAL catalog

From the New Import playbook experience page, you can import OSCAL files in the Catalog model into CAM workspace. This task focuses on uploading and processing the required JSON files to begin the import process.

Before you begin

Role required:

• sn_irm_cont_auth.info_system_sec_manager
• sn_irm_cont_auth.info_system_sec_officer
• sn_irm_cont_auth.admin

Note:

• The catalog file to be imported must be in JSON format and validated using the OSCAL-CLI tool https://github.com/usnistgov/oscal-cli for any validation error.
• Recipients are notified through email on completion of the import process.

The OSCAL catalog import is a synchronous process.

Procedure

1. Navigate to Workspaces > CAM Workspace.
2. In the CAM Workspace, select the OSCAL import landing page icon ().
3. Select New Import from the All OSCAL imports landing page.

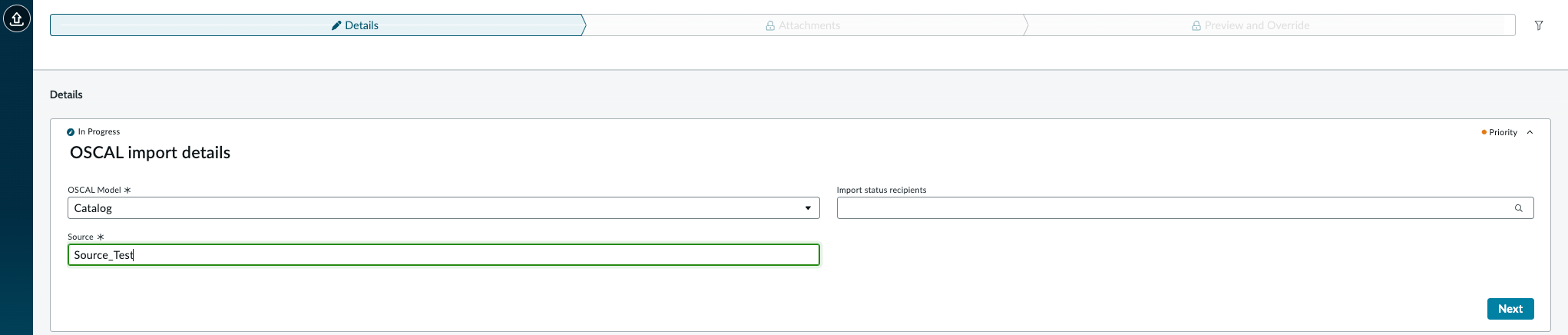

4. Select Catalog from the OSCAL Model drop-down list.
   By default the Catalog model is selected.
5. Enter the Source name.
   The source name that you enter is used as the name for the imported control objective. If a control objective with the same source name exists, the file is skipped during import.



6. Optional: Enter the Import status recipients name.
   You can list the users you want to be notified once the OSCAL import is complete. The recipients receive an email notification on the import status.
7. Select Next to continue to the next step in the OSCAL import process.
   You’ll be directed to the Attachments tab to attach the catalog file.

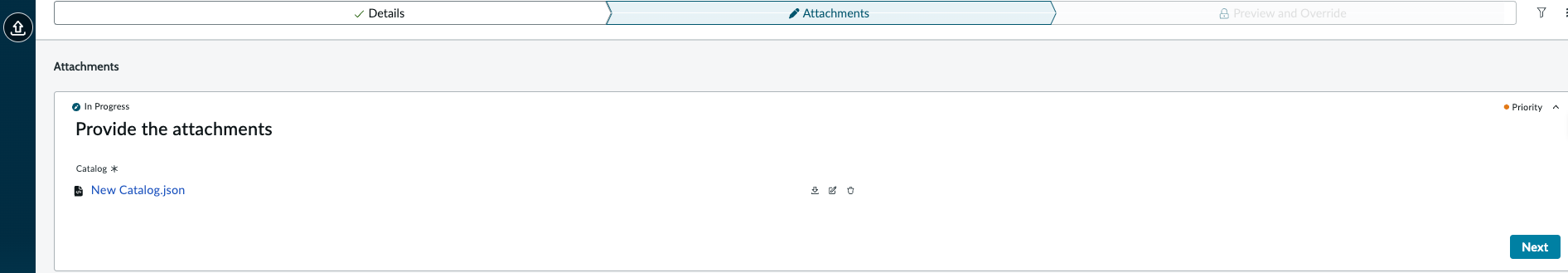

8. Select the Attach File in the Attachments tab to attach the catalog file from your local repository.

9. Select Next to verify the files you uploaded.
   Preview and Override tab displays.

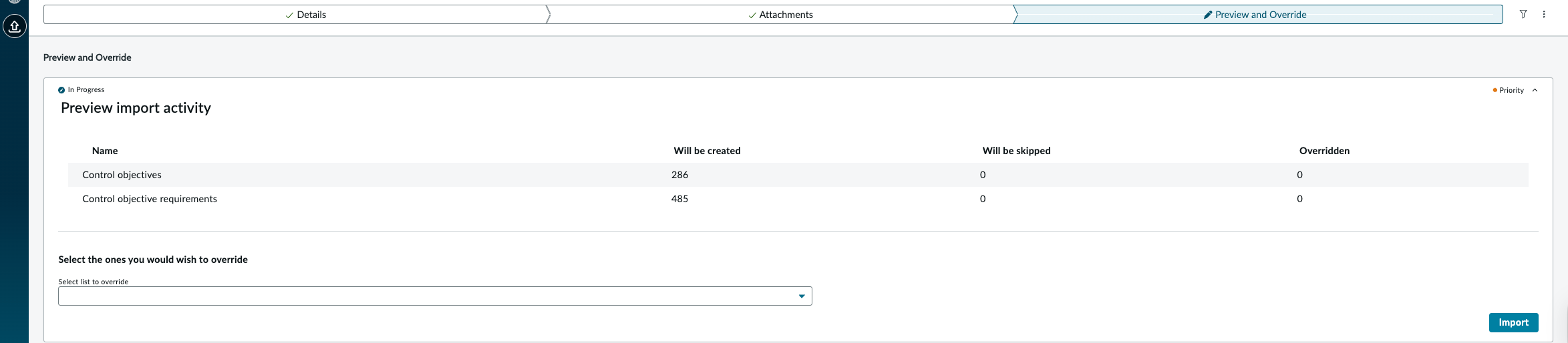

10. In the Preview and Override tab, review the details that are to be created, skipped, or overridden and then perform one of the following:
    • Select Import to import the Catalog model.
      Note:

      When all the data is new and must be imported, the import action creates new records for the respective data. In this case, you can’t skip or override the files. However, if you import a file with the existing source and matching records, you’ll have the option to skip or override the data.

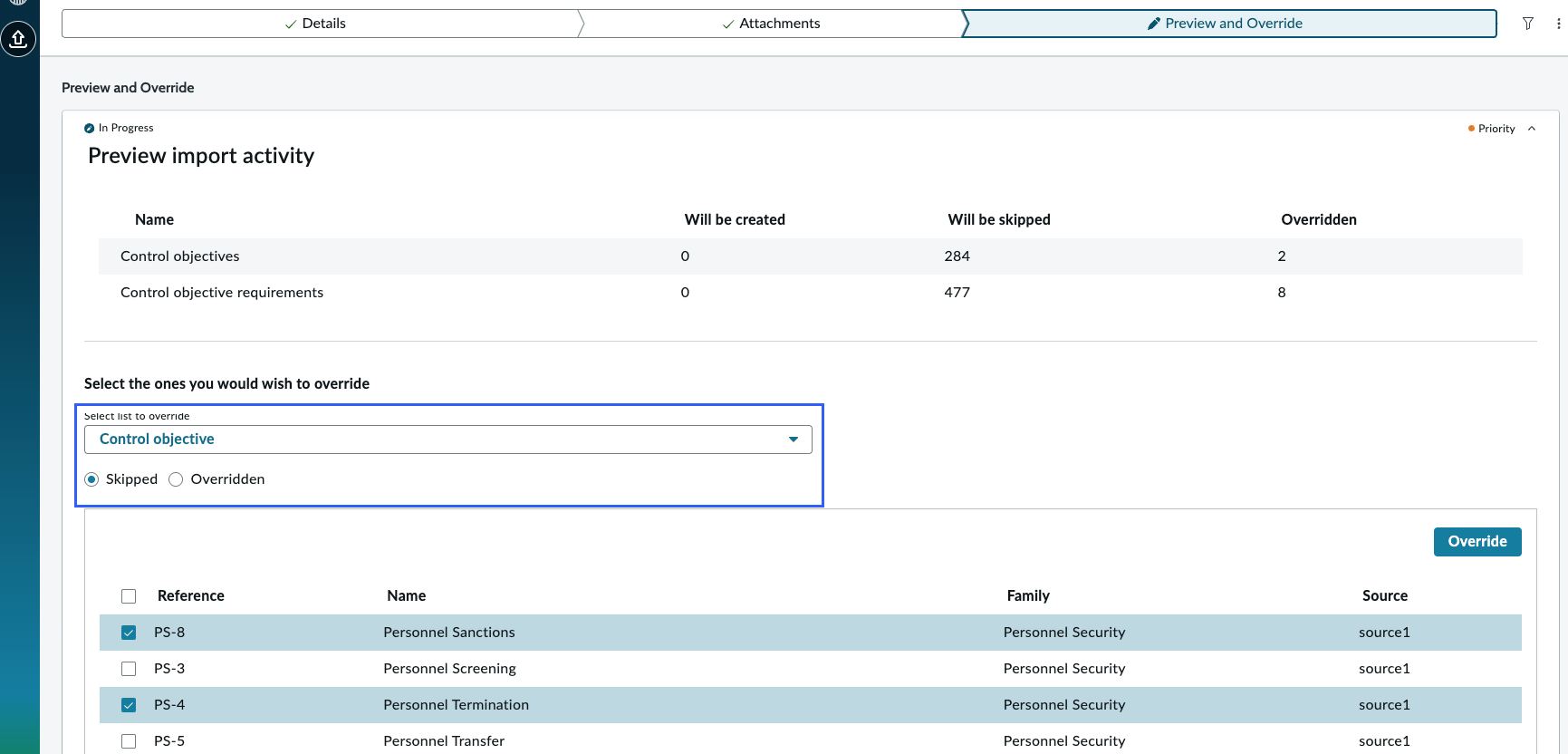

    • To override data, perform the following actions:

      1. Select Select list to override to choose the data to override.

      2. Select Skipped to list the reference that is to be skipped.
         Note:

         Based on the data you select from the drop-down: If the data is in the Will be skipped state, you can only override it. When you override a control objective, all associated control objective requirements will also be overridden.

      3. Select the reference from the list that you want to override.
      4. Select Override to override one or more selected references.

         The selected reference is flagged as overridden and the Overridden count is increased in the preview list.

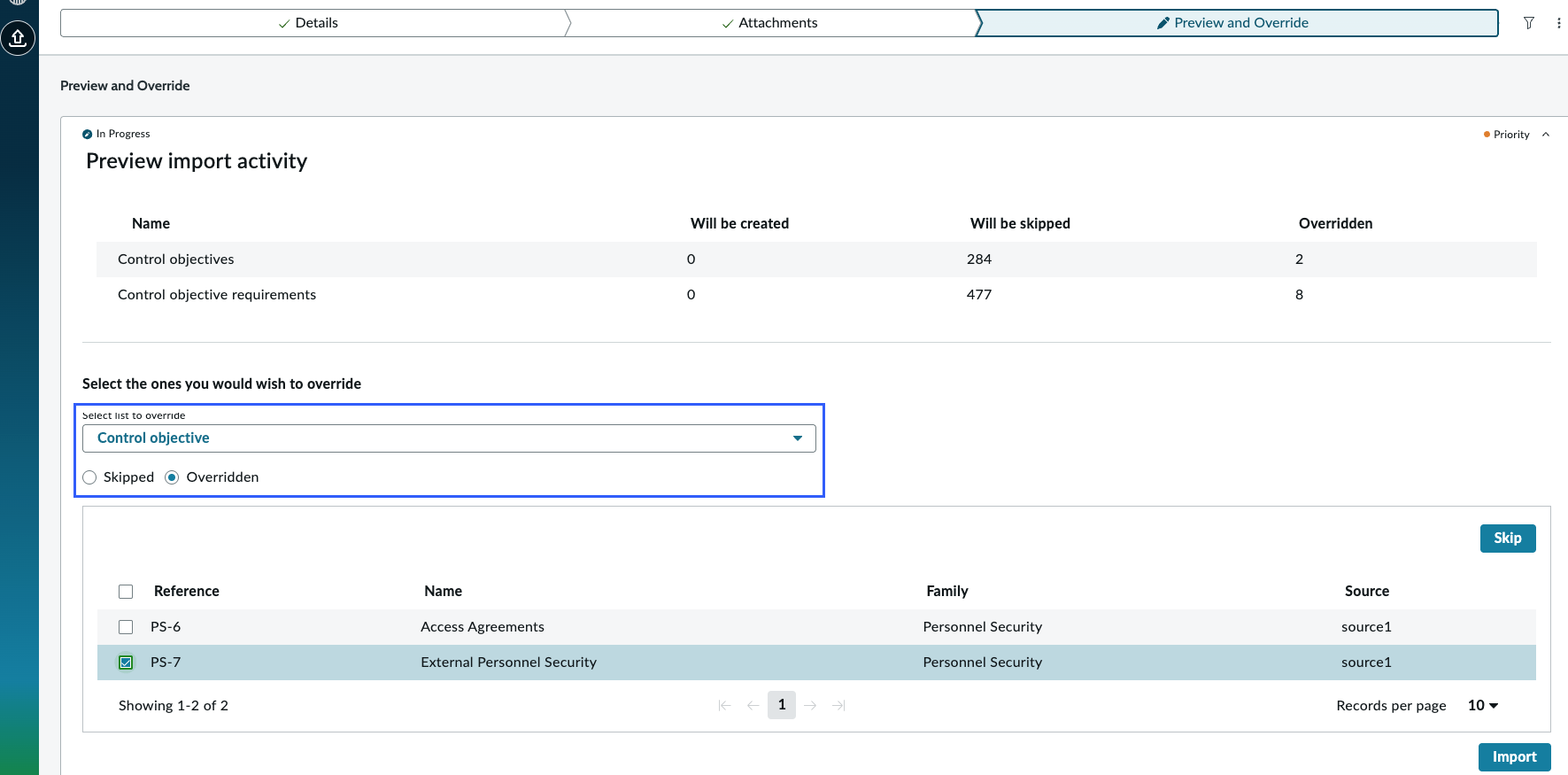

    • To skip data, perform the following actions:

      1. Select Select list to override to choose the data to skip.

      2. Select Overridden to list the reference that is to be skipped.
         Note:

         If it is in the Overridden state, you can only skip it.
      3. Select the reference from the list that you want to skip.
      4. Select Skip to override one or more selected references.

         The selected reference is flagged as skip and the Will be skipped count is increased in the preview list.

11. Select Import to import the catalog files.
    Note:

    • The CAM OSCAL catalog import model doesn’t support test templates and assessment procedures if they’re included in the catalog JSON file.
    • If an error occurs during the import process, review the error message displayed in the pop-up and take the necessary corrective action.
    You can view the import status report in the All OSCAL import landing page.

    All the necessary control objectives are created with the source specified.

    For more information on OSCAL import error, see the OSCAL Import [KB1794095] article in the Now Support knowledge base.

12. Optional: If an error occurs during the import process, review the error message displayed in the pop-up and take the necessary corrective action.

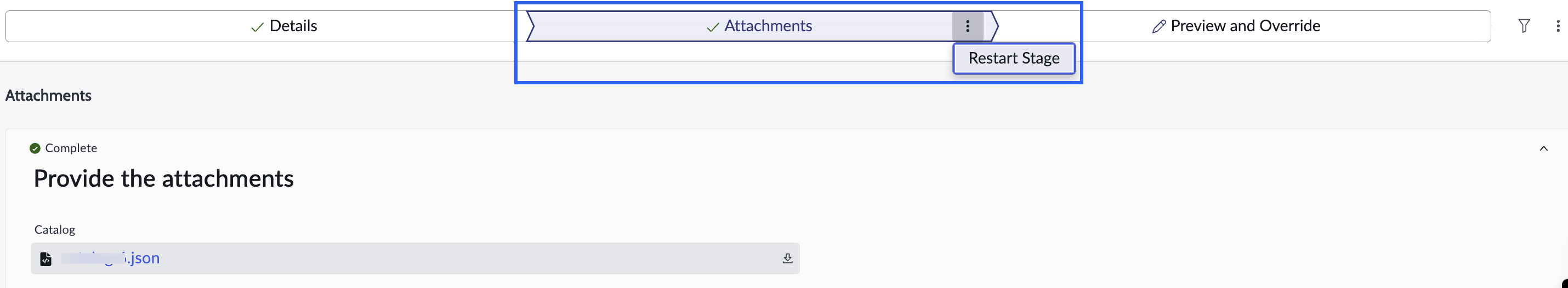

    You can also select the attachments action icon () on the Attachments tab to select Restart Stage to restart the attachments.

    Note:

    You can also select the playbook action icon () to select Restart Playbook to restart the playbook.
