# View ERP extraction tables

# View ERP extraction tables {#ariaid-title1}

Release version: Brazil
Updated March 12, 2026
![](https://www.servicenow.com/docs/portal-asset/ico-clock) 1 minute to read
Work with ETL (extract, transform, and load) processes in Zero Copy Connector for ERP (Enterprise Resource Planning) to extract large amounts of data from the ERP system. Extracted data is stored in Glide tables in the ServiceNow AI Platform.

## Before you begin

Role required: sn_erp_integration.erp_user

## About this task

ERP extraction tables extract and save data to a transform table on the ServiceNow AI Platform. The transform table is a temporary table that holds data during the data integration or transformation process. Transform tables are an intermediary step before data is further processed, cleaned, or loaded into the target destination.

## Procedure

1. Navigate to AllZero Copy Connector for ERPZero Copy Connector for ERP Home.
2. Open the ERP extraction tables page by selecting the extraction tables icon ![]() in the side panel.

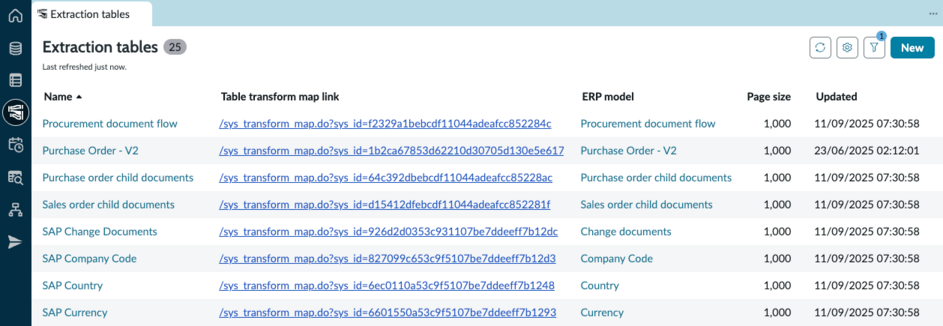

3. View the list of ERP extraction tables.
   {#view-etl-data-sources__table_gd5_xfz_wxb__entry__2}

   | Column | Description |
   |-|-|
   | Name | Name of the ETL process. |
   | Table transform map link | Table that the extracted data is cached and stored in. Select the table name to view the table on the ServiceNow AI Platform in a new browser tab. For more information on creating table transform maps, see [Create a transform map](https://www.servicenow.com/docs/MuV3GRK2YbgAZ1yFS6K_Pg "Every import operation to a production table requires at least one transform map associated with an import set."). |
   | ERP model | ERP model used in the ETL extraction. Select the ERP model name to view the details. For more information, see [View and edit models](https://www.servicenow.com/docs/OzmLLwCP9Ouoqh0mnVy3jg "Create a holistic dataset by building ERP (Enterprise Resource Planning) models in Zero Copy Connector for ERP. Models encompass remote tables and extraction tables from the ERP system, as well as create, read, and update operations."). |
   | Page size | Amount of data to read from the ERP system at a time. The default is 1000. Increasing the size may impact MID Server memory space. |
   | Updated | Date and time the extraction table record was last saved. |
   [Table 1. ETL source columns]

   {#view-etl-data-sources__table_gd5_xfz_wxb}
4. **Optional:** View the details for an extraction table by selecting the table name.

## What to do next

After the extraction process is run, use import sets to map imported data into ServiceNow AI Platform tables. For more information, see [Import sets](https://www.servicenow.com/docs/D6zgromoT3xYW7pLsMx4Ew "Import sets enable administrators to import data from various data sources, and then map that data into ServiceNow tables.").
