# Correlation

# Correlation {#ariaid-title1}

Release version: Brazil
Updated September 10, 2026
![](https://www.servicenow.com/docs/portal-asset/ico-clock) 3 minutes to read

Establish a synchronization relationship between records that reside on separate instances.

A correlation identifies record data from a remote instance you want to use on a local
instance. An integration can use data from a correlated remote record to update a local
record. Typically, integrations correlate records to synchronize them and ensure that record
changes propagate across instances.
There are two types of correlation available.

* Classic correlation field
* Integration Hub Correlation records
{#correlation__ul_d4m_jqd_qnb}

## Classic correlation field {#correlation__section_utv_tqd_qnb}

Prior to Integration Hub Remote Process Sync, you could only create
correlations with a limited set of record types that had a Correlation ID field. By default,
the Correlation ID field is only available to Configuration Item, Service, and Task records.
The Correlation ID field stores the globally unique ID of a matching remote record. The
Correlation ID identifies the remote record whose data values should be used to update the
local record. For example, suppose incident record INC100001 correlates to problem record
PRB123456 on a remote instance. Whenever changes are made to fields in remote problem
PRB123456, the system uses the Correlation ID to identify that local incident INC100001
receives the same field updates.

A classic correlation creates a one-to-one relationship between a record on the local system
and a record on a remote system. One local record can only ever correlate to one remote record.
The correlation provides no information about the remote system nor the current state of the
correlation. Administrators manually manage classic correlations from the records being
updated.

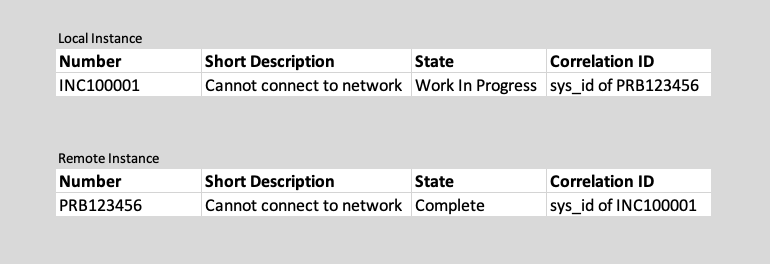

Figure 1. Sample classic correlation field

## Integration Hub Correlation records {#correlation__section_n15_nfp_wnb}

Integration Hub Remote Process Sync extends the functionality of classic
correlation with the introduction of dedicated Correlation \[ih_sync_correlation\] records.
A Correlation record contains these fields.

Local Correlation ID
:   The globally unique ID that identifies the correlation on the local system. By
    default, Integration Hub Remote Process Sync generates a unique sys_id
    value for this field. The distinct sys_id acts as an alias which prevents the
    correlation from breaking due to changes in the local record. When Integration Hub Remote Process Sync sends this ID value to a remote
    system, the receiving instance uses it as the Remote Correlation ID.

Remote Correlation ID
:   The globally unique ID that identifies the correlation on the remote system. By
    default, Integration Hub Remote Process Sync generates a unique sys_id
    value for this field. The distinct sys_id acts as an alias which prevents the
    correlation from breaking due to changes in the remote record. When Integration Hub Remote Process Sync sends this ID value to a remote
    system, the receiving instance uses it as the Local Correlation ID.

Local Table
:   The table where the correlation creates or updates records. An Integration Hub Remote Process Sync capture definition monitors this table
    for record changes. Integration Hub Remote Process Sync uses this field
    to find correlations by table name.

Local Record
:   The record created or updated by a correlation. This field stores the same value as
    the Correlation ID field from a classic correlation. When other business logic makes
    changes to this record, the changes do not overwrite the correlation.

Remote System
:   The remote instance where Integration Hub Remote Process Sync sends
    and receives record changes. Each correlation record can only refer to one remote
    instance. To correlate the same local record to multiple remote systems
    simultaneously, you can create multiple correlation records.

State
:   The synchronization state of the correlation. Active correlations receive additions
    and updates. Inactive correlations do not produce additions or updates, but can be
queried for auditing purposes and reactivated as needed.
Danger:
Integration Hub Remote Process Sync manages correlation records for you. Directly editing correlation records may prevent synchronization of records, and may result in data loss.

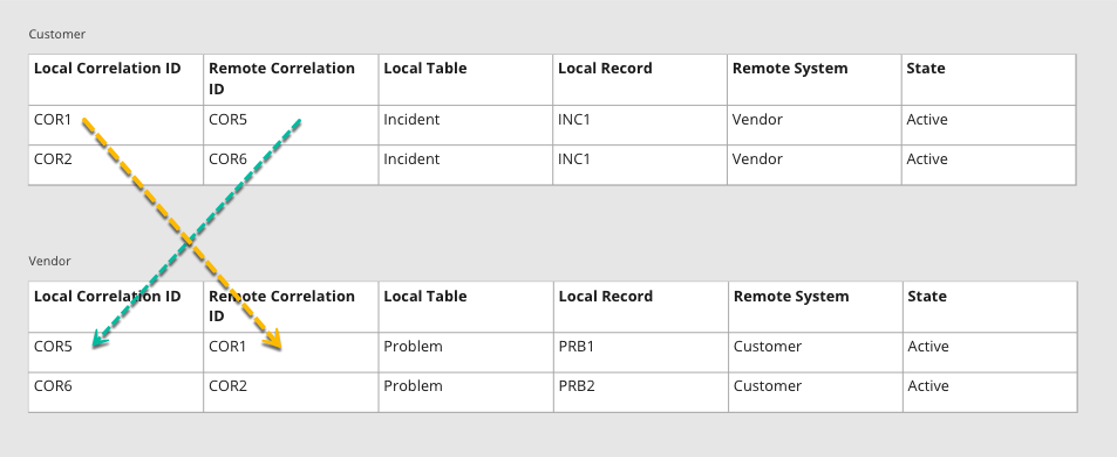

Figure 2. Sample Integration Hub Correlation record
Correlation records offer several advantages over a single correlation field.

* Allow management of correlations by Remote Process Sync
* Identify the remote system associated with a correlation
* Provide separate Correlation ID values for the local and remote systems
* Allow correlation of a single local record with multiple remote systems
* Allow correlations to be deactivated and reactivated as needed
* Allow Correlation ID values to be distinct from the sys_id of a remote record
{#correlation__ul_ptf_sgp_wnb}
