# Manage endpoint with OAuth 2.0 support

# Manage endpoint with OAuth 2.0 support {#ariaid-title1}

* Release version: Australia
*
* Updated March 12, 2026
*
* ![](https://www.servicenow.com/docs/portal-asset/ico-clock) 1 minute to read

Manage endpoint for webhooks in third-party applications that support the OAuth 2.0 authentication. The endpoint enables webhooks to connect with your ServiceNow instance.

## Before you begin

Role required: flow_designer and connection_admin

Subscription required: This feature requires an
Integration Hub subscription. For more information, see [Legal schedules - IntegrationHub overview](https://www.servicenow.com/content/dam/servicenow-assets/public/en-us/doc-type/legal/snc-addendum-integrationhub.pdf).

Ensure that you've installed the required spoke plugin.
Ensure that you have created an OAuth application endpoint for the external client applications to access the ServiceNow instance. For more information about creating an inbound OAuth application endpoint, see .

* If you want to create an OAuth application endpoint for external client applications to access the ServiceNow instance, see .
* If you want to create an OAuth JWT API endpoint for external clients to access the ServiceNow instance, see .
{#generate-endpt-oauth2__ul_xtx_kmz_bcc}

## Configure endpoint with OAuth 2.0 support {#ariaid-title2}

Configure endpoint for webhooks in third-party applications that support the OAuth 2.0 authentication.

### Before you begin

Role required: flow_designer and connection_admin

### Procedure

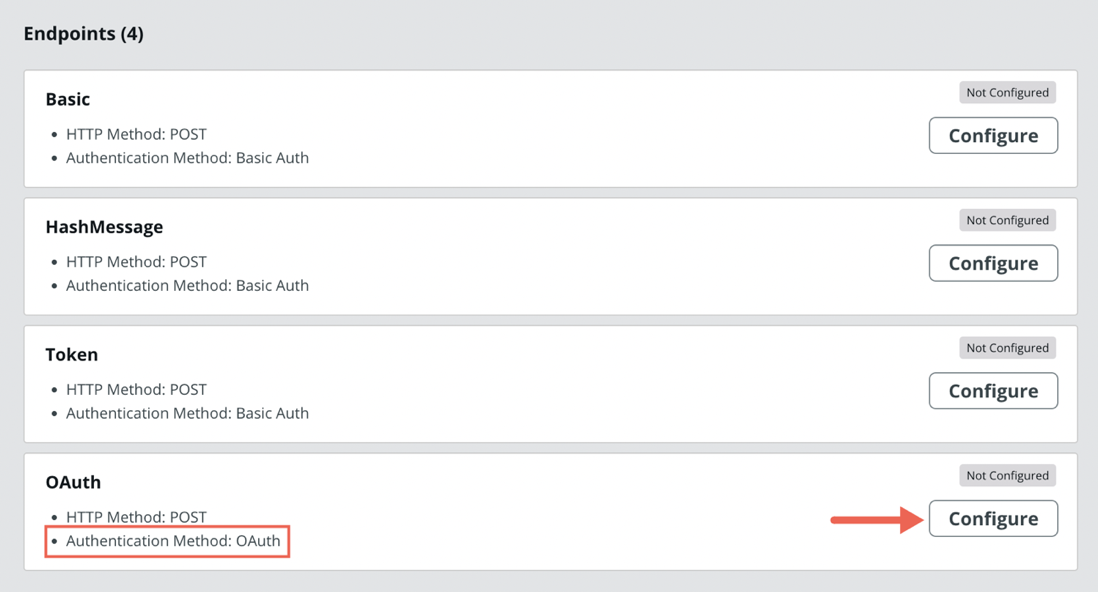

1. Under the Endpoints heading, select Configure for the connection to set up an endpoint with OAuth authentication support.

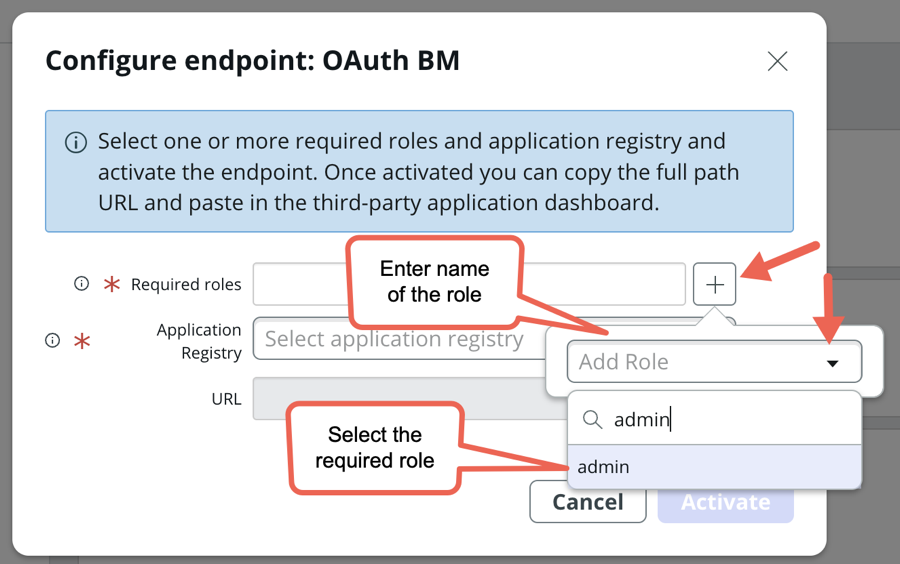

2. In the Configure endpoint form, click ![Select roles icon.]() to add role in Required roles.
   To select one or more roles, select ![Select roles icon.]() or enter the name of one or more roles.

3. Select the required application registry record.

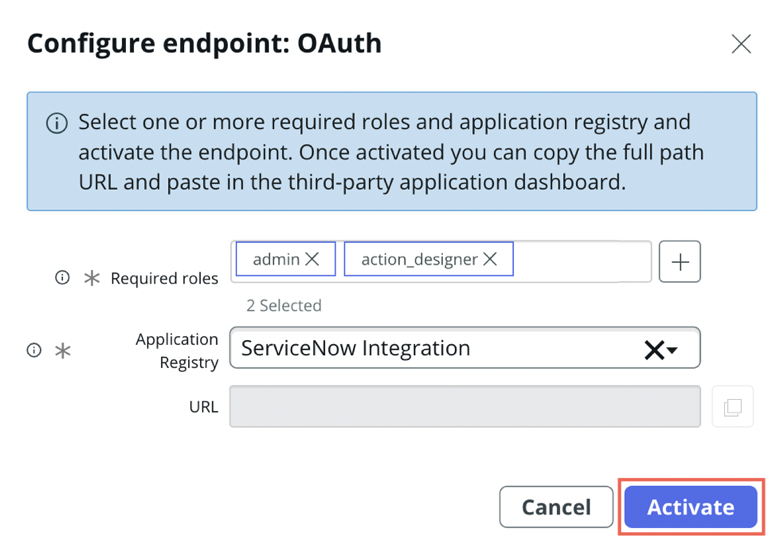

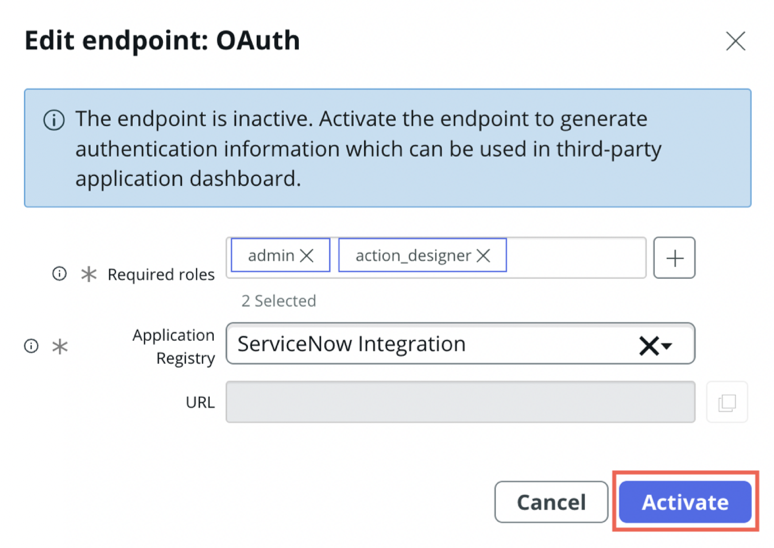

4. To generate the endpoint, select Activate.
   The endpoint URL is generated in URL.

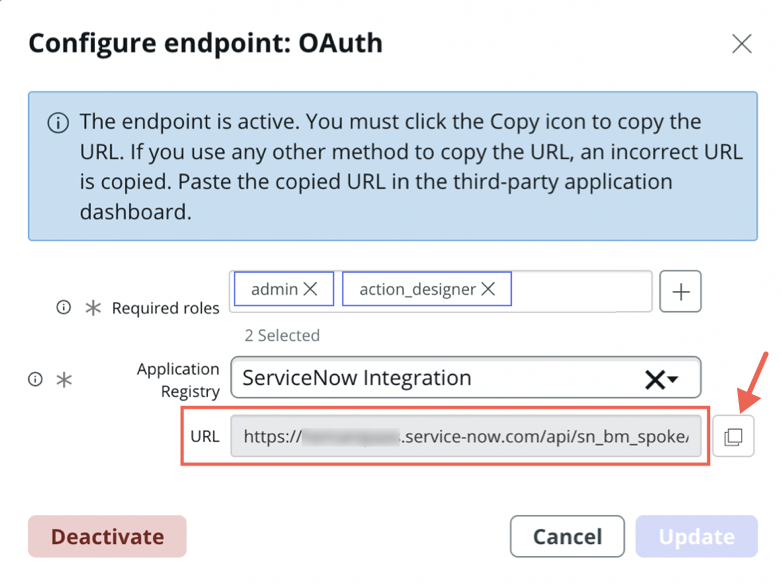

5. To copy the endpoint, select the copy endpoint icon (![Copy endpoint icon.]())
   Tip:
   Keep the endpoint at a secure place to use later at the third-party application webhook.
{#conf-oauth-endpt__steps_x1x_p1p_ccc}

## Deactivate endpoint with OAuth 2.0 support {#ariaid-title3}

Deactivate an active endpoint with OAuth 2.0 support while retaining the configurations to activate it later when needed.

### Before you begin

Role required: flow_designer and connection_admin

### Procedure

1. Under the Endpoints heading, for the required endpoint, click Edit

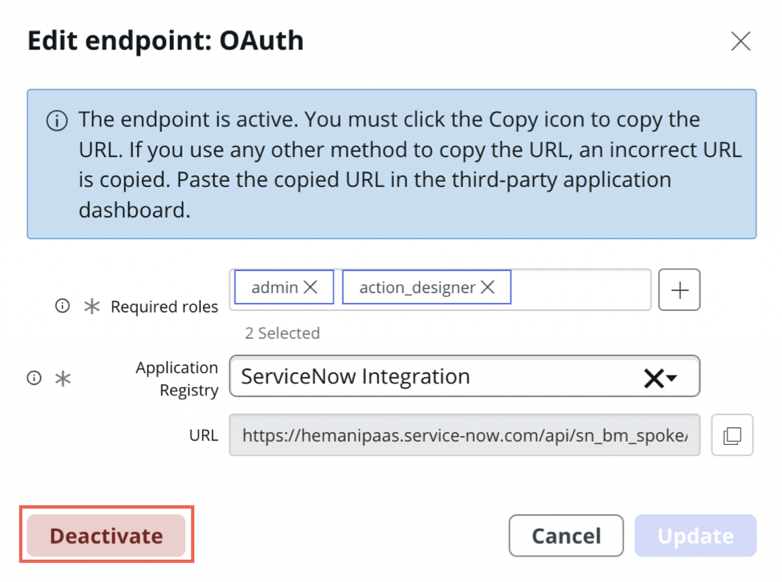

2. Click Deactivate.

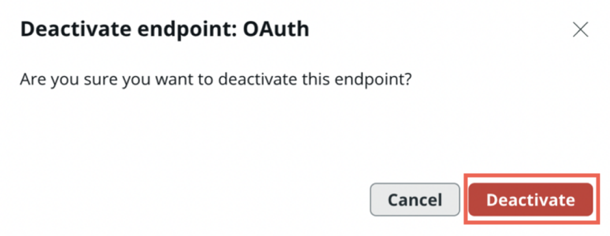

3. To confirm deactivation, select Deactivate.
4. To activate again, on the connection record, select Edit.
5. Select Activate.

## Deconfigure endpoint with OAuth 2.0 support {#ariaid-title4}

Deactivate an endpoint with OAuth 2.0 support to remove the existing configurations. Activate and configure the endpoint later when needed.

### Before you begin

Role required: flow_designer and connection_admin

### Procedure

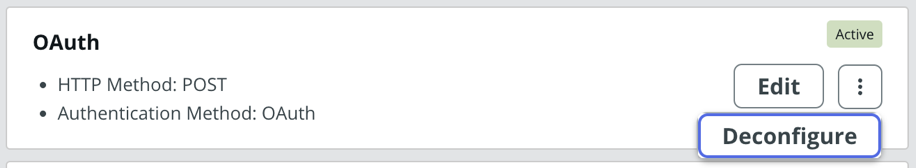

1. Under the Endpoints heading, click the more options icon (![]()).
2. Click Deconfigure.

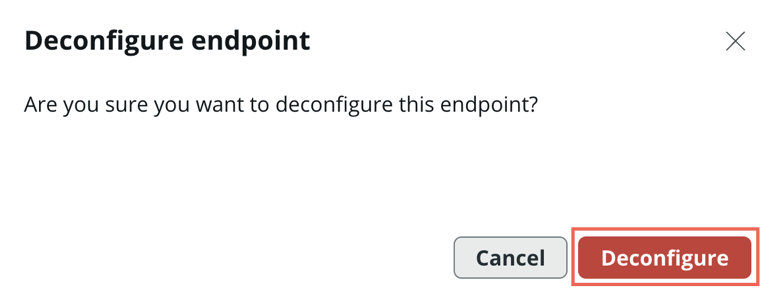

3. When prompted, confirm your choice to deconfigure.
   The configuration for the endpoint is removed from the connection.
