# Set up Microsoft Active Directory spoke

# Set up Microsoft Active Directory spoke {#ariaid-title1}

Release version: Brazil
Updated September 10, 2026
![](https://www.servicenow.com/docs/portal-asset/ico-clock) 1 minute to read
Integrate the ServiceNow
instance and your Microsoft AD account using Windows credentials to authenticate ServiceNow requests.

## Before you begin

* Request an Integration Hub subscription.
* Activate the Microsoft Active Directory spoke.
* Role required: admin.
{#set-up-ad__ul_xq2_qk5_kfb}

## Create Credential record for the Microsoft AD spoke {#ariaid-title2}

Create a Credential record for the Microsoft Active Directory host. The Microsoft AD spoke connection and credential alias uses this credential to authorize actions.

### Before you begin

* Request Integration Hub subscription
* Role required: admin
{#create-credential-ad__ul_xq2_qk5_kfb}

### Procedure

1. Navigate to AllConnections \& CredentialsCredentials.
2. Click New.
   The system displays the message What type of Credentials would you like to create?.
3. Select Windows Credentials.
   A blank Windows Credentials form displays.
4. Enter these values.
   {#create-credential-ad__table_sxv_zgp_gfb__entry__2}

   | Field | Value required |
   |-|-|
   | Name | Enter any name to uniquely identify the record. For example, enter <kbd class="ph userinput">AD Credential</kbd>. |
   | Active | Enable |
   | User name | Enter a user name with access to the target Windows host. For more information about Windows permissions, see [Windows credentials](https://www.servicenow.com/docs/access?context=r_WindowsCredentialsForm&version=brazil&pubname=brazil-platform-security&ft:locale=en-US). |
   | Password | Enter the password for the account. |
   | Applies to | Select the MID Servers that can use this credential. For example, select All MID servers. |
   | Order | Select the order to apply this credential. For example, enter <kbd class="ph userinput">100</kbd>. |
   [ ]

   {#create-credential-ad__table_sxv_zgp_gfb}
5. Click Submit.
{#create-credential-ad__steps_d2v_tk5_kfb}

## Create Connection record for the Microsoft AD spoke {#ariaid-title3}

Create a Connection record to your Microsoft Active Directory host machine. The Microsoft AD spoke connection and credential alias uses this connection to perform actions in Microsoft Active Directory.

### Before you begin

* Request Integration Hub subscription
* [Create Credential record for the Microsoft AD spoke](https://www.servicenow.com/docs/2wsBuf~69imVDmjgU1t0pA#create-credential-ad "Create a Credential record for the Microsoft Active Directory host. The Microsoft AD spoke connection and credential alias uses this credential to authorize actions.")
* Role required: admin
{#create-connection-ad__ul_xq2_qk5_kfb}

### Procedure

1. Navigate to AllProcess AutomationFlow Designer.
2. Click Connections.

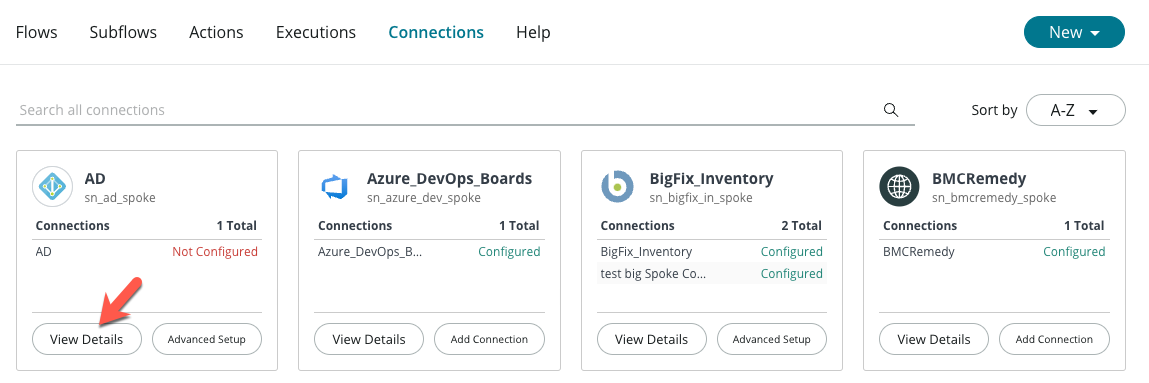

3. On the AD card, click View Details.

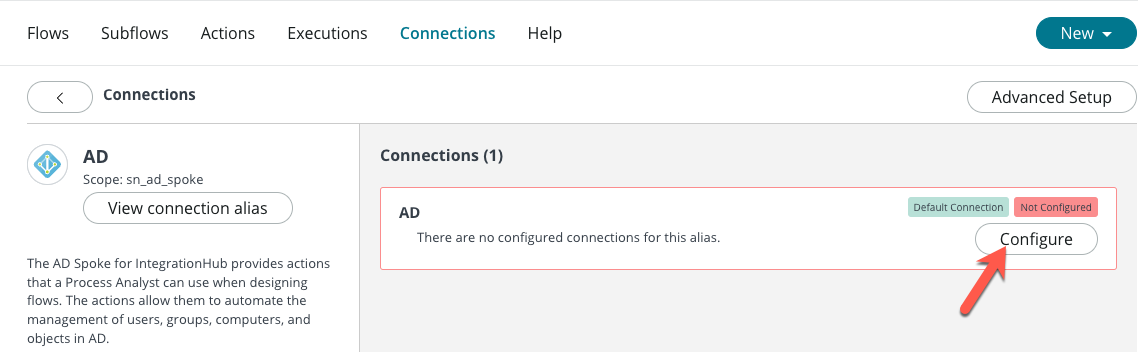

4. Click Configure.
5. Enter these values.
   {#create-connection-ad__table_any_shp_gfb__entry__2}

   | Field | Value required |
   |-|-|
   | Name | Enter any name to uniquely identify the connection record. For example, enter <kbd class="ph userinput">AD Connection</kbd>. |
   | Credential | Select the Credential record you created for Windows Active Directory. For example, select AD Credential. |
   | Host | Enter the fully qualified domain name of the target host where Microsoft Active Directory is installed. For example, <kbd class="ph userinput">&lt;host&gt;.&lt;domain&gt;.com</kbd>. |
   | Use MID server | Enable |
   | Override default port | Enter the target port used by the connection. If blank, the system uses the default port. |
   [ ]

   {#create-connection-ad__table_any_shp_gfb}
6. Click Submit.
{#create-connection-ad__steps_a52_y42_rfb}
