Set up the Jira spoke for Jira Cloud

Integrate your ServiceNow instance with the Jira Cloud instance to authenticate the requests from ServiceNow.

Before you begin

• Request an Integration Hub subscription.
• Activate the Jira spoke.
• Role required: admin.

About this task

Important:

Starting with the Australia release, instructions for generating and using API tokens have been removed from our documentation to align with Atlassian's Acceptable Use Policy. See the Atlassian blog, Building Secure and Scalable Integrations: Our Guidance for Third-Party Apps for more information.

Option 1: Using OAuth authentication (Authorization Code grant type)

Integrate the ServiceNow instance with your Jira account using OAuth to authenticate ServiceNow requests.

Before you begin

Role required: admin.

Obtain the value of Cloud ID

Obtain the value of Cloud ID of the Jira Cloud instance. This value is required during the configuration of the connection record in your ServiceNow instance.

Before you begin

Role required: admin

Procedure

1. Log in to Atlassian Administration as an admin.
2. Click Select against the required organization.
3. From the Jira Software product, click Manage product access.
   A new window is opened and the URL is in this format: https://admin.atlassian.com/s/<Cloud-ID>/apps.
4. Copy the value of the Cloud ID for later use.

Configure a connection for Jira spoke

Add and configure a Jira connection to authenticate ServiceNow requests in Jira spoke.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Process Automation > Workflow Studio.
2. Click the Integrations tab.
3. Under Connections, the Outbound connections are displayed by default.
4. Locate the Jira connection alias and click View Details.
   • To configure the default connection and credential alias record that is shipped along with the Jira spoke, click View Details.
   • To manage more than one Jira spoke connection records, you should create a new child alias record by clicking Add Connection. For more information about using multiple connections, see Supporting multiple connections.

   If you are configuring the spoke for the first time, click Configure. Otherwise, click Edit.

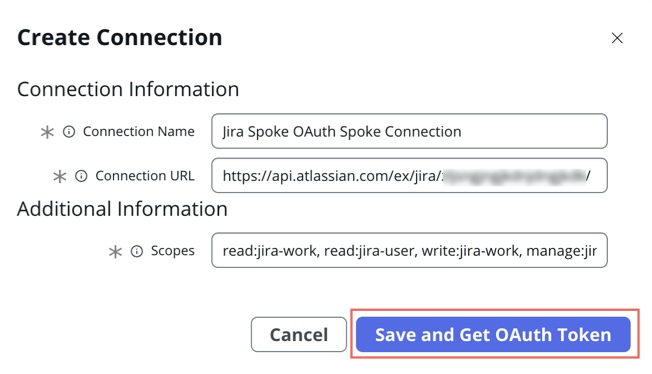

5. On the Connection form, fill in the fields.

   Field	Description
   Connection Name	Name to uniquely identify the connection. For example, Jira Spoke OAuth basic conn.
   Connection URL	URL of your Jira instance in this format: https://api.atlassian.com/ex/jira/{cloud-id}/. Replace {cloud-id} with value of the Cloud ID you had obtained previously.
   Scopes	By default, these scopes are provided read:jira-work, read:jira-user, write:jira-work, manage:jira-project, manage:jira-configuration, manage:jira-webhook, manage:jira-data-provider, delete:sprint:jira-software, read:sprint:jira-software, write:sprint:jira-software, read:board-scope:jira-software, read:project:jira, read:jql:jira, read:issue-details:jira, read:me, read:account, offline_access. You can modify the scopes as per your requirement.



6. Click Save and Get OAuth Token.

Option 2: Using OAuth authentication (Client Credentials grant type)

Integrate the ServiceNow instance with your Jira account using OAuth to authenticate ServiceNow requests.

Before you begin

• In your Jira cloud instance, Create OAuth 2.0 credential for service accounts.

  Save the values of Client ID, Client Secret, and Cloud ID. You will need these for configurations in ServiceNow instance.

• Role required: admin.

Create an application registry record

Before you begin

Role required: admin

Procedure

1. Navigate to All > System OAuth > Application Registry.
2. Click New.
   The system displays the message What kind of OAuth application?.
3. Select Connect to a third party OAuth Provider.
4. On the form, fill these values.

   Field	Description
   Name	Name to identify the application registry record. For example, Jira Client Credentials OAuth.
   Client ID	Client ID generated when the OAuth 2.0 integration was created in Atlassian Developer console.
   Client Secret	Client secret generated when the OAuth 2.0 integration was created in Atlassian Developer console.
   Default Grant type	Grant type used to establish the token. Select Client Credentials.
   Token URL	OAuth server token endpoint. Enter: https://auth.atlassian.com/oauth/token.
   Token Revocation URL	OAuth server token revocation endpoint. Enter: https://auth.atlassian.com/oauth/token.
   Active	Select the check box.

5. In the OAuth Entity Scopes tab, create these entity scope records.

   Name	OAuth scope
   Classic scopes	manage:jira-configuration manage:jira-project manage:jira-webhook read:jira-work read:jira-user write:jira-work
   Granular Scopes	delete:sprint:jira-software read:issue-details:jira read:jql:jira read:sprint:jira-software write:sprint:jira-software read:board-scope:jira-software read:project:jira

6. Right-click the form header and click Save.
   The record is saved and a OAuth Entity Profile record under the OAuth Entity Profiles tab.
7. Click the OAuth Entity Profiles tab and open the default profile record.
8. Verify these values.
   • Grant type is set to Client Credentials.
   • Scope records previously created are listed under the OAuth Entity Profile Scopes related list.
9. Click Update.

Create credential record for the Jira spoke

Create a credential record for the Jira account. The Jira spoke connection and credential alias uses this credential to authorize actions.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Connections & Credentials > Credentials.
2. Click New.
   The system displays the message What type of Credentials would you like to create?
3. Select OAuth 2.0 Credentials.
4. On the form, fill these values.

   Field	Description
   Name	Name to identify the credential record for the Jira spoke. For example, Jira client credential cred.
   OAuth Entity Profile	Select the OAuth entity profile record that was created when the application registry record is configured. For more information, see Create an application registry record.

5. Right-click the form header and click Save.
6. Click the Get OAuth Token related link.

Create a connection record for the Jira spoke

Create a connection record for the Jira account. The connection and credential alias uses this connection to perform actions in Jira.

Before you begin

Role required: admin

Procedure

1. Navigate to All > Connections & Credentials > Connection & Credential Aliases.
2. Open the alias record for Jira that shipped with the spoke.
3. On the Connections tab, click New.
   The system displays a blank HTTP(s) Connection form.
4. Enter these values and click Submit.

   Field	Value required
   Name	Enter any name to uniquely identify the connection record. For example, enter Jira cloud OAuth Connection.
   Credential	Select the Credential record created for Jira. For example, select Jira cloud OAuth credential.
   Connection URL	Enter the URL of your Jira instance in this format: https://api.atlassian.com/ex/jira/<Cloud-ID>. For information about obtaining the value of Cloud ID, see Obtain the value of Cloud ID.

5. Click Submit.
   The Jira spoke is configured to use OAuth 2.0 Client Credentials via the service account.
