# Set up Cisco Webex Meetings spoke

# Set up Cisco Webex Meetings spoke {#ariaid-title1}

Release version: Brazil
Updated March 12, 2026
![](https://www.servicenow.com/docs/portal-asset/ico-clock) 2 minutes to read
Integrate your ServiceNow instance and the Cisco Webex Meetings
application by creating a custom OAuth application in Cisco DevNet to authenticate ServiceNow requests.

## Before you begin

* Request an Integration Hub subscription.
* Activate the Cisco Webex Meetings spoke.
* Role required: admin.
{#setup-webex-meetings-spoke__ul_pn1_wkd_sjb}

## Create a
Webex OAuth
application
in Cisco DevNet {#ariaid-title2}

Create a custom OAuth application in Cisco DevNet to enable OAuth 2.0 authentication with the Cisco Webex Meetings spoke.

### Before you begin

Webex Meetings requirements:

* Webex Meetings account
* Role required: Webex Meetings administrator
{#configure-webex-meetings-oauth__ul_bdn_l4d_sjb}

### Procedure

1. Navigate to <https://developer.webex.com/> and log in.
2. Click on your profile icon and select My Webex Apps.
3. Click Create a New App.
4. Click Create an Integration.
5. On the form, fill in the fields.
   {#configure-webex-meetings-oauth__table_hdn_c55_mjb__entry__2}

   | Field | Value |
   |-|-|
   | Integration name | Name of the integration as it appears in Webex. For example, ServiceNow integration. |
   | Icon | Icon that displays in Webex. Upload your own icon and select from the available default icons. |
   | App Hub Description | Short description about the integration. |
   | Redirect URI(s) | <kbd class="ph userinput">https://&lt;instance-name&gt;.service-now.com/oauth_redirect.do</kbd>, where <kbd class="ph userinput">&lt;instance-name&gt;</kbd> is the name of your ServiceNow instance |
   | Scope | Webex Meetings application scope permissions you want the application to support. Note: Select the admin_schedule_read scope for the integration. |
   [ ]

   {#configure-webex-meetings-oauth__table_hdn_c55_mjb}
6. Click Add Integration.
   After the integration is successfully created, the values of Client ID and Client Secret are displayed.
7. Record the client ID and client secret to register the application as a third-party OAuth provider on your ServiceNow instance.

## Configure a connection for the Cisco Webex Meetings spoke {#ariaid-title3}

Configure a connection to your Cisco Webex Meetings account. The Cisco Webex Meetings spoke connection and credential aliases use these connections to perform actions in Cisco Webex Meetings.

### Before you begin

Role required: admin

### Procedure

1. Navigate to AllProcess AutomationWorkflow Studio.
2. Click the Integrations tab.
3. Under Connections, toggle and enable the Outbound connections.

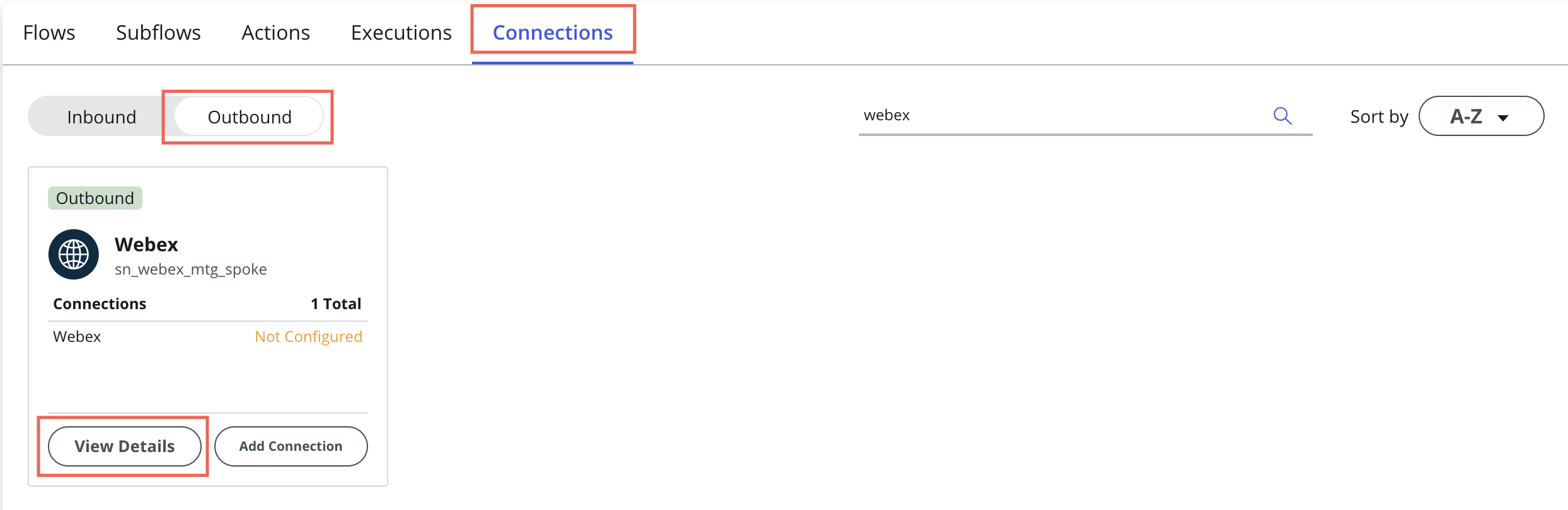

4. Locate the alias for Webex and click View Details.
   * To configure the default connection and credential alias record that is shipped along with the Cisco Webex Meetings spoke, click View Details.

   * To manage more than one Cisco Webex Meetings spoke connection records, you should create a new child alias record by clicking Add Connection. For more information about using multiple connections, see [Supporting multiple connections](https://www.servicenow.com/docs/D9pGgVwvfvFrzWX3lknyWg "Support several connections to a single integration provider. Select connections for flows, subflows, and actions directly from a flow.").

   {#cisco-webexm-cont-temp__ul_r1x_3sp_pbc}

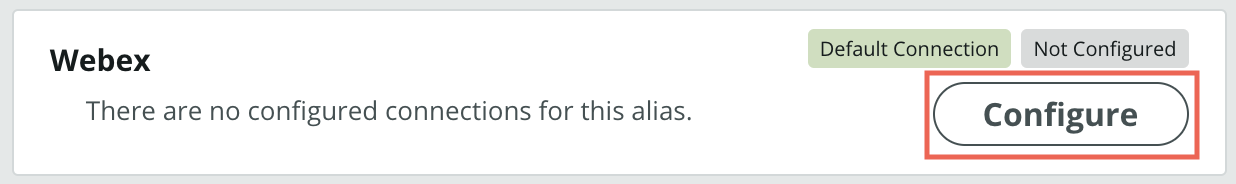

   If you are configuring the spoke for the first time, click Configure. Otherwise, click Edit.

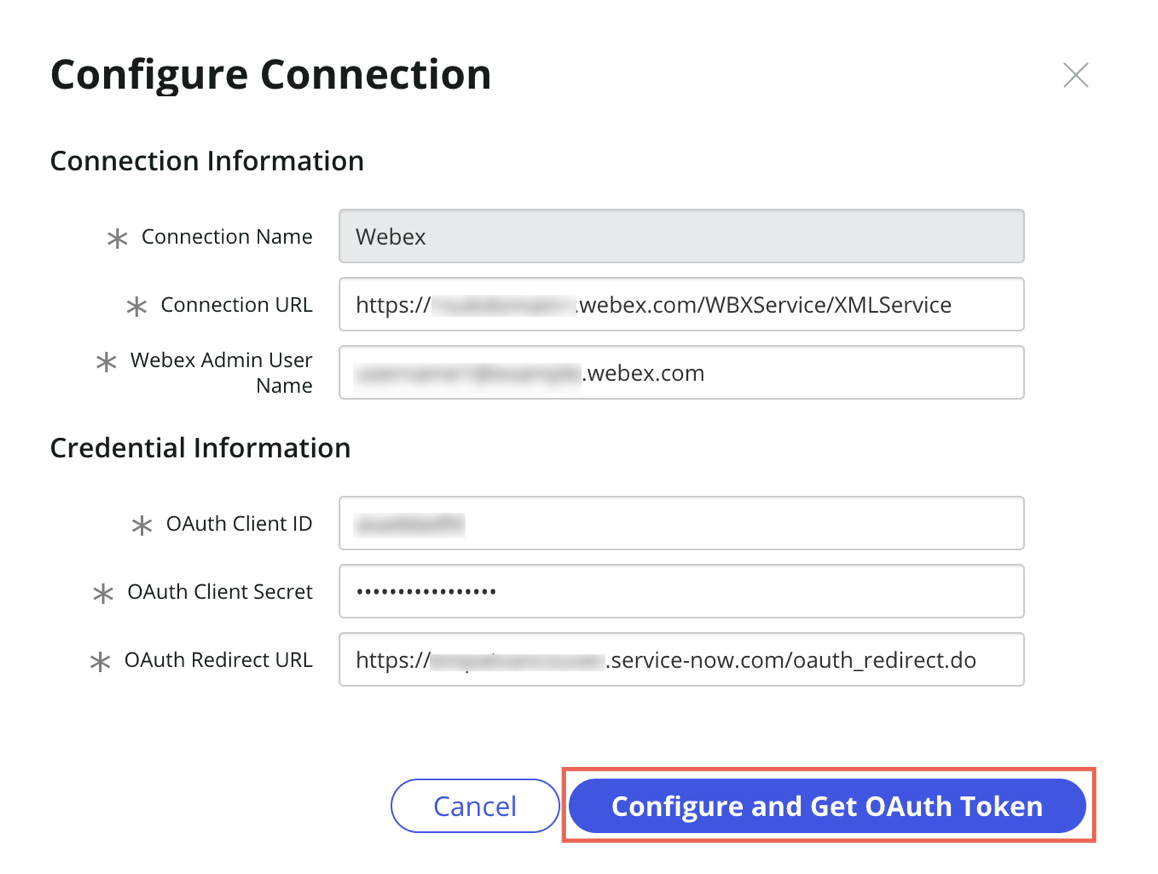

5. On the Configure Connection form, fill in these fields:
   {#cisco-webexm-cont-temp__table_x2p_crv_pvb__entry__2}

   | Field | Description |
   |-|-|
   | Connection Information ||
   | Connection URL | https://\<site\>.webex.com/WBXService/XMLService, where <var class="keyword varname">site</var> is the name of your Webex site. |
   | Webex Admin User Name | User name for the Webex administrator account. |
   | Credential Information ||
   | OAuth Client ID | Client ID you created during the Webex app configuration. |
   | OAuth Client Secret | Client Secret you created during the Webex app configuration. |
   | OAuth Redirect URL | https://\<instance-name\>.service-now.com/oauth_redirect.do, where <var class="keyword varname">instance-name</var> is the name of your ServiceNow instance. |
   [ ]

   {#cisco-webexm-cont-temp__table_x2p_crv_pvb}

6. Click Save and Get OAuth Token.

### Result

The connection record for the Cisco Webex Meetings spoke is created.
