# Set up the Workfront spoke

# Set up the Workfront spoke {#ariaid-title1}

Release version: Brazil
Updated March 12, 2026
![](https://www.servicenow.com/docs/portal-asset/ico-clock) 1 minute to read
Set up an outbound integration between the ServiceNow instance and the Workfront instance.

## Before you begin

* Request an Integration Hub subscription.
* Activate the Workfront spoke.
* Workfront role required: Administrator
* Role required: admin
{#setup-workfront__ul_agy_qxd_rlb}

## Generate a Workfront API key {#ariaid-title2}

Generate an API key for authenticating Workfront API
requests.

### Before you begin

Role required: Workfront administrator

### Procedure

1. From a web browser, open [Adobe Workfront](https://www.workfront.com).
2. Log in to the [Adobe Workfront](https://www.workfront.com) instance.

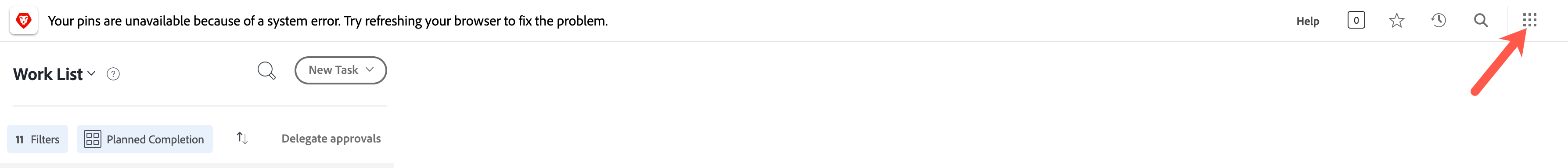

3. On the page header of your Adobe Workfront instance, select the main Menu icon (![Main Menu icon.]()).
4. Select the Setup icon (![Setup icon.]()).
5. From the left navigation menu of the Setup page, navigate to SystemCustomer Info.

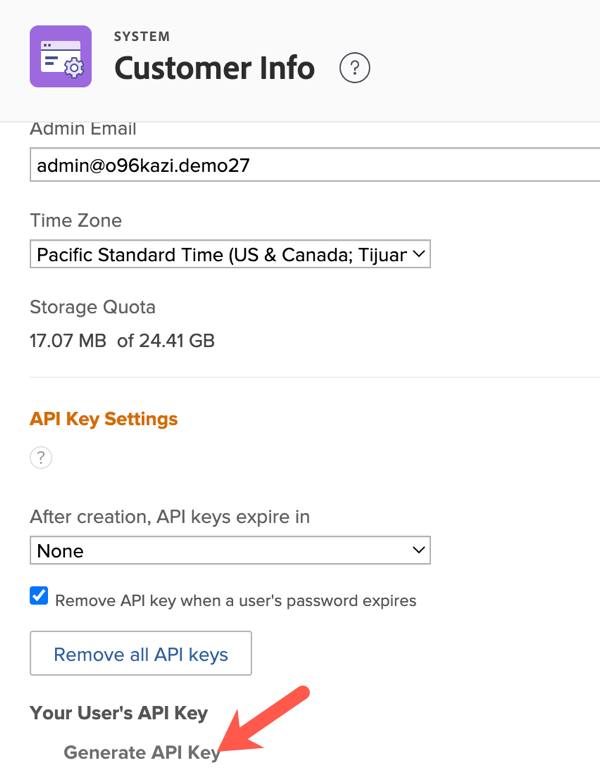

6. In the API Key Settings section, select Generate API Key.
   The API key is generated.
7. Copy the API key and save for later use.
8. **Optional:** To set an expiry date to the API key, in the After creation, API keys expire in list, select the time period.
9. Click Save.

## Create a Workfront connection record {#ariaid-title3}

Create a connection record between the ServiceNow instance and the Workfront instance. The connection record consists of the connection details and the API key.

### Before you begin

Role required: admin

### Procedure

1. Log in to the ServiceNow instance.
2. Navigate to Process AutomationFlow Designer.
3. Select Connections.
4. In the Search all connections field, enter <kbd class="ph userinput">workfront</kbd>.

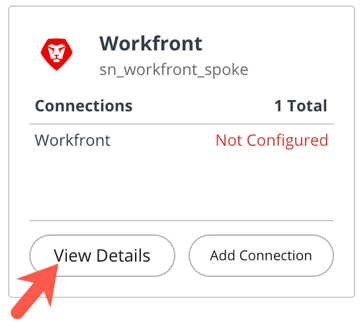

5. On the Workfront tile, click View Details.

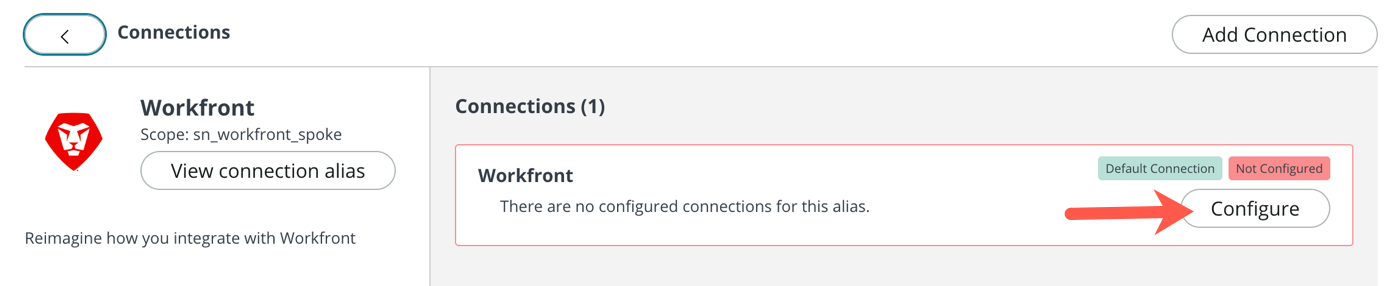

6. Click Configure.
7. Fill the form.
   {#create-connection-workfront__table_xd2_qht_lnb__entry__2}

   | Field | Description |
   |-|-|
   | Connection Name | Name of the Workfront connection. Note: The default name of the first connection record is Workfront and it's read-only. To provide a custom name, you must create another connection record. |
   | Connection URL | URL for the connection. Enter <kbd class="ph userinput">https://&lt;<var class="keyword varname">domain-name</var>&gt;.my.workfront.com</kbd>, where \<<var class="keyword varname">domain-name</var>\> is your company subdomain. |
   | API Key | The API key that you generated from the Workfront instance. To learn how to generate an API key, see [Generate a Workfront API key](https://www.servicenow.com/docs/FqSo0_q3B1ayLOpphiWrTA#generate-api-key-workfront "Generate an API key for authenticating Workfront API requests."). |
   [Table 1. Create Connection dialog box]

   {#create-connection-workfront__table_xd2_qht_lnb}
8. Click Configure Connection.
{#create-connection-workfront__steps_yxg_1dg_cqb}
