# Mapping options

# Mapping options {#ariaid-title1}

Release version: Brazil
Updated September 10, 2026
![](https://www.servicenow.com/docs/portal-asset/ico-clock) 5 minutes to read
Summarize
![AI sparkle icon](https://servicenow.com/docs/portal-asset/ai-sparkle-icon) Summarized using AI
This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

## Summary of Mapping options

This content explains various methods available in ServiceNow for mapping data fields during import operations.
Mapping is essential to transform and load data from import sets into production tables correctly, including handling special cases such as date formats, durations, calculated values, and binary data.
Show full answer Show less

## Mapping Methods

* **Automatic Mapping Utility:** Automatically matches import set fields to production table fields when their names align. Users can auto-map fields and then adjust any mismatches using the mapping assist utility before transforming data.
* **Mapping Assist Utility:** Provides a visual interface to map fields manually, allowing one source field to map to multiple target fields, ensuring precise control over field mapping.

## Date Format Mapping

If source date formats differ from target formats, you can define custom date format mappings. ServiceNow supports multiple date/time formats, including variations with time and timezone. Use custom formats with `HH:mm:ss` to denote 24-hour time. Note that converting from 24-hour to 12-hour formats may alter time representations.

## Mapping Duration Fields

ServiceNow duration fields expect values in milliseconds. Two main methods enable this:

* **Calculating duration from start and end dates:** Use JavaScript within transform maps to compute the difference between start and end timestamps and store as duration.
* **Converting existing duration values:** If the source provides duration (e.g., in seconds), use scripts to convert these values to milliseconds for proper mapping.

## Using Scripts to Calculate Source Values

Source scripts are useful when the source value requires transformation, lookup, or computation from multiple fields before mapping. Scripts set the computed value to the global `answer` variable, enabling complex or conditional mappings, such as deriving usernames when missing.

## Mapping Binary or BLOB Fields

Binary and BLOB data from JDBC sources are automatically stored as attachment records in the `sysattachment` table during import. Instead of storing binary data directly, the import set stores the `sysid` of the attachment record.

To associate attachments with target records, use onAfter transform scripts with the GlideRecord API to link the attachment by setting the target table name, target record sysid, and content type. For images mapped to the `dbimage` table, additional scripting ensures correct content type and file naming for display.

## Practical Benefits for ServiceNow Customers

* Enables flexible and accurate data imports by accommodating different source formats and complex mapping requirements.
* Allows automated and manual mapping approaches to suit different scenarios and simplifies field matching.
* Supports transformation of date and duration data to match ServiceNow's expected formats, preventing data inconsistencies.
* Provides scripting capabilities to handle calculated or conditional mappings, improving data integrity.
* Ensures binary data and attachments imported via JDBC sources are correctly associated with records for full data accessibility.
You can map fields in a number of ways depending on the circumstances of the import and
whether data must be transformed prior to loading onto a production table.

It is also important to note that any given import operation may require taking advantage of
multiple mapping methods, and these methods can be readily used in conjunction with one
another.

## Automatic Mapping Utility

The simplest mapping method is where all of the field names of the import sets match the names
of the fields on the production tables onto which the data will be transformed. In this case,
simply click Auto map matching fields in the related list in the Table
Transform Map form and confirm proper matching. If there are any discrepancies in terms of how
fields were automatically matched, use the mapping assist utility to correct them. When all
fields are matched properly, click the Transform related link to begin
transforming data onto the destination table.

## Mapping Assist Utility

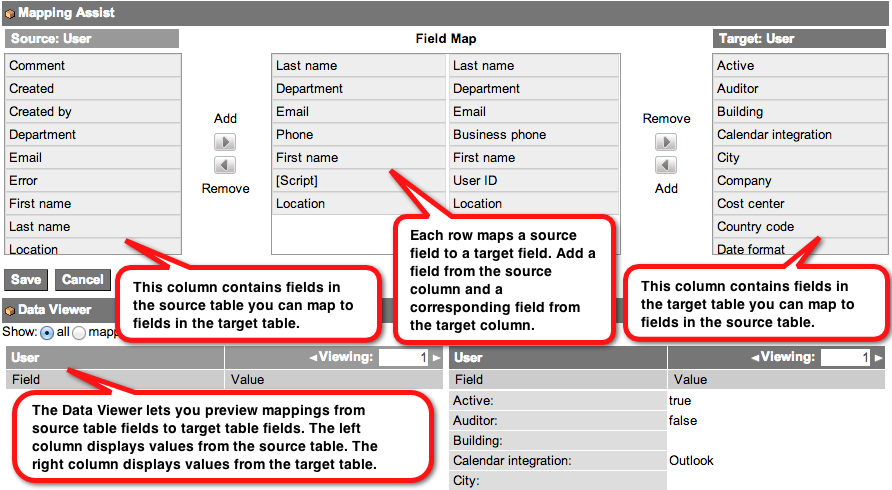

The mapping assist utility provides a visually intuitive environment for specifying mapping between import set fields and production table fields. The mapping assist utility makes it possible to map a single source field (field on an import set table) to multiple destination fields (fields on a production table).Figure 1. Mapping assist

## Changing the Date Format

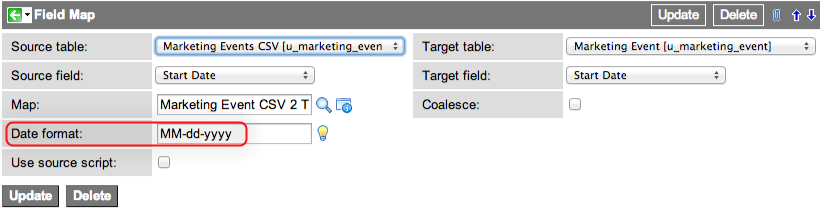

If the date format of the source field does not match the format of the target field, you can set a date format mapping to transform dates from one format to another. For example, this mapping specifies that the date format of the CSV source file uses the MM-dd-yyyy format.Figure 2. Field map date format Figure 3. Field map date format options

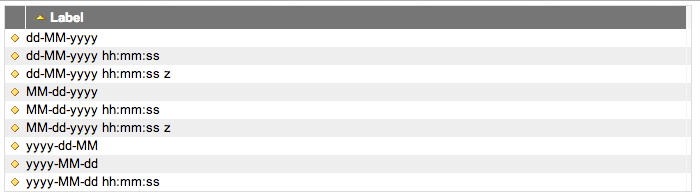

Date format options include:{#c_MappingOptions__table_e23_knj_3p__entry__2}

| Date Format | Description |
|-|-|
| dd-MM-yyyy | Day-month-year |
| dd-MM-yyyy hh:mm:ss | Day-month-year hours-minutes-seconds |
| dd-MM-yyyy hh:mm:ss z | Day-month-year hours-minutes-seconds timezone |
| MM-dd-yyyy | Month-day-year |
| MM-dd-yyyy hh:mm:ss | Month-day-year hours-minutes-seconds |
| MM-dd-yyyy hh:mm:ss z | Month-day-year hours-minutes-seconds timezone |
| yyyy-dd-MM | Year-day-month |
| yyyy-MM-dd | Year-month-day |
| yyyy-MM-dd hh:mm:ss | Year-month-day hours-minutes-seconds |
[Table 1. Mapping Options]

{#c_MappingOptions__table_e23_knj_3p}

To denote 24 hour time format, specify a custom date format using
HH:mm:ss instead of hh:mm:ss.
Note:
Converting from a 24-hour to 12-hour date format might cause times from 12:00 to 23:59 to be
formatted as 00:00 to 11:59.

## Mapping to a Duration Field

ServiceNow duration fields use a special data type that lists the number of milliseconds the duration value is. To map import data to a duration field use one of the following methods to transform source values into a duration.

* Calculate the duration from a start and end date
* Convert an existing duration value into a ServiceNow duration value
{#c_MappingOptions__ul_tzz_14j_3p}

## Calculating a Duration Value from a Start and End Date

If the import source has a start and end date, you can calculate a duration with JavaScript.

1. Navigate to System Import SetsTransform Maps.
2. Select the transform map you want to calculate a duration value. For example, the Notification transform map that imports into the Incident table.
3. Select the Run script check box.
4. Enter JavaScript to transform the start and end dates into a duration. See the sample script.
5. Click Update.
{#c_MappingOptions__ol_wjg_l4j_3p}
This sample script transforms the source.u_start and source.u_end fields to a duration value in the target.duration field. Change the field names to match your source and target fields as needed.

    target.duration = gs.dateDiff(source.u_start.getDisplayValue(), source.u_end.getDisplayValue(), false);

## Convert a Duration Value into a ServiceNow Duration Value

If the import source already contains a start date and a duration value, you can convert the existing duration into a ServiceNow duration. For example, you might have an Excel data source that lists a duration in seconds. ServiceNow expects durations to have millisecond values.

1. Navigate to System Import SetsTransform Maps.
2. Select a transform map.For example, the Notification transform map that imports into the
   Incident table.

3. Select the Run script check box.
4. Enter JavaScript to convert existing duration values into a ServiceNow duration values. See the sample script.
5. Click Update.
{#c_MappingOptions__ol_fw4_54j_3p}
This sample script converts a duration in seconds (from the source.u_duration field) to a duration in milliseconds (in the target.duration field). Change the field names to match your source and target fields, as needed.

    //Transform the value in source.u_duration from seconds to milliseconds
    target.duration.setDateNumericValue(source.u_duration * 1000);

This sample script converts a duration already in milliseconds (from the source.u_duration field) to a ServiceNow duration (in the target.duration field). Change the field names to match your source and target fields, as needed.

    //Transform the value in source.u_duration to ServiceNow format
    target.duration.setDateNumericValue(source.u_duration);

## Using a Script to Calculate a Source Value

You may want to use a source script instead of the Source field when:

* The source value is not in the format for the mapped target value.
* You want to look up a value before mapping to the target field.
* The source value must be computed from multiple fields.
* You need to create a compounded or calculated coalesce value in the target field.
{#c_MappingOptions__ul_uwx_lpj_3p}

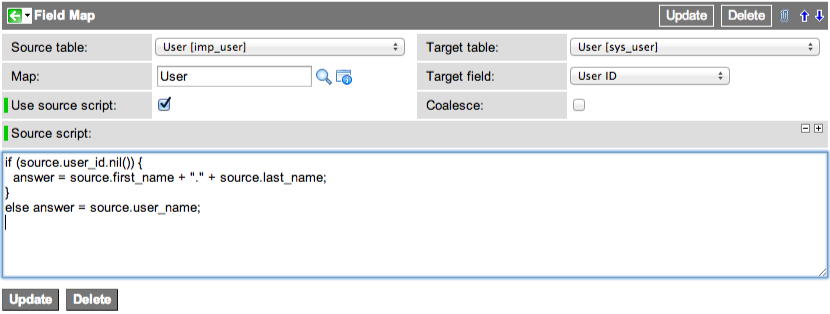

For example, this example source script computes the value of the user_name field when it is blank in the source.Figure 4. Field map source script

A source script expects the calculated value to be set in the global variable
`answer`.

## Mapping Binary or BLOB Fields

ServiceNow uses a special process to
import binary and binary large object (BLOB) data from JDBC data sources. All binary data is
automatically converted into a record in the Attachment \[sys_attachment\] table before the
transformation occurs. The import set table only stores the attachment record's sys_id value in
the import table field instead of the actual binary value. For example, suppose you use a
JDBC data source to
import data from a CA Service Desk system, which stores each record's key value as binary data.
When you import the Service Desk key values into a ServiceNow table, the ServiceNow field only contains a
sys_id reference to
the corresponding binary data in the Attachment Record \[sys_attachment\] table rather than the
actual binary data.
To have a transform map access the attachment, use the GlideRecord API in an `onAfter` script. The script needs to run in an `onAfter` event because the `target.sys_id` object is only available after the data is placed in the import set table. For example, to map the resulting attachment to the target transform record, you can use the following script.

    var agr = new GlideRecord("sys_attachment");
      agr.addQuery("sys_id", source.u_blob_field);
      // the source field needs to be mapped to the source that is the BLOB
      agr.query();
       if(agr.next()) {
        agr.table_name = "cmdb_ci"; // the target table of the transform map
        agr.table_sys_id = target.sys_id; // the target record
        agr.content_type = source.u_contentype;
        // the content type string if available,
        // this becomes the mime encoding when clicking an attachment link
        agr.update(); // finally, move/re-attach the attachment to the target row }

If you are mapping directly to the `db_image` table, run the following `onAfter` script to display the image:

    var strTemp = source.u_file_name;
    var fType = strTemp.substr(- 3);
    var iCont = "" ;

     if(fType == 'jpg') {
      iCont = 'jpeg' ; }
     else {
      iCont = fType; }

     var agr = new GlideRecord("sys_attachment");
     agr.addQuery("sys_id", source.u_blob_field);
     agr.query();

     if(agr.next()) {
      agr.table_name = "ZZ_YYdb_image";
      agr.table_sys_id = target.sys_id;
      agr.content_type = 'image/' + iCont;
      agr.file_name = 'image';
      agr.update(); }
