Code quality check in RPA Desktop Design Studio

  • Release version: Australia
  • Updated March 12, 2026
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Code Quality Check in RPA Desktop Design Studio

    The Code Quality Check feature in RPA Desktop Design Studio helps identify issues in automation activities or entire automation projects, enhancing the reliability of your automation processes. This feature is conducted using pre-defined rules set up in the RPA Hub instance, which must be connected to RPA Desktop Design Studio prior to use.

    Show full answer Show less

    Key Features

    • Proactive identification of automation issues during development.
    • Automatic code quality checks performed upon publishing an automation project.
    • Results displayed in a Code Quality Check Results window, allowing easy navigation to affected components.
    • Ability to manage and filter rules by severity from the View Rules window.

    Key Outcomes

    By utilizing the Code Quality Check, you can significantly reduce errors and avoid potential automation failures. The feature allows for real-time corrections, ensuring your automation projects are compliant and functional before deployment. You can also publish packages with errors if configured to allow it, thereby providing flexibility in your workflow.

    You can use code quality check in RPA Desktop Design Studio to proactively find the issues in an automation activity or the complete automation project. When you publish an automation project, an in-built code quality check is also performed. Code quality check enables you to reduce the number of errors and prevent potential issues that may hinder your automation.

    Code quality check overview

    Code quality check in RPA Desktop Design Studio is based on the pre-defined set of rules that are enabled from the RPA Hub instance. You must connect to the instance that has Code quality check to RPA Desktop Design Studio before you start using Code quality check. For more information on how to configure Code quality check from RPA Hub, see Code quality check in RPA Hub RPA Desktop Design Studio. For more information on the pre-defined set of rules, see Code quality rules list in RPA Hub.

    When you check an activity or the complete automation project by using Code quality check, the issue results and details are displayed as a list of entries in the Code Quality Check Results window. The following example shows the window.

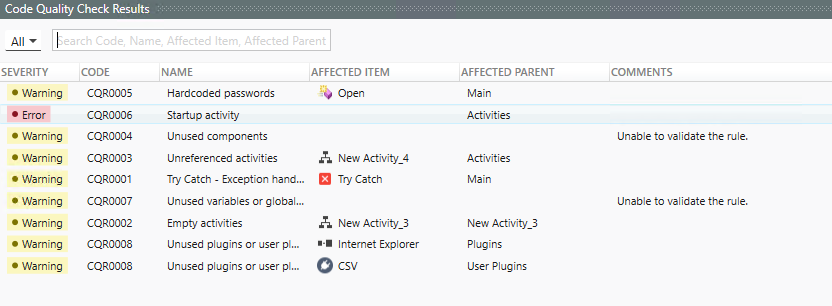

    Figure 1. Code Quality Check Results window
    Code Quality Check Results window where you can see the results of the check.
    You can double-click the result entries for components in the Code Quality Check Results window for the following scenarios:
    • If an affected component is in the current activity, it’s highlighted in the current activity.
    • If the affected component is in a different activity, you can navigate to the activity. The component gets highlighted. See the following example to see the component highlight in RPA Desktop Design Studio.

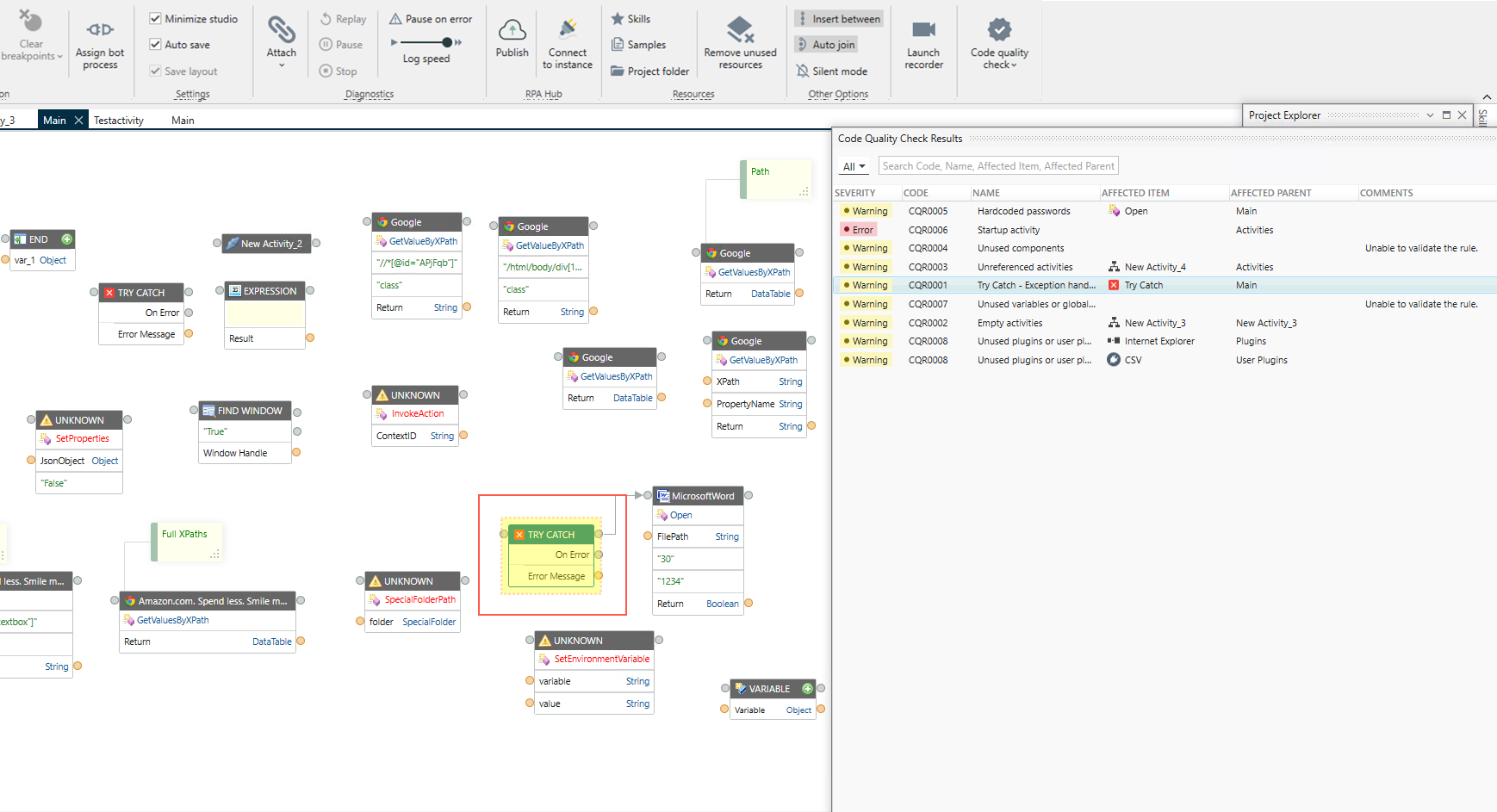

    Figure 2. Component highlight in RPA Desktop Design Studio
    Component highlighted in RPA Desktop Design Studio after the result entry is double-clicked from the Code Quality Check Results window.

    Code quality check in publishing an automation project

    Code quality check is automatically performed when you publish the automation project. If your project has code quality check issues, the Code Quality Check Results window is displayed with the result entries. For more information on how to publish an automation project, see Publish an automation project in RPA Desktop Design Studio in RPA Desktop Design Studio.

    Note:
    You can publish a package with errors or a combination of errors and warnings only if the property sn_rpa_fdn.restrict_package_by_severity is set as No restriction in RPA Hub. For more information on this property, see Configure RPA Hub properties. For more information on the compliance rules that the Code Quality Check feature follows if a package is published from RPA Desktop Design Studio, see Code quality check compliance for RPA Desktop Design Studio in RPA Desktop Design Studio.

    You can view the list of active and inactive rules from the View Rules window. You can filter the rules by their severity level from this window.
