Client registration using custom connector
Define a custom connector by providing your own MCP endpoint URL and authentication configuration if the registry does not contain a connector for the system you need.
Before you begin
Role required: wdf_builder or admin.
About this task
Use a custom connector in the following situations:
- The third-party system exposes an MCP-compatible endpoint, but no certified or community connector exists in the registry for it.
- You are connecting to an internal or proprietary system within your organization that is not listed in the registry.
- You need to override the endpoint URL or authentication settings of an existing registry connector for a specific environment or configuration.
Custom connectors support both manual and dynamic client registration, depending on the capabilities of the target system. Custom connectors are scoped to the instance and are not added to the shared MCP registry.
Create an MCP Connector with OAuth 2.1
Create an MCP Connector with OAuth 2.1 for connecting to external systems or applications that support MCP.
Before you begin
Role required: sn_mcp_client.admin
About this task
OAuth 2.1 provides the most secure and flexible authentication for MCP connectors. If your MCP server supports it, select OAuth 2.1 as the authentication method. You can choose between Dynamic Client Registration, where the server auto-populates client details, or Manual Client Registration, where you provide the client details yourself.
Procedure
-
Click Create and select Model Context Protocol.

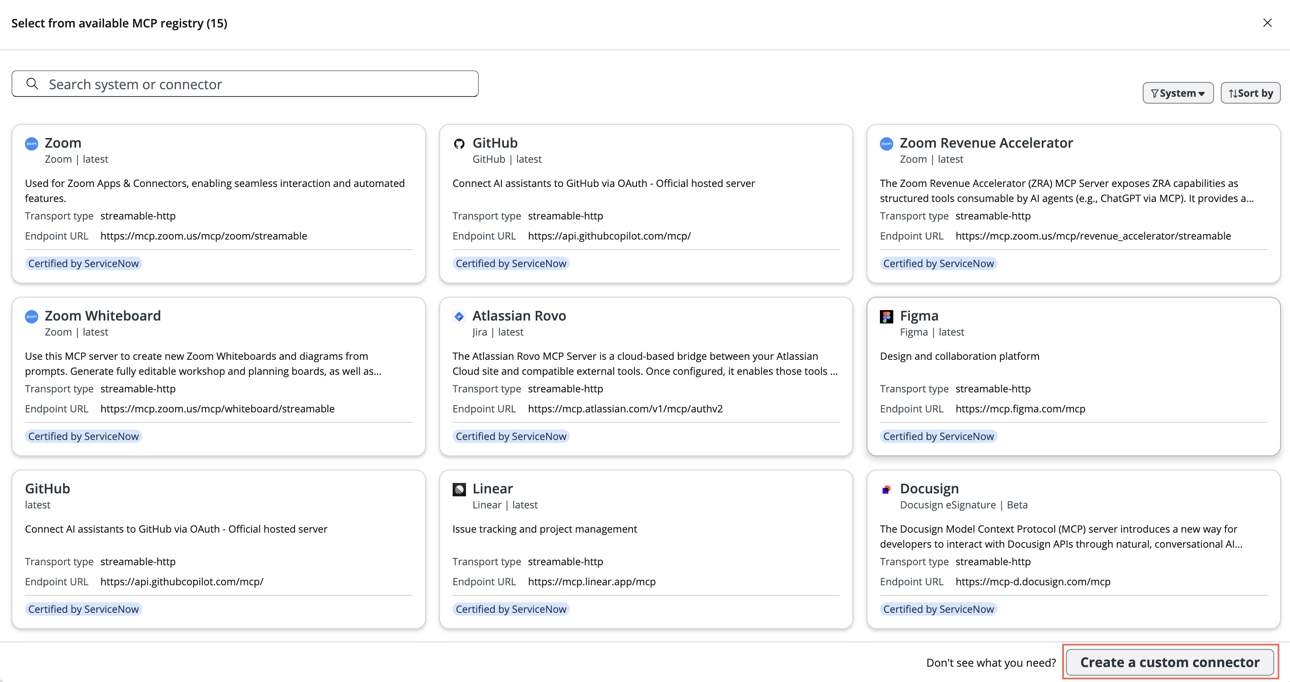

The list of all available MCP connectors is displayed.
-
On the form, fill in the fields.
Table 1. System Details Field Description Server name Name of the MCP server. For example, Linear MCP server. System Search for the external system you want to integrate. Add system (Optional) Click the
icon to add an external system. For more information, see Create external systems.Note:If you already have an existing system, you can use that system for the MCP connector.Connection name Select New connection and enter a name to uniquely identify the connection. For example, Linear Connection. Table 2. Connection Configuration Field Description Endpoint name This field is auto-populated with the Connection name. Endpoint URL Connection URL for the MCP server. Authentication Method Select OAuth 2.1. Select the registration type based on your MCP server's capabilities.
Table 3. Manual Client Registration Field Description Authorization method Select the grant type to be used for requesting tokens from the authorization server. - Authorization Code: A system-generated code used for granting access to an application or resource.
- Client Credentials: Access token provided by the administrator to access the application directly.
Client ID Client ID of the OAuth provider. Client Secret Client secret of the OAuth provider. Client Authentication Specifies how the client credentials are sent to the OAuth token endpoint when requesting an access token. - Client Secret Post: Sends the client ID and client secret in the request body as form-encoded parameters when calling the token endpoint.
- Client Secret Basic: Sends the client ID and client secret in the HTTP Authorization header using Basic authentication when calling the token endpoint.
Access permissions Select the required scopes. These scopes determine the permissions of this OAuth client. OAuth Auth URL URL of the OAuth authorization server. OAuth Token URL OAuth server endpoint used to obtain access tokens. Token revocation URL OAuth server endpoint used to revoke previously issued tokens. Table 4. Dynamic Client Registration Field Description Authorization method Select the grant type to be used for requesting tokens from the authorization server. - Authorization Code: A system-generated code used for granting access to an application or resource.
- Client Credentials: Access token provided by the administrator to access the application directly.
Client Authentication Select how the client credentials are sent when requesting tokens from the authorization server. - Basic Authorization Header
- Request Body Parameter
- Private Key Jwt
Access permissions Select the required scopes. These scopes determine the permissions of this OAuth client. Authorization URL URL of the OAuth authorization server. Token URL OAuth server endpoint used to obtain access tokens. Token revocation URL OAuth server endpoint used to revoke previously issued tokens. Client registration token Token used to authenticate requests to the OAuth client registration endpoint. Value Token for dynamic client registration. Leave this value blank if the server supports unauthenticated registration. -
Click Save.
For example:

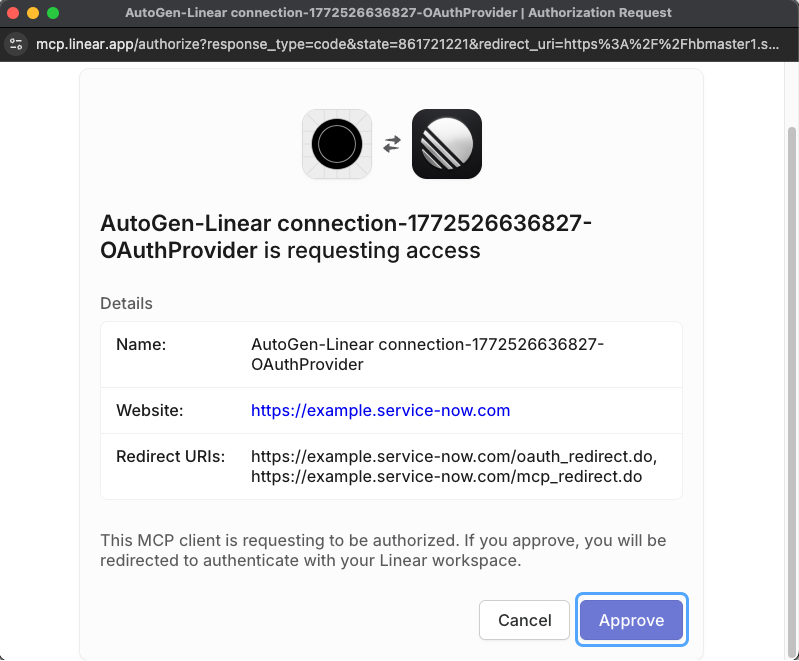

You are redirected to the third-party page requesting authorization for the MCP client.
Create an MCP Connector with API Key
Create an MCP Connector with API key for connecting to external systems or applications that support MCP.
Before you begin
Role required: sn_mcp_client.admin
About this task
Use API key authentication when your MCP server requires a static key for authorization. Obtain the API key from your third-party application before configuring the connector.
Procedure
-
Click Create and select Model Context Protocol.
The list of all available MCP connectors is displayed.
-
On the form, fill in the fields.
Table 5. System Details Field Description Server name Name of the MCP server. For example, Figma MCP server. System Search for the external system you want to integrate. Add system (Optional) Click the icon to add an external system. For more information, see Create external systems.Note:If you already have an existing system, you can use that system for the MCP connector.Connection name Select New connection and enter a name to uniquely identify the connection. For example, Figma Connection. Table 6. Connection Configuration Field Description Endpoint name This field is auto-populated with the Connection name. Endpoint URL Connection URL for the MCP server. Authentication Method Select API key. API key Enter the API key of the third-party application.
Create an MCP Connector with Basic Authentication
Create an MCP Connector with Basic Authentication for connecting to external systems or applications that support MCP.
Before you begin
Role required: sn_mcp_client.admin
About this task
Use Basic Authentication when your MCP server requires a username and password for access. Ensure that valid server credentials are available before configuring the connector.
Procedure
-
Click Create and select Model Context Protocol.
The list of all available MCP connectors is displayed.
-
On the form, fill in the fields.
Table 7. System Details Field Description Server name Name of the MCP server. For example, Figma MCP server. System Search for the external system you want to integrate. Add system (Optional) Click the icon to add an external system. For more information, see Create external systems.Note:If you already have an existing system, you can use that system for the MCP connector.Connection name Select New connection and enter a name to uniquely identify the connection. For example, Figma Connection. Table 8. Connection Configuration Field Description Endpoint name This field is auto-populated with the Connection name. Endpoint URL Connection URL for the MCP server. Authentication Method Select Basic Authentication. User name User name of the MCP server. Password Password of the MCP server.
