Set up Windows Server machine for high density robots

  • Release version: Australia
  • Updated March 12, 2026
  • 1 minute to read

    • Set up the environment for high density robots on a Windows Server machine by installing a Remote Desktop Session Host. Then, add robot user names who can connect to the machine. It enables them to establish Remote Desktop Protocol (RDP) connection to the Windows Server machine.

    Before you begin

    Familiarize yourself with high density robots concepts. For more information, see High density robots in Unattended Robot and High density robots in RPA Hub.

    The Remote Desktop Session Host service requires a valid license.

    Ensure that you follow the hardware and software requirements. For more information, see Requirements for Unattended Robot.

    Role required: admin

    Procedure

    1. Perform the following steps in your Windows Server machine to install the Remote Desktop Session Host.
      1. Open Server Manager.
      2. In the Dashboard panel, select Manage and then select Add Roles and Features.

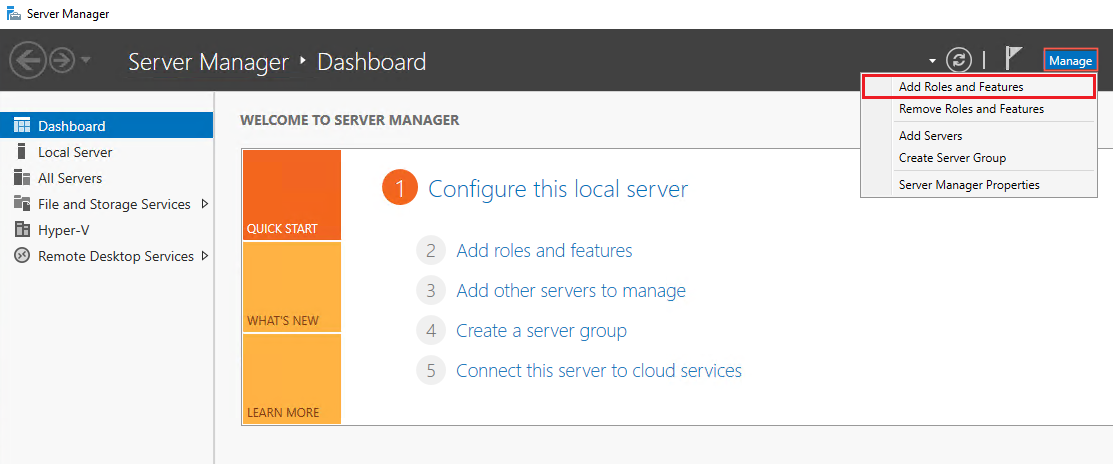

        Figure 1. Server Manager Dashboard panel
        Server Manager Dashboard panel shows Manage option as selected and Add Roles and Features as selected.
        The Add Roles and Features Wizard opens.
      3. Follow the steps in the wizard until you reach the Select server roles window.
      4. In the Roles section, from the Remote Desktop Services list, select the Remote Desktop Session Host option.

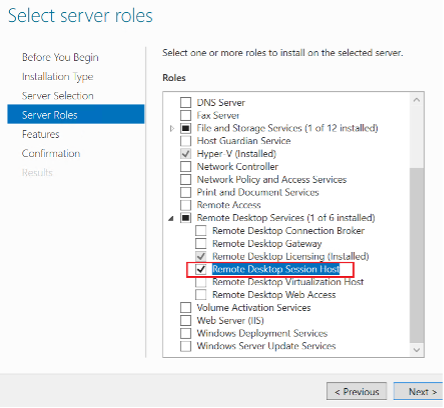

        Figure 2. Select server roles
        Remote Desktop Session Host option is selected in the Select server roles window.
      5. In the Add Roles and Features Wizard dialog box, select Add Features.

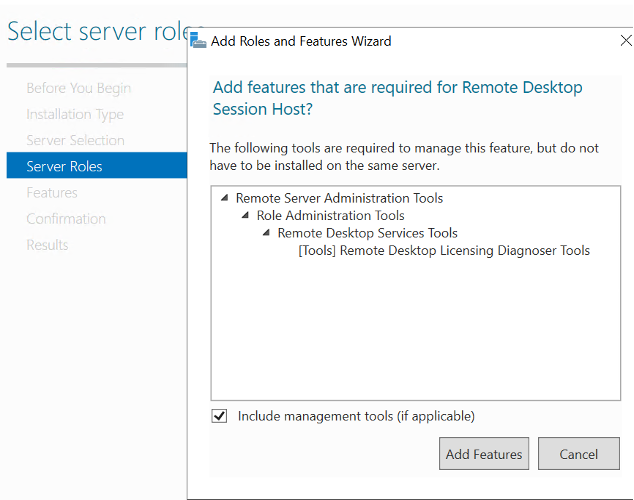

        Figure 3. Add Roles and Features Wizard dialog box
        Add features in the Add Roles and Features Wizard dialog box.
        It returns to the wizard.
      6. Follow the steps in the wizard until you reach the Confirm installation selections window.
      7. Select Install.
    2. Configure the following settings to add users and edit policies:
      1. Navigate to the Local Group Policy Editor and then, navigate to Computer Configuration > Administrative Templates > Windows Components > Remote Desktop Services > Remote Desktop Session Host > Security.
      2. Disable the Always prompt for password upon connection policy.
      3. Enable the Require user authentication for remote connections by using Network Level Authentication policy for enhanced security and always authenticate prior establishing session to RDP.

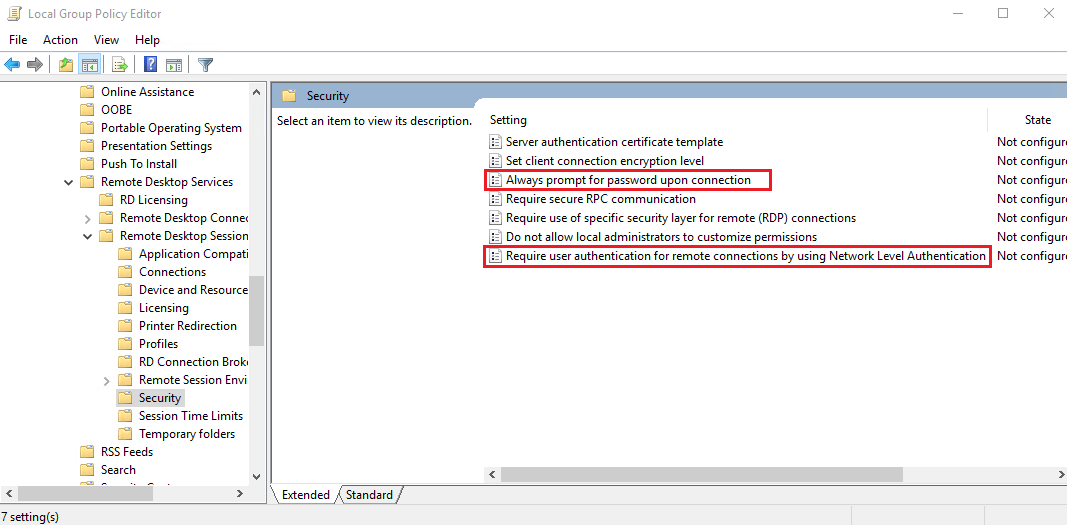

        Figure 4. Configure policies in the Local Group Policy Editor
        Local Group Policy Editor window shows selected settings that must be configured.
      4. Ensure that the Windows user mapped to the robots in the Process Robot Credentials tab of the bot process must be in the Remote Desktop Users group.

    What to do next

    Restart the Windows Server machine after the installation is complete.

    Enable the high density robot option in RPA Hub. For more information, see Create an unattended robot in RPA Hub.

    Install Unattended Robot.

    Add user profiles in the Unattended Robot application, so that multiple robots can execute jobs concurrently. For more information, see Set up Unattended Robot
