# Auto-fill catalog item form in the Service Portal

# Auto-fill catalog item form in the Service Portal {#ariaid-title1}

Release version: Brazil
Updated September 10, 2026
![](https://www.servicenow.com/docs/portal-asset/ico-clock) 8 minutes to read
Use ServiceNow AI Lens to extract data from documents and auto-fill catalog item forms in Service Portal. For example, auto-fill a new vendor onboarding form by extracting key details such as vendor name, address, contact email, and banking information from multiple documents, that includes Excel
files, emails, images, and PDF documents.

## Before you begin

Role required: lens_user

## About this task

You can auto-fill catalog item forms in the Service Portal in two ways:

* From your browser: Use ServiceNow AI Lens to capture a screen from the browser, analyze the contents of the captured screen and auto-fill the form fields in the Service Portal --- no download or installation of the desktop app required.
  Note:
  * The screen capture experience may vary depending on your browser.
    Tip:
    For the best experience, use ServiceNow AI Lens on any Chromium-based browser.
  * The browser-based experience supports single-screen capture.
  {#create-record-in-the-service-portal__ul_t3l_s4q_w3c}
* From the desktop app: Use the ServiceNow AI Lens desktop app for the full range of capture and analysis capabilities, such as multi-image capture and file uploads.
{#create-record-in-the-service-portal__ul_g3x_ktv_v3c}

## Procedure

1. Navigate to the Service Portal and log in.
   The URL is

       https://<instance-name>.service-now.com/sp

   This procedure demonstrates how to request an iPhone from the Service Portal by capturing the browser screen and auto-filling the form.
2. Navigate to the item that you want to request and select it.
3. Select Fill with Lens.
4. Auto-fill catalog item forms in Service Portal by performing any of the following methods.
   * [Using the Lens browser app](https://www.servicenow.com/docs/fhsm23nERaBevn5ORIP2OQ#autofill-catalog-record-lens-browser "Capture a screen or upload files directly from your browser, and let ServiceNow AI Lens analyze the contents and auto-fill the form fields — no download or installation required.")

     The ServiceNow AI Lens browser app opens in a new browser window.
   * [Using the Lens desktop app](https://www.servicenow.com/docs/fhsm23nERaBevn5ORIP2OQ#autofill-catalog-record-lens-desktop-app "Use the ServiceNow AI Lens desktop app for the full range of capture and analysis capabilities, such as multi-image capture, auto-map Excel column headers with ServiceNow table fields, and file uploads.")

     The ServiceNow AI Lens desktop app is launched.
   {#create-record-in-the-service-portal__choices_ocz_mqw_2kc}

## Using the Lens browser app {#ariaid-title2}

Capture a screen or upload files directly from your browser, and let ServiceNow AI Lens analyze the contents and auto-fill the form fields --- no download or installation required.

### Before you begin

Important:
Confirm that Browser is selected as a default preference in the Downloads and Preferences page. To view the steps, see [Set AI Lens to launch with the desktop app](https://www.servicenow.com/docs/7VXekmnWln7rhB1rsYGMyQ "Download the ServiceNow AI Lens installer for your operating system and set your preferred way to launch ServiceNow AI Lens — from your browser or the desktop application.")

Role required: lens_user

### About this task

When you select Fill with Lens on the Service Portal form, the ServiceNow AI Lens browser app opens in a new browser window.
Note:
* The screen capture experience may vary depending on the browser that you use.
  Tip:
  For the best experience, use ServiceNow AI Lens on any Chromium-based browser.
* The browser-based experience supports single-screen capture. To capture multiple screens, [Use ServiceNow AI Lens from the desktop application](https://www.servicenow.com/docs/zVa5qRU3tVoc4FazTGZpJw#create-record-lens-desktop-app "Use the ServiceNow AI Lens desktop app for the full range of capture and analysis capabilities, such as multi-image capture, auto-map Excel column headers with ServiceNow table fields, and file uploads.").
{#autofill-catalog-record-lens-browser__ul_t3l_s4q_w3c}

### Procedure

1. Select one of the following methods.
   * Capture screen

     1. Select Capture screen.
     2. Select the screen that you want to capture, and then select Share.
        Note:
        * The screen capture options depend on your browser.
        * For illustration purpose, the following steps show the capturing of an Outlook email screen from Chrome tab.

        {#autofill-catalog-record-lens-browser__ul_z1h_xts_w3c}

        ServiceNow AI Lens shows the captured Outlook email screen that it will analyze.
        Figure 1. Screen captured for analysis
     3. (Optional) To specify the area of the captured screen that you want ServiceNow AI Lens to analyze, select Crop, and then use the crop handles.
     4. Select Confirm.
     5. (Optional). Perform the following steps:
        * Select Re-capture to discard the current capture and capture a new screen.
        * Select Revert to original to undo the crop and restore the full captured image.
        * Select Crop to further refine your selection by cropping the already cropped screen.
        {#autofill-catalog-record-lens-browser__ul_ord_1sw_v3c}
     {#autofill-catalog-record-lens-browser__ol_ekr_wtv_v3c}
   * Upload

     1. Select Upload.
     2. Perform any one of the following file upload methods.
        * Upload one or more files by selecting the +Add file option.
        * Upload one or more files by dragging the selected files to the Drag and drop files section and then select Upload all.

        {#autofill-catalog-record-lens-browser__ul_cqz_lmt_dkc}
        Note:
        * You can upload up to 10 unprotected files, with the combined size of the uploaded files not exceeding 10 MB.
        * To remove a file that you attached, select the Remove file icon ![]().
        * To rename the file that you attached, select the More options icon ![](), and then select Rename.
        {#autofill-catalog-record-lens-browser__ul_agf_25t_g3c}
     3. Select Next.

        The ServiceNow AI Lens preview window displays the files that you have uploaded

     {#autofill-catalog-record-lens-browser__ol_lqj_yls_wjc}
   {#autofill-catalog-record-lens-browser__choices_u3y_bl1_2kc}
2. To guide ServiceNow AI Lens in extracting the information you need from the uploaded files, enter specific instructions in the Additional instructions field.
   The default character limit is 500. Users with the admin role can increase this limit to up to 5000 characters by navigating to the sn_lens_user_prompt_max_length system property.
3. To let ServiceNow AI Lens analyze the captured screen, select Analyze.
   ServiceNow AI Lens notifies that it has auto-filled the catalog item form fields.

4. Navigate to the catalog item form that you wanted to auto-fill and verify that the fields are correctly filled.

   Only the field types that are supported by ServiceNow AI Lens get auto-populated with the extracted data. If the form doesn't have field types that are supported, then ServiceNow AI Lens won't update the record. For more information about the supported fields, see [Field types supported](https://www.servicenow.com/docs/QKxDkDWFVlYVbUxI~SHpcQ "Learn about the field types that are currently supported with the ServiceNow AI Lens application.").

   | Option | Action |
   | If the auto-filled text looks good | Save the record by selecting Submit. |
   | If the auto-filled text requires changes | Do one of the following actions: * Manually adjust the information in the fields and save the record. * In the ServiceNow AI Lens window, provide different instructions or take more screenshots and select Analyze so that ServiceNow AI Lens can extract, comprehend the data again, and auto-fill the data into the record. Save the record by selecting Submit. You can analyze the artifacts as many times as needed without reloading the form. {#autofill-catalog-record-lens-browser__ul_h1q_l32_2hc} |
   |-|-|

   {#autofill-catalog-record-lens-browser__choicetable_g1q_l32_2hc}
{#autofill-catalog-record-lens-browser__steps_wpg_kwy_dkc}

## Using the Lens desktop app {#ariaid-title3}

Use the ServiceNow AI Lens desktop app for the full range of capture and analysis capabilities, such as multi-image capture, auto-map Excel column headers with ServiceNow table fields, and file uploads.

### Before you begin

Important:
Confirm that Desktop app is selected as a default preference in the Downloads and Preferences page. To view the steps, see [Set AI Lens to launch with the desktop app](https://www.servicenow.com/docs/7VXekmnWln7rhB1rsYGMyQ "Download the ServiceNow AI Lens installer for your operating system and set your preferred way to launch ServiceNow AI Lens — from your browser or the desktop application.")

Role required: lens_user

### About this task

When you select Fill with Lens on the Service Portal form, the ServiceNow AI Lens desktop app is launched.

### Procedure

1. In the ServiceNow AI Lens.app dialog box, select Open ServiceNow AI Lens.app.
   Note:
   * This confirmation dialog appears when you select Create with Lens or Update with Lens for the first time. You can make this a one-time step by selecting Always open \<instance-name.service-now.com\> links of this type in the associated app before selecting Open ServiceNow AI Lens.app.
   * On macOS, when you launch ServiceNow AI Lens desktop app for the first time, your mac asks whether ServiceNow AI Lens can store your login credentials. Select Always Allow to avoid entering your credentials every time you open the application.
   {#autofill-catalog-record-lens-desktop-app__ul_mbx_sxy_dkc}
2. On the onboarding journey widget, complete the onboarding and select Got it.
3. Use one of the following methods to extract data from documents.
   Note:
   A document can be an image, a scanned handwritten note, web page, Excel sheet, or a Microsoft Word document.
   * Capture screen

     1. On your system, open one or more documents that you want to scan.
     2. Auto-fill the form on the instance with data extracted from a single screenshot.
        1. Place the ServiceNow AI Lens scanner window on top of the document.
        2. Resize the ServiceNow AI Lens scanner window by dragging its borders.
        {#autofill-catalog-record-lens-desktop-app__ol_bjy_xn1_2kc}

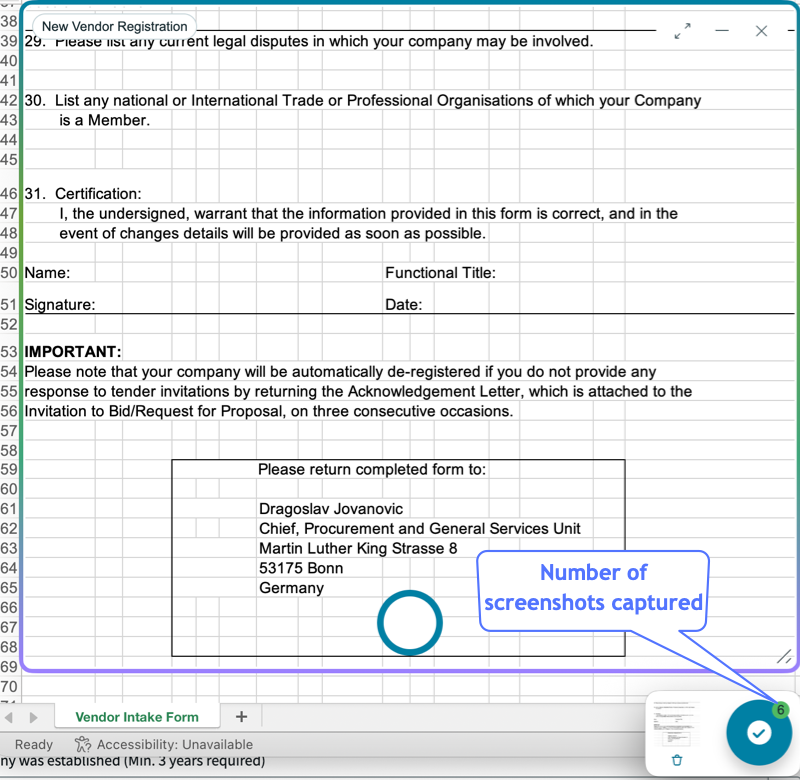

     3. (Optional) Auto-fill the form on the instance with data extracted from multiple screenshots.
        1. Select the Multi-capture button ![Multi-capture icon.]()
        2. Select the Capture icon ![]().
        3. Place the ServiceNow AI Lens scanner window over another document or page and then select the Capture icon ![]().
        4. Repeat the step to capture more screenshots, if required.
           Note:
           * You can capture a total of 10 screenshots with the combined size of all captured screenshots not exceeding 10 MB.
           * To enable the desktop app to send large screenshot data to the server, verify that the following system properties are set exactly as shown:
             {#autofill-catalog-record-lens-desktop-app__table_hjy_xn1_2kc__entry__3}

             | Property name | Type | Recommended value |
             |-|-|-|
             | glide.rest.max_content_length | Integer | 15 |
             | glide.rest.scripted.max_inbound_content_length_mb | Integer | 15 |
             [Table 1. System property]

             {#autofill-catalog-record-lens-desktop-app__table_hjy_xn1_2kc} For more information, see [Configure system property](https://www.servicenow.com/docs/access?context=r_ControllingMaxRequestSize&version=brazil&pubname=brazil-api-reference&ft:locale=en-US).
             Note:
             You must have the admin role to set the system properties.
           {#autofill-catalog-record-lens-desktop-app__ul_gjy_xn1_2kc}
        5. To complete the capture, select the Done icon ![]().
        {#autofill-catalog-record-lens-desktop-app__ol_cjy_xn1_2kc}
     {#autofill-catalog-record-lens-desktop-app__ol_ajy_xn1_2kc}
   * Upload

     1. Select Upload.
        Note:
        * You can upload up to 10 unprotected files, with the combined size of the uploaded files not exceeding 10 MB.
        * To enable the desktop app to send large data of the uploaded files to the server, confirm that the following system properties are set exactly as shown below:
          {#autofill-catalog-record-lens-desktop-app__table_an5_gvt_g3c__entry__3}

          | Property name | Type | Recommended value |
          |-|-|-|
          | glide.rest.max_content_length | Integer | 15 |
          | glide.rest.scripted.max_inbound_content_length_mb | Integer | 15 |
          [Table 2. System property]

          {#autofill-catalog-record-lens-desktop-app__table_an5_gvt_g3c} For more information, see [Configure system property](https://www.servicenow.com/docs/access?context=r_ControllingMaxRequestSize&version=brazil&pubname=brazil-api-reference&ft:locale=en-US)
          Note:
          You must have the admin role to set the system properties.

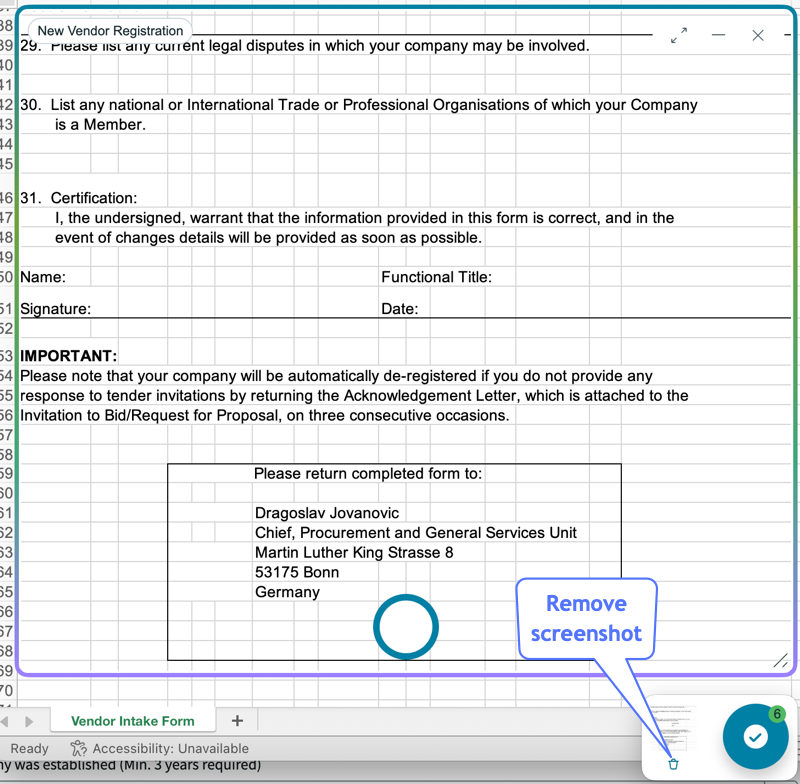

        * To remove a file that you attached, select the Remove file icon ![]().
        {#autofill-catalog-record-lens-desktop-app__ul_zm5_gvt_g3c}
     2. Perform any one of the following file upload methods.
        * Upload one or more files by selecting the +Add file option.
        * Upload one or more files by dragging the selected files to the Drag and drop files section and then select Upload all.

        {#autofill-catalog-record-lens-desktop-app__ul_cqz_lmt_dkc}

        Note:
        * You can upload up to 10 unprotected files, with the combined size of the uploaded files not exceeding 10 MB.
        * To remove a file that you attached, select the Remove file icon ![]().
        * To rename the file that you attached, select the More options icon ![](), and then select Rename.
        {#autofill-catalog-record-lens-desktop-app__ul_agf_25t_g3c}
     3. Select Next.

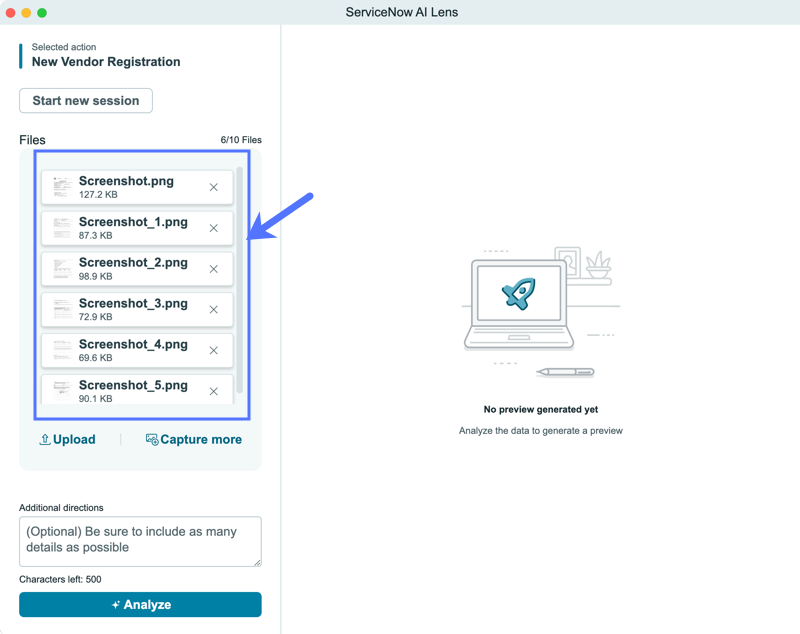

        The ServiceNow AI Lens preview window displays the files that you've uploaded
        Tip:
        * To view the preview of a file that you uploaded, select the card. The preview of the file opens on its respective default application.
        * To remove an uploaded file, select the Remove file icon ![]().
        * To capture one or more additional files, select Upload.
          Note:
          You can upload a total of 10 unprotected files with the combined size of all files not exceeding 10 MB.
        {#autofill-catalog-record-lens-desktop-app__ul_r3y_ntv_h3c}
     {#autofill-catalog-record-lens-desktop-app__ol_hmr_3fz_dkc}
   {#autofill-catalog-record-lens-desktop-app__choices_jvv_vn1_2kc}

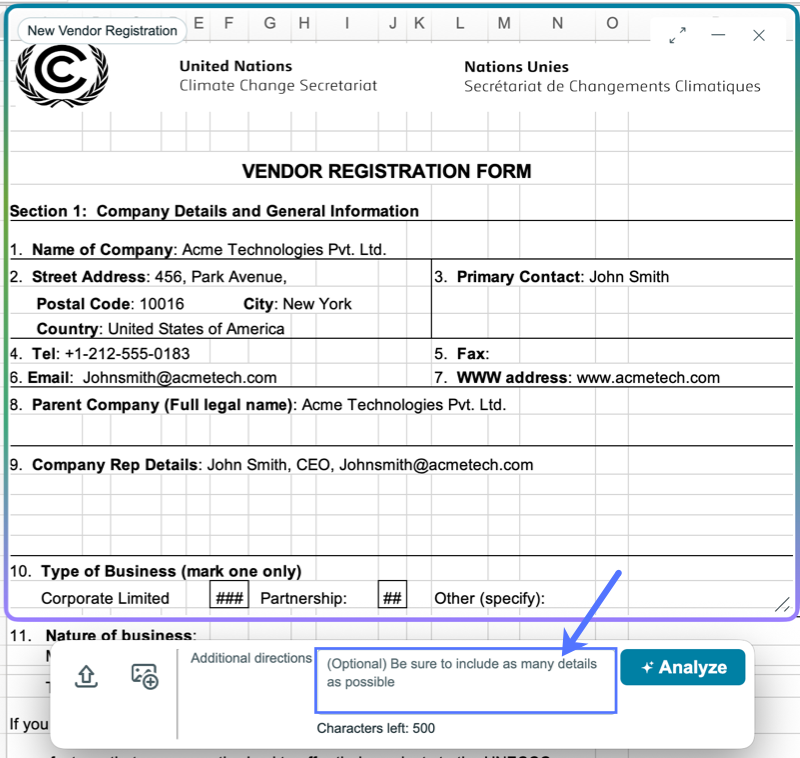

4. To guide ServiceNow AI Lens in extracting the information you need from the uploaded files, enter specific instructions in the Additional instructions field.
   The default character limit is 500. Users with the admin role can increase this limit to up to 5000 characters by navigating to the sn_lens_user_prompt_max_length system property.
5. To let ServiceNow AI Lens analyze the captured screen, select Analyze.
   ServiceNow AI Lens notifies that it has auto-filled the catalog item form fields.

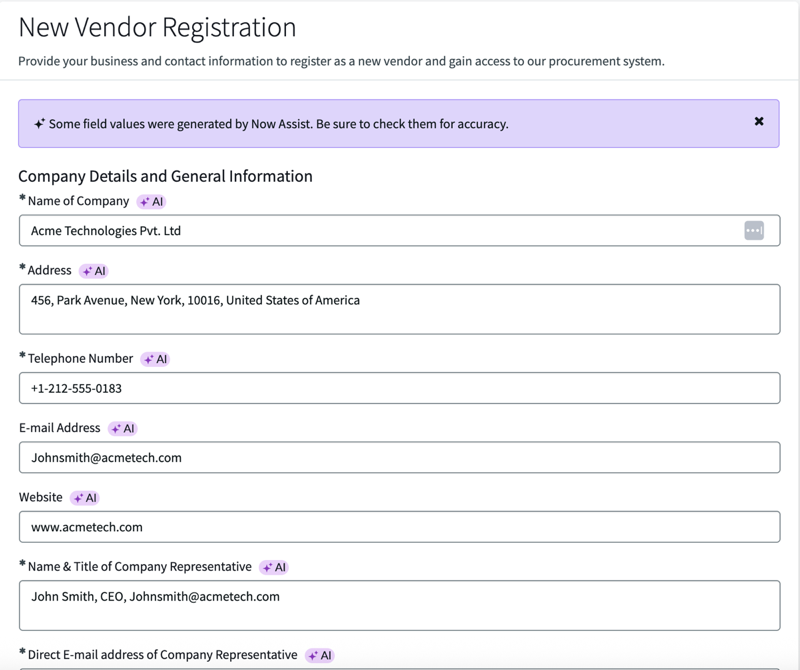

6. Navigate to the catalog item form that you wanted to auto-fill and verify that the fields are correctly filled.

   Only the field types that are supported by ServiceNow AI Lens get auto-populated with the extracted data. If the form doesn't have field types that are supported, then ServiceNow AI Lens won't update the record. For more information about the supported fields, see [Field types supported](https://www.servicenow.com/docs/QKxDkDWFVlYVbUxI~SHpcQ "Learn about the field types that are currently supported with the ServiceNow AI Lens application.").

   | Option | Action |
   | If the auto-filled text looks good | Save the record by selecting Submit. |
   | If the auto-filled text requires changes | Do one of the following actions: * Manually adjust the information in the fields and save the record. * In the ServiceNow AI Lens window, provide different instructions or take more screenshots and select Analyze so that ServiceNow AI Lens can extract, comprehend the data again, and auto-fill the data into the record. Save the record by selecting Submit. You can analyze the artifacts as many times as needed without reloading the form. {#autofill-catalog-record-lens-desktop-app__ul_h1q_l32_2hc} |
   |-|-|

   {#autofill-catalog-record-lens-desktop-app__choicetable_g1q_l32_2hc}
