Using capacity planning in Portfolio Planning
Summarize
Summary of Using Capacity Planning in Portfolio Planning
The capacity planning feature in Portfolio Planning enables ServiceNow customers to assess resource capacity and make informed allocation decisions. Users can generate and review resource capacity details using the Manage Resource Capacity screen, which provides critical insights into resource availability and allocations over specific time frames.
Show less
Key Features
- Resource Capacity Management: View and manage resource availability, total number of available resources, and the latest updates from employee profiles.
- Filtering Options: Filter resources by attributes and date ranges to focus on specific capacity needs.
- Capacity Planning Screen: Offers an interactive Gantt chart for visualizing resource allocations with color-coded indicators for planning items, highlighting resource assignments and overallocation.
- Operational Resource Assignments: Create or migrate operational resource plans, allowing managers to account for time off, training, and other commitments while maintaining visibility over available capacity.
Key Outcomes
By using capacity planning, ServiceNow customers can effectively forecast future resource requirements, manage operational assignments, and maintain an accurate overview of resource allocations. This functionality aids in ensuring optimal resource utilization and supports strategic planning efforts within the organization.
Assess the resource capacity and review existing allocations, which help you to make informed decisions while working on assigning resources.
Use the manage resource capacity screen to generate resource capacity details.
Use the Capacity Planning screen to view detailed information about the resource capacity mapping to a portfolio.

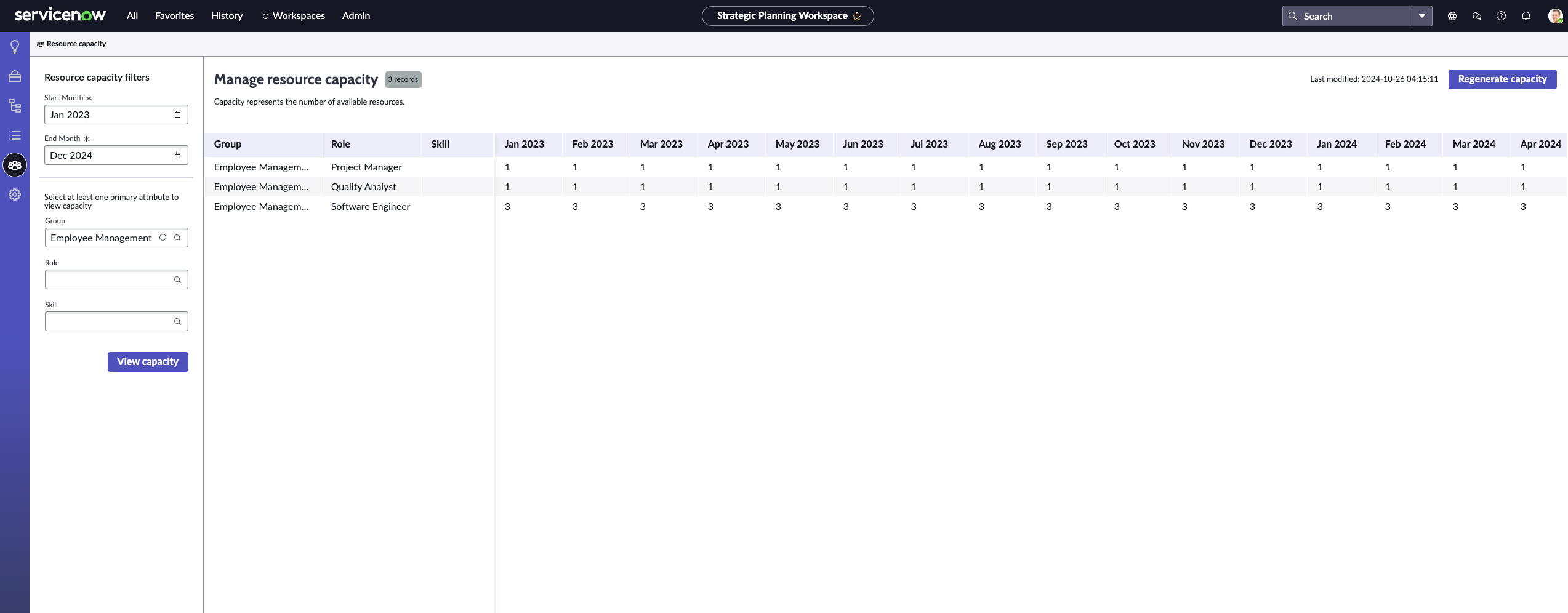

Manage resource capacity
Using Manage resource capacity, select a time frame and primary attributes to view number of available resources. Generated resource capacity details are saved. You can regenerate capacity to view latest changes in the resource availability.
Resource capacity screen helps you to view the following data.
- Resource availability for generated capacity.
- Total number of available resources in a monthly breakdown view.
- Latest date of generating the capacity details.
- Option to regenerate and fetch the latest capacity details from the employee profile mappings.
- Filter resources with specific capacity attributes for a required date range to view the number of available resources.
- Regenerate capacity details to view the latest details from the resource employee profile mapping.

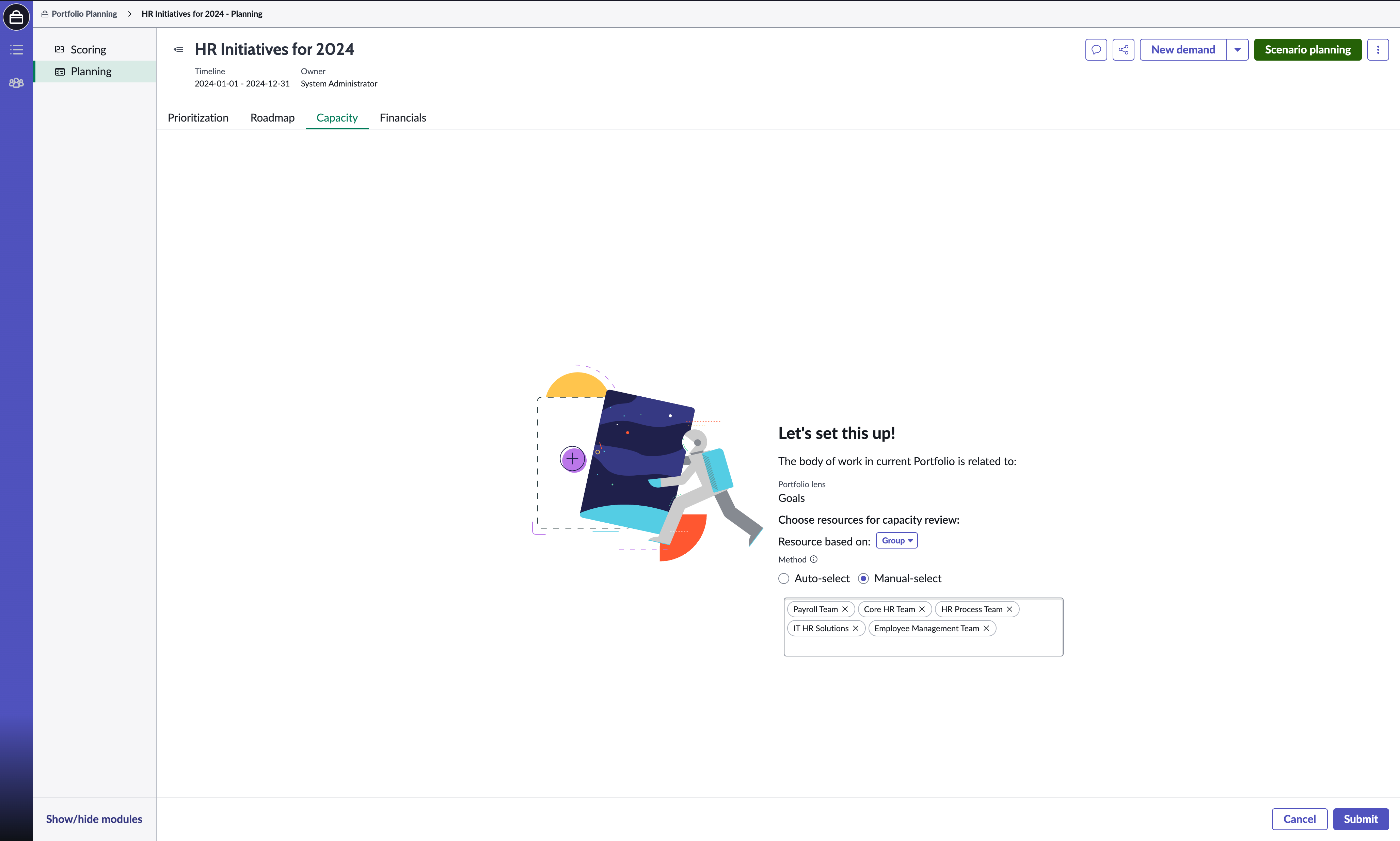

Select resource criteria
- Select a primary attribute to automatically view the available groups, roles, or skills from the resource assignments of the prioritized planning items.
- Switch between Auto-select and Manual-select option to view the allocated resource efforts for all planning items or to view a custom data, respectively.
- Define resource criteria to view the available groups, roles, or skills from the resource assignments of the prioritized planning items.
Capacity Planning
- Comprehensive overview of resource capacity and allocations.
- Current resource capacity allocation.
- Interactive Gantt chat to view prioritized planning items in the bottom tray to analyze and plan work.
| Color | Description |
|---|---|
| Yellow (Gantt bar) | Planning item with no resource assignments. |
| Blue (Gantt bar) | Resource estimates for Planning items are within the resource capacity. |
| Red (Cells and Gantt bar) | Overallocation in resource estimates. |
| Green (Cells) | Resource estimates within the resource capacity. |
- View the capacity allocations of prioritized planning items for your current portfolio and better forecast your future resource requirements.
- Use the filter option (
) to view planning items by their type, state, priority or any by any required attributes to create capacity plans.Note:Default filter is set to display prioritized planning items only. - View the updated resource capacity based on the assigned operational resource assignments.
- View the total resource capacity in the heatmap view.
- View total resource capacity and total estimates.
- View the efforts for operational work and efforts for estimates outside of portfolio in the Additional items list.
- Redefine the workforce criteria by selecting Resource criteria (
)
Calculation of Operational Resource Assignment in Capacity Planning

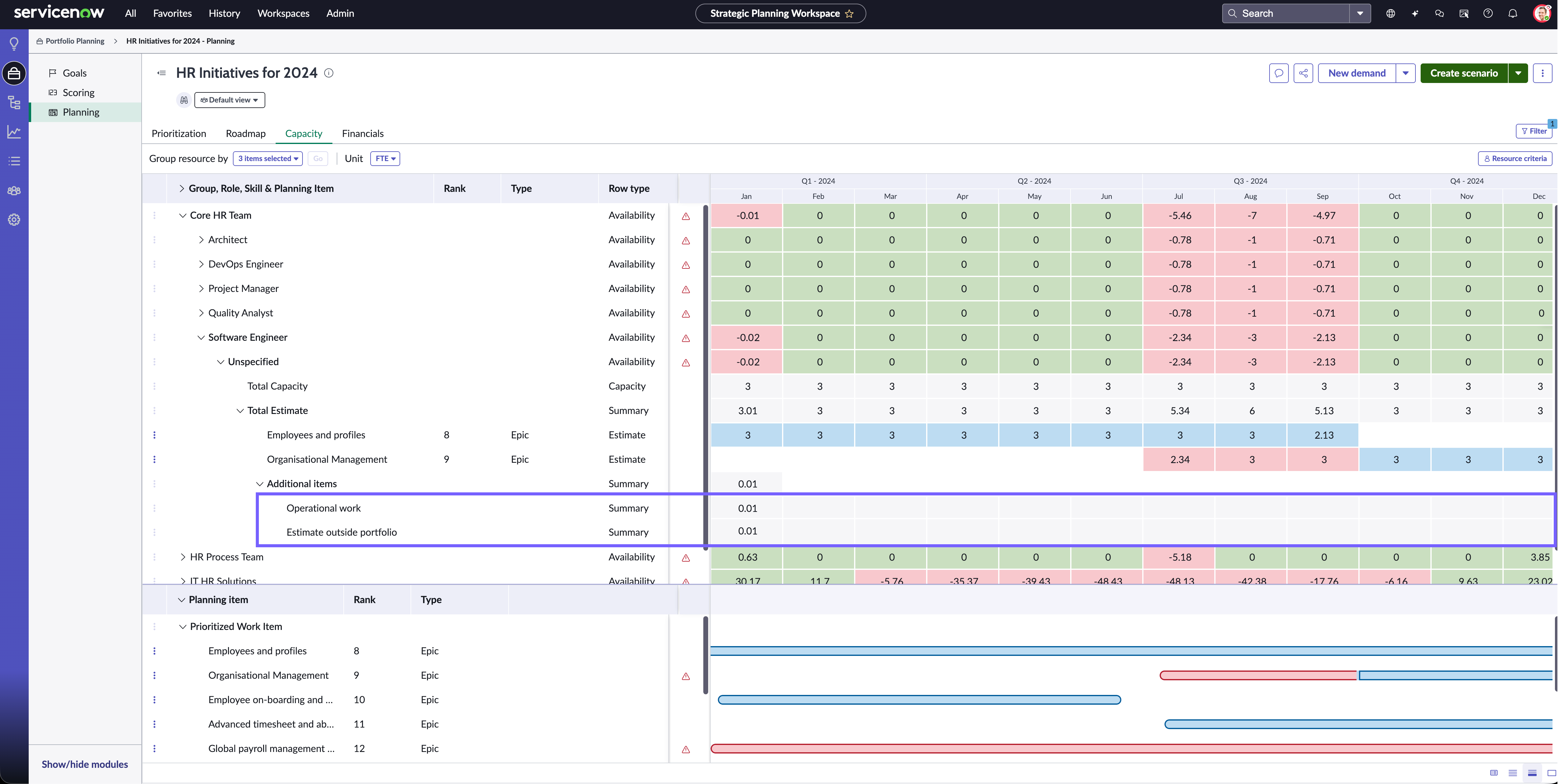

As a Resource Manager, you can create operation resource assignments or migrate existing operational resource plans of your employees to handle the required meetings, trainings, time off and so on to meet your work requirements.Consider a group with capacity of 2 FTE and resource manager creates a Group type operation resource assignment for 10% of the capacity for training. This operational assignment can be viewed in the Operational work line item in the top-tray of the Capacity Planning screen. The value of the Operational work line item will be 0.2, which is 10% of total capacity of the group.
When a resource manager creates a Group type operation resource assignment for time off, this doesn't update the Operational work line item but reduces the total available capacity.
Consider the same group for which resource manager creates an operation resource assignment for 25% of the capacity for time off, for a quarter from April to June. The total available capacity of the group for the quarter April to June will be 1.5 FTE, which is 75% of the total capacity after reducing the 25% time off.
