SAFe Epic Dashboard

  • Release version: Australia
  • Updated March 12, 2026
  • 4 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of SAFe Epic Dashboard

    The SAFe Epic Dashboard offers a visual representation of feature progress within an epic over time, helping teams track completion and identify areas needing attention. It displays metrics such as the total number of features, completed features, and missing story estimates, providing insights into the workflow of Agile Release Train (ART) members.

    Show full answer Show less

    Key Features

    • End User Goals: SAFe ART users can view the progress of features and track essential metrics related to story points and completion rates.
    • Data Visualizations: The dashboard includes various charts like Epic Burnup, Epic Cumulative Flow Diagram, and Story Cycle Time, which can be customized to meet user preferences.
    • Epic Burnup Report: This line chart shows burnup trends, helping predict completion timelines based on historical data.
    • Epic Cumulative Flow Diagram: This area chart monitors story progress, categorizing stories by state (e.g., Ready, In Progress, Testing, Complete).
    • Story Cycle Time Report: A bubble chart that visualizes the time taken for each story to move from in-progress to completion, allowing for detailed analysis of cycle times for stories.

    Key Outcomes

    By utilizing the SAFe Epic Dashboard, teams can effectively monitor progress, forecast completion timelines, and identify potential bottlenecks. This enables better decision-making and resource allocation, ultimately enhancing project delivery and efficiency. Users upgrading from earlier versions can access improved layouts and additional visualizations through the Solution Library.

    The SAFe Epic Dashboard provides a visualization of how the features of an epic are progressing over a given period of time.

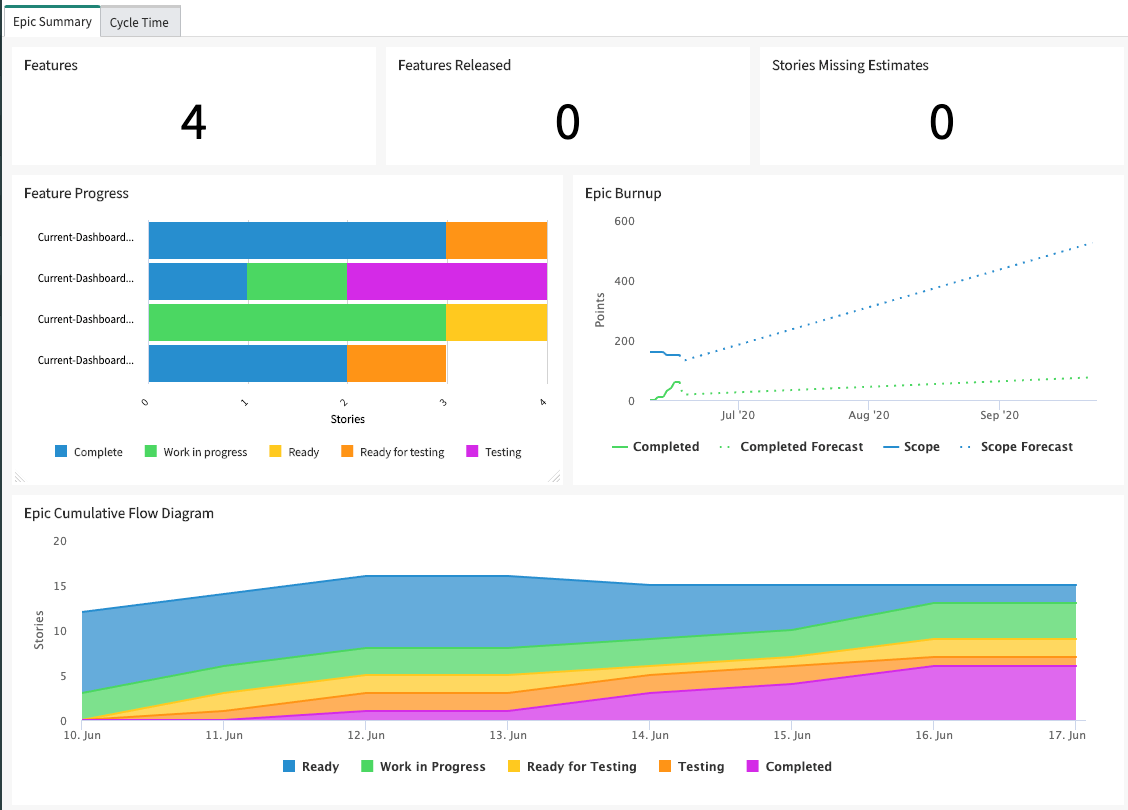

    Figure 1. Epic Summary tab
    SAFe Epic Summary tab

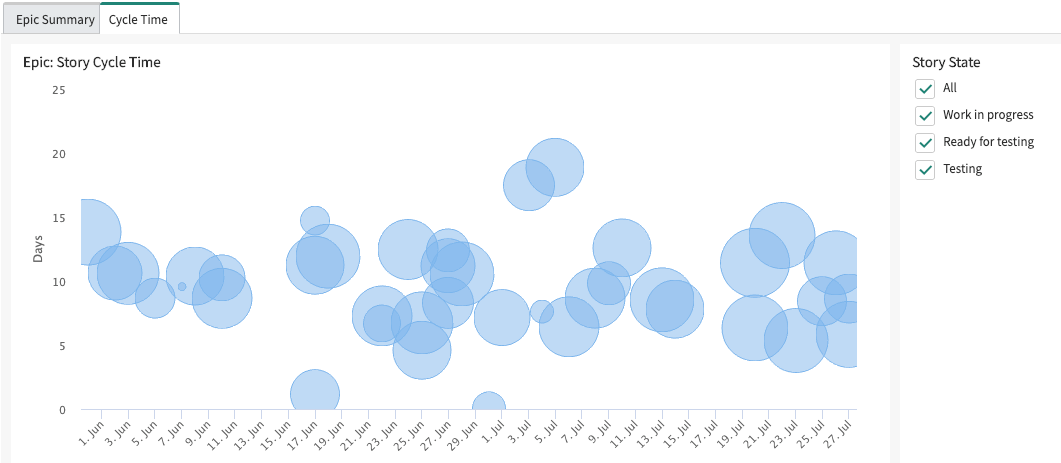

    Figure 2. Cycle Time tab
    epic cycle time

    The SAFe epic dashboard displays such as total number of features that are complete, and number of stories that are missing estimates. It also indicates the pace at which the ART members are completing the features in the epic.

    End user and roles

    Table 1. End user goal with required role
    End user and goal Required role

    SAFe ART user: View the progress of every feature in the epic.

    safe_scrum_user

    Indicators

    SAFe: Sum of story points of all stories in epics

    Generates the scope series in the Epic Burnup report.

    SAFe: Sum of story points of completed stories in epics

    Generates the complete series in the Epic Burnup report. This series indicates the amount of work that has been completed in the epic.

    SAFe: Count of all stories in current epic

    Generates the area series the Epic Cumulative Flow Diagram report, which indicates the number of stories of the current epic by state.

    Breakdowns

    • SAFe: Epic
    • SAFe: State

    Widgets

    Features

    Indicates the total number of features in the epic.

    Features Released

    Indicates the number of features in the epic that have been completed.

    Stories Missing Estimates

    Indicates the number of stories in the epic that are missing estimates.

    Data visualizations

    If you are upgrading from version 1.0.2 or earlier of Performance Analytics Content Pack for Essential SAFe, then install this dashboard from Solution Library to upgrade its layout and access the following visualizations:
    • Epic Burnup
    • Epic Cumulative Flow Diagram
    • Story Cycle Time
    For more information, see Using Solution Library for Essential SAFe dashboards.
    Table 2. Epic Summary
    Title Type Description

    Feature Progress

    Horizontal bar chart

    View the progress of every feature in an epic.

    Epic Burnup

    		 Line chart

    Shows the epic burnup trends. You can estimate when the epic is likely to be completed.

    The Epic Burnup report comprises the following series that can be hidden or displayed based on your preference:
    • Scope: Indicates the size of the epic.
    • Scope Forecast: Predicts the possibility of scope change for the future dates, which is based on historical data.
    • Completed: Indicates the amount of work in the epic that is complete.
    • Completed Forecast: Predicts the burnup for the future dates. It indicates whether you can complete the epic on time. This prediction is based on historical data.
    Note:
    The point at which the Completed Forecast series intersects with or crosses the Scope Forecast series is a predictor for when the epic might be completed. If the Completed Forecast series and the Scope Forecast series do not appear to ever intersect, it is a warning that scope is being added faster than work is being completed.

    Epic Cumulative Flow Diagram

    		 Area chart

    Monitor the progress of all the stories of your epic between its actual start and end dates.

    View the number of stories in each state by their arrival to a state, time in this state, and its departure from this state.

    The Epic Cumulative Flow Diagram report comprises the following areas that can be hidden or displayed based on your preference:
    • Ready: Indicates the number of stories of the epic that are ready to start work on.
    • Work in Progress: Indicates the number of stories of the epic that are in development.
    • Ready for Testing: Indicates the number stories of the epic that are ready to be tested.
    • Testing: Indicates the number of stories of the epic that are currently being tested.
    • Complete: Indicates the number of stories that are complete.
    Note:
    Stories in Ready and Cancelled states are not included in this report.
    Table 3. Cycle Time
    Title Type Description
    Story Cycle Time Bubble chart

    		 Identify the time taken for each story in the epic to move from an in-progress state to completion.

    Each bubble on the graph represents a story. The height of the bubble from the x-axis shows how long that story took to move from an in-progress state to completion. The size of the story bubbles are relative to each other based on their story points.

    Hovering your mouse cursor over a bubble displays the following details about that story:
    • Story points
    • Date on which the story is moved to completion
    • Total cycle time (in days) of the story
    • Number of days that the story was in the Work in progress state
    • Number of days that the story was in the Ready for testing state
    • Number of days that the story was in the Testing state

    From the Story State section towards the right of the report, you can filter the report to view the cycle time of the stories for the selected states. The chart displays the cycle time for each story as the cumulative sum of all duration of the selected states.

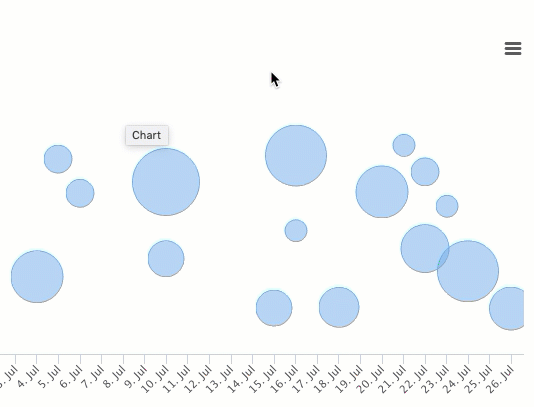

    If there are too many stories at any area of the chart and the bubbles appear crowded on the report, you can zoom in that particular area of the report for clearer view.

    Cycle Time Zoom

    You can customize the Burnup and Cumulative Flow Diagram reports. For more information, see Customizing Essential SAFe dashboard reports.
