Create an IP pool

Create an IP pool to associate a cloud subnet with an IPAM provider instance.

Before you begin

• Role required: sn_cmp.cloud_admin
• Create Infoblox credentials and register an Infoblox server.
• Run Discovery on the cloud account to find subnets or manually create cloud subnets.

Note:

This functionality is not supported with our template-based cloud catalogs.

Procedure

1. In the Cloud Admin Portal, navigate to Manage > Networks & IPAM.

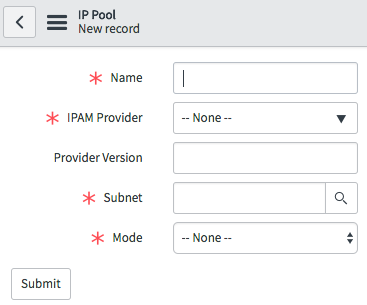

2. On the IP Pools tab, click New, enter a unique and descriptive Name, and then fill in the form.



   Field	Description
   IPAM Provider	Select an IPAM provider.
   Provider Instance	Select an instance for the provider.
   Provider Version	Enter a version for the provider.
   Subnet	Select a subnet. For AWS or Azure, select a discovered subnet that has been configured in AWS or Azure. For VMware, copy the CIDR range from the IPAM tool and paste the CIDR range in this field. See Create a cloud subnet.
   Mode	Select a mode based on the provider that you are creating this IP pool for. The model varies based on the provider.

3. Click Submit.

Result

The related subnet appears in the Subnet related list at the bottom of the form.
