Map credentials between Cloud Provisioning and Governance and Terraform

Map credential types and service account fields between Cloud Provisioning and Governance and Terraform using Credential Mapping.

Before you begin

The latest Cloud Services Catalog Terraform Connector must be installed from the ServiceNow Store.

Role required: sn_cmp.cloud_admin, admin

About this task

Use the Credential Mapping module to perform credential and service account mappings for datacenter credentials used by the Terraform provider to provision datacenter resources and Cloud Provisioning and Governance for discovery.

Procedure

1. Navigate to All > Design > Credential Mapping.
2. Select New.

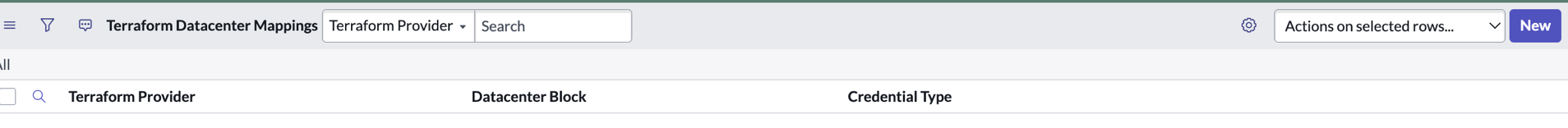

   Figure 1. Terraform Datacenter Mapping form



3. On the form, fill in the fields.

   Table 1. Terraform Datacenter Mappings form

   Field	Description
   Terraform Provider	Name of the Terraform provider.
   Datacenter Block	The resource block whose credentials you are mapping from the lookup table.
   Credential Type	The appropriate credential type from the lookup table. For example, Azure Service Principal [azure_service_principal].
   Credential Resolver	An appropriate MID Server script include from the lookup table. For example, Search and select the TerraformProviderCredentialResolver script.

4. Select Submit.
   The Terraform provider credentials record is created and displayed in the Terraform Datacenter Mappings list.
5. On the record you created, navigate to the Credentials Mappings related list, and then select New.
   1. Complete the Credential Mapping form.

      Field	Description
      Provider Authentication Key	Authentication key (variable) field name as used by the provider. For example, the Terraform provider block for (Amazon Web Services) AWS uses the field secret_key.
      Discovery Credential Key	The corresponding field in the Discovery credentials from the lookup table. For example, access_key field in Terraform corresponds to Secret key field in the ServiceNow instance.
      Terraform Datacenter Mapping	Datacenter for which you are mapping the credentials.

   2. Select Submit.
6. Select the Service Account Mappings tab, and then select New.
   1. Complete the Service Account Mapping form.

      Field	Description
      Provider Authentication Key	Authentication key (variable) field name as used by the provider. For example, the Terraform provider block for AWS uses the field secret_key.
      Service Account Field	Service Account (variable) field name from the lookup table, whose credentials you are mapping to the Provider Authentication Key.
      Terraform Datacenter Mapping	Datacenter for which you are mapping the credentials.

   2. Select Submit.
   You have mapped the field values that you added under the Credential Mapping and Service Account Mapping related lists to the Terraform provider.
