Cloudian Storage Discovery

  • Release version: Australia
  • Updated March 12, 2026
  • 3 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Cloudian Storage Discovery

    ServiceNow Discovery utilizes the Cloudian Storage discovery pattern to locate Cloudian servers and their associated disks. This process requires the installation of specific applications from the ServiceNow Store, including the Discovery and Service Mapping Patterns and the CMDB CI Class Models applications, to ensure proper functionality.

    Show full answer Show less

    Key Features

    • Cloudian Software: Deploys the CentOS operating system and Hyperstore software on independent hardware servers, VMs, or Cloudian Hyperstore appliances.
    • Discovery Requirements: Valid responses from the /bin/systemctl status cloudian-s3 command are necessary for device recognition as a Cloudian server. Ensure SSH credentials and MID server access are properly configured.
    • Data Collection: Discovery gathers critical information about the Cloudian Storage System, including details on storage servers, disks, file systems, and network adapters.

    Key Outcomes

    By configuring Discovery for Cloudian Storage, ServiceNow customers can effectively map and manage their Cloudian storage resources within the CMDB. The discovery process automatically creates records and relationships among storage servers, disks, and network components, enhancing visibility and management capabilities across the infrastructure.

    ServiceNow Discovery uses the Cloudian Storage discovery pattern to find Cloudian servers and related disks. Discovering these resources requires installing the Patterns application from the ServiceNow Store.

    Discovery uses Cloudian Storage System patterns to find Cloudian Storage system data. Discovering these resources requires installing the Discovery and Service Mapping Patterns and the CMDB CI Class Models applications from the ServiceNow Store, as each application is dependent on the other. You can use the patterns for discovering the Cloudian Storage components on the ServiceNow AI Platform using the Paris release or later.

    Cloudian is a software-defined data storage company. Cloudian provides turnkey distributed software-defined S3-compatible object storage solutions.

    Cloudian Hyperstore Software : Deploy the CentOS operating system, related packages, and Hyperstore software binary files on the Hyperstore Node.

    Cloudian Hyperstore Node: This is an independent hardware server in which Cloudian Hyperstore software is deployed on an industry standard server, on a VM, or it is pre-installed on a Cloudian Hyperstore appliance.

    Request apps on the Store

    Visit the ServiceNow Store to view all the available apps, and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.

    Prerequisites

    To discover a device as a Cloudian server, the /bin/systemctl status cloudian-s3 command must return valid responses and contain the Cloudian HyperStore Storage System. If this is not the case, then the device is discovered as a Linux server.

    • Make sure the client is using Discovery patterns.
    • Set SSH credentials for the Cloudian Storage Server.
    • Make sure the MID server has access to the target device.
    • Ensure that the Discovery user has the correct privileges to run commands.
    • Install the following plugins:
      • CMDB CI Class Models plugin (Version 1.31.0 or later)
      • Discovery and Service Mapping Patterns plugin (Version 1.0.84 or later)
      • Discovery and Service Mapping Patterns: (sn_itom_pattern) version 1.0.84 and dependent plugin CMDB CI Class Models (sn_cmdb_ci_class) version 1.31.0 (October content release)

    Credentials

    Make sure the Cloudian Hyperstore Software is deployed on either CentOS or RHEL Servers. The credentials configurations are the same as for a Linux server.

    Configure the SSH credentials for the Cloudian Storage Server.

    Running Discovery

    To discover the Cloudian Storage System, create a Discovery schedule that targets the IP address of the Cloudian Storage Server. Make sure that the SSH credentials that you configured can access the Cloudian Server.

    Data collected by Discovery during horizontal discovery

    Table 1. Storage Server [cmdb_ci_storage_server]
    Field Description

    name
    serial_number
    ip_address

    manufacturer
    model_id
    short_description
    os_version
    os
    ram
    cpu_manufacturer
    cpu_name
    cpu_core_count
    cpu_type
    Table 2. Disk [cmdb_ci_disk]
    Field Description

    name
    device_id
    storage_type
    size_bytes
    manufacturer
    model_id
    computer [Reference cmdb_ci_storage_server]

    File System [cmdb_ci_file_system]

    Field Description

    name
    size_bytes
    free_space_bytes
    file_system
    mount_point
    computer [Reference cmdb_ci_storage_server]
    provided_by [Reference cmdb_ci_disk]

    Network Adapter [cmdb_ci_network_adapter]

    Field Description

    name
    ip_address
    netmask
    mac_address
    cmdb_ci [Reference cmdb_ci_storage_server]

    IP Address [cmdb_ci_ip_address]

    Field Description

    ip_address
    netmask
    nic [Reference cmdb_ci_network_adapter]

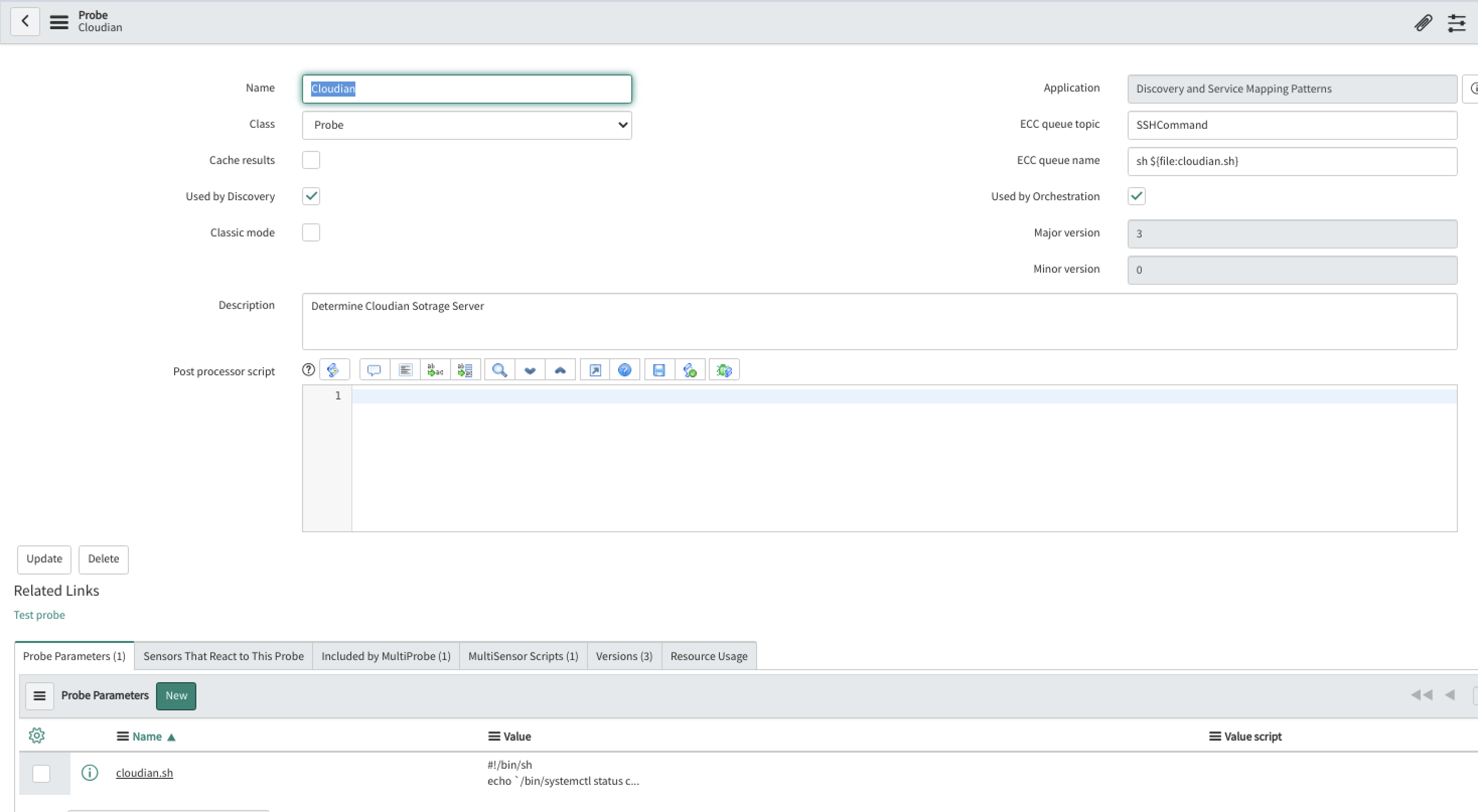

    The Cloudianprobe is created in the Unix-Classify Multiprobe. The Cloudian probe runs the /bin/systemctl status cloudian-s3 command and checks that the output contains Cloudian HyperStore Storage System.

    Figure 1. Cloudian Probe
    Cloudian Probe.

    In Unix classification, the Cloudian Server classifier runs before the Linux Classifier. The Cloudian classifier creates records in the [cmdb_ci_storage_server] table. This classifier invokes the Cloudian Storage System Pattern.

    Classification Criteria

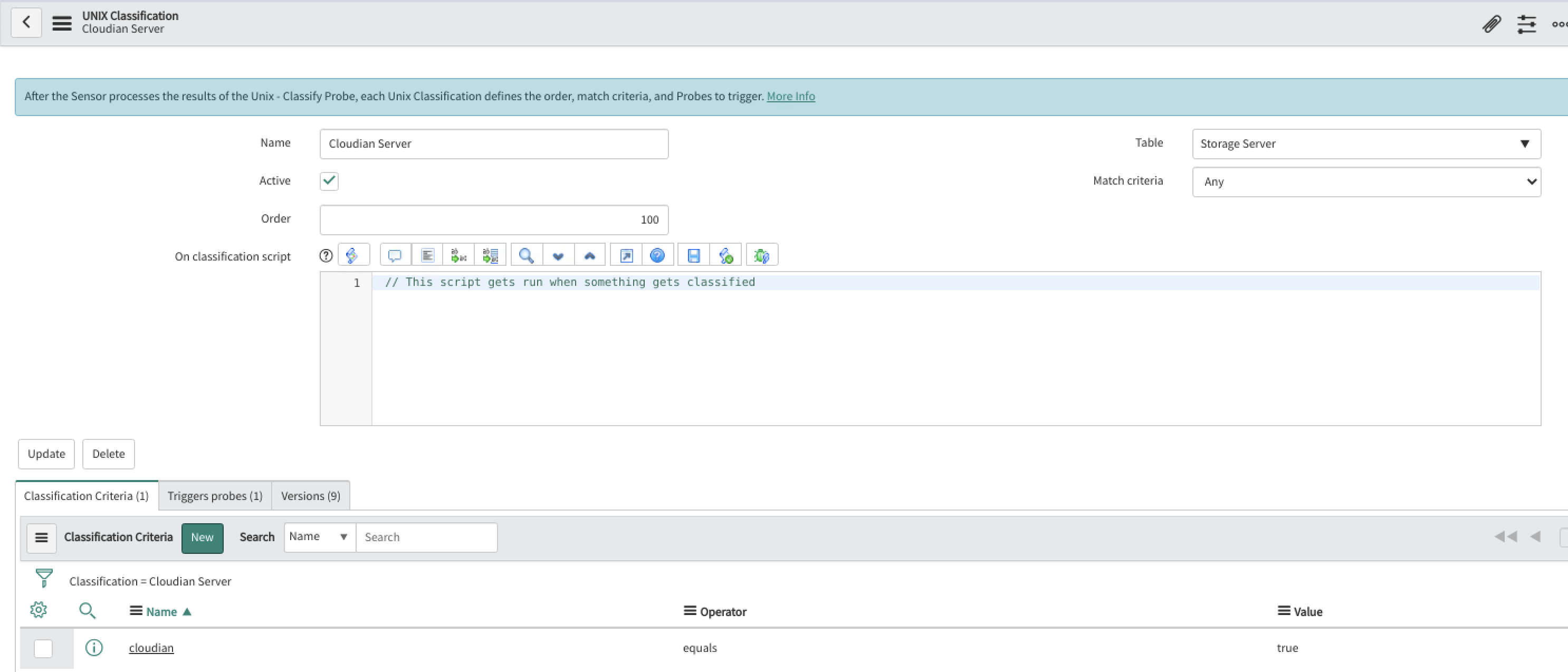

    Figure 2. Classification Criteria
    Classification Criteria.

    CMDB Data Model

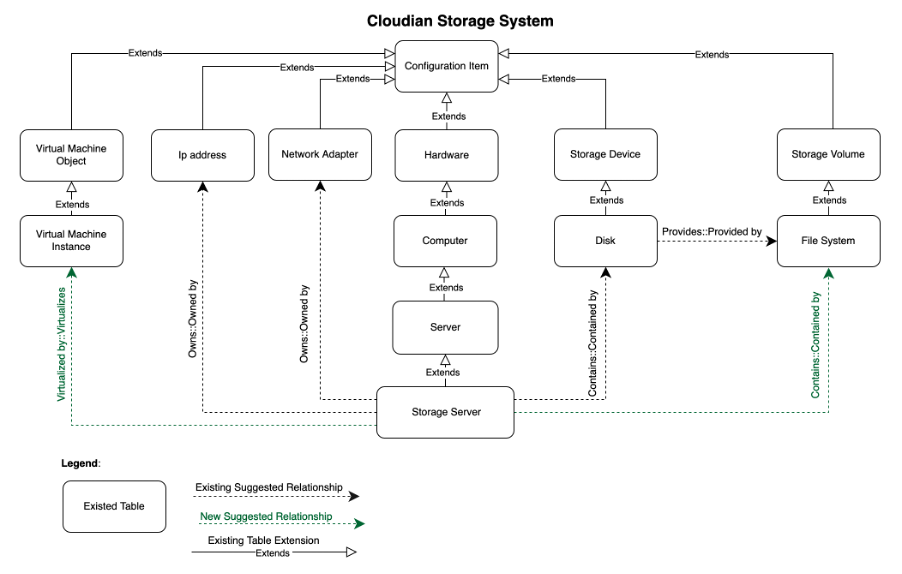

    Figure 3. CMDB Data Model
    CMDB Data Model.
    Storage Server to Network Adapter

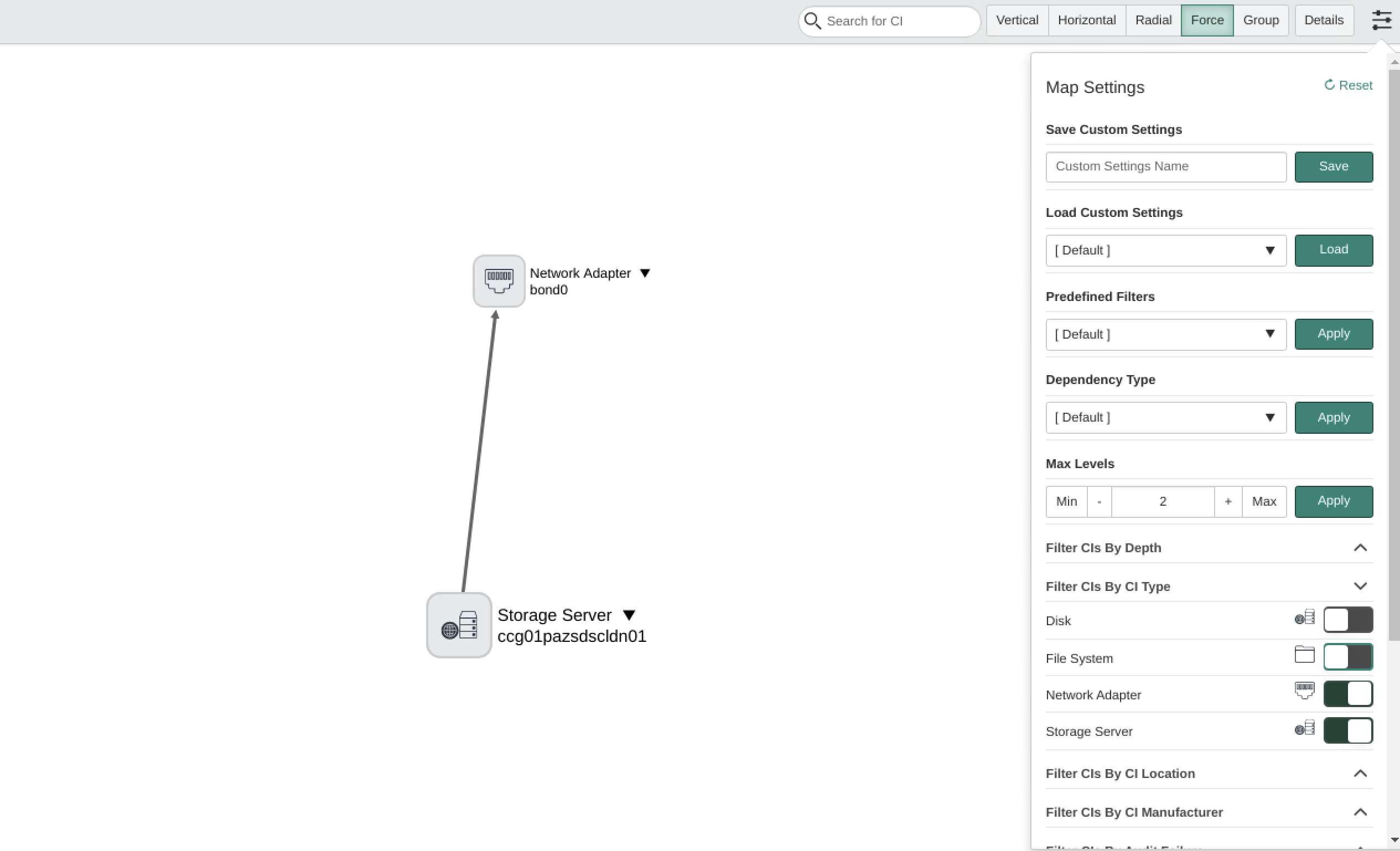

    Figure 4. Storage Server to Network Adapter
    Storage Server to Network Adapter.
    Storage Server to Disks

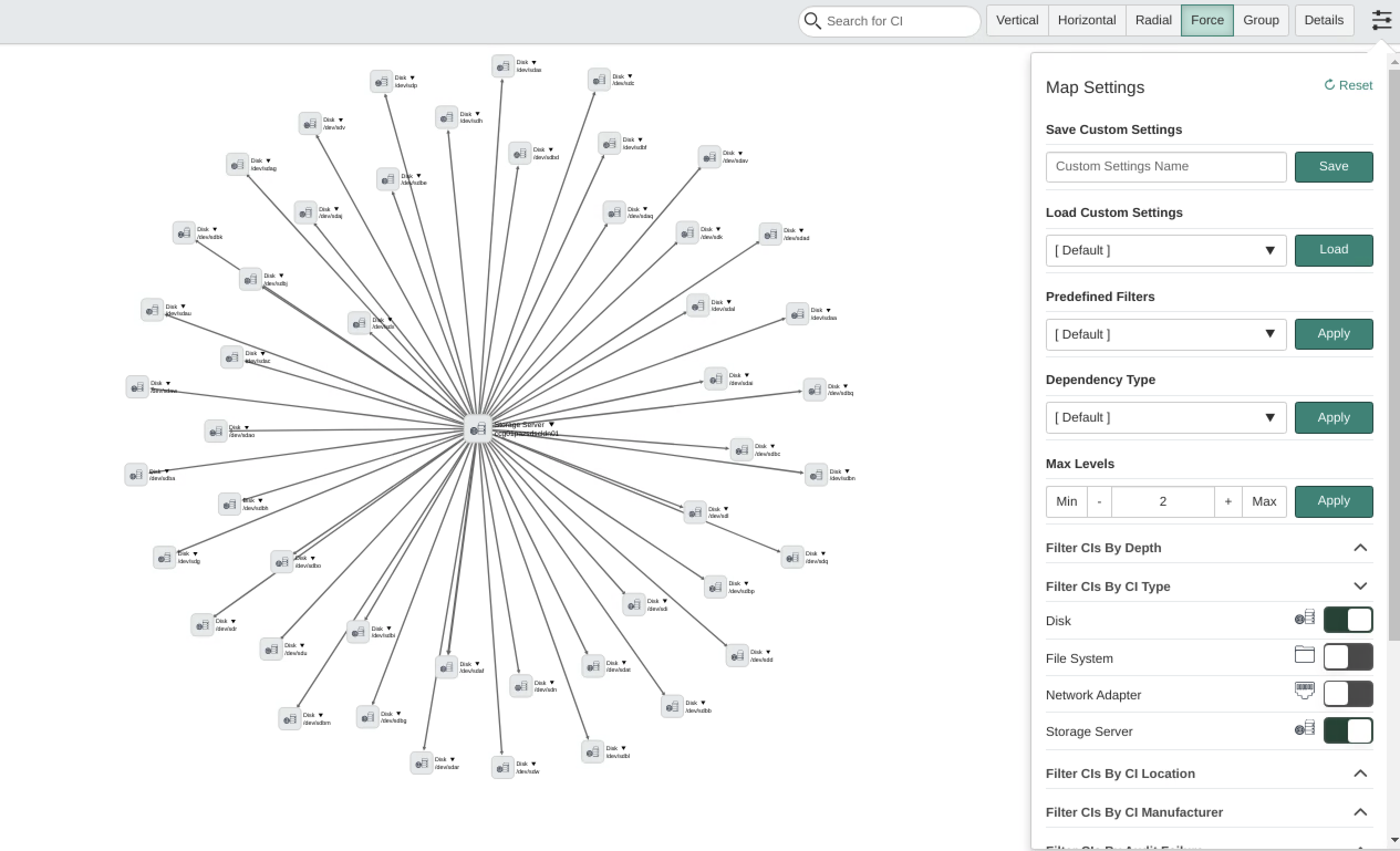

    Figure 5. Storage Server to Disks
    Storage Server to Disks.
    Storage Server to Disks and File Systems

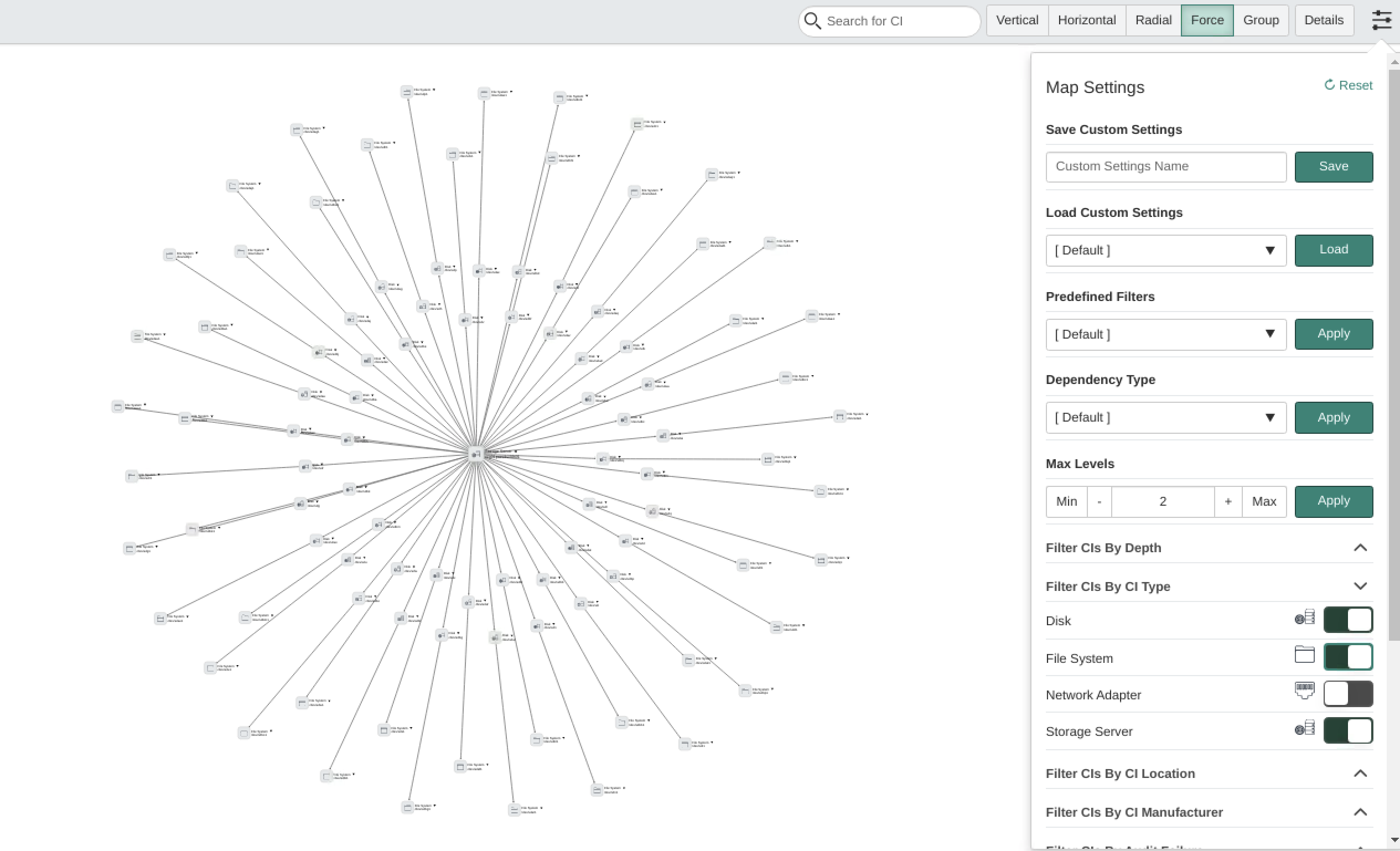

    Figure 6. Storage Server to Disks and File Systems
    Storage Server to Disks and File Systems.

    CI Relationships

    Relationships created by the Cloudian Storage pattern

    Parent Relationship Child
    cmdb_ci_storage_server Owns::Owned by cmdb_ci_network_adapter
    cmdb_ci_storage_server Owns::Owned by cmdb_ci_ip_address
    cmdb_ci_storage_server Contains::Contained by cmdb_ci_disk
    cmdb_ci_storage_server Contains::Contained by cmdb_ci_file_system
    cmdb_ci_storage_server Virtualized by::Virtualizes cmdb_ci_vm_instance
    cmdb_ci_disk Provides::Provided by cmdb_ci_file_system
