Google Cloud Platform (GCP) AlloyDB for PostgreSQL discovery using patterns

  • Release version: Australia
  • Updated March 12, 2026
  • 3 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Google Cloud Platform (GCP) AlloyDB for PostgreSQL Discovery Using Patterns

    This document outlines the discovery process for Google Cloud Platform (GCP) AlloyDB for PostgreSQL using ServiceNow's Discovery and Service Mapping Patterns. It highlights the prerequisites, data collected, and the relationships established during the discovery process.

    Show full answer Show less

    Key Features

    • Discovery Prerequisites: Ensure the latest version of the Discovery and Service Mapping Patterns application is installed from the ServiceNow Store.
    • Data Collection: The discovery process populates the Configuration Management Database (CMDB) with various entities including Cloud Service Accounts, Availability Zones, Google Datacenters, Cloud Database Clusters, and Cloud Databases.
    • Dependency Views: Visualize discovered resources and their relationships through Dependency Views maps for AlloyDB for PostgreSQL instances and clusters.
    • CI Relationships: Relationships between Configuration Items (CIs) are created to illustrate how resources are interconnected, such as databases hosted on clusters and their corresponding availability zones.
    • Tag Discovery: Tags are collected and associated with both Cloud Database and Cloud Database Cluster entries for better resource management.

    Key Outcomes

    By utilizing the GCP AlloyDB for PostgreSQL discovery pattern, ServiceNow customers can efficiently map and manage their cloud resources, ensuring that all relevant data is accessible in the CMDB. This enhances visibility and operational efficiency within enterprise environments, supporting better decision-making and resource optimization.

    Discovery and Service Mapping Patterns uses the Google Cloud Platform (GCP) - AlloyDB for PostgreSQL pattern to discover AlloyDB for PostgreSQL during horizontal discovery. Discovering some of these resources may require updating to the latest version of the Discovery and Service Mapping Patterns application from the ServiceNow Store.

    Pattern-based discovery and mapping requirements

    Verify the GCP discovery prerequisites section in Google Cloud Platform (GCP) Cloud discovery using Patterns.

    Data collected by Discovery during horizontal discovery

    Discovery populates the data in the CMDB when running the Google Cloud Platform (GCP) - AlloyDB for PostgreSQL pattern.

    Table 1. Cloud Service Account [cmdb_ci_cloud_service_account]
    Field Description
    Account Id [account_id] Name of the project used for the discovery.
    Object ID [object_id] Name of the project used for the discovery.
    Datacenter Type [datacenter_type] Datacenter type: Google Datacenter [cmdb_ci_google_datacenter].
    Table 2. Availability Zone [cmdb_ci_availability_zone]
    Field Description
    Name [name] Name of the availability zone.
    Description [short_description] Description of the availability zone.
    State [state] State of the Availability Zone. Possible values are Available or Terminated.
    Table 3. Google Datacenter [cmdb_ci_google_datacenter]
    Field Description
    Name [name] Datacenter or region name.
    Region [region] Datacenter or region name.
    Object ID [object_id] Unique identifier allocated by GCP for this resource.
    Description [short_description] Datacenter or region description.
    Table 4. Cloud DataBase Cluster [cmdb_ci_cloud_db_cluster]
    Field Description
    Cluster ID [cluster_id] The GCP system-generated unique identifier (UID) of the resource.
    Name [name] Name of the cluster resource.
    Automated Backups [automated_backup] Determines whether automated backups are enabled.

    Possible values are Enabled or Disabled.
    Install Status [install_status] Install status of the cluster. Default value is Installed.
    Operational status [operational_status] Operational status of the cluster. Default value is Operational.
    Cluster Status [cluster_status] Current state of this cluster.​

    For example: READY or STOPPED.
    Cluster Version [cluster_version] Optional field that displays the database engine's major version.
    Cluster Type [cluster_type] Type of cluster.

    Possible values are AlloyDB – Primary cluster or AlloyDB – Secondary cluster.
    Table 5. Cloud DataBase [cmdb_ci_cloud_database]
    Field Description
    Object ID [object_id] The GCP system-generated UID of the resource.
    Name [name] Name of the instance resource.
    Install Status [install_status] Install status of the database. Default value is Installed.
    Operational status [operational_status] Operational status of the database. Default value is Operational.
    State [state] State of the database.

    Possible values are Available or Terminated.
    CPU Count [cpu_count] Number of central processing units (CPUs) in the virtual machine (VM) instance.
    Type [type] Type of database: AlloyDB – PostgreSQL.
    Replication Type [replication_type] Type of the instance specified at creation time.

    For example: Primary instance, Read pool instance, or Secondary instance.
    IP Address [ip_address] IP address for the Instance, which is the endpoint for an end-user application.

    On the Dependency Views map, you can view all discovered AlloyDB for PostgreSQL resources in your organization and the relationships between them.

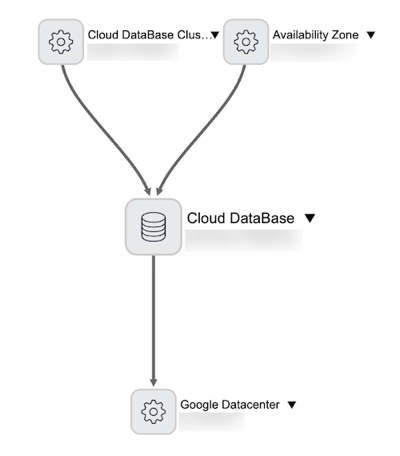

    Figure 1. AlloyDB for PostgreSQL instance dependency view
    AlloyDB for PostgreSQL instance CIs and connections on a Dependency View map

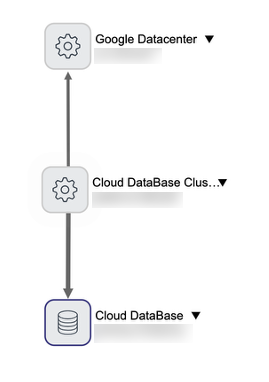

    Figure 2. AlloyDB for PostgreSQL Cluster dependency view
    AlloyDB for PostgreSQL Cluster CIs and connections on a Dependency View map

    CI relationships

    Discovery creates these relationships to support the AlloyDB for PostgreSQL discovery.

    CI Relationship CI
    Availability Zone [cmdb_ci_availability_zone] Contains::Contained by Cloud DataBase [cmdb_ci_cloud_database]
    Cloud DataBase [cmdb_ci_cloud_database] Hosted on::Hosts Google Datacenter [cmdb_ci_google_datacenter]
    Cloud DataBase Cluster [cmdb_ci_cloud_db_cluster] Cluster of::Cluster Cloud DataBase [cmdb_ci_cloud_database]
    Cloud DataBase Cluster [cmdb_ci_cloud_db_cluster] Hosted on::Hosts Google Datacenter [cmdb_ci_google_datacenter]
    Cloud DataBase Cluster [cmdb_ci_cloud_db_cluster] Replicates::Replicated by Cloud DataBase Cluster [cmdb_ci_cloud_db_cluster]
    Key Value [cmdb_key_value] References Cloud DataBase [cmdb_ci_cloud_database]
    Key Value [cmdb_key_value] References Cloud DataBase Cluster [cmdb_ci_cloud_db_cluster]

    Tag discovery

    The Google Cloud Platform (GCP) - AlloyDB for PostgreSQL pattern collects tags and populates them in two entries in the Key Value [cmdb_key_value] table. One entry references the Cloud DataBase table, the other entry references the Cloud DataBase Cluster table.

    Table 6. Key Value [cmdb_key_value]
    Field Description
    Key [key] Tag key.
    Value [value] Tag value.
    Configuration item [configuration_item] References the Cloud DataBase [cmdb_ci_cloud_database] table
    Configuration item [configuration_item] References the Cloud DataBase Cluster [cmdb_ci_cloud_db_cluster] table
