IBM Cloud Platform discovery

The ServiceNow Discovery application finds IBM Cloud Platform components (Softlayer API v3 and v3.1 and Bluemix API v2) using the IBM Cloud Platform patterns. Discovering some of these resources may require updating to the latest version of the Discovery and Service Mapping Patterns application from the ServiceNow Store.

You can use the patterns on the ServiceNow AI Platform using London Patch 7, Madrid Patch 2, or later releases.

Request apps on the Store

Visit the ServiceNow Store to view all the available apps, and for information about submitting requests to the store. For cumulative release notes information for all released apps, see the ServiceNow Store version history release notes.

Prerequisites

MID Server

Use a dedicated MID Server for cloud discovery. The MID Server must have 16 Cores, 8 GB with 4 GB Java Memory Model (JVM) memory allocation.

Deploy and connect the dedicated MID Server with internet access.

Credentials

The cloud resources are in an IBM cloud. Create the IBM Credentials for accessing your IBM account.

1. Navigate to Discovery > Credentials.
2. Click New.
3. Click IBM Credentials and then fill in the form:

   Table 1. Credentials form

   Field	Description
   Name	Credential name. An example is ibm-cred.
   Order	Order in which the platform tries this credential as it attempts to log on to devices. A smaller number indicates that the credential appears higher in the list. Establish the credential order when using large numbers of credentials or when security locks out users after three failed login attempts. If all the credentials have the same order number, or none, the instance tries the credentials in a random order. The default value is 100.
   Softlayer API User	Username for the Softlayer API. Use the Softlayer API Username defined in the Softlayer console.
   Softlayer API Key	Key for the Softlayer API. Use the Softlayer API Key that is defined in the Softlayer console.
   Bluemix API Key	Key for the Bluemix API. Use the Bluemix API Key defined in the IBM Cloud console.

4. Click Submit.

Create an IBM cloud service account

Use the credentials defined in the preceding procedure to create the IBM cloud service account.

1. Navigate to Cloud Provisioning and Governance > Service Accounts.
2. Click New.
3. On the form, fill in the fields:

   Table 2. Cloud Service Account form

   Field	Description
   Name	Credential name. An example is ibm-snow
   Account Id	IBM account ID name. Enter the IBM Account ID.
   Discovery credentials	Discovery credentials that you defined earlier.
   Datacenter Type	Datacenter type. As an example, IBM Datacenter [cmdb_ci_ibm_datacenter]

4. Click Submit.

Create a Discovery schedule

To configure a Discovery schedule through Discovery Admin Workspace, see Create an IBM Discovery schedule in Discovery Admin Workspace.

To configure a serverless Discovery schedule:

1. On the ServiceNow AI Platform, navigate to Discovery > Discovery Schedules.
2. Click New.
3. On the form, fill in the fields:

   Table 3. Discovery Schedule form

   Field	Description
   Name	Name for this Discovery schedule. As an example, Serverless Pattern
   Discover	Discover type. Select Serverless
   MID Server	Name of the MID Server. As an example, Discovery_Server
   Active	Option for enabling this schedule for Discovery. Select this check box to enable Discovery.
   Run	Specifies how frequently to run the Discovery schedule.

4. Right-click the header of the Discovery Schedule form and select Save.

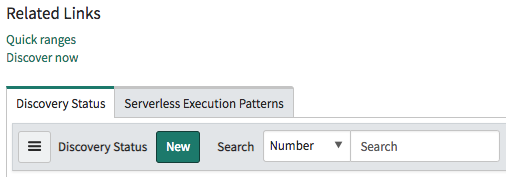

5. Click the Serverless Execution Patterns tab.
6. Click New.
7. On the form, fill in the fields:

   Table 4. Serverless Execution Pattern form

   Field	Description
   Name	Name for this Serverless Execution Pattern. As an example, IBM1
   Pattern	Name of the pattern that you want to run. If you want to run multiple patterns, create multiple records.
   Proxy Host	Fully qualified domain name of the machine on which you are installing the proxy server. Specify Global.
   Active	Option for enabling this schedule for Discovery. Select this check box to enable Discovery.

8. Configure the parameters required by the IBM Cloud Platform pattern as follows:

   Table 5. Discovery Pattern Launcher parameters

   Parameter	Description
   cloud_cred_id	The sys_id of the IBM credentials specified into the configuration.
   cloud_account_id	The IBM account ID.
   cloud_datacenter_type	cmdb_ci_ibm_datacenter

9. Update.
10. To start Discovery, navigate to the Serverless Discovery definition and click Discover Now.

IBM flow - horizontal discovery

• To perform a discovery using a serverless schedule, the IBM Cloud Platform patterns that were selected run and discover IBM Cloud Platform resources.
• To perform a discovery using a service account, a full IBM Cloud Platform discovery schedule runs, discovering all supported IBM Cloud Platform resources.

Cloud custom operation

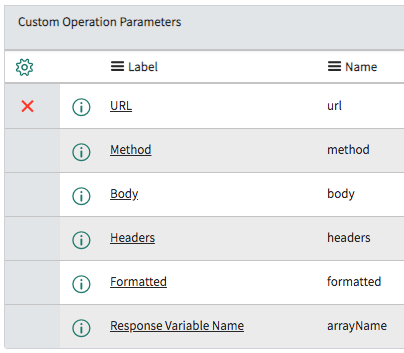

Cloud REST – Add Response to Context

Operation for Cloud REST queries that supports large-scale responses and better memory usage.

• Specify all the fields with the same values as in the Cloud REST Query custom operation, except to specify the table for the response, which is set in the Response Variable Name field.



• Set Define parsing to None.

Methods to retrieve data for the IBM account

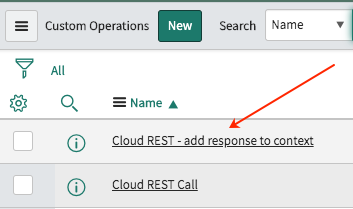

1. Navigate to Pattern Designer > Custom Operations.



2. Click Cloud REST – add response to context.

Method: Get Call

API URLs used to retrieve the data:

• Load Balancer https://api.softlayer.com/rest<api_version>/SoftLayer_Network_LBaaS_LoadBalancer/getAllObjects?objectMask=mask[listeners[defaultPool],members,healthMonitors]
• Network https://api.softlayer.com/rest/<API_VERSION>/SoftLayer_Account/getNetworkVlans?objectMask=mask[primaryRouter.datacenter,name,id,vlanNumber,networkSpace]
• Network https://api.softlayer.com/rest/<API_VERSION>/SoftLayer_Account/getSubnets?objectMask=mask[datacenter]
• Network https://api.softlayer.com/rest/<API_VERSION>/SoftLayer_Account/getSecurityGroups?objectMask=mask[rules]
• Organizations and Spaces https://api.<region>.bluemix.net/v2/organizations
• https://api.<region>.bluemix.net/v2/spaces
• SSH Key https://api.softlayer.com/rest/v3/SoftLayer_Account/SoftLayer_Account/getSshKeys
• Storage https://api.softlayer.com/rest/<api_version>/SoftLayer_Account/getNetworkStorage
• Virtual Server https://api.softlayer.com/rest/v3.1/SoftLayer_Account/getSecurityGroups
• http://api.softlayer.com/rest/v3.1/SoftLayer_Account/getSecurityGroups?objectMask=mask[id,name,networkComponentBindings[networkComponentId,networkComponent[networkId,guest[fullyQualifiedDomainName,hostname,id,datacenter[name]]]]]
• https://api.softlayer.com/rest/v3.1/SoftLayer_Account/getVirtualGuests?objectMask=mask[hostname,domain,powerState,fullyQualifiedDomainName,notes,id,statusId,placementGroupId,sshKeys[label,key,id,fingerprint,createDate,modifyDate,notes],primaryBackendIpAddress,primaryIpAddress,networkVlans[id,name,note,vlanNumber],blockDeviceCount,blockDevices[device,diskImageId,mountType,guestId,id,mountMode],allowedNetworkStorage[id,fileNetworkMountAddress,iscsiTargetIpAddresses,nasType,username,serviceResourceBackendIpAddress],maxCpu,maxMemory,datacenter,networkComponentCount,regionalGroup,datacenter,location,operatingSystem[id,softwareDescription[id,name,longDescription,manufacturer,referenceCode,version]],networkComponents[guestId,id,port,name,primarySubnet[networkIdentifier,id,networkVlan[id]],status,macAddress,primaryIpAddress]]

EVAL functions

Use the following EVAL function to transform the Load Balancer API response into a full JSON format. The default response is formatted as “[<resource objects>]”.

var cloud_lb_response = ${cloud_lb_response};
for (var i = 0; i < cloud_lb_response.size(); i++){
      cloud_lb_response.set(i, '{"result":[' + cloud_lb_response.get(i) + ']}');
}
CTX.setAttribute("cloud_lb_response", cloud_lb_response;

Use the following EVAL function to transform the Network API response into a full JSON format. The default response is formatted as “[<resource objects>]”.

var network_response = ${network_response};
for (var i = 0; i < network_response.size(); i++){
      network_response.set(i, '{"result":[' + network_response.get(i) + ']}');
}
CTX.setAttribute("network_response", network_response);

Use the following EVAL function to get the IBM region from the LB availability zone (datacenter). The same function is used for other resources inside the pattern.

var res = "";
res = IbmCloudDcToRegion.convertDctoRegion(${cloud_lb[].cloud_lb_az_short_name});

Use the following EVAL function to select the required algorithm in the pattern.

var rtrn
var lb_algorithm = ${cloud_lb_pools[].lb_algorithm}.toString();
switch (lb_algorithm){
   case "ROUNDROBIN":
      lb_algorithm = "round-robin";
      break;
   case "WEIGHTED_RR":
      lb_algorithm = "round-robin";
      break;
   case "LEASTCONNECTION":
      lb_algorithm = "least-connections";
      break;
   default: break;

Use the following EVAL function to parse the unique region to the account that hosts the Organizations and the corresponding spaces.

var tableWithoutDuplicates = '';
tableWithoutDuplicates =  DuplicateRemover.removeDuplicates(${account_region},["region_name"]);
CTX.setAttribute("account_region_unique",  tableWithoutDuplicates);

Use the following EVAL function to get information for all the organizations that are assigned to the IBM cloud account, where iteration for getting the unique region is performed.

var cloudcall = new CloudRestAPIClient();
var resourceTable = ${account_region_unique[*].region_name};
var tableSize = resourceTable.size();
var tmp_response = new Packages.java.util.ArrayList();
var all_organizations_response = new Packages.java.util.ArrayList();
for (var i = 0; i < tableSize ; i++){
   if  (!resourceTable.get(i)) continue;
   var url = "https://api."+resourceTable.get(i)+".bluemix.net/v2/organizations";
   tmp_response = cloudcall.arrayListExecute(${service_account}, null, url, null, 'GET', null, 'true', CTX);

   for (var j = 0; j < tmp_response.size(); j++){
      all_organizations_response.add('{"result":[' + tmp_response.get(j) + ']}');
   }
}
CTX.setAttribute("all_organizations_response", all_organizations_response);

Use the following EVAL function to get information for all the IBM cloud account assigned spaces, where the iteration for getting the unique region is performed.

var rtrn = '';
var cloudcall = new CloudRestAPIClient();
var resultList = new Packages.java.util.ArrayList();
var rest = '';
var resourceTable = ${account_region_unique[*].region_name};
var result = new Packages.java.util.ArrayList();
var all_organizations_response = ${all_organizations_response}
for (var i = 0; i < resourceTable.size() ; i++){
   var url = "https://api."+resourceTable.get(i)+".bluemix.net/v2/spaces";
   result = cloudcall.arrayListExecute(${service_account}, null, url, null, 'GET', null, 'true', CTX);
   for (var z = 0; z < all_organizations_response.size(); z++){
      var jsonObj = JSON.parse(result.get(z));
      ms.log("length "+jsonObj.resources.length);
for(var j=0;j<jsonObj.resources.length;j++){
         var guid = jsonObj.resources[j].metadata.guid;
         var url = jsonObj.resources[j].metadata.url;
         var name = jsonObj.resources[j].entity.name;
         var organization_guid = jsonObj.resources[j].entity.organization_guid;
         var allow_ssh = jsonObj.resources[j].entity.allow_ssh ? "true" : "false";
         var row = new Packages.java.util.HashMap();
 Packages.com.snc.sw.log.DiscoLog.getLogger("IBM Cloud Space and Org").debug(">>>>>>>>>>>>>||||||||||||>>>>>> region alias=" + resourceTable.get(i));
         Packages.com.snc.sw.log.DiscoLog.getLogger("IBM Cloud Space and Org").debug(">>>>>>>>>>>>>||||||||||||>>>>>> region full name=" + IbmCloudDcToRegion.regionNamebyAlias(resourceTable.get(i)));
         row.put("region", IbmCloudDcToRegion.regionNamebyAlias(resourceTable.get(i)));
         row.put("space_guid",guid);
         row.put("space_url",url);
         row.put("space_name",name);
         row.put("space_organization_guid",organization_guid);
         row.put("space_allow_ssh",allow_ssh);
         row.put("rest", rest);
         resultList.add(row);
      }
   }
   CTX.setAttribute('spaces_table', resultList);
}


Use the following EVAL function to filter all the spaces by unique region.

var space_region = ${spaces_table[].region};

Packages.com.snc.sw.log.DiscoLog.getLogger("IBM Cloud Space and Org").debug("filtering space according to LDC. space_region=" + space_region);
var regions = ${cmdb_ci_ibm_datacenter[*].region};
Packages.com.snc.sw.log.DiscoLog.getLogger("IBM Cloud Space and Org").debug("input regions list=" + regions.toString());

var rtrn = "false";
if(regions.contains(space_region)) {
    rtrn = "true";
}
rtrn;

Use the following EVAL function to filter all the spaces by storage discovery.

var storage_response = ${storage_response};
for (var i = 0; i < storage_response.size(); i++){
      storage_response.set(i, '{"result":[' + storage_response.get(i) + ']}');
}
CTX.setAttribute("storage_response", storage_response);

Use the following EVAL function to transform the API response into full JSON format, as the untouched response is formatted as “[<resource objects>]”.

var ssh_key = ${ssh_key_json};
for(var i = 0; i < ssh_key.size(); i++){
   ssh_key.set(i,'{"result\" : ' + ssh_key.get(i) + "}");
}
CTX.setAttribute("ssh_key_json", ssh_key);

Use the following EVAL function to populate the availability zone into the storage volume table.

var rtrn;
var resource_group = ${network_storage[].resource_name};
var regex = /.*-(\w{3}\d{2}).*/;
var az_name = regex.exec(resource_group);
if (az_name) {
   rtrn = az_name[1];
} else {
   rtrn;
}

Use the following EVAL function to populate the region into the storage volume table.

var res = "";
res = IbmCloudDcToRegion.convertDctoRegion(${network_storage[].availability_zone});

Use the following EVAL function to transform the size of the storages to bytes from gigabytes.

var rtrn = '';

var size = ${network_storage[].size};

rtrn = (parseInt(size) * 1073741824) + ‘’;

Use the following EVAL function to transform the size of the storages to bytes from gigabytes.

var cloudcall = new CloudRestAPIClient();
var resourceTable = ${network_storage[*].storage_object_id};
var tableSize = resourceTable.size();
var allResources = new Packages.java.util.ArrayList();
var response = new Packages.java.util.ArrayList();
for (var i = 0; i < tableSize ; i++){
   if  (!resourceTable.get(i)) continue;
   var url = "https://api.softlayer.com/rest/"+${api_version}+"/SoftLayer_Network_Storage/"+resourceTable.get(i)+"/getObject?objectMask=mask[snapshots]";
   // the commented out code is to call the "Cloud Rest Call" API

   allResources = cloudcall.arrayListExecute(${service_account}, null, url, null, 'GET', null, 'true', CTX);
   for (var j = 0; j < allResources.size(); j++){
      response.add('{"result":[' + allResources.get(j) + ']}');
   }
}
CTX.setAttribute("all_snapshots_response", response);

Use the following EVAL closure that transforms the JSON that is received from the API to a format that the JSON parser can work with. The default JSON is saved in $vm_json_array, the new JSON is in $vm_json.

var vm_json = new Packages.java.util.ArrayList();
vm_json.addAll(${vm_json_array});

for (var i = 0 ; i < vm_json.size(); i++){
      vm_json.set(i, '{\"result\":[' + vm_json.get(i) + ']}');
}

CTX.setAttribute("vm_json", vm_json);

Use the following EVAL closure that returns ‘on’ if the power status is running. The value ‘off’ is returned if the power status is off.

var power = ${cmdb_ci_vm_instance[].state};
var rtrn = '';

if (power == 'Running'){
   rtrn = "on";
}
else {
   rtrn = "off"
}

Use the following EVAL closure that returns the region of the CI, based on provided availability zone name.

var az = ${cmdb_ci_vm_instance[].avail_zone};
var rtrn = '';
rtrn = IbmCloudDcToRegion.convertDctoRegion(az);

Use the following EVAL closure that builds a HashMap of HashSets, Connecting VMs with their network storages. The following key is used:

• P = page
• V = VM
• N = network storage

var rtrn = '';
var vmJson = ${vm_json_array};
var VMtoStorageHashMap = new Packages.java.util.HashMap();

for (var p = 0 ; p < vmJson.size(); p++){
   var page = JSON.parse(vmJson.get(p));
   for (var now_V in page){
      if (page[v].allowedNetworkStorage.length > 0){
         var vm_id = page[v].id + '';
         var storageSet = new Packages.java.util.HashSet();
         for (var n in page[v].allowedNetworkStorage){
            storageSet.add(page[v].allowedNetworkStorage[n].id + '');
         }
         VMtoStorageHashMap.put(vm_id,storageSet);
      }
   }
}
CTX.setAttribute("VMStorageCache", VMtoStorageHashMap);

Use the following EVAL closure to remove duplicate entries from tables.

var tableWithoutDuplicates = '';
tableWithoutDuplicates = DuplicateRemover.removeDuplicates(${cmdb_ci_os_template},["object_id"]);
CTX.setAttribute("cmdb_ci_os_template", tableWithoutDuplicates);

Use the following EVAL closure that builds a list of VM IDs that are related to the current security group ID.

var rtrn = '';
//get the Security Group ID of the current record in the table for comparison
var current_table_id = ${security_groups[].sec_group_id};
var current_table_id_string = current_table_id + '';

// get the list of instance's ID that will be then added to Security Group table
var needed_value_id_list = ${sec_group_network_components[*].vm_instance_id};
//get the list of Security Group IDs in the Network Component table, which will then be compared one by one to the current record of the security_groups table
var compare_id_list = ${sec_group_network_components[*].sec_group_id};

var beforeReturn = '';
var separator = '';
for (var i = 0; i <  compare_id_list.size(); i++)   {

   if   (current_table_id_string == compare_id_list.get(i)){

      beforeReturn += separator + needed_value_id_list.get(i);
      separator = ',';
   }
}
rtrn = beforeReturn;

Use the following EVAL closure that builds a HashMap of HashSet between security groups and the VMs that are configured to use them.

rtrn = '';
var secGroupTable = ${cmdb_ci_endpoint_comp_security};
var secToVMHashSet = new Packages.java.util.HashMap();

// this loop worst case O(N*M) M = security groups, N = VMs
for(var i=0; i<secGroupTable.size(); i++){
   var securityTableId = secGroupTable.get(i).get('object_id');
   var vmListStr = secGroupTable.get(i).get('instance_list');
   var vmList = vmListStr.split(",");

   var vmSet = new Packages.java.util.HashSet();
   for (var j in vmList){
      vmSet.add(vmList[j]);
   }

   secToVMHashSet.put(securityTableId,vmSet);
}
CTX.setAttribute("securityVMCache",  secToVMHashSet);

Use the following EVAL closure that returns ‘true’ if the current VM is using the current security group ID.

var rtrn = '';
var vm_id = ${cmdb_ci_vm_instance[].object_id};
var vmHashSet = ${securityVMCache}.get(${cmdb_ci_endpoint_comp_security[].object_id});
rtrn = vmHashSet.contains(vm_id);

Use the following EVAL closure that returns ‘true’ if the current VM is using the current storage volume.

var rtrn = '';
var vm_id = ${cmdb_ci_vm_instance[].object_id};
var vol_id = ${cmdb_ci_endpoint_iscsi[].object_id};
var vmHashSet = ${VMStorageCache}.get(vm_id);
if (vmHashSet){
   rtrn = vmHashSet.contains(vol_id);
}
else {
   rtrn = 'false'
}

Use the following EVAL function to transform the API response into full JSON format, as the untouched response is formatted as “[<resource objects>]”.

var cloud_response = ${location_groups_response}
for (var i = 0; i < cloud_response.size(); i++){
    cloud_response.set(I, '{"result":[' + cloud_response.get(i) + ']}');
}
CTX.setAttribute("location_groups_response", cloud_response);

Parses the unique Location Groups in the “location_groups_az” table basdon the column “lg_id” and creates a new table "location_groups_az_unique“ that contains the result.

var tableWithoutDuplicates= '';
tableWithoutDuplicates = DuplicateRemover.removeDuplicates(${location_groups_az},["lg_id"]);
CTX.setAttribute("location_groups_az_unique", tableWithoutDuplicates);

Creates a list of Availability Zones per Location Group, that is stored in a column new column in the location_groups_az_uniquetable. The list records are divided by commas purposely, so that unique relations could be made in consecutive step.

var current_table_id= ${location_groups_az_unique[].lg_id};
var current_table_id_string = current_table_id+ '';
var needed_v alue_id_list = ${location_groups_az[*].lg_az_id};
var compare_id_list= ${location_groups_az[*].lg_id};
var beforeReturn= '';
var separator = ',';
for (var i= 0; i< compare_id_list.size(); i++)  {
    if (current_table_id_string == compare_id_list.get(i)){
    beforeReturn += separator + needed_v alue_id_list.get(i) + separator;
  }
}
rtrn = beforeReturn;

Activate the cloud-related CI relationships

To include discovered components into service instances, enable CI relationships used in tag-based discovery by Service Mapping. These CI relationships are available from the 1.0.68 release on the ServiceNow Store. For operational steps, see Tag-based discovery configuration.

(Optional) Populate Service Account and Logical Datacenter fields in cloud CIs

Starting with Discovery and Service Mapping Patterns version 1.30.2, you can improve query performance by populating Service Account and Logical Datacenter fields directly in cloud CIs. For more information, see Improved query performance with direct field population in CI tables.

Data collected by Discovery during horizontal discovery

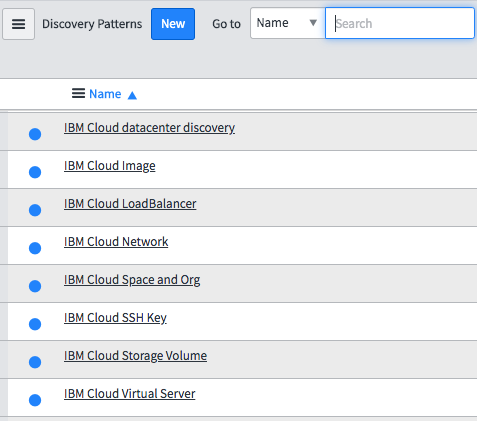

Data is collected using these patterns:

• IBM Cloud Load Balancer
• IBM Cloud Location Groups
• IBM Cloud Network
• IBM Cloud Organizations and Spaces
• IBM Cloud Resource Groups
• IBM Cloud SSH Key
• IBM Cloud Storage
• IBM Cloud Virtual Server

Data collected for IBM components:

IBM Cloud Load Balancer discovered resources

Field	Description
Main CI: cmdb_ci_cloud_load_balancer
name	Load balancer name.
object_id	Load balancer unique identifier.
fqdn	Load balancer address (host name).
dns_name	Load balancer domain server name.
short_description	Load balancer description that you provide for easy identification.
operational_status	Load balancer status, one of either: ONLINE OFFLINE
location	Datacenter location.
state	Load balancer provisioning status.
Related CI: cmdb_ci_lb_service
name	Pattern created name, composed of: load balancer name type of protocol resource type listener
object_id	Load balancer unique identifier.
port	Port number of the listener.
front_end_port	Protocol port number of the listener.
listener_protocol	Protocol of the listener. One of the following protocols: TCP HTTP HTTPS
operational_status	Provisioning status of the listener.
Related CI: cmdb_ci_lb_pool
name	Pattern created name, composed of: load balancer name type of protocol port resource type “pool”
object_id	Load balancer pool unique identifier.
port	Protocol port of the backend.
pool_status	Load balancer pool provisioning status.
load_balancing_method	Load balancing method. One of the following algorithms: "ROUNDROBIN" "WEIGHTED_RR" "LEASTCONNECTION"
Related CI: cmdb_ci_lb_pool_member
name	Pattern created name, composed of: load balancer name type of protocol IP address of the Pool Member
object_id	Load balancer pool member unique identifier, composed of: Member ID Listener ID
ip_address	IP address of a load balancer member.
server_id	ID of the member in IBM cloud.
load_balancer	Name of the related Load Balancer.
Related CI: cmdb_ci_lb_health_service
name	Pattern created name, composed of: load balancer name type of protocol resource type: Health Check resource ID
object_id	Unique identifier of the Health Service Check.
monitor_type	Health check type. One of the following: TCP HTTP HTTPS
timeout_sec	Timeout, in seconds, to wait for health check responses.
check_interval_sec	Interval, in seconds, to perform health check.

IBM Cloud Location Groups discovered resources

Field	Description
Main CI: cmdb_ci_cloud_location_group
name	A descriptive name used to identify a Location Group.
object_id	The ID of the Location Group record.
locationGroupType Name	The name of the Location Group Type.
short_description	A small note about a Location Group to use at your discretion.
locationGroup Type ID	The ID of the Location Group Type.

IBM Cloud Network discovered resources

Field	Description
Main CI: cmdb_ci_network
name	VLAN number.
object_id	Network unique identifier.
access_port_vlan	VLAN number.
is_external	Network space value. The value is either: true if the network_space is “PUBLIC” false if the network_space is “PRIVATE”.
state	State has the value "available".
Related CI: cmdb_ci_cloud_subnet
name	Name, composed of: “network_identifier/cidr”
object_id	Subnet unique identifier.
subnet_mask	Netmask of the subnet.
gateway	Gateway IP address.
cidr	Method for allocating IP addresses and IP routing: “network_identifier/cidr”.
category	Subnet type.
broadcast_address	Subnet broadcast address.
available_ip_count	Number of available IP addresses in the subnet.
Related CI: cmdb_ci_compute_security_group
name	Security Group name.
object_id	Security Group unique identifier.
short_description	Security Group description that you provide for easy identification.
Related CI: cmdb_ci_compute_security_group_rule
name	Field with the same value as the Security Group Rule object_id field.
object_id	Security Group Rule unique identifier.
created	Date the CI was created.
direction	Direction of the information. One of the following: inbound outbound
Ethertype	Ethertype. One of the following: IPv4 IPv6
port_range_min	The first port of the range that the rule applies to.
port_range_max	The last port of the range that the rule applies to.
protocol	Protocol that the rule is applied to.
remote_group_id	Security Group ID for the Source/Destination security group. It means that this rule applies on all IP addresses that were configured in this security group.

IBM Cloud Organizations and Space discovered resources

Field	Description
Main CI: cmdb_ci_cloud_org
name	Name of the cloud organization.
guid	Unique identifier of the organization.
url	Unique URL of the organization.
billing_enabled	Billing method in use by the organization. One of either: Enabled / (TRUE) Disabled / (FALSE)
quota_definition_url	Resources that are available to an organization.
spaces_url	Unique URL of the space assigned to the organization.
operational_status	Operational status of the organization.
Related CI: cmdb_ci_cloud_space
name	Unique name of the space.
object_id	Space unique identifier (guid).
alllow_ssh	Access to the application over SSH is either allowed or not allowed. Boolean, one of either: TRUE FALSE
URL	URL of the space from the metadata description.

IBM Cloud Resource Groups discovered resources

Field	Description
Main CI: cmdb_ci_resource_group
name	Name of the resource group.
object_id	Unique identifier of the resource group.
quota_id	Value identifying the quota ID associated with the resource group.

IBM Cloud SSH Key discovered resources

Field	Description
Main CI: cmdb_ci_cloud_key_pair
name	Name to identify an SSH key.
object_id	ID of the SSH key record.
key	SSH Key record.
finger_print	Short sequence of bytes used to authenticate or lookup a longer SSH Key. This value is automatically generated when adding or modifying the SSH Key. Read only. Changes made are ignored.
created _date	Date when the SSH Key was added. Read only. Changes made are ignored.
modify_date	Date when the SSH Key was modified. Read only. Changes made are ignored.
short_description	SSH description that you provide for easy identification.
Related CI: cmdb_ci_ibm_datacenter
name	Name of the datacenter.
region	Region that the datacenter is in.
discovery_status	Status information about the IBM datacenter.
sys_class_name	Class of the datacenter
Related CI: cmdb_ci_cloud_service_account
name	Name of the cloud service account.
account_id	Account ID for this cloud service account.
discovery_credentials	Credentials for this cloud service account.
datacenter_url	URL used to populate Logical Data Centers (LDCs).
datacenter_type	Type of datacenter. As an example, IBM Datacenter [cmdb_ci_ibm_datacenter]
datacenter_discovery_status	Status of last execution of Discover Datacenters.

IBM Cloud Storage discovered resources

Field	Description
Main CI: cmdb_ci_storage_volume
name	Username used to: access a non-EVault Storage volume register the EVault server agent with the vault backup system
object_id	Storage account unique identifier.
size	Capacity of the storage account, measured in gigabytes.
size_bytes	Capacity of the storage account, measured in bytes.
label	Name of the storage network resource.
storage_type	Description of the storage type. As an example, NAS.
fqdn	IP address of a storage resource or fully qualified domain name.
device	Unique identification number of the device associated with a Storage volume.
Related CI: cmdb_ci_storage_vol_snapshot
name	Name of a storage network resource.
object_id	Storage unique identifier.
capacity	Capacity of the snapshot volume in gigabytes.
fqdn	IP address of a storage resource or fully qualified domain name.
location	Unique availability zone where the storage volume is located.
Related CI: cmdb_ci_ibm_datacenter
name	Name of the datacenter.
region	Region that the datacenter is in.
discovery_status	Status information about the IBM datacenter.
sys_class_name	Class of the datacenter
Related CI: cmdb_ci_cloud_service_account
name	Name of the cloud service account.
account_id	Account ID for this cloud service account.
discovery_credentials	Credentials for this cloud service account.
datacenter_url	URL used to populate LDCs.
datacenter_type	Type of datacenter. As an example, IBM Datacenter [cmdb_ci_ibm_datacenter]
datacenter_discovery_status	Status of last execution of Discover Datacenters.
Related CI: cmdb_ci_availability_zone
name	Name of the availability zone (AZ).
object_id	Unique identifier for this resource.
short_description	Availability zone description that you provide.

IBM Cloud Virtual Server discovered resources

Field	Description
Main CI: cmdb_ci_vm_instance
name	Name of the VM.
object_id	Unique identifier of the VM.
dns_domain	VM domain server name.
fqdn	VM IP address.
short_description	Description in a note that is attached to the VM on the IBM console.
cpus	Number of CPU cores assigned to this VM.
memory	Memory size assigned to this VM.
disks	Number of disks assigned to this VM.
state	The running state of the VM. On – returned as ‘Running’ from the API. Off – returned as ‘Halted’ from the API.
placement_group_id	Placement group ID.
nics	Number of NICs.
Related CI: cmdb_ci_nic
name	Name, composed of: load balancer name Port
object_id	Unique identifier of the NIC.
ip_address	IP that is configured on the NIC.
mac_address	NIC MAC details.
netmask	Mask used to divide the IP address into subnets and to specify the available hosts in the network.
status	State of the NIC.
Related CI: cmdb_ci_endpoint_vnic
name	Name for the VNIC endpoint.
object_id	Unique identifier of the VNIC endpoint.
host	Host identifier.
Related CI: cmdb_ci_storage_volume
name	Username used to: access a non-EVault Storage volume register the EVault server agent with the vault backup system
object_id	Storage account unique identifier.
size	Capacity of the storage account, measured in gigabytes.
size_bytes	Capacity of the storage account, measured in bytes.
label	Name of the storage network resource.
storage_type	Description of the storage type. As an example, NAS.
fqdn	IP address of a storage resource or fully qualified domain name.
device	Unique identification number of the guest associated with a Storage volume.
Related CI: cmdb_ci_endpoint_nfs
name	Name for the NFS endpoint.
host	Host identifier.
protocol	Protocol that was applied.
type	NFS endpoint type.
created	Date that the NFS endpoint was created.
updated	Date that the NFS endpoint was updated.
discovery_source	Source of the discovery. As an example, ServiceWatch
host_name	Host name of the NFS endpoint
Related CI: cmdb_ci_endpoint_iscsi
host	Host identifier for the ISCSI endpoint.
port	Port to determine how GCP iscsi contact to the VMs.
protocol	Protocol that was applied.
type	ISCSI endpoint type
created	Date that the ISCSI endpoint was created.
updated	Date that the ISCSI endpoint was updated.
discovery_source	Source of the discovery. As an example, ImportSet
host_name	Host name of the ISCSI endpoint
Related CI: cmdb_ci_endpoint_block
name	Name for the block endpoint.
object_id	Unique identifier of the block endpoint.
host	Host identifier.
Related CI: cmdb_ci_os_template
name	Name of the image. For example, ‘CentOS 7.0-64 Minimal for VSI’.
object_id	Unique identifier of the image.
guest_os	OS used by the image. As an example, Linux.
root_device_type	Type of device used by root.
image_source	Source of the image.
image_type	Image type.
infuse_key	Key used to infuse the image.
update_host_name	Update host name for the image.
credentials	Credentials for the image.
version	OS version. For example, ‘7.0-64 Minimal for VSI’.
Related CI: cmdb_ci_cloud_key_pair
name	Name to identify a key (key label).
object_id	ID of the key record.
key	Key record.
finger_print	Short sequence of bytes used to authenticate or look up a Key. This value is automatically generated when adding or modifying the Key. Read only. Changes made are ignored.
created _date	Date when the Key was added. Read only. Changes made are ignored.
modify_date	Date when the Key was modified. Read only. Changes made are ignored.
short_description	Description that you provide for easy identification.
Related CI: cmdb_ci_compute_security_group
name	Security Group name.
object_id	Security Group unique identifier.
short_description	Security Group description that you provide for easy identification.
Related CI: cmdb_ci_endpoint_comp_security
host	Host identifier of the compute security endpoint.
port	Unique identifier of the compute security endpoint.
protocol	Protocol that was applied.
type	Type of compute security endpoint.
created	Date when the compute security endpoint was added. Read only. Changes made are ignored.
updated	Date when the compute security endpoint was modified. Read only. Changes made are ignored.
discovery_source	Source of the discovery. As an example, Manual Entry.
host_name	Host name of the compute security endpoint.
Related CI: cmdb_ci_ibm_datacenter
name	Name of the datacenter.
region	Region that the datacenter is in.
discovery_status	Status information about the IBM datacenter.
sys_class_name	Class of the datacenter
Related CI: cmdb_ci_availability_zone
name	Name of the availability zone (AZ).
object_id	Unique identifier for this resource.
short_description	Availability zone description that you provide.
Related CI: cmdb_ci_cloud_service_account
name	Name of the cloud service account.
account_id	Account ID for this cloud service account.
discovery_credentials	Credentials for this cloud service account.
datacenter_url	URL used to populate LDCs.
datacenter_type	Type of datacenter. As an example, IBM Datacenter [cmdb_ci_ibm_datacenter]
datacenter_discovery_status	Status of last execution of Discover Datacenters.

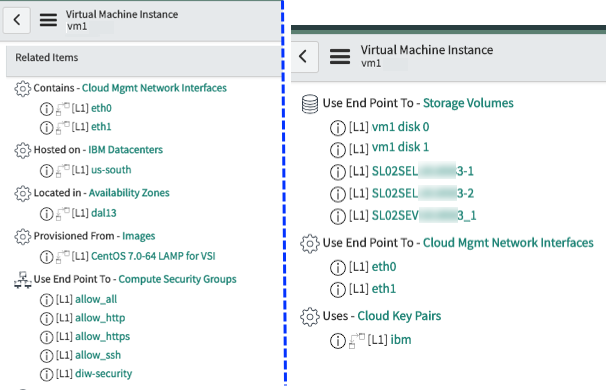

IBM Cloud Virtual Server – Related Items view

CI Relationships

These relationships are created to support IBM Cloud Platform discovery.

Relationships for IBM Cloud Load Balancer discovered resources

CI	Relationship	CI
Related CI: cmdb_ci_ibm_datacenter
cmdb_ci_ibm_datacenter	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_ibm_datacenter	Contains::Contained by	cmdb_ci_availability_zone
Related CI: cmdb_ci_cloud_load_balancer
cmdb_ci_cloud_load_balancer	Hosted on::Hosts	cmdb_ci_ibm_datacenter
cmdb_ci_cloud_load_balancer	Contains::Contained by	cmdb_ci_lb_health_service
Related CI: cmdb_ci_availability_zone
cmdb_ci_availability_zone	Hosted on::Hosts	cmdb_ci_cloud_load_balancer
cmdb_ci_availability_zone	Contains::Contained by	cmdb_ci_lb_service
Related CI: cmdb_ci_lb_service
cmdb_ci_lb_service	Hosted on::Hosts	cmdb_ci_cloud_load_balancer
cmdb_ci_lb_service	Contains::Contained by	cmdb_ci_lb_pool
Related CI: cmdb_ci_lb_pool
cmdb_ci_lb_pool	Hosted on::Hosts	cmdb_ci_cloud_load_balancer
cmdb_ci_lb_pool	Owns::Owned by	cmdb_ci_lb_pool_member
Related CI: cmdb_ci_lb_health_service
cmdb_ci_lb_health_service	Contains::Contained by	cmdb_ci_cloud_load_balancer

Relationships for IBM Cloud Location Groups discovered resources

CI	Relationship	CI
Related CI: cmdb_ci_ibm_datacenter
cmdb_ci_ibm_datacenter	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_ibm_datacenter	Contains::Contained by	cmdb_ci_availability_zone
Related CI: cmdb_ci_cloud_location_group
cmdb_ci_cloud_location_group	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_cloud_location_group	Contains::Contained by	cmdb_ci_availability_zone

Relationships for IBM Cloud Network discovered resources

CI	Relationship	CI
Related CI: cmdb_ci_ibm_datacenter
cmdb_ci_ibm_datacenter	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_ibm_datacenter	Contains::Contained by	cmdb_ci_availability_zone
Related CI: cmdb_ci_network
cmdb_ci_network	Hosted on::Hosts	cmdb_ci_ibm_datacenter
cmdb_ci_network	Contains::Contained by	cmdb_ci_cloud_subnet
Related CI: cmdb_ci_compute_security_group
cmdb_ci_compute_security_group	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_compute_security_group	Contains::Contained by	cmdb_ci_compute_security_group_rule

Relationships for IBM Cloud Resource Groups discovered resources

CI	Relationship	CI
Related CI: cmdb_ci_resource_group
cmdb_ci_resource_group	Hosted on::Hosts	cmdb_ci_cloud_service_account

Relationships for IBM Cloud SSH Key discovered resources

CI	Relationship	CI
Related CI: cmdb_ci_ibm_datacenter
cmdb_ci_ibm_datacenter	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_ibm_datacenter	Contains::Contained by	cmdb_ci_availability_zone
Related CI: cmdb_ci_cloud_key_pair
cmdb_ci_cloud_key_pair	Hosted on::Hosts	cmdb_ci_cloud_service_account

Relationships for IBM Cloud Storage discovered resources

CI	Relationship	CI
Related CI: cmdb_ci_ibm_datacenter
cmdb_ci_ibm_datacenter	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_ibm_datacenter	Contains::Contained by	cmdb_ci_availability_zone
Related CI: cmdb_ci_storage_volume
cmdb_ci_storage_volume	Hosted on::Hosts	cmdb_ci_ibm_datacenter
cmdb_ci_storage_volume	Provisioned::Provisioned From	cmdb_ci_storage_vol_snapshot
Related CI: cmdb_ci_storage_vol_snapshot
cmdb_ci_storage_vol_snapshot	Hosted on::Hosts	cmdb_ci_ibm_datacenter
cmdb_ci_storage_vol_snapshot	Located in Zone::Zone contains	cmdb_ci_availability_zone
Related CI: cmdb_ci_availability_zone
cmdb_ci_availability_zone	Contains::Contained by	cmdb_ci_storage_volume

Relationships for IBM Cloud Virtual Server discovered resources

CI	Relationship	CI
Related CI: cmdb_ci_ibm_datacenter
cmdb_ci_ibm_datacenter	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_ibm_datacenter	Contains::Contained by	cmdb_ci_availability_zone
cmdb_ci_ibm_datacenter	Hosted on::Hosts	cmdb_ci_vm_instance
Related CI: cmdb_ci_vm_instance
cmdb_ci_vm_instance	Hosted on::Hosts	cmdb_ci_ibm_datacenter
cmdb_ci_vm_instance	Located in:Houses	cmdb_ci_availability_zone
cmdb_ci_vm_instance	Uses:Used By	cmdb_ci_cloud_key_pair
cmdb_ci_vm_instance	Contains:Contained By	cmdb_ci_nic
cmdb_ci_vm_instance	endpoint	cmdb_ci_nic
Related CI: cmdb_ci_availability_zone
cmdb_ci_availability_zone	Hosted on::Hosts	cmdb_ci_vm_instance
Related CI: cmdb_ci_nic
cmdb_ci_nic	Hosted on::Hosts	cmdb_ci_vm_instance
Related CI: cmdb_ci_os_template
cmdb_ci_os_template	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_os_template	Provisioned::Provisioned by	cmdb_ci_vm_instance
Related CI: cmdb_ci_compute_security_group
cmdb_ci_compute_security_group	Hosted on::Hosts	cmdb_ci_cloud_service_account
cmdb_ci_compute_security_group	Implement::Implemented from	cmdb_ci_vm_instance
Related CI: cmdb_ci_storage_volume
cmdb_ci_storage_volume	Hosted on::Hosts	cmdb_ci_ibm_datacenter
cmdb_ci_storage_volume	Implement::Implemented from	cmdb_ci_vm_instance
Related CI: cmdb_ci_cloud_key_pair
cmdb_ci_cloud_key_pair	Hosted On:Hosts	cmdb_ci_cloud_service_account

Relationships discovered for the virtual machine (VM) instance

CI	Relationship	CI
Servers [cmdb_ci_server]	Virtualized by:: Virtualizes	Virtual Machine Instance [cmdb_ci_instance]

Data collected by Service Mapping during tag-based discovery

Service Mapping uses tag-based discovery to create service instance maps including the Cloud components. The Service Mapping application comes with the following preconfigured CI relationships used for tag-based discovery. These CI relationships are available from the 1.0.68 release on the ServiceNow Store.

CI	Relationship	CI
Configuration Item [cmdb_ci]	Hosted on::Hosts	Logical Datacenter [cmdb_ci_logical_datacenter]
Logical Datacenter [cmdb_ci_logical_datacenter]	Hosted on::Hosts	Cloud Service Account [cmdb_ci_cloud_service_account]

Troubleshooting

If the mapping process does not proceed as you expected, follow the following suggestions.

Symptom	Cause	Solution
Discovery fails. The discovery message contains the information about an error caused by the REST timeout.	There are many CIs sending the REST call response in the deployment. The MID Server cannot process the REST call response without exceeding the time limit controlled by the mid.sa.cloud.request_timeout parameter.	By default, the mid.sa.cloud.request_timeout parameter is set to 30000 milliseconds. Increase the value of this parameter on the relevant MID Server and run discovery again. Note: If the Configuration Parameters related list for the relevant MID Server does not show this parameter, you may need to add it.
Pattern Designer fails during a debug session. The Pattern Designer message contains information about an error caused by a timeout.	The Pattern Designer fails because of a timeout during pattern debugging (and not during discovery).	By default, the sa.debugger.max_timeoutparameter is set to 240 seconds. Increase the value of this parameter on the relevant MID Server.
