Choose the pattern version

  • Release version: Australia
  • Updated March 12, 2026
  • 1 minute to read

    • Every time you modify and save a pattern, you create a version of this pattern. Choose which pattern version Service Mapping and Discovery use for discovery.

    Before you begin

    Role required: admin

    About this task

    By default, the latest version is used for discovery, but you can choose any other version to use.

    If necessary, you can compare pattern versions.

    Procedure

    1. Navigate to All > Pattern Designer > Discovery Patterns.
    2. Click the required pattern.
      The form for this pattern opens.
    3. Click the Pattern tab.
    4. Scroll down to the Versions section.
      The state of the active pattern version that Service Mapping and Discovery use is Current.
    5. Click the version you want to use.
    6. Click Revert to this version under Related Links.

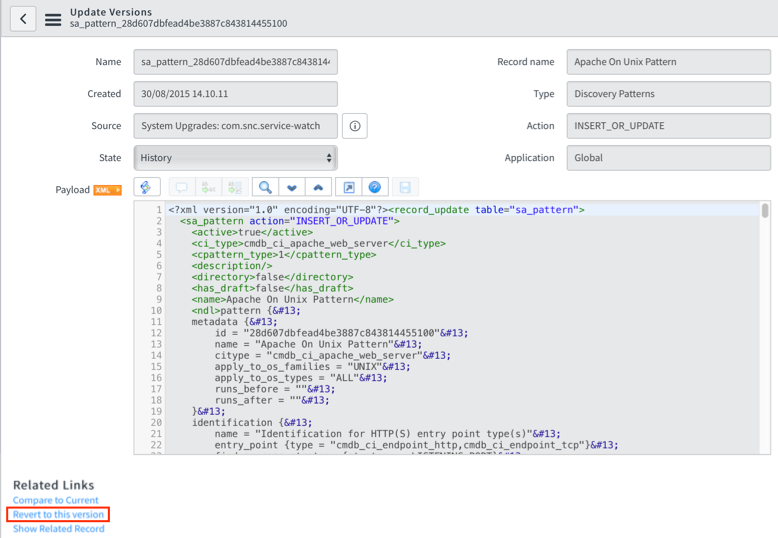

      Selecting the Revert to this version option
      This pattern version becomes the active version that Service Mapping and Discovery use. Its state changes to Current.
