Discovery Admin Workspace IP inventory
Summarize
Summary of Discovery Admin Workspace IP inventory
The IP inventory page in Discovery Admin Workspace centralizes management of IP addresses, ranges, networks, and range sets used by Discovery to scan your environment. It enables ServiceNow customers to review existing IP data and efficiently add entries to Discovery range sets, streamlining IP-based Discovery scheduling and configuration.
Show less
Access the IP inventory page via Workspaces > Discovery Admin Workspace > Schedules > IP-based Discovery > View inventory or from the Discovery Admin Workspace Settings page. This feature requires Discovery Admin Workspace version 1.19.0 or later and the Australia, Zurich Patch 8, or later release of the ServiceNow AI Platform.
Key Features
- Tabbed Interface: Separate tabs display different IP data categories—IP Address Lists, IP Ranges, IP Networks, Discovery Range Sets, and IPAM data.
- Data Management Controls: Create new IP data entries, map IP data to range sets, refresh views, export data in multiple formats (Excel, CSV, JSON, PDF), and customize columns or copy URLs.
- IP Address Lists: Manage lists containing IPv4 and IPv6 addresses (no subnets/networks). Duplicates across lists on the same schedule are automatically removed during discovery. The Name column is hidden by default but can be enabled for clarity.
- IP Ranges & Networks: View and select IP ranges or networks to add to range sets. Note that an IP range can only belong to one range set. The interface indicates if ranges belong to multiple Discovery schedules.
- Discovery Range Sets: View existing range sets associated with one or more Discovery schedules. New range sets can be created here.
- IPAM Data: Displays IP addresses and subnets mapped to auto-created Discovery schedules and those imported from IP Address Management (IPAM) solutions. Editing or adding data in the Imported IPs section is not recommended to prevent data corruption.
Practical Use for ServiceNow Customers
- Centralize and streamline IP address management for Discovery scanning in a single workspace.
- Easily create, organize, and map IP data to Discovery schedules and range sets, reducing manual configuration errors.
- Export IP data for reporting or offline analysis.
- Integrate IPAM data safely while preventing accidental edits that could corrupt imported IP information.
- Improve visibility into how IP addresses and ranges are allocated across Discovery schedules, enabling better environment coverage planning.
The IP inventory page centralizes the IP addresses, ranges, networks, and range sets that Discovery uses to scan your environment. Use it to review existing IP data and add entries to Discovery range sets.
To access the IP inventory page, navigate to .
You can also access the IP inventory page from the Discovery Admin Workspace Settings page.
Key features
- New: Create IP data. For more information, see Add IP data.
- Add to Range Set: Map IP data to a range set. For more information, see Add IP data to a range set.
- Refresh icon: Update the data
- Export: Download the list as Excel, CSV, JSON, or PDF, or send it by email.
- More Actions icon: Add or remove columns or coy the URL.
The following sections describe the IP data on each tab.
- IP Address Lists
-

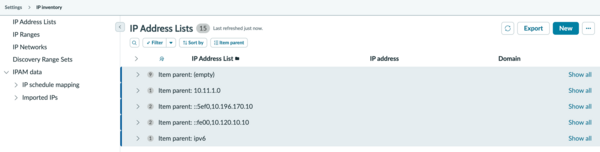

The IP Address Lists tab displays your IP address lists, grouped by list. A list can contain both IPv4 and IPv6 addresses, but not IPv6 subnets or networks. An IP address can belong to more than one list. Discovery removes duplicate addresses at the start of a discovery when the lists are on the same schedule.
An IP address list requires a name. The Name column is hidden by default because existing records may not have a name. To add the Name column to the table, select the More Actions icon (
) and select Personalize fields. - IP Ranges
-

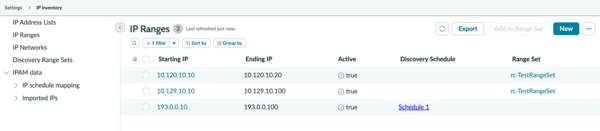

The IP Ranges tab displays your IP ranges. If an IP range belongs to a range set used in multiple Discovery schedules, the Range Set column displays a Multiple label.
Select one or more IP ranges from the table to enable the Add to Range Set option. For more information, see Add IP data to a range set.Note:An IP range can belong to only one range set. - IP Networks
-

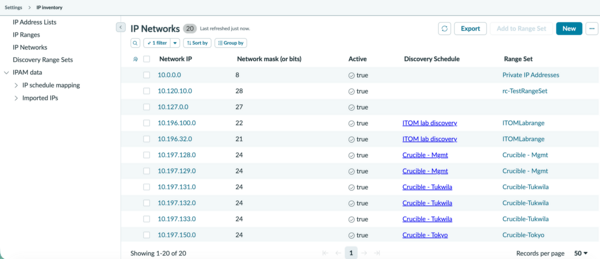

The IP Networks tab displays your IP networks.
Select one or more IP ranges from the table to enable the Add to Range Set option. For more information, see Add IP data to a range set.Note:An IP range can belong to only one range set. - Discovery Range Sets

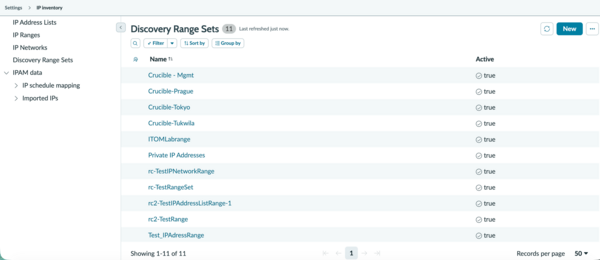

- The Discovery Range Sets tab displays your discovery range sets. A range set can be associated with one or more Discovery schedules.
This tab doesn't include the Add to Range Set action, because the records are already range sets. Select New to create a range set.
- IPAM data
- The IPAM data tab contains the IP schedule mapping and Imported IPs sections.
The IP schedule mapping section contains the IPv6 addresses and IPv4 subnets tabs, which display the IPv6 addresses and IPv4 subnets that are mapped to auto-created Discovery schedules.
The Imported IPs section contains the IP addresses and IP subnets tabs. These tabs display the IP addresses and IP subnets imported from your IPAM solutions.
Warning:To avoid data corruption, don't edit or add IP data in the Imported IPs table.
