Event Management process flow

  • Release version: Australia
  • Updated March 12, 2026
  • 2 minutes to read
    • Summarize
    Summarized using AI
    This content was generated using new OpenAI-powered functionality. Results are provided on an as is basis and are not guaranteed to be accurate or complete.

    Summary of Event Management Process Flow

    Event Management is a critical process that collects, analyzes, and converts events into alerts, facilitating efficient tracking and remediation. Events are received from various sources and transformed into alerts based on defined management rules, ensuring proactive incident management.

    Show full answer Show less

    Key Features

    • Event Collection: Events can be sent via email, scripts, SNMP traps, or web service APIs, allowing for flexible integration with external systems.
    • MID Server Functionality: The MID Server polls external tools and maintains a connection to Event Management, facilitating the transfer of event data to your instance for processing.
    • Event and Alert Management Rules: Alerts are generated through a systematic process that includes matching event rules, applying transforms, and accumulating events based on thresholds.
    • Alert Generation: If an event matches an existing message key in the Alert table, the alert is updated; otherwise, a new alert is created, and related events can be grouped under a single alert.

    Key Outcomes

    By leveraging Event Management, customers can expect streamlined event tracking and remediation processes. Alerts generated from this system provide visibility into potential issues, enabling timely responses and effective root cause analysis by binding alerts to specific Configuration Items (CIs). Even if no alert is generated, the original events remain accessible for review, ensuring that no critical information is lost.

    Event Management collects, analyzes, and converts events into alerts, enabling efficient tracking and remediation.

    Event Management receives external events and generates alerts based on event and alert management rules. Events are sent directly to your instance via email server, script, SNMP trap, or web service API. The corresponding alerts appear on dashboards for tracking and remediation purposes.

    As the computer, software, or service generates events, the MID Server polls the external event tracking tool. The MID Server, maintaining a connection to Event Management, sends the information to your instance for storage, processing, and remediation.

    The instance stores events in the Event [em_event] table and attempts to generate alerts based on predefined rules and event mappings. Regardless of whether an alert is generated, the original event is available for review and remediation. Alerts are generated according to the following process flow.

    1. Match Event Rule: Find the best matching event rule for an event.

      A rule is matched if the source of the event matches the source specified in an existing rule. Additionally, a rule is matched if the event matches the optional rule filter and the event additional_info value matches the rule Additional Information filter. A rule without any filter is ignored, such as when the source filter or Additional Information filter is missing. If multiple rules are defined for the same type of event, use the rule order to determine the sequence of rule application.

    2. Ignore Rule: If the rule Ignore check box is selected, no alert is generated. However, the event is still available for review and remediation.
    3. Apply Transforms:
      • If transforms have been defined, apply them.
      • If compose parameters are set, apply the additional content to display to the user in the alert.
    4. Threshold Accumulation: If Active in the threshold section is selected, accumulate all events until the threshold is met, then generate a single alert for the events.
    5. Event Field Mapping
      • Search for an event field mapping even if there was no event rule.
      • If an event field mapping is found, apply the mapping information.
      • If the event has no severity after the event transformations, retain the event for reference purposes and do not generate an alert.
    6. Alert Generation
      • Search the Alert [em_alert] table for a matching message key.
      • If a matching message key exists, update the alert according to the event information.
      • If a matching message key does not exist, create an alert.
      • If another event has the same matching key, associate the events under a single alert.
      • For root cause analysis purposes, bind the alert to a specific Configuration Item (CI).

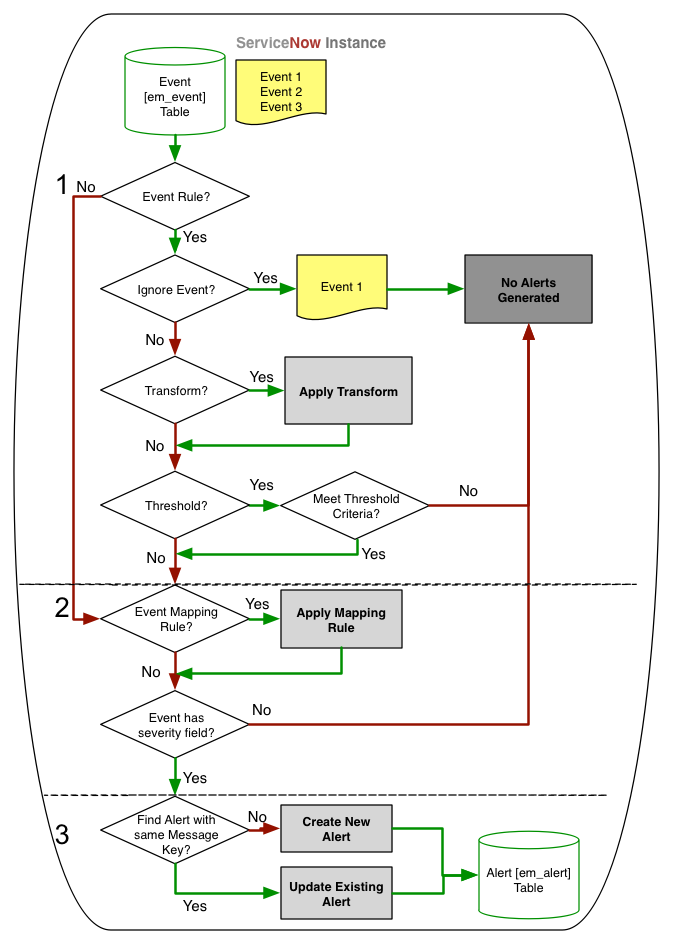

    Figure 1. Event workflow
    Event workflow
